S3KR7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> S3KR7

S3KR7: DescriptionRectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN; CategoryDiscrete semiconductor diode; File Size408KB，4 Pages; ManufacturerTaiwan Semiconductor; Websitehttp://www.taiwansemi.com/; Environmental Compliance

Download Datasheet Parametric View All

S3KR7 Overview

Rectifier Diode, Schottky, 1 Phase, 1 Element, 3A, 800V V(RRM), Silicon, DO-214AB, ROHS COMPLIANT, PLASTIC, SMC, 2 PIN

S3KR7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Taiwan Semiconductor
package instruction	ROHS COMPLIANT, PLASTIC, SMC, 2 PIN
Reach Compliance Code	compli
ECCN code	EAR99
application	GENERAL PURPOSE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.15 V
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	100 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	3 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	10 µA
Maximum reverse recovery time	1.5 µs
surface mount	YES
technology	SCHOTTKY
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	30

S3KR7 Preview

CREAT BY ART

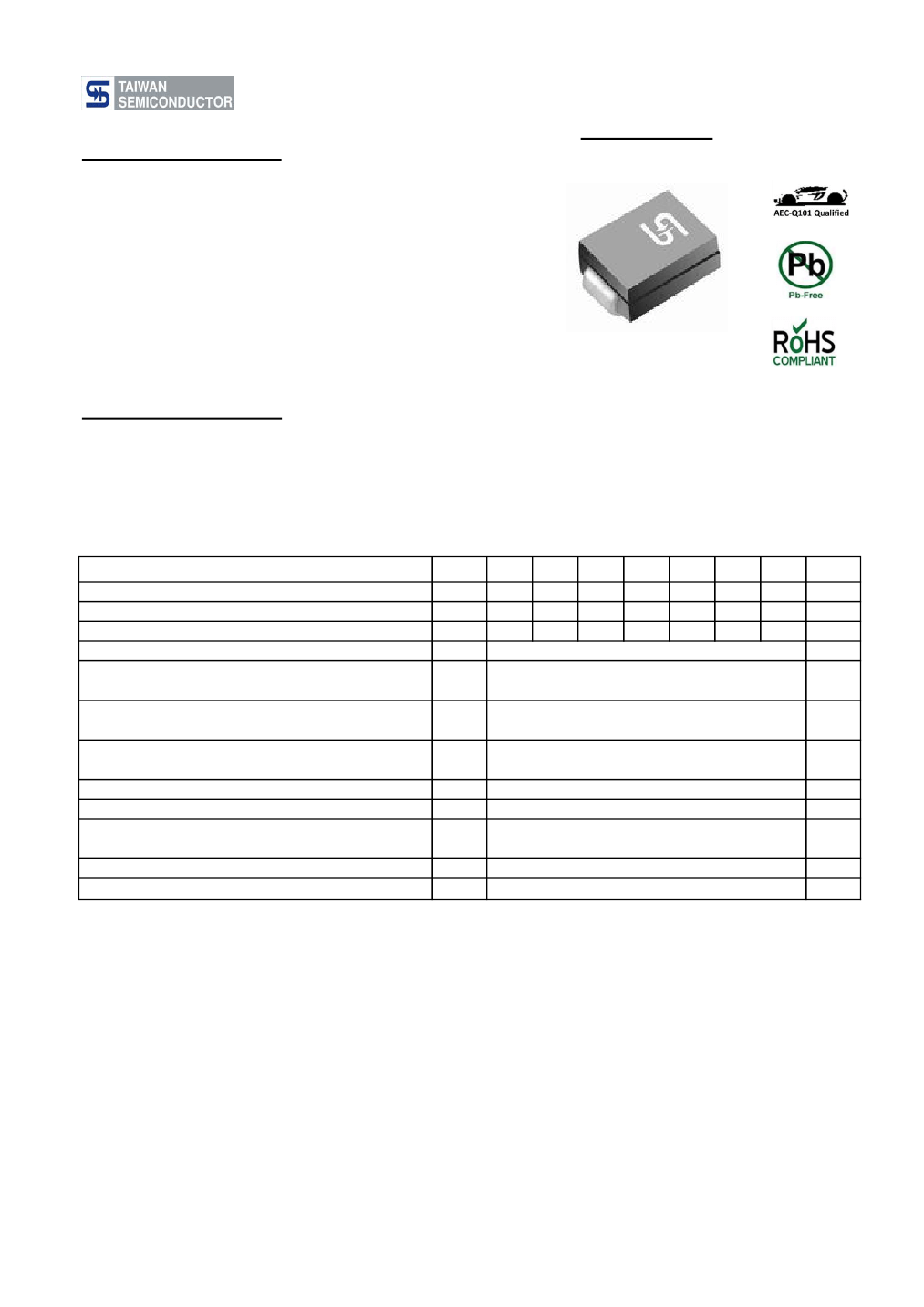

S3A - S3M

3.0AMPS Surface Mount Rectifiers

SMC/DO-214AB

Features

For surface mounted application

Glass passivated chip junction

Low forward voltage drop

High current capability

Easy pick and place

High surge current capability

Plastic material used carries Underwriters

Laboratory Classification 94V-0

High temperature soldering:

260℃/10 seconds at terminals

Green compound with suffix "G" on packing

code & prefix "G" on datecode

Mechanical Data

Case: Molded plastic

Terminals: Pure tin plated, lead free

Polarity: Indicated by cathode band

Packing: 16mm tape per EIA STD RS-481

Weight: 0.21 grams

Maximum Ratings and Electrical Characteristics

Rating at 25

℃

ambient temperature unless otherwise specified.

Parameter

Maximum Repetitive Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Maximum Average Forward Rectified Current

Peak Forward Surge Current, 8.3 ms Single Half Sine-wave

Superimposed on Rated Load (JEDEC method)

Maximum Instantaneous Forward Voltage (Note 1)

@3A

Maximum Reverse Current @ Rated VR

Typical Reverse Recovery Time (Note 2)

Typical Junction Capacitance (Note 3)

Typical Thermal Resistance

Operating Temperature Range

Storage Temperature Range

Note 1: Pulse Test with PW=300 usec, 1% Duty Cycle

=25

℃

=125

℃

Symbol

RRM

RMS

F(AV)

FSM

Trr

θjA

θjL

STG

S3A

S3B

100

S3D

200

140

200

S3G

400

280

400

100

1.15

250

1.5

S3J

600

420

600

S3K

800

560

800

S3M

1000

700

1000

Unit

C/W

- 55 to + 150

Note 2: Reverse Recovery Test Conditions: I

=0.5A, I

=1.0A, I

=0.25A

Note 3: Measured at 1 MHz and Applied Reverse Voltage of 4.0V D.C.

Version:H13

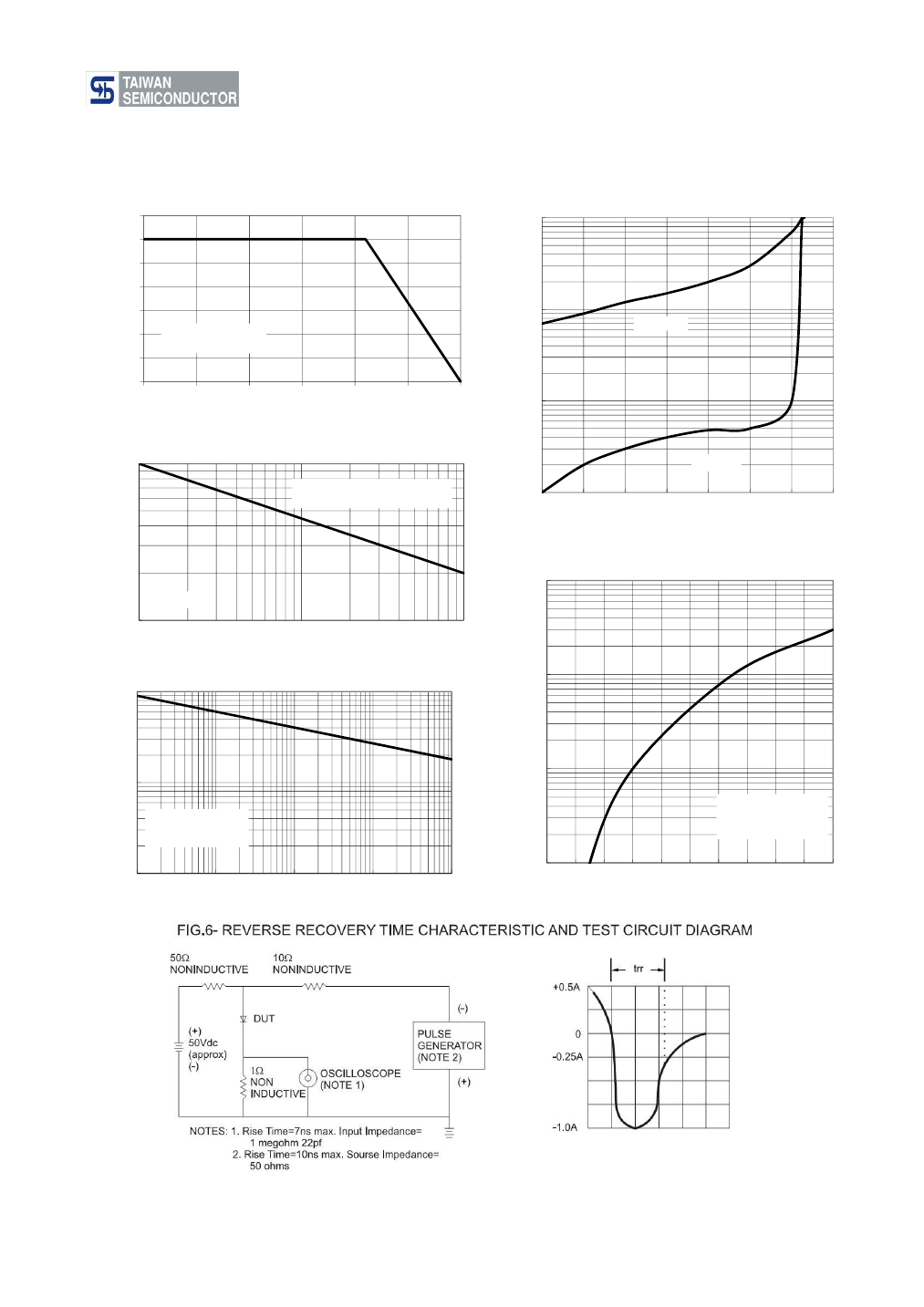

RATINGS AND CHARACTERISTIC CURVES (S3A THRU S3M)

FIG.1 FORWARD CURRENT DERATING CURVE

100

FIG. 2 TYPICAL REVERSE CHARACTERISTICS

3.5

AVERAGE FORWARD CURRENT

(A)

INSTANTANEOUS REVERSE CURRENT (uA)

2.5

1.5

0.5

100

LEAD TEMPERATURE (

125

150

RESISTIVE OR

INDUCTIVE LOAD

TA=125℃

100

FIG. 3 MAXIMUM NON-REPETITIVE FORWARD

SURGE CURRENT

8.3mS Single Half Sine Wave

JEDEC Method

TA=25℃

0.1

100

120

140

PERCENT OF RATED PEAK REVERSE VOLTAGE (%)

PEAK FORWARD SURGE

URRENT (A)

FIG. 5 TYPICAL FORWARD CHARACTERISTICS

100

TA=25℃

NUMBER OF CYCLES AT 60 Hz

100

INSTANTANEOUS FORWARD CURRENT (A)

FIG. 4 TYPICAL JUNCTION CAPACITANCE

100

CAPACITANCE (pF)

TA=25℃

Pulse Width=300us

1% Duty Cycle

0.1

TA=25℃

f=1.0MHz

0.01

0.1

REVERSE VOLTAGE (V)

100

0.6

0.7

0.8

0.9

1.1 1.2 1.3

FORWARD VOLTAGE (V)

1.4

1.5

1.6

Version:H13

Ordering information

Part No.

S3x

(Note)

Package

SMC

Packing

850 / 7" REEL

3K / 13" REEL

Packing code

(Green)

R7G

R6G

M6G

3K / 13" REEL

SMC

Note: "x" is Device Code from "A" thru "M".

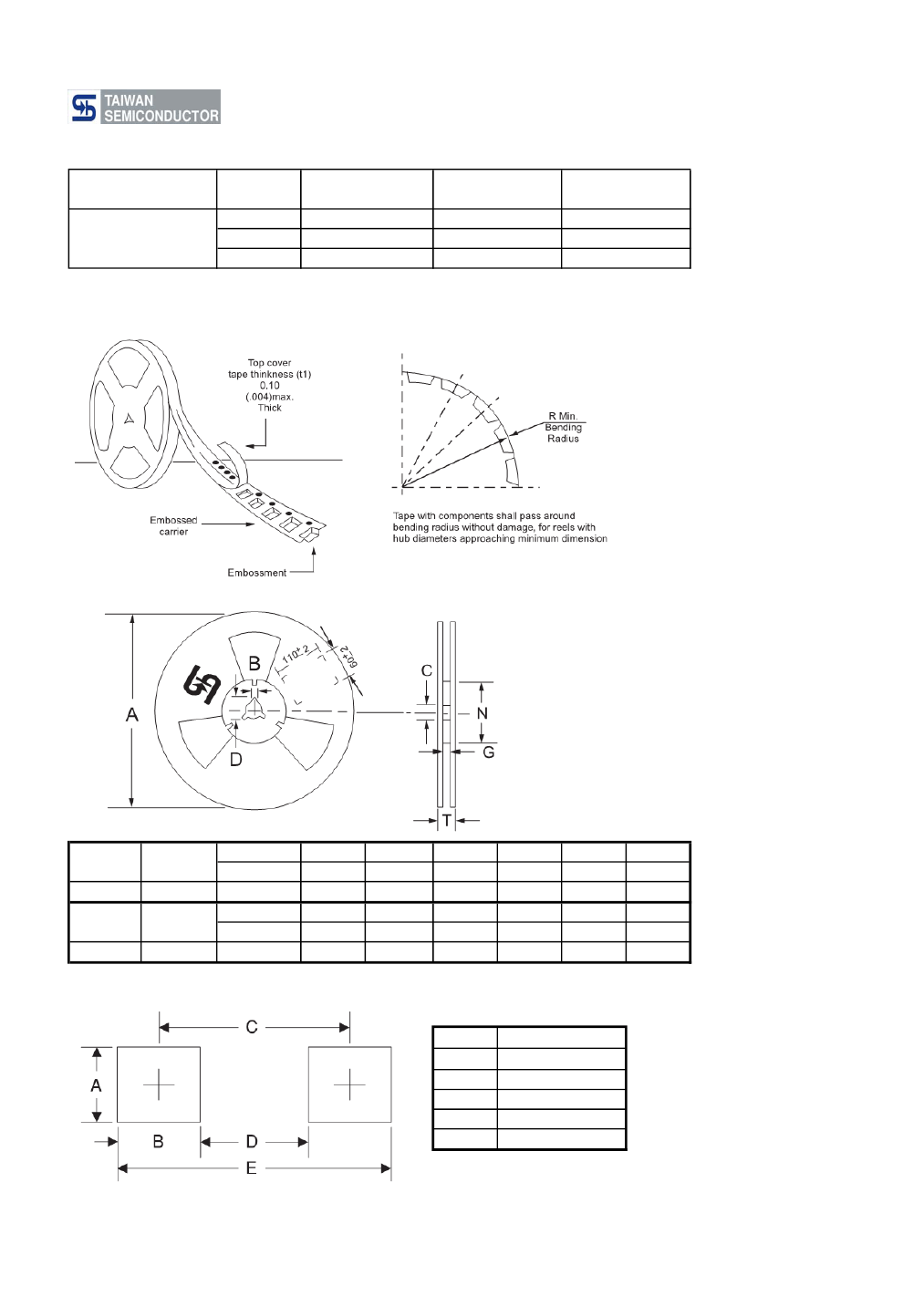

Tape & Reel specification

Reel Size Tape Size

16mm

Reel Size Tape Size

13"

16mm

±2.0

178

max

330

±0.4

1.9

±0.5

+0.5;-0.2

±0.5

min

20.2

±1.0

±0.5

+0.8;-0

16.2

+2.0;-0

16.4

max

18.6

max

22.4

Unit (mm)

Suggested PAD Layout

Symbol

Unit(mm)

3.3

2.5

6.8

4.4

9.3

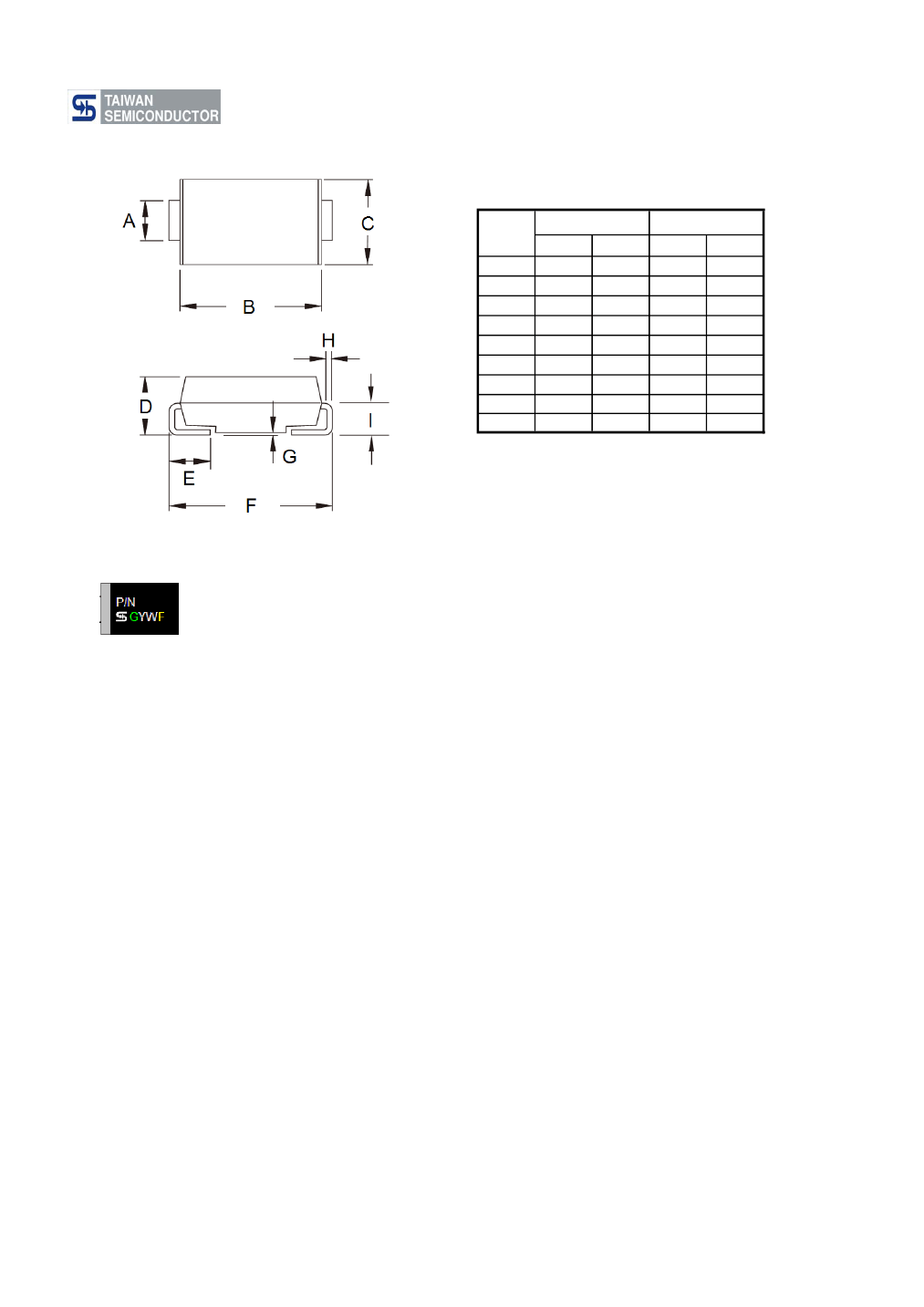

Dimensions

DIM.

Unit(mm)

Min

2.90

6.60

5.59

2.00

1.00

7.75

0.10

0.15

1.26

Max

3.20

7.11

6.22

2.62

1.60

8.13

0.20

0.31

1.56

Unit(inch)

Min

0.114

0.260

0.220

0.079

0.039

0.305

0.004

0.006

0.050

Max

0.126

0.280

0.245

0.103

0.063

0.320

0.008

0.012

0.061

Marking Diagram

P/N

= Specific Device Code

= Green Compound

= Date Code

= Factory Code

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
