TA78DL05AF datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TA78DL05AF

Preview

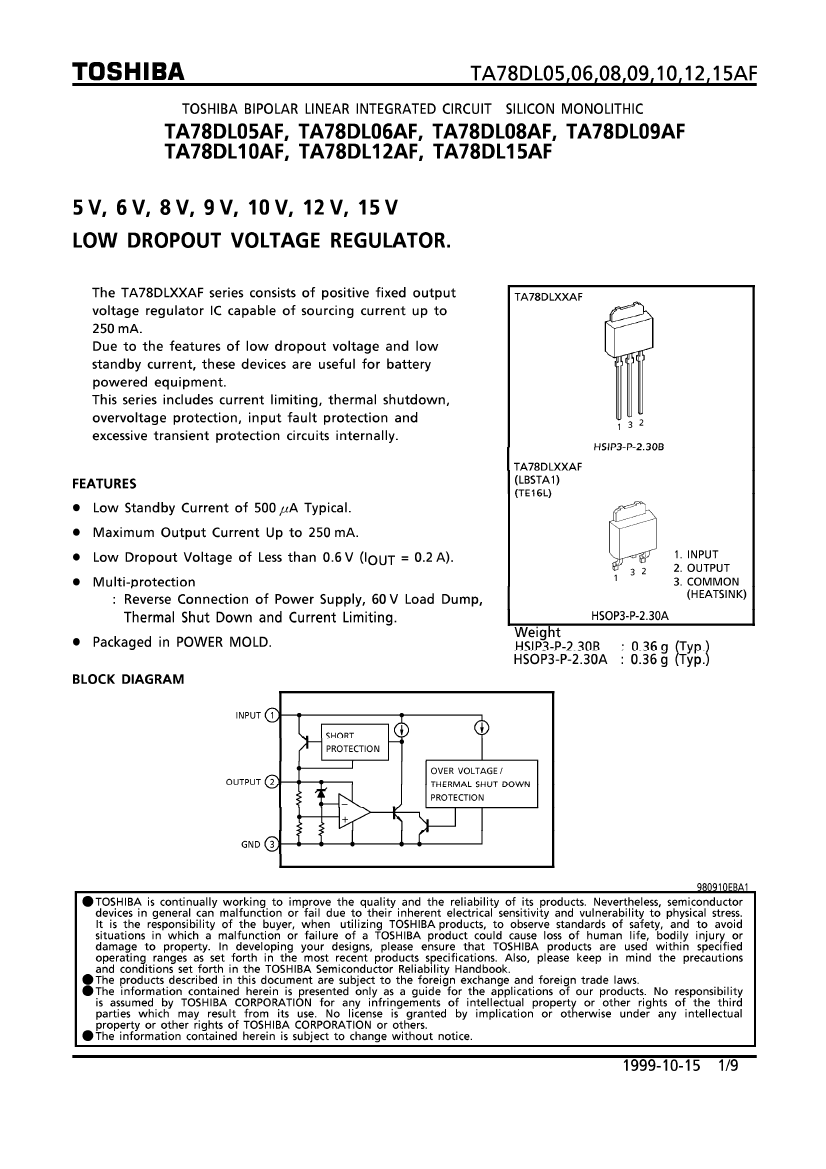

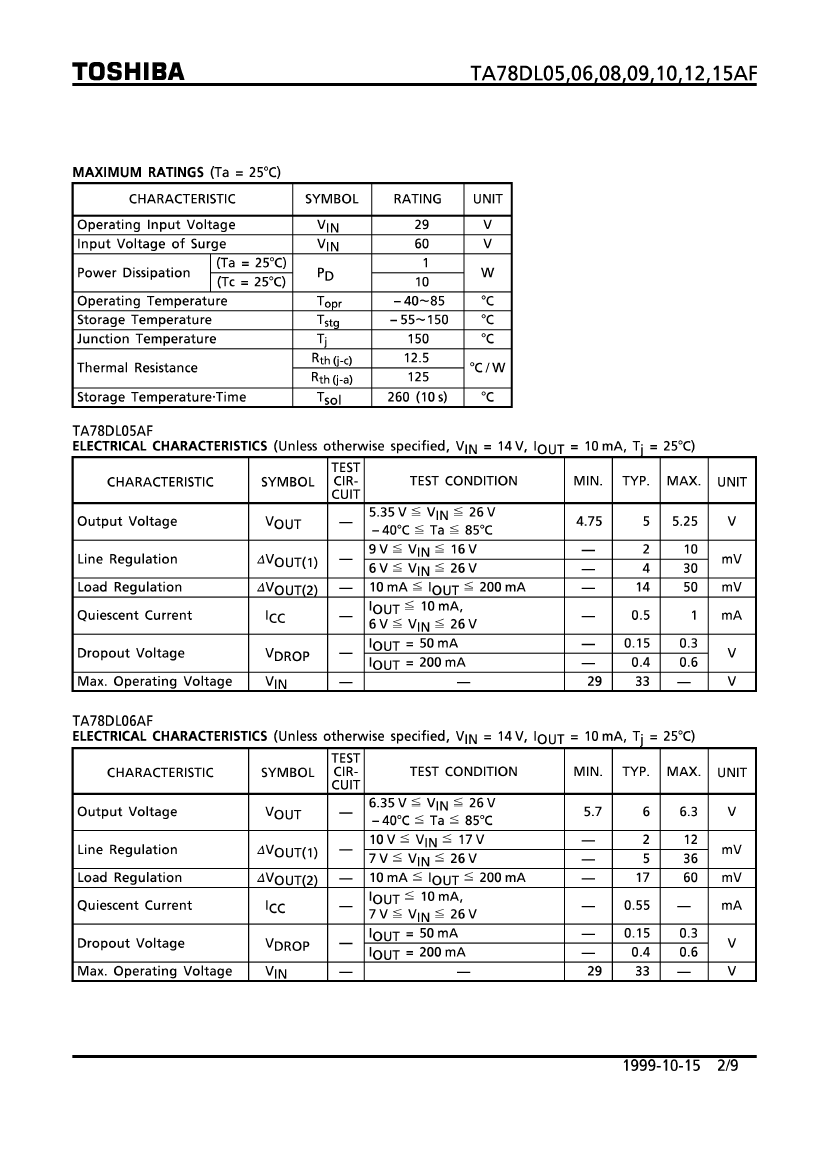

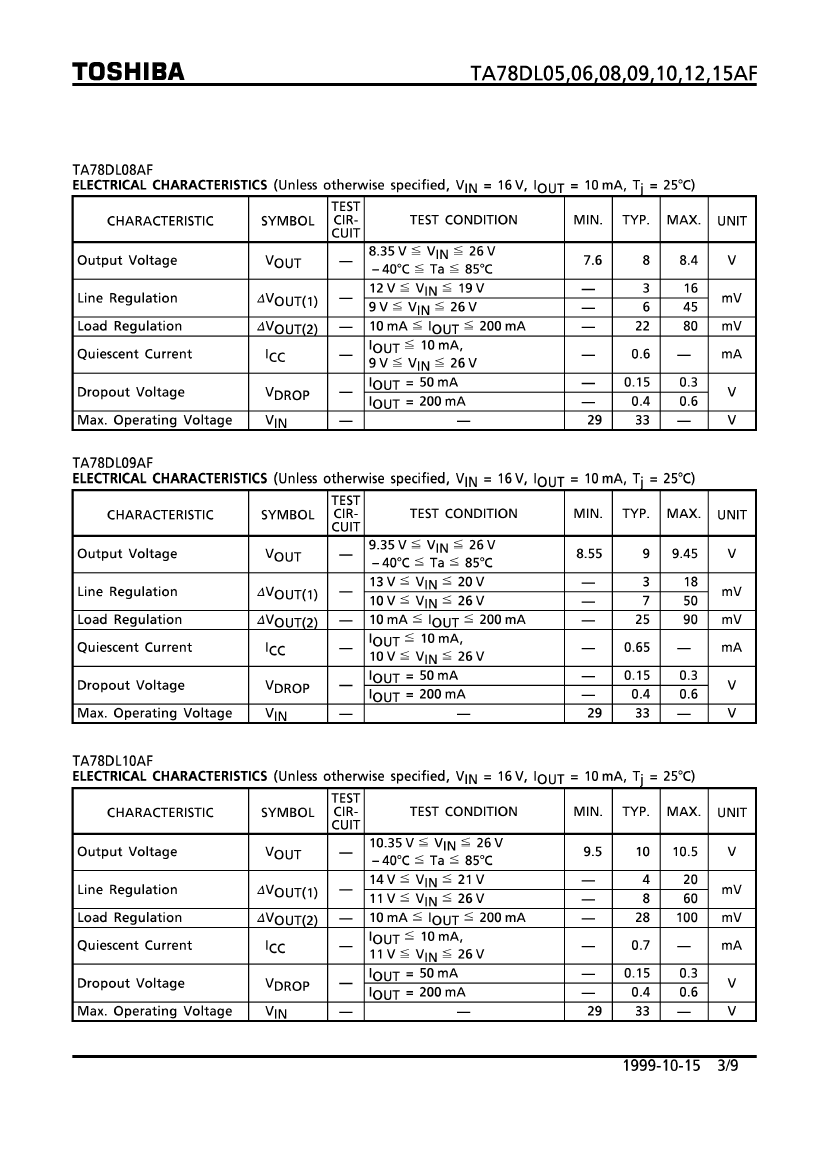

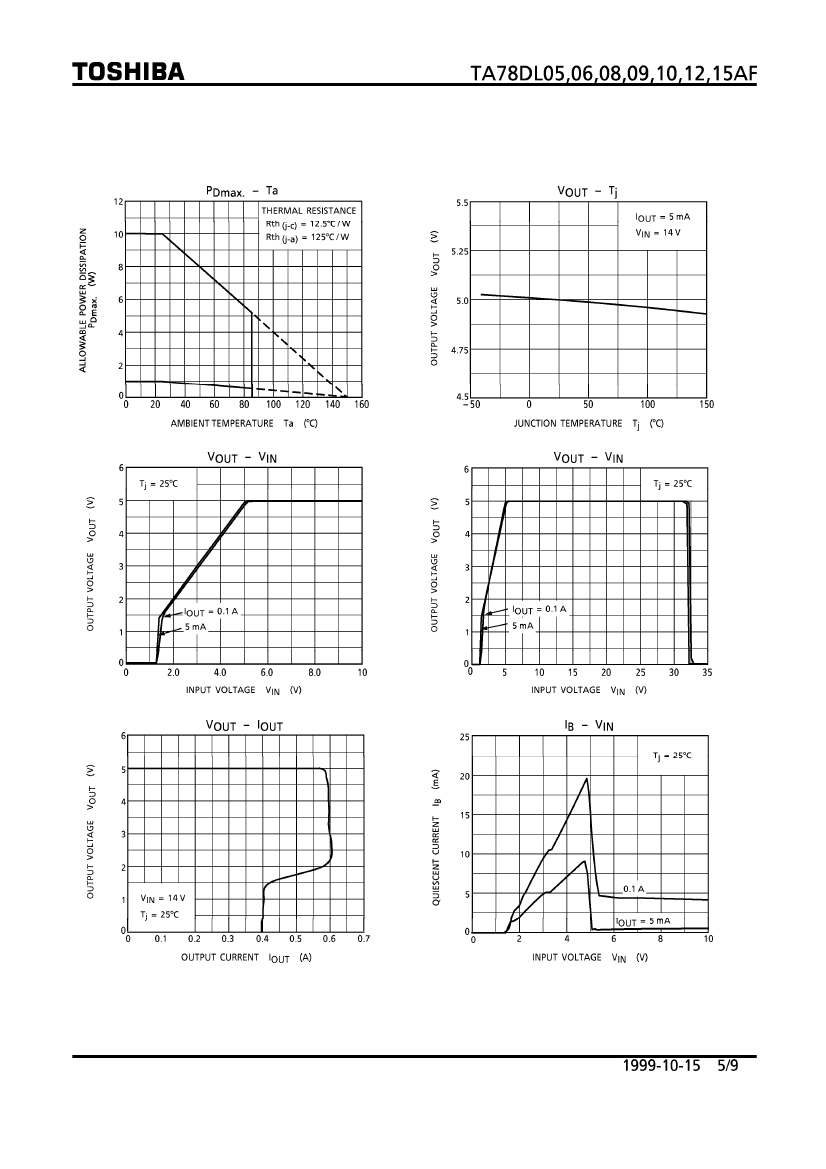

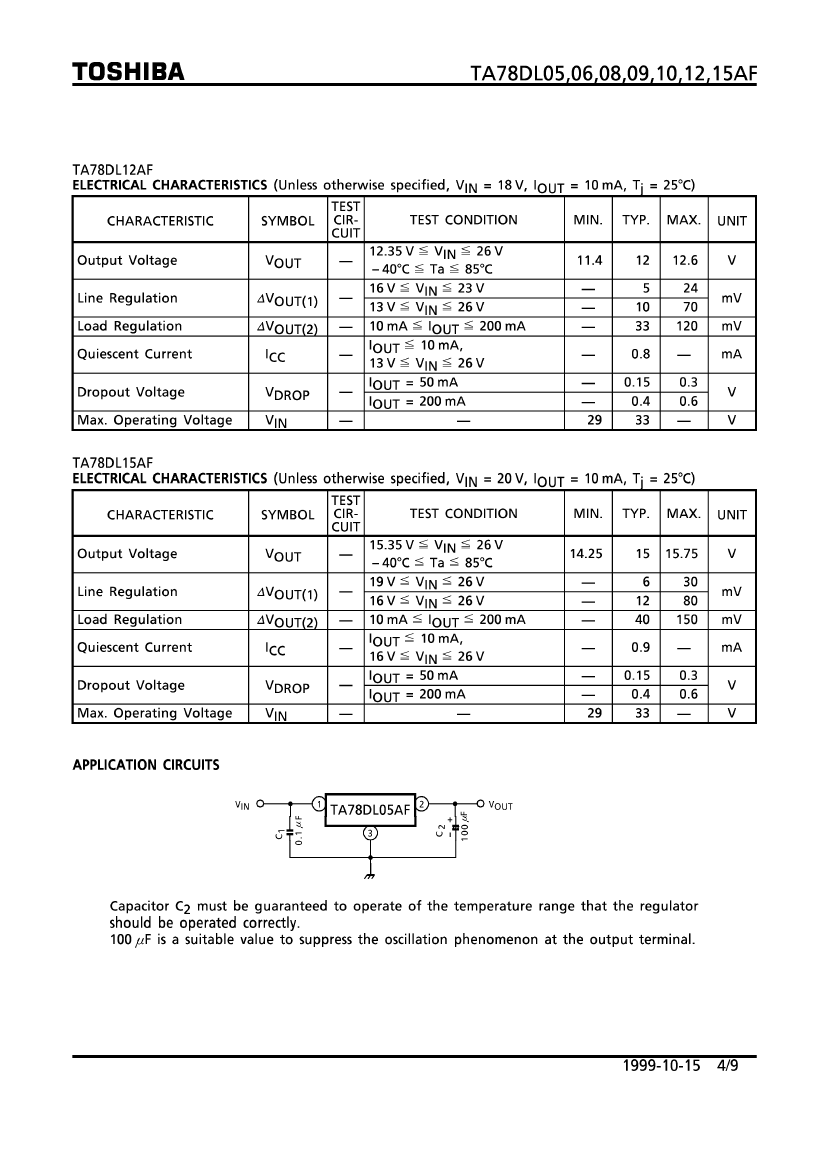

TA78DL05AF: DescriptionLOW DROPOUT VOLTAGE REGULATOR; CategoryPower/power management The power supply circuit; File Size327KB，9 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TA78DL05AF Overview

LOW DROPOUT VOLTAGE REGULATOR

TA78DL05AF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SIP
package instruction	2.30 MM PITCH, PLASTIC, HSIP-3
Contacts	3
Reach Compliance Code	unknow
ECCN code	EAR99
Adjustability	FIXED
Maximum drop-back voltage 1	0.6 V
Nominal dropback voltage 1	0.4 V
Maximum absolute input voltage	29 V
Maximum input voltage	26 V
Minimum input voltage	6 V
JESD-30 code	R-PSIP-T3
JESD-609 code	e0
Maximum grid adjustment rate	0.03%
Maximum load regulation	0.05%
Number of functions	1
Output times	1
Number of terminals	3
Working temperatureTJ-Max	150 °C
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current 1	0.25 A
Maximum output voltage 1	5.25 V
Minimum output voltage 1	4.75 V
Nominal output voltage 1	5 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP3,.04,90TB
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	NO
technology	BIPOLAR
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.3 mm
Terminal location	SINGLE
Maximum voltage tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

TA78DL05AF Related Products

	TA78DL05AF	TA78DL06AF	TA78DL08AF	TA78DL09AF	TA78DL10AF	TA78DL12AF	TA78DL15AF	TA78DLxxAF
Description	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR	LOW DROPOUT VOLTAGE REGULATOR
Parts packaging code	SIP	SIP	SIP	SIP	SIP	SIP	SIP	-
package instruction	2.30 MM PITCH, PLASTIC, HSIP-3	SIP, SIP3,.04,90TB	SIP, SIP3,.04,90TB	SIP, SIP3,.04,90TB	SIP, SIP3,.04,90TB	SIP, SIP3,.04,90TB	SIP, SIP3,.04,90TB	-
Contacts	3	3	3	3	3	3	3	-
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknow	unknow	-
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	-
Maximum drop-back voltage 1	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	0.6 V	-
Nominal dropback voltage 1	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	-
Maximum absolute input voltage	29 V	29 V	29 V	29 V	29 V	29 V	29 V	-
Maximum input voltage	26 V	26 V	26 V	26 V	26 V	26 V	26 V	-
Minimum input voltage	6 V	7 V	9 V	10 V	11 V	13 V	16 V	-
JESD-30 code	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	R-PSIP-T3	-
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	-
Maximum grid adjustment rate	0.03%	0.036%	0.045%	0.05%	0.06%	0.07%	0.08%	-
Maximum load regulation	0.05%	0.06%	0.08%	0.09%	0.1%	0.12%	0.15%	-
Number of functions	1	1	1	1	1	1	1	-
Output times	1	1	1	1	1	1	1	-
Number of terminals	3	3	3	3	3	3	3	-
Working temperatureTJ-Max	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Maximum output current 1	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	0.25 A	-
Maximum output voltage 1	5.25 V	6.3 V	8.4 V	9.45 V	10.5 V	12.6 V	15.75 V	-
Minimum output voltage 1	4.75 V	5.7 V	7.6 V	8.55 V	9.5 V	11.4 V	14.25 V	-
Nominal output voltage 1	5 V	6 V	8 V	9 V	10 V	12 V	15 V	-
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	SIP	SIP	SIP	SIP	SIP	SIP	SIP	-
Encapsulate equivalent code	SIP3,.04,90TB	SIP3,.04,90TB	SIP3,.04,90TB	SIP3,.04,90TB	SIP3,.04,90TB	SIP3,.04,90TB	SIP3,.04,90TB	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	-
surface mount	NO	NO	NO	NO	NO	NO	NO	-
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	-
Terminal surface	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	2.3 mm	-
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	-
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%	-
Maker	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	-
