534180-4 datasheet, PDF - EEWORLD Datasheet

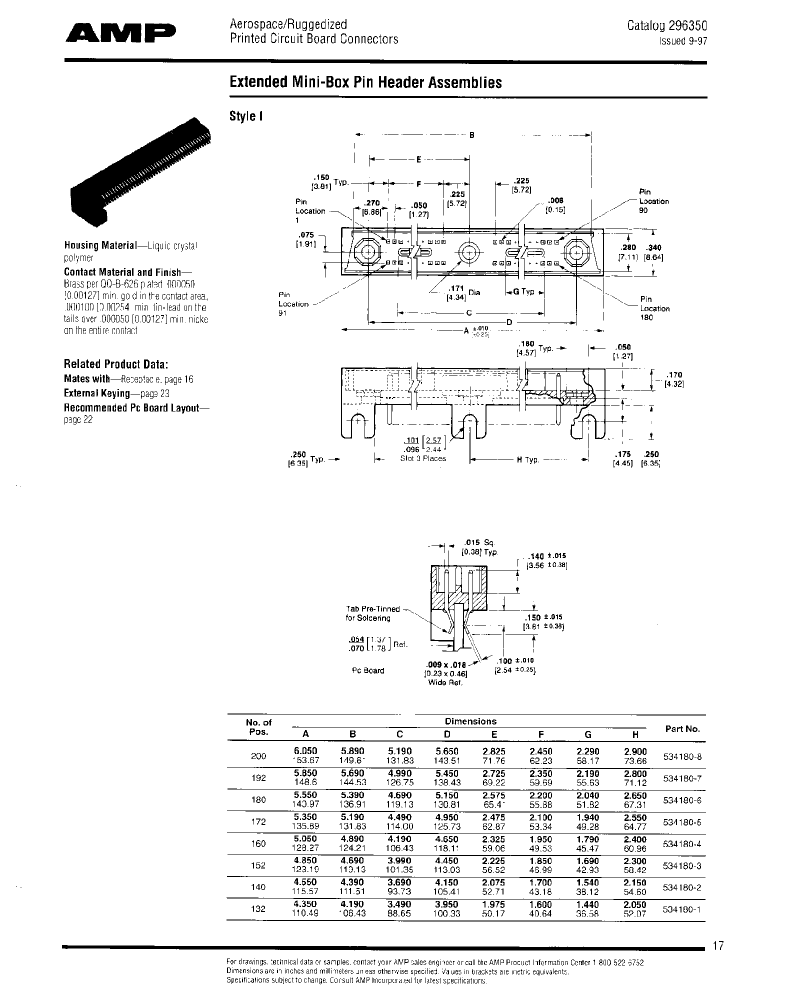

534180-4: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,GRAY; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

534180-4 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,160 CONTACTS,PIN,0.05 PITCH,GRAY

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
ECCN code	EAR99
Board mount options	HOLE .099-.111
body width	0.34 inch
body length	5.05 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
maximum insertion force	LIF N
Insulator color	GRAY
insulator material	LIQUID CRYSTAL POLYMER (LCP)
Manufacturer's serial number	534180
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
Plating thickness	50u inch
polarization key	ENDS
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Total number of contacts	160
