869678-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 869678-1

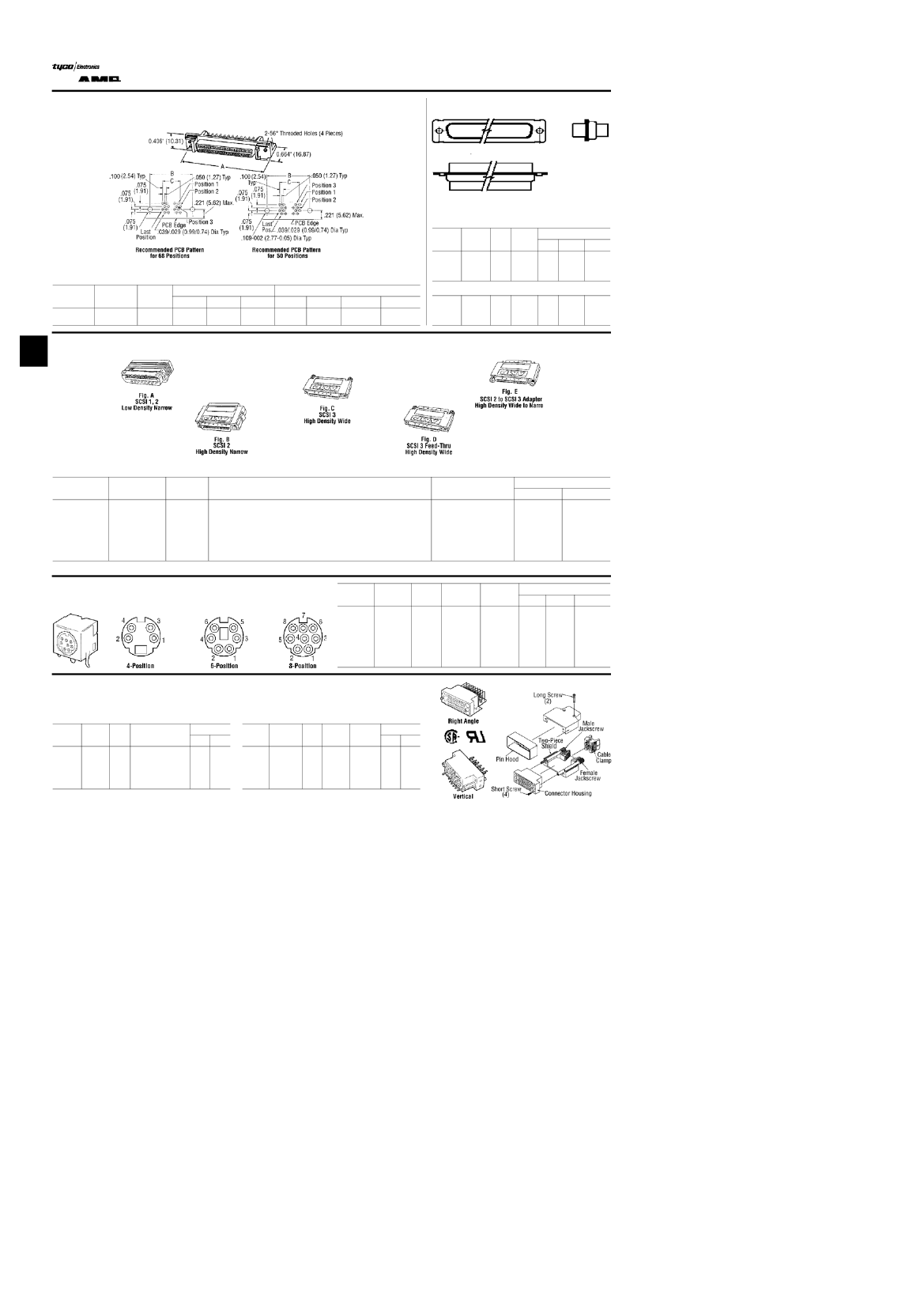

Preview

869678-1: Description50-68 CONTACT(S), PANEL MOUNT, MALE-FEMALE, RECTANGULAR ADAPTER; CategoryThe connector The connector; File Size130KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

869678-1 Overview

50-68 CONTACT(S), PANEL MOUNT, MALE-FEMALE, RECTANGULAR ADAPTER

869678-1 Parametric

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknow
Other features	AMPLIMITE
Body/casing type	PLUG-RECEPTACLE
Connector type	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	869678
Mixed contacts	NO
Installation type	PANEL
触点数量:侧 1	50
触点数量:侧 2	68
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
direct connection	YES
UL Flammability Code	94V-0

Preview

Download Datasheet

View All

AMP/Tyco

SCSI Connectors and Cable Assemblies, Circular DINs and V.35 Connectors

AMPLIMITE

¨

.050 Series Right Angle Receptacle Headers with Rails

and Latch Blocks, Series III

AMPLIMITE Subminiature D Connectors

HDM-20 (MIL-C-24308) Connectors

Plug with Pins

Stock

No.

512-0497

512-0501

512-0511

512-0521

Mfr.Õs

Type

205556-2

205558-2

205560-2

205562-2

No. of

Pos.

9

15

25

37

M24308/

4-1F

4-2F

4-3F

4-4F

Stainless steel retention springs. Insert material per MIL-C-24308.

EACH

1-99

14.20

19.82

34.68

46.10

100-499

12.91

16.51

28.90

38.42

500-999

11.83

14.02

24.77

32.93

c

Housing: Thermoplastic, 94V-0 Rated, Black SMT Compatible

c

Contact Plating: 30 µ" Gold Over Phosphor Bronze

Stock

No.

512-7903

512-7905

Mfr.Õs

Type

787171-5

787171-7

No. of

Pos.

50

68

c

0.112 (2.84) Solder Tail Length

c

Shell: Steel, Plated Bright Tin Over Copper

EACH

C

1.200

1.650

1-49

5.35

5.83

50-99

4.81

5.24

100-249

4.01

4.37

250-499

3.74

4.07

Dimensions (In.)

A

2.065

2.515

B

1.830

2.280

Receptacles with Sockets

512-0498

512-0507

512-0519

512-0523

205555-2

205557-2

205559-2

205561-2

9

15

25

37

2-1F

2-2F

2-3F

2-4F

12.79

31.99

44.06

59.16

11.63

26.66

36.72

49.30

10.66

22.85

31.47

42.26

8

SCSI 1, 2, 3 Termination Connectors SCSI (Small Computer Systems Interface)

Termination connectors are used to maintain signal transmission integrity requirements of computer bus systems.

Stock

No.

512-7709

512-7714

512-7718

512-7720

512-7722

512-7719

512-7721

512-7723

512-7725

*9 lines terminated.

Mfr.Õs

Type

556578-1

750881-1

869546-1

869516-1

869515-1

869684-1

869682-1

869680-1

869678-1

Fig.

A

B

C

D

E

¨

Description

50 pos. CHAMP style plug terminators mate with .085 centerline SCSI ports

50 pos. AMPLIMITE

¨

.050 series plug terminators. A cable

50 pos. AMPLIMITE

¨

.050 series plug terminators. A cable

68 pos. AMPLIMITE

¨

.050 series plug terminators. P and Q cable

68 pos. AMPLIMITE

¨

.050 series plug terminators. P and Q cable

AMPLIMITE

¨

.050 series, 68 pos. plug feed-thru to 68 pos. receptacle termination

AMPLIMITE

¨

.050 series, 68 pos. plug feed-thru to 68 pos. receptacle termination

AMPLIMITE

¨

.050 series, 68 pos. receptacle feed-thru to 50 pos. plug

AMPLIMITE

¨

.050 series, 68 pos. receptacle feed-thru to 50 pos. plug

Termination

Single Ended Passive

Single Ended Active

Differential

Single Ended Active

Differential

Single Ended Active*

Differential*

EACH

1-9

33.64

21.65

34.57

32.69

26.54

88.86

54.88

77.28

69.97

10-24

30.27

19.48

31.11

29.42

23.89

74.05

49.39

70.25

58.31

Shielded Miniature Circular DIN Receptacles

Right Angle PCB Ñ Thru-Mount Style

Stock

No.

512-7724

512-7726

512-0151

512-7728

512-7730

512-7732

512-7734

512-7736

512-7738

Mfr.Õs

Type

749181-1

749264-1

749274-1

749231-1

749265-1

749180-1

749266-1

749179-1

749267-1

No. of

Pos.

4

5

6

8

Plating

30 µ" Gold

Gold Flash

30 µ" Gold

With

Holddown

Yes

No

Yes

No

Yes

No

Yes

No

EACH

1-49

1.26

1.66

1.61

1.75

1.64

1.26

1.97

1.37

1.17

50-99

1.12

1.47

1.45

1.55

1.46

1.12

1.75

1.21

1.04

100-499

1.01

1.33

1.21

1.40

1.31

1.01

1.57

1.09

.94

M Series V.35 Special Applications Connectors

M Series offer dependable, convenient assembly in high speed data transmission applications. UL File No. 28476, CSA File No. 7189. Contacts and crimp tools are

same as for CPC series on page 377.

PCB Connectors

Stock

No.

Mfr.Õs

Type

No. of

Pos.

34

Description

Right Angle Receptacle

Fully Loaded

Right Angle Plug

Fully Loaded

Vertical Receptacle

Fully Loaded

EACH

1-9

10-24

18.27 15.23

34.99 29.15

28.38 23.65

Cable Connector Kits

Stock

No.

512-7758

512-7760

512-7762

512-7764

512-7766

512-7768

Mfr.Õs

Type

213684-1

213684-2

213684-3**

213684-4**

213685-1

213685-2

No. of

Pos.

34

Cable

Range

.400-.600

.250-.400

.400-.600

.250-.400

.400-.600

.250-.400

Connector

Type

Plug

Receptacle

EACH

1-9

20.05

25.68

24.13

20.89

13.61

10-24

16.71

18.23

21.40

20.11

17.41

11.34

512-7752

212810-2

512-7754

213289-1

512-7756

213524-1

** With Pin Hood.

386

b

ALLIED

Call Your Nearest Allied Location (1-800-433-5700) For Quick Service

869678-1 Related Products

	869678-1	556578-1	749264-1	750881-1	869680-1
Description	50-68 CONTACT(S), PANEL MOUNT, MALE-FEMALE, RECTANGULAR ADAPTER	SCSI BUS TERMINATOR,RECEPT,50 CONTACTS,PIN	CONNECTOR,CIRCULAR DIN,PCB MNT,RECEPT,4 CONTACTS,SKT,PC TAIL TERMINAL	SCSI BUS TERMINATOR,RECEPT,50 CONTACTS,PIN,0.05 PITCH,LATCH	50-68 CONTACT(S), PANEL MOUNT, MALE-FEMALE, RECTANGULAR ADAPTER
Reach Compliance Code	unknow	compliant	compliant	compliant	unknow
Body/casing type	PLUG-RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG-RECEPTACLE
Connector type	RECTANGULAR CONNECTOR ADAPTER	SCSI CONNECTOR TERMINATOR	CIRCULAR DIN CONNECTOR	SCSI CONNECTOR TERMINATOR	RECTANGULAR CONNECTOR ADAPTER
Contact point gender	MALE-FEMALE	MALE	FEMALE	MALE	MALE-FEMALE
Shell surface	TIN	NICKEL	TIN	TIN	TIN
Shell material	STEEL	STEEL	COPPER ALLOY	STEEL	STEEL
Maker	TE Connectivity	-	-	TE Connectivity	TE Connectivity
Other features	AMPLIMITE	POST MOLDED TERMINATOR, SCSI-1	-	SCSI-2	AMPLIMITE
DIN compliance	NO	-	YES	-	NO
Manufacturer's serial number	869678	556578	-	-	869680
Installation type	PANEL	-	BOARD	-	PANEL
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-
body width	-	0.605 inch	0.512 inch	0.458 inch	-
subject depth	-	1.22 inch	0.61 inch	1.08 inch	-
body length	-	3.076 inch	0.551 inch	1.935 inch	-
Contact to complete cooperation	-	AU ON NI	AU ON NI	AU ON NI	-
Contact material	-	PHOSPHOR BRONZE	COPPER ALLOY	PHOSPHOR BRONZE	-
Plating thickness	-	30u inch	30u inch	30u inch	-
Guideline	-	UL	UL, CSA	UL	-
Total number of contacts	-	50	4	50	-
