TA7774F datasheet, PDF - EEWORLD Datasheet

TA7774F: DescriptionSTEPPER MOTOR CONTROLLER, 0.4 A, PDSO18; CategoryOther integrated circuit (IC) The signal circuit; File Size325KB，11 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

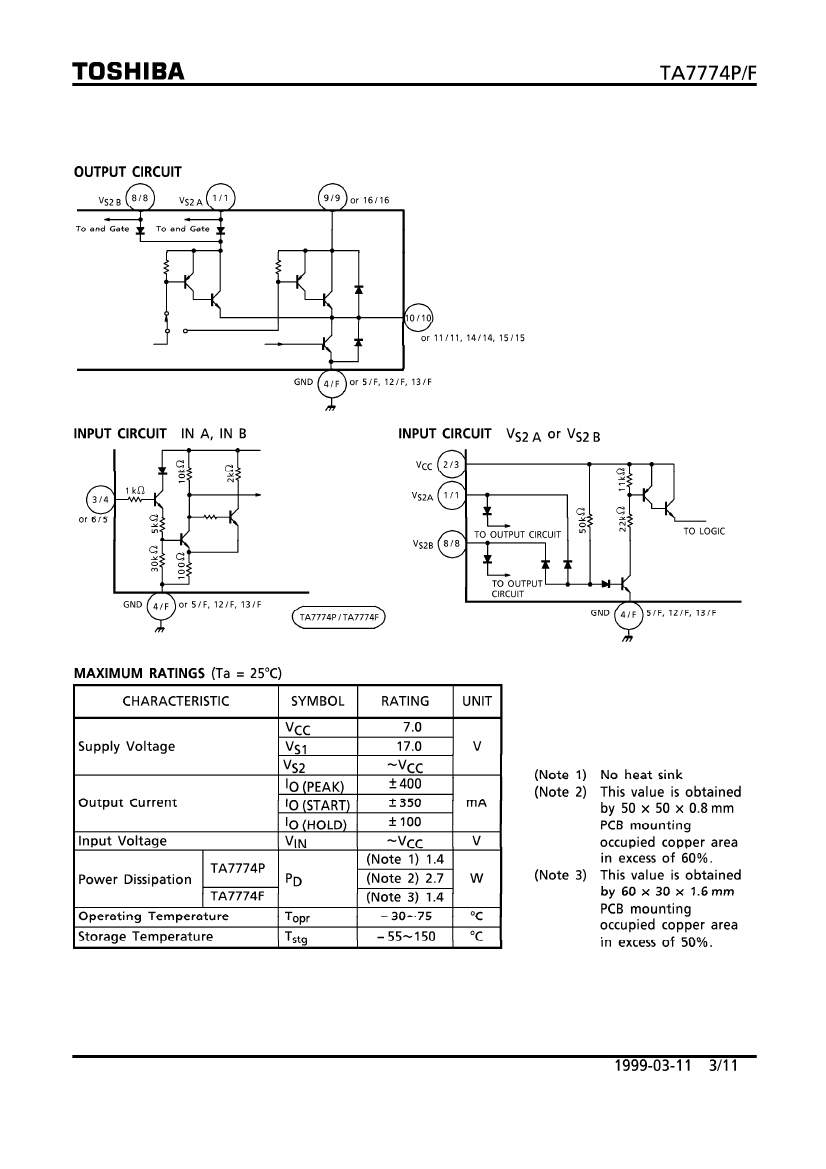

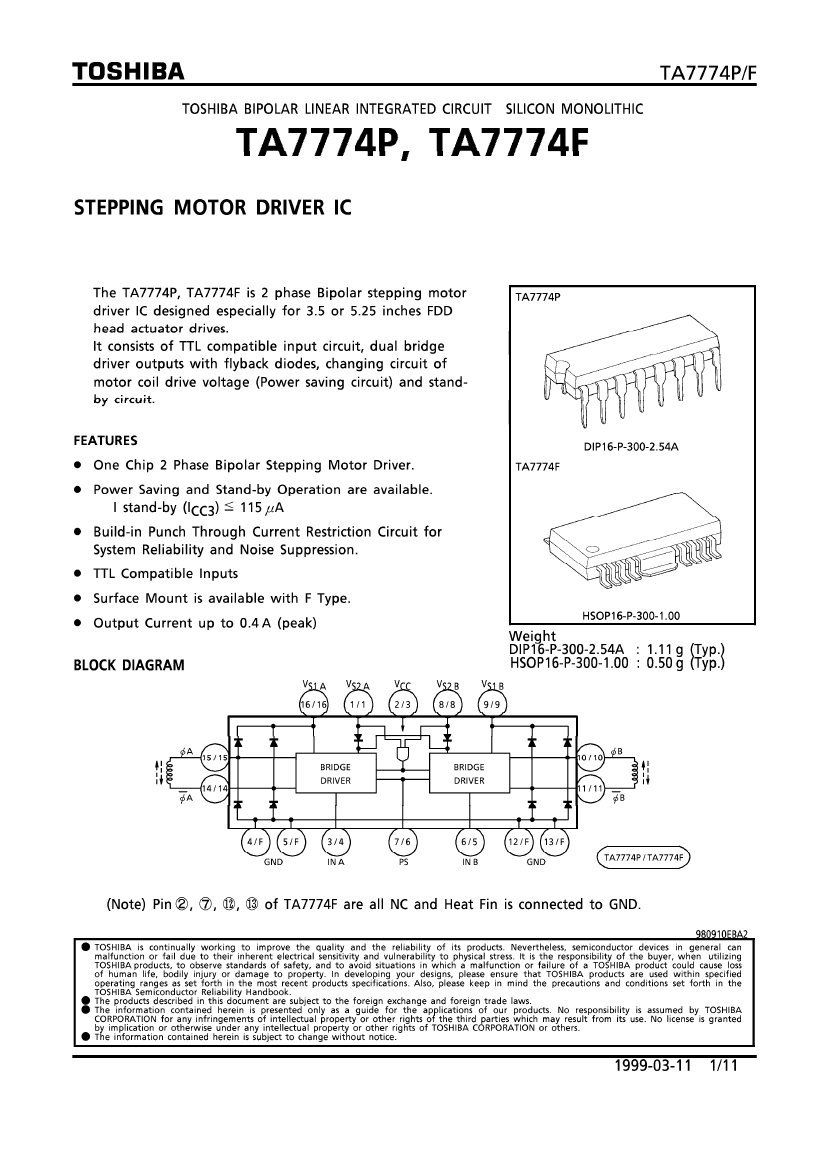

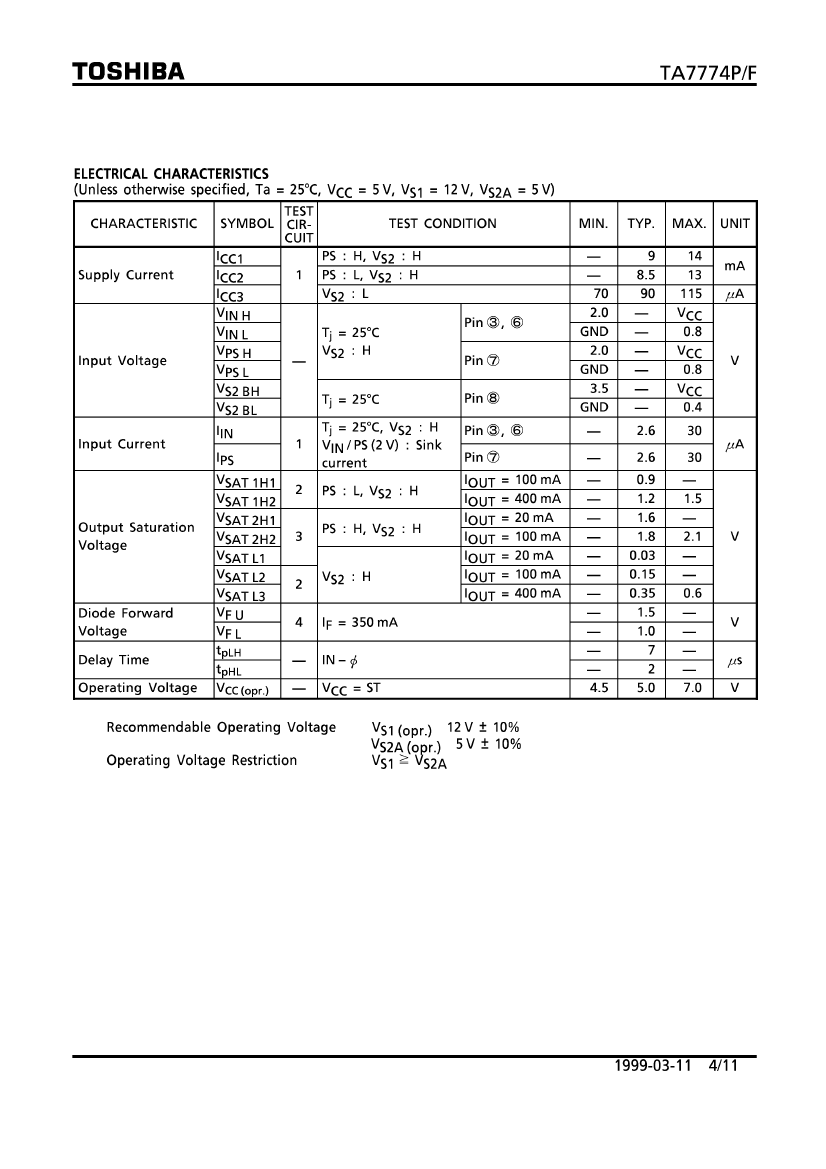

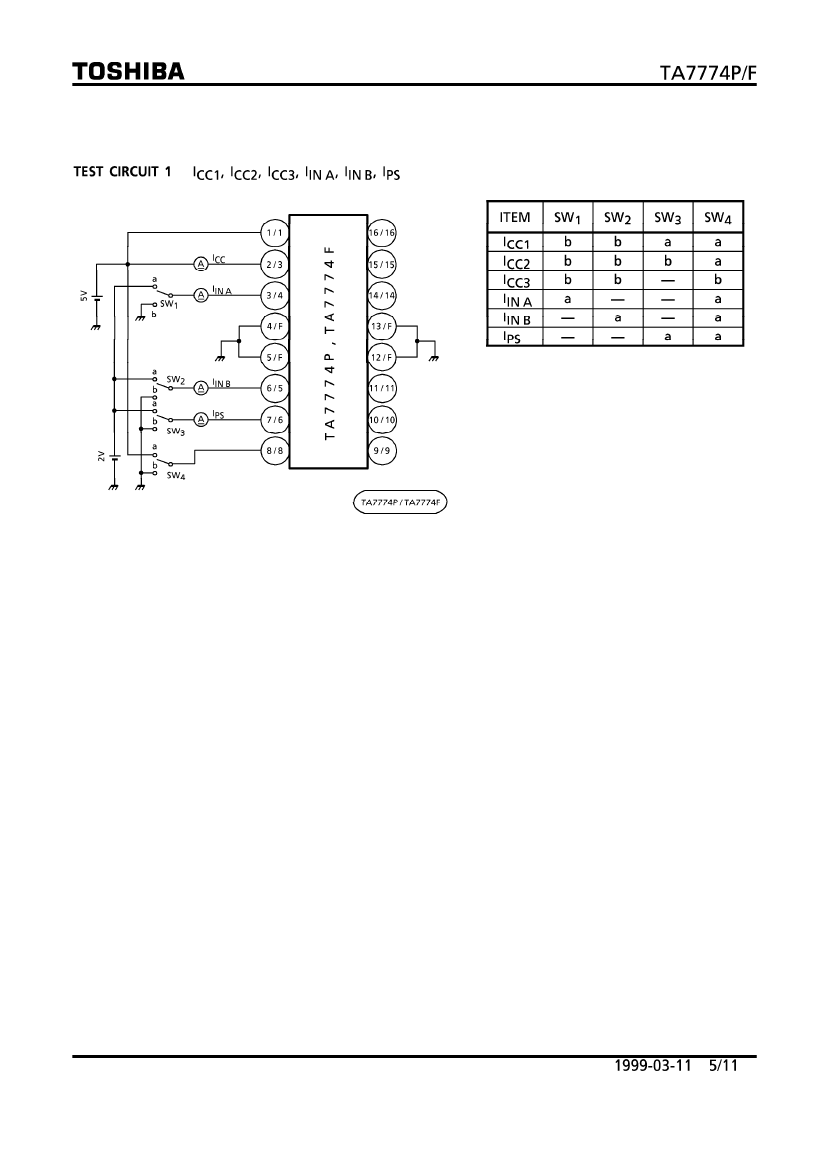

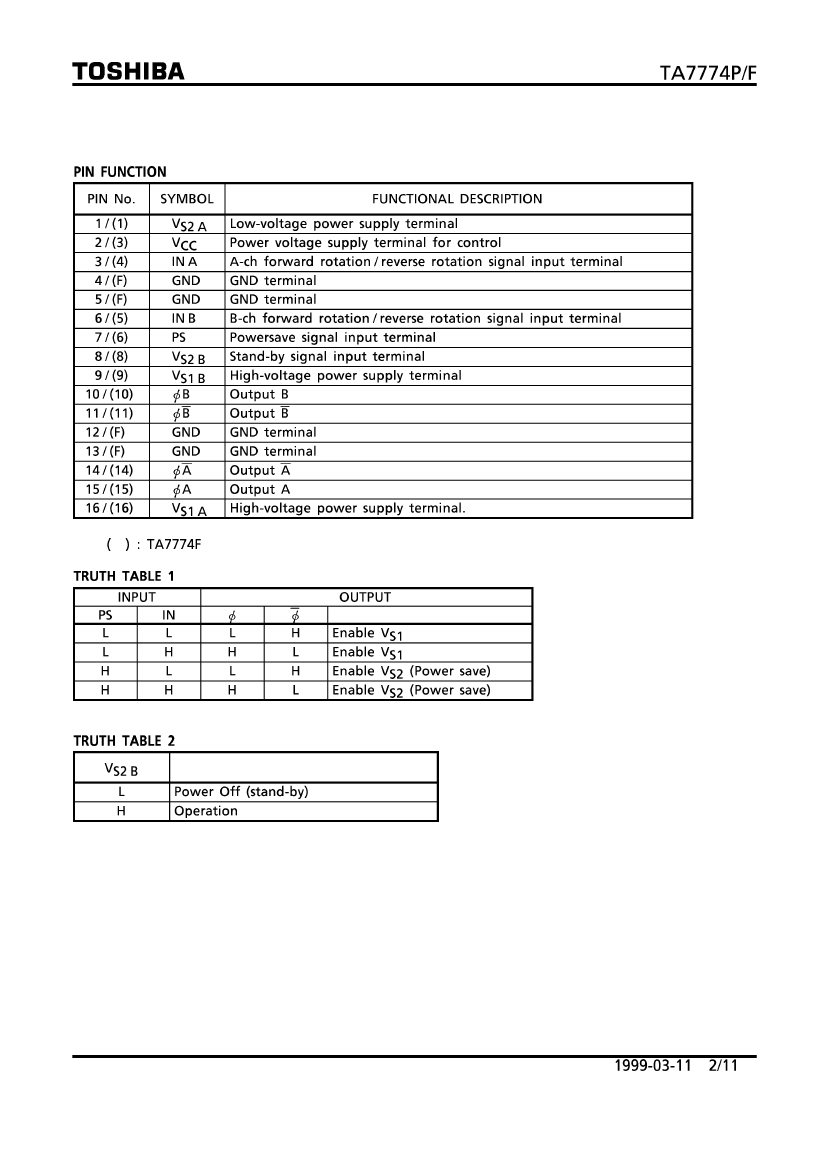

TA7774F Overview

STEPPER MOTOR CONTROLLER, 0.4 A, PDSO18

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	SOIC
package instruction	HSSOP, SOP16/24,.37,40
Contacts	16
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	ADDITIONAL 12V SUPPLY REQUIRED
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G18
length	13 mm
Number of functions	1
Number of terminals	18
Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Maximum output current	0.4 A
Package body material	PLASTIC/EPOXY
encapsulated code	HSSOP
Encapsulate equivalent code	SOP16/24,.37,40
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5,12 V
Certification status	Not Qualified
Maximum seat height	2.85 mm
Maximum supply current (Isup)	14 mA
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	6.4 mm
Base Number Matches	1

	TA7774F	TA7774P
Description	STEPPER MOTOR CONTROLLER, 0.4 A, PDSO18	STEPPER MOTOR CONTROLLER, 0.4 A, PDIP16
Is it Rohs certified?	incompatible	incompatible
Parts packaging code	SOIC	DIP
package instruction	HSSOP, SOP16/24,.37,40	DIP, DIP16,.3
Contacts	16	16
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Other features	ADDITIONAL 12V SUPPLY REQUIRED	ADDITIONAL 12V SUPPLY REQUIRED
Analog Integrated Circuits - Other Types	STEPPER MOTOR CONTROLLER	STEPPER MOTOR CONTROLLER
JESD-30 code	R-PDSO-G18	R-PDIP-T16
length	13 mm	19.25 mm
Number of functions	1	1
Number of terminals	18	16
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-30 °C	-30 °C
Maximum output current	0.4 A	0.4 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	HSSOP	DIP
Encapsulate equivalent code	SOP16/24,.37,40	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5,12 V	5,12 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	2.85 mm	4.45 mm
Maximum supply current (Isup)	14 mA	14 mA
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	NO
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	THROUGH-HOLE
Terminal pitch	1 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	6.4 mm	7.62 mm
