TA7555P datasheet, PDF - EEWORLD Datasheet

TA7555P: DescriptionPULSE; RECTANGULAR, TIMER, PDIP8; CategoryAnalog mixed-signal IC The signal circuit; File Size205KB，6 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

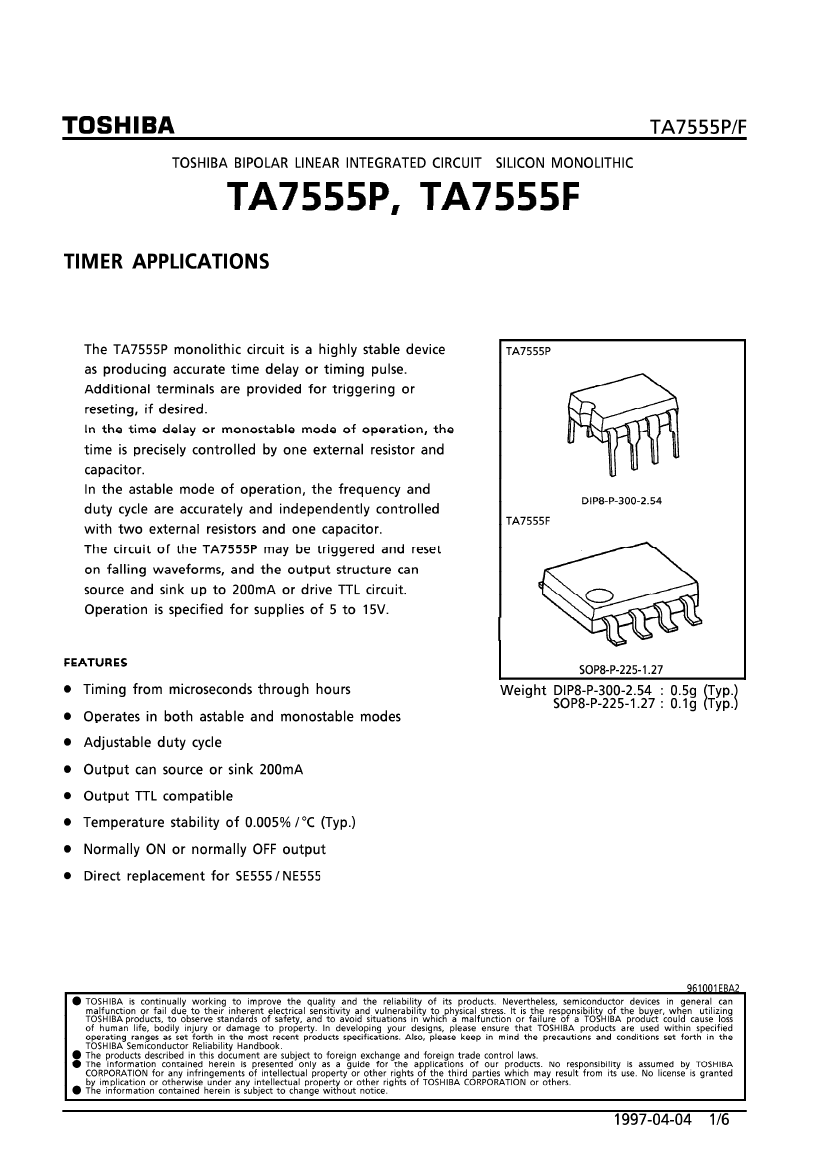

TA7555P Overview

PULSE; RECTANGULAR, TIMER, PDIP8

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	DIP
package instruction	DIP, DIP8,.3

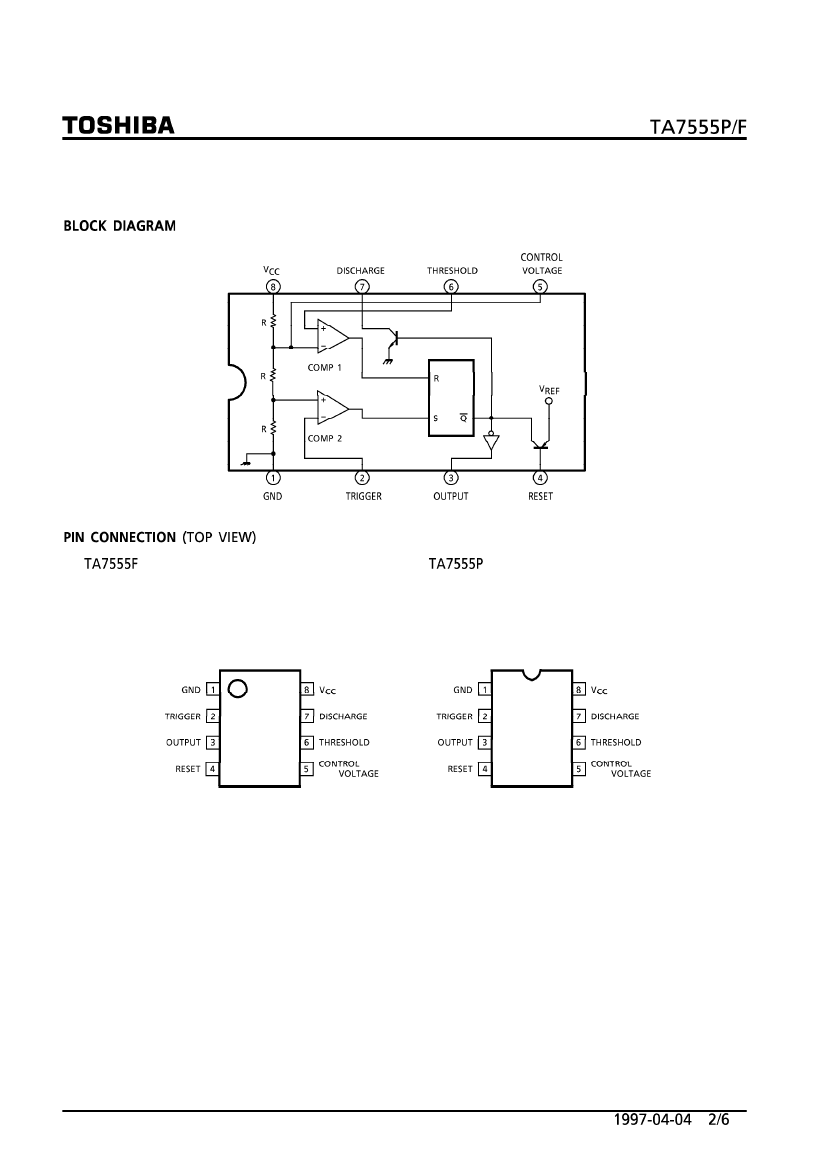

Contacts	8
Reach Compliance Code	unknow
Analog Integrated Circuits - Other Types	PULSE; RECTANGULAR
JESD-30 code	R-PDIP-T8
JESD-609 code	e0

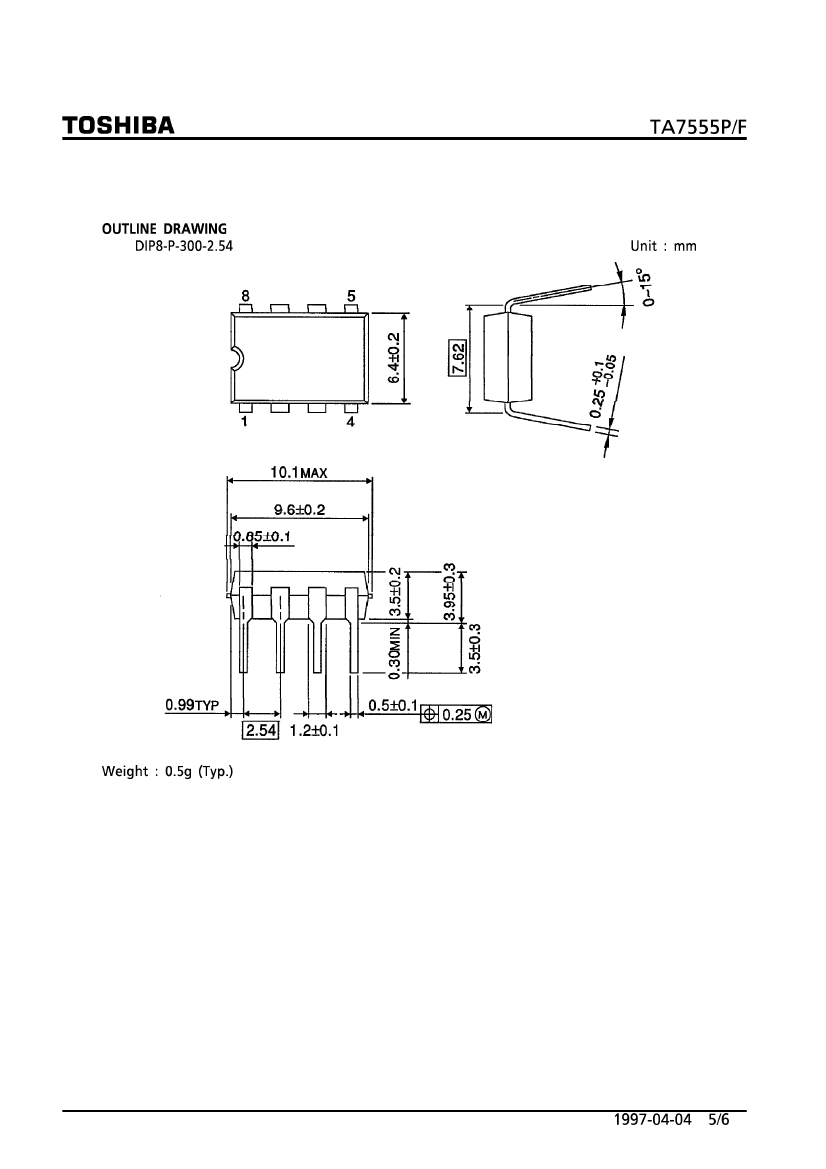

length	9.6 mm
Number of functions	1
Number of terminals	8

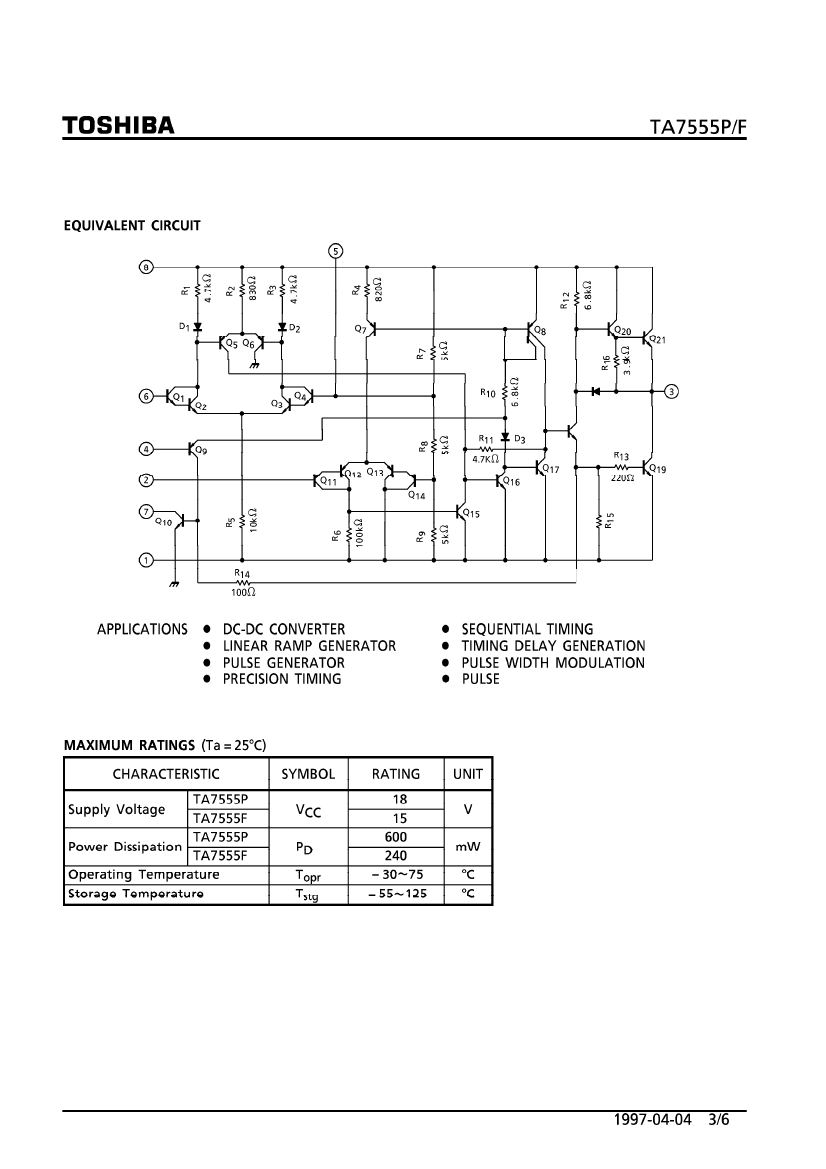

Maximum operating temperature	75 °C
Minimum operating temperature	-30 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE

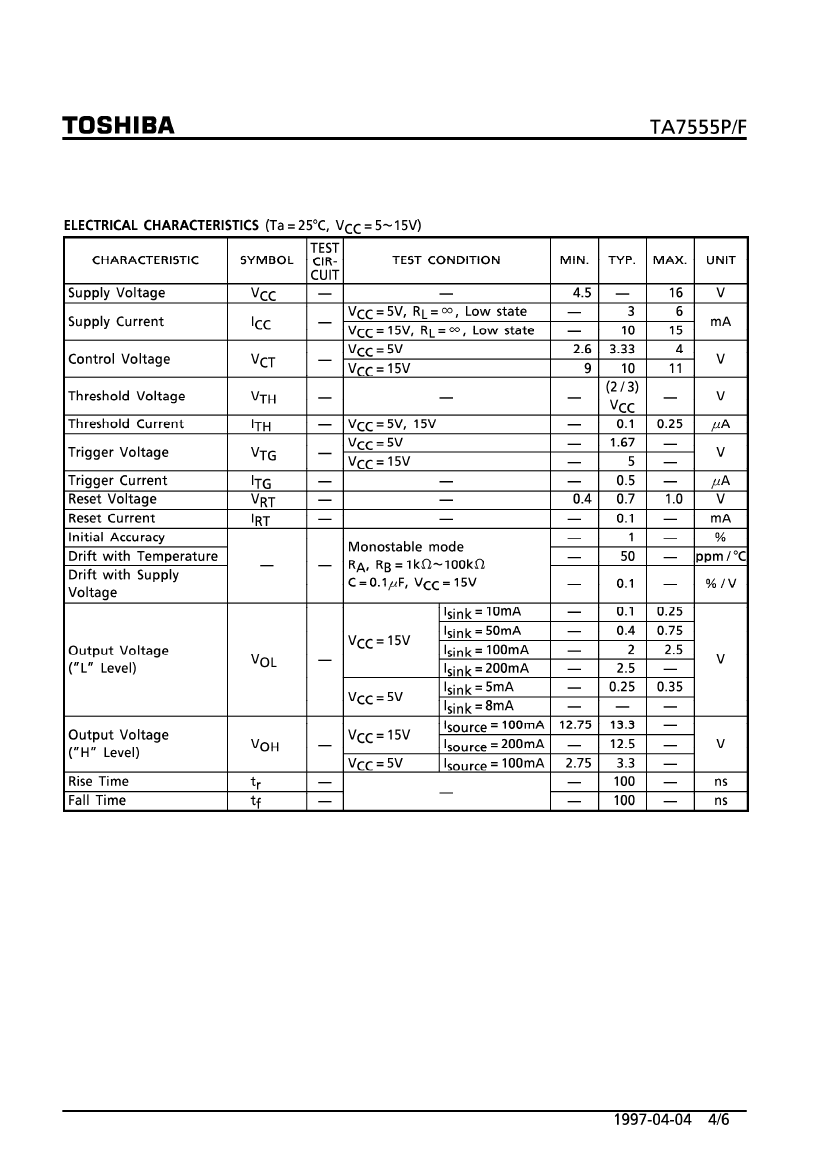

power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	4.25 mm
Maximum supply voltage (Vsup)	16 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm

	TA7555P	TA7555	TA7555F
Description	PULSE; RECTANGULAR, TIMER, PDIP8	PULSE; RECTANGULAR, TIMER, PDIP8	TIMER, PQFP8
Is it Rohs certified?	incompatible	-	incompatible
Maker	Toshiba Semiconductor	-	Toshiba Semiconductor
Parts packaging code	DIP	-	SOIC
package instruction	DIP, DIP8,.3	-	SOP, SOP8,.25
Contacts	8	-	8
Reach Compliance Code	unknow	-	unknow
Analog Integrated Circuits - Other Types	PULSE; RECTANGULAR	-	PULSE; RECTANGULAR
JESD-30 code	R-PDIP-T8	-	R-PDSO-G8
length	9.6 mm	-	5 mm
Number of functions	1	-	1
Number of terminals	8	-	8
Maximum operating temperature	75 °C	-	75 °C
Minimum operating temperature	-30 °C	-	-30 °C
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	DIP	-	SOP
Encapsulate equivalent code	DIP8,.3	-	SOP8,.25
Package shape	RECTANGULAR	-	RECTANGULAR
Package form	IN-LINE	-	SMALL OUTLINE
power supply	5/15 V	-	5/15 V
Certification status	Not Qualified	-	Not Qualified
Maximum seat height	4.25 mm	-	1.9 mm
Maximum supply voltage (Vsup)	16 V	-	16 V
Minimum supply voltage (Vsup)	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	-	5 V
surface mount	NO	-	YES
technology	BIPOLAR	-	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	-	COMMERCIAL EXTENDED
Terminal form	THROUGH-HOLE	-	GULL WING
Terminal pitch	2.54 mm	-	1.27 mm
Terminal location	DUAL	-	DUAL
width	7.62 mm	-	4.4 mm
