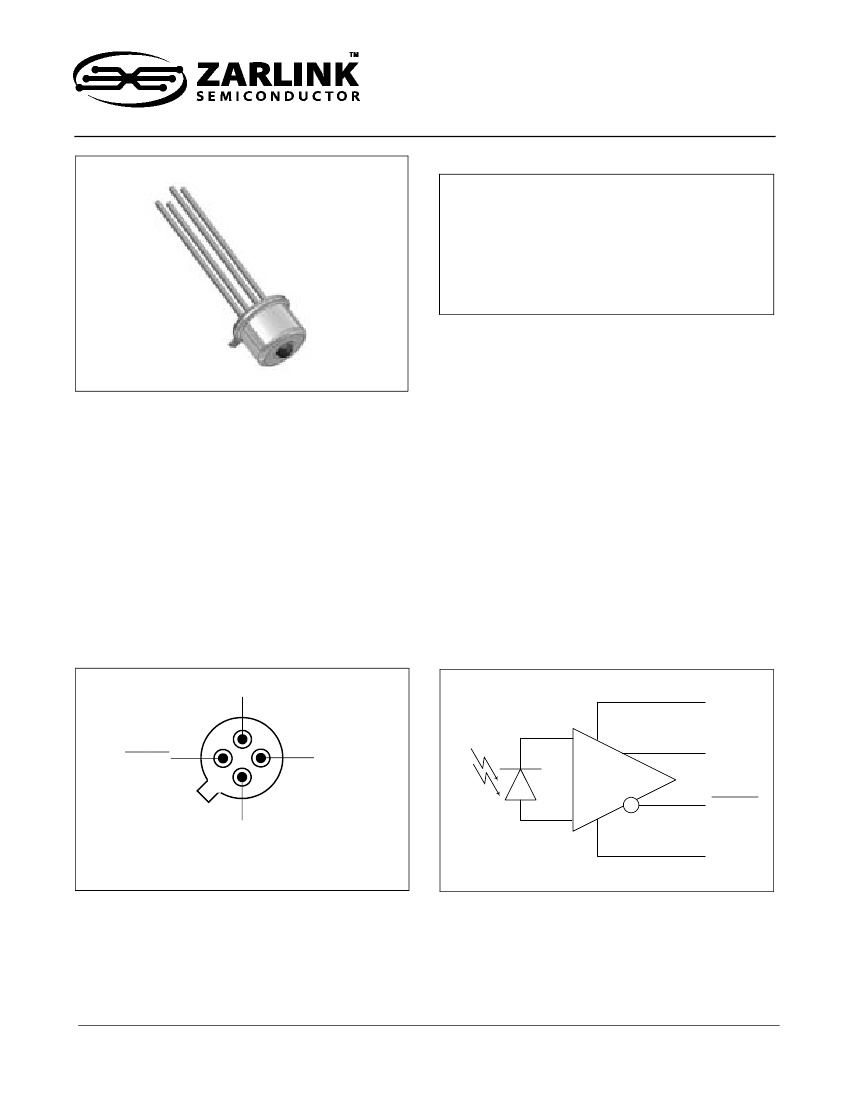

ZL60006
1310nm, 1550nm 2.5Gbps
PIN with Preamplifier
Data Sheet
November 2003
Ordering Information
ZL60006TED
SC Housing
ZL60006/TBD TO-46 with lens
ZL60006TDD ST Housing
-40°C to +85°C
Features
•
•
•
•
•
•
Data Rate up to 3.125Gbps
1310nm, 1550nm PIN photodiode
TO-46 Assembly
Integrated TIA and limiting amplifier
Single 3.3V supply
Low power consumption
Description
This optical receiver is a 3.3V device which contains a
PIN photodiode, a low noise transimpedance amplifier
with DC-restoration and limiting amplifier assembled in
a TO-46 package. It is designed for ATM/Sonet OC-48
operation. Its double lens optical system is designed
for singlemode fiber as well as for multimode fiber with
core diameter up to 62.5µm. Reliability Assurance
based on Telcordia GR-468-CORE.
Applications
•
•
•
•
Sonet OC-48
SDH STM-16
2.125Gbps fiber channel
2.5 to 3.125Gbps general application
V
CC
V
CC
Data Out
Data Out
Data Out
Data
Data Out
Data
Case
GND
Bottom View
GND
Figure 1 - Pin Diagram
Figure 2 - Functional Schematic
1
Zarlink Semiconductor Inc.
Zarlink, ZL and the Zarlink Semiconductor logo are trademarks of Zarlink Semiconductor Inc.
Copyright 2003, Zarlink Semiconductor Inc. All Rights Reserved.
ZL60006
Optical and Electrical Characteristics
Parameter
Responsivity, differential
Symbol
R
Min
15
Typ
26
Max
Unit
kV/W
Data Sheet
Test Condition
λ=1310nm,
R
L=
100Ω, Note 1
Output voltage amplitude,
differential
Bandwidth (3dB
el
)
Optical Saturation Level
(average)
Noise-Equivalent Power
∆
V
O
f
c
P
sat
NEP
1
450
2.2
mV
pp
GHz
dBm
R
L
=100Ω
Note 2
P
f
=10µW, R
L
=100Ω
λ=1310nm,
ER =
∞
Note 3
λ=1310nm
Note 4
-32
-30
dBm
Sensivity (BER 10
-9
)
S
-23
-21
dBm
λ=1310nm,
ER =
∞
Note 3, 5
Dynamic Range
Output Resistance (single)
Power Dissipation
Power Supply Current
R
o
P
D
I
DD
24
50
180
55
270
75
dB
Ω
mW
mΑ
Operating Conditions:
25°C case temperature/3.3V Supply Voltage/Fiber: Single-mode to multi-mode 62.5/125µm.
Pattern PRBS 2
23
-1 at 2.5Gbps.
Note
Note
Note
Note
Note
1:
2:
3:
4:
5:
P
f
= 10uW Peak-Power
P
f
= 500uW Peak-Power
Measured at 10
-9
BER with a 2
23
-1 PRBS at 2.5Gbps
Measured with STM-16 filter on electrical output, i.e 1.875 GHz
Typical penalty at 10
-10
BER equals 0.26dB
Absolute Maximum Ratings
Parameter
Supply Voltage
Storage Temperature
Symbol
V
CC
T
stg
Min
0
-40
Max
3.6
125
Unit
V
°C
Recommended Operating Conditions
Parameter
Supply Voltage
Operating Temperature
Signaling Rate, note 6
Note 6:
Symbol
V
CC
T
op
f
D
Min
3
-40
1
Typ
3.3
Max
3.6
85
3.125
Unit
V
°C
Gbps
Data pattern are to have maximum run-length and DC-balance shifts no more than that of a PRBS-23 pattern.
2
Zarlink Semiconductor Inc.
ZL60006
Typical Responsivity
Data Sheet
Fiber core/cladding diameter numerical aperture
Wavelength
10/125µm,
NA=0.11
26kV/W
32kV/W
50/125µm,
NA=0.20
26kV/W
32kV/W
62.5/125µm,
NA=0.275
26kV/W
32kV/W
Differential responsivity
Differential responsivity
1310nm
1550nm
1
0.9
1
0.9
0.8
0.8
Relative Responsivity
0.7
0.6
0.5
0.4
Relative Responsivity
0
0.25
0.5
0.75
1
1.25
1.5
1.75
2
2.25
2.5
0.7
0.6
0.5
0.4
0.3
0.2
0.3
0.2
0.1
0
0.1
0
0
10
20
30
40
50
60
70
80
90
100
110
120
z- A xial Displacement o f Fiber (mm) at r-o pt, relative TO-46 lens
R-Radial Displacement of Fiber (
µ
m) at z=opt
Figure 3 - Typical Responsivity vs Axial
Displacement for a Multimode Fiber
Figure 4 - Typical Responsivity vs Radial
Displacement for a Multimode Fiber
3
Zarlink Semiconductor Inc.
ZL60006
Data Sheet
%
100
DifferentialAmplitude vs InputPower
ER=9dB
500
Relative Responsivity
450
Differential Amplitude [mv]
400
350
300
250
200
150
100
50
0
-25
-20
-15
-10
Series1
50
-5
0
0
800 900 1000 1100 1200 1300 1400 1500 1600 1700 1800
nm
InputPower [dBm]
Wavelength
Figure 5 - Responsivity vs. Wavelength of
Coupled Input Power
Figure 6 - Differential Amplitude vs Input
Power
Application Guidelines
ESD handling
The receiver is sensitive to electrostatic discharges. When handling the device, precaution for ESD sensitive
devices should be taken. These precautions include use of ESD protected work area with wrist straps, controlled
work benches, floors etc.
Power Supply Filter
Power Supply decoupling capacitors are recommended for optimal performance of the receiver. A filter is
recommended to minimise power supply noise. See Figure 7.
L
Host
V
CC
PIN /
Receiver
10µ H
C
0.1µ F
C
10nF
Figure 7 - Recommended Power Supply Filter
4
Zarlink Semiconductor Inc.
BOTTOM VIEW ( 10 : 1 )
3,8
SIDE VIEW
13,46
`
0,76
2,54
n
1,17 + 0,05 (3x)
-
n
0,45 + 0,04 (4x)
-
0,6
0,03
*
Brazed
0
R2,7
45°
n
1,02 max
n
4,7
3,
6
1,
02
0,33 max
Lens
n
1.5
`
0.05
R0,4 max
NOTES:-
1. All dimensions in mm.
2. General tol. ISO-2768-mK.
3. Coating: Case: Ni 1,5-2,5 µm.
Header: Ni min 0,5 µm / Au min 1,5 µm.
*
0,25 max glass overmould (3x)
© Zarlink Semiconductor 2002. All rights reserved.
Package code
Previous package codes
Drawing type
ISSUE
ACN
DATE
1
JS0 04078R1A
TB

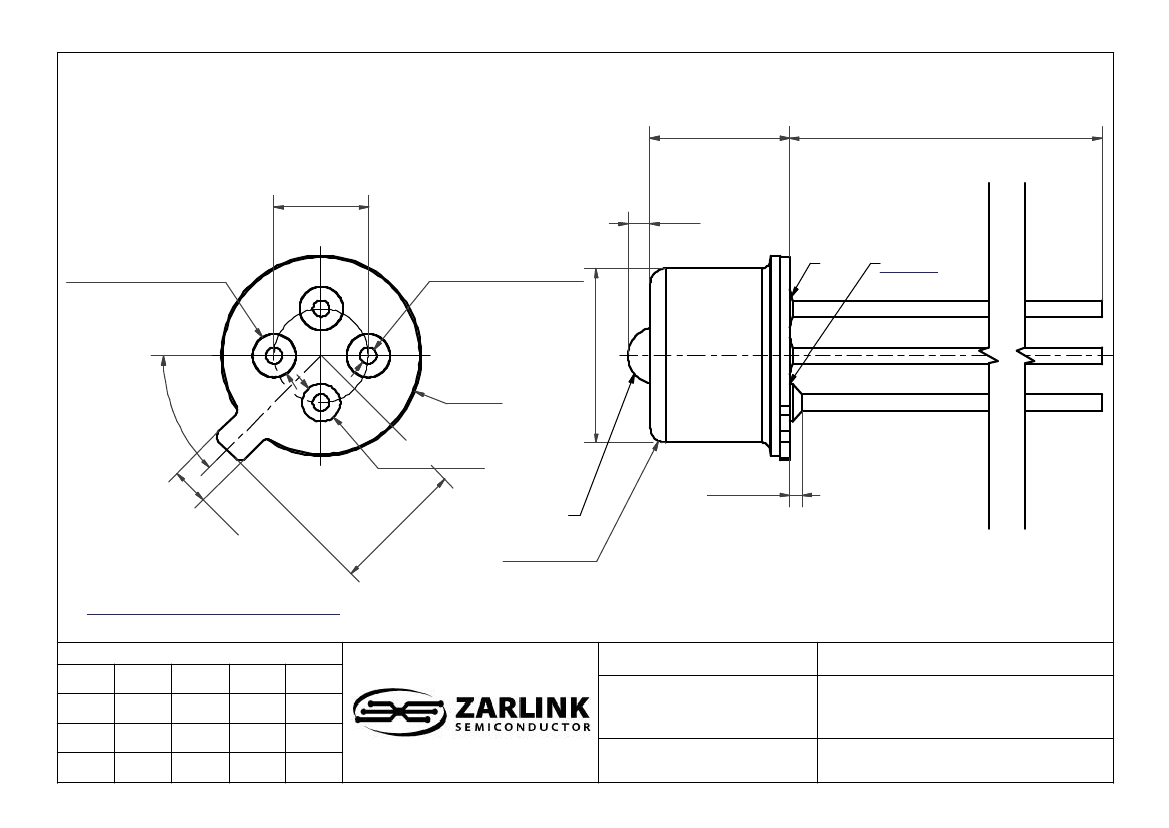

Package drawing, TO-46 with lens
Title
22-MAR-03
APPRD. TD/BE
JS004078
