TC1185-3.0VCT datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> TC1185-3.0VCT

PDF

TC1185-3.0VCT: DescriptionFixed Positive LDO Regulator, 3V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN; CategoryPower/power management The power supply circuit; File Size234KB，6 Pages; ManufacturerTelCom Semiconductor, Inc. (Microchip Technology); Websitehttp://www.telcom-semi.com/

Download Datasheet Parametric Compare View All

TC1185-3.0VCT Overview

Fixed Positive LDO Regulator, 3V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN

TC1185-3.0VCT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	TelCom Semiconductor, Inc. (Microchip Technology)
package instruction	TSOP, TSOP5/6,.11,37
Reach Compliance Code	unknow
Adjustability	FIXED
Maximum drop-back voltage 1	0.4 V
Nominal dropback voltage 1	0.4 V
Maximum absolute input voltage	7 V
Maximum input voltage	6 V
Minimum input voltage	2.7 V
JESD-30 code	R-PDSO-G5
JESD-609 code	e0
Maximum grid adjustment rate	0.021%
Maximum load regulation	0.09%
Number of functions	1
Output times	1
Number of terminals	5
Working temperatureTJ-Max	125 °C
Operating temperatureTJ-Mi	-40 °C
Maximum output current 1	0.1 A
Maximum output voltage 1	3.08 V
Minimum output voltage 1	2.93 V
Nominal output voltage 1	3 V
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES
technology	CMOS
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum voltage tolerance	5%

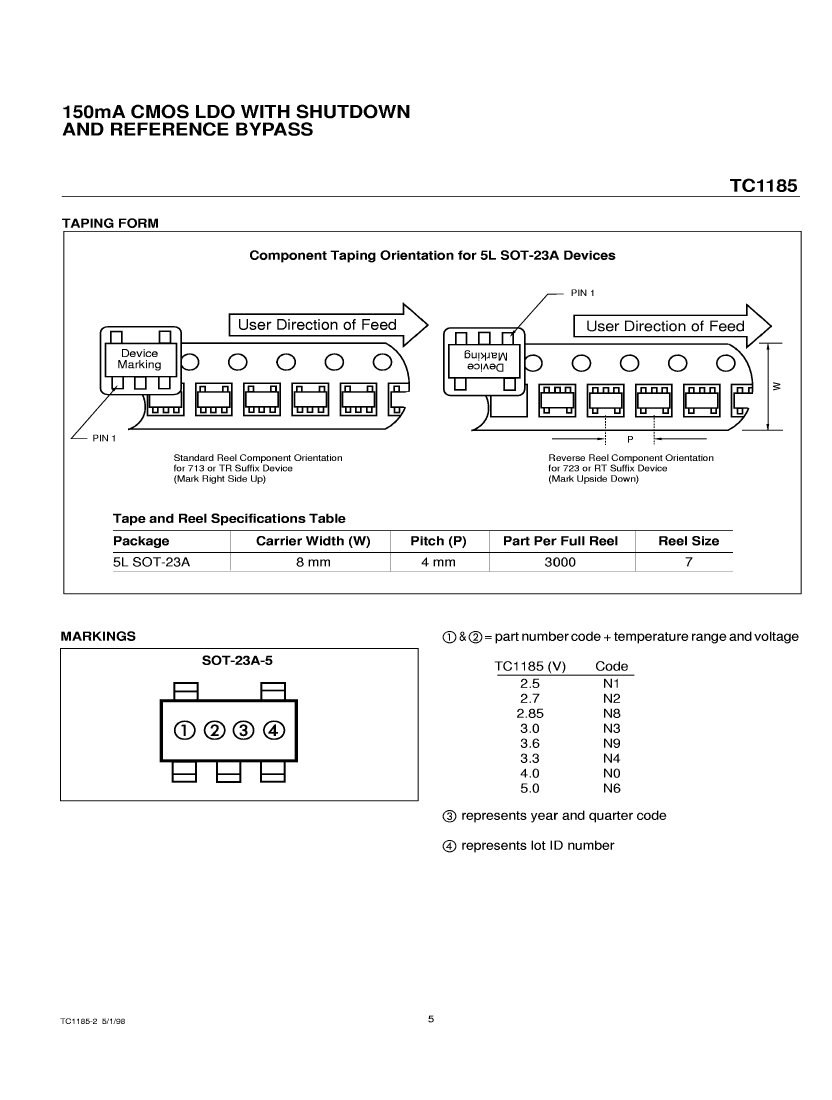

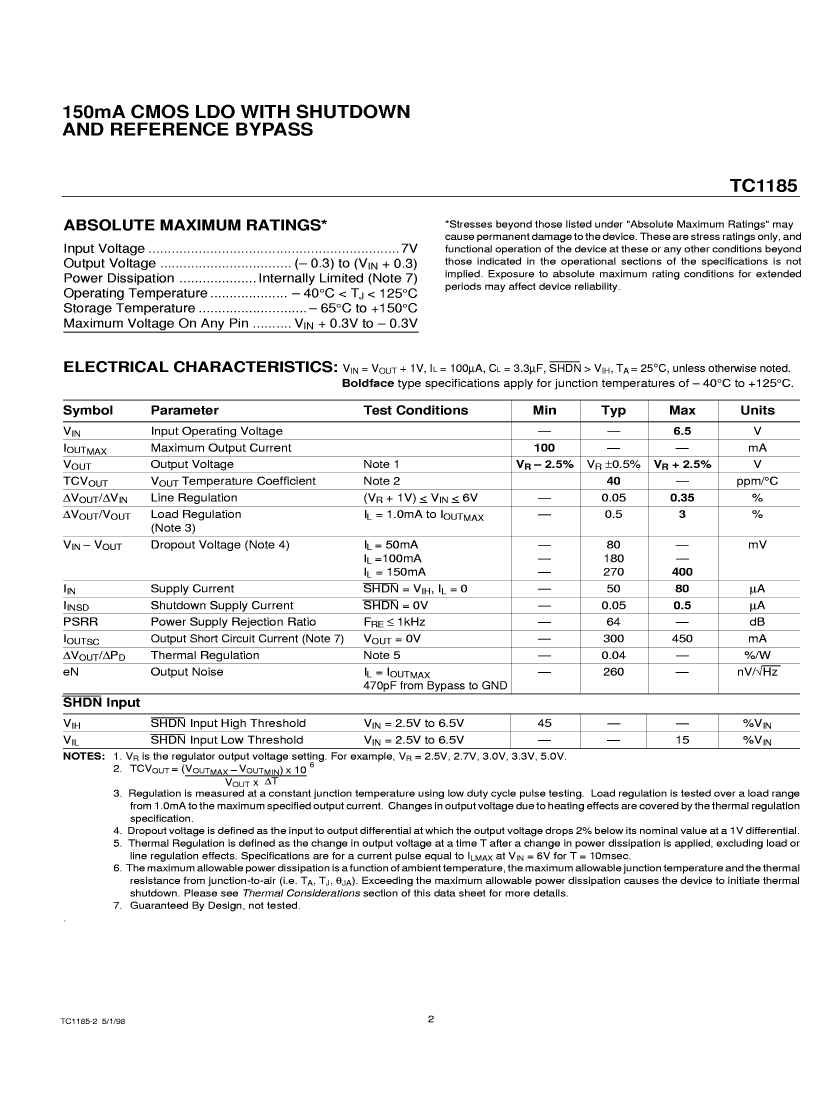

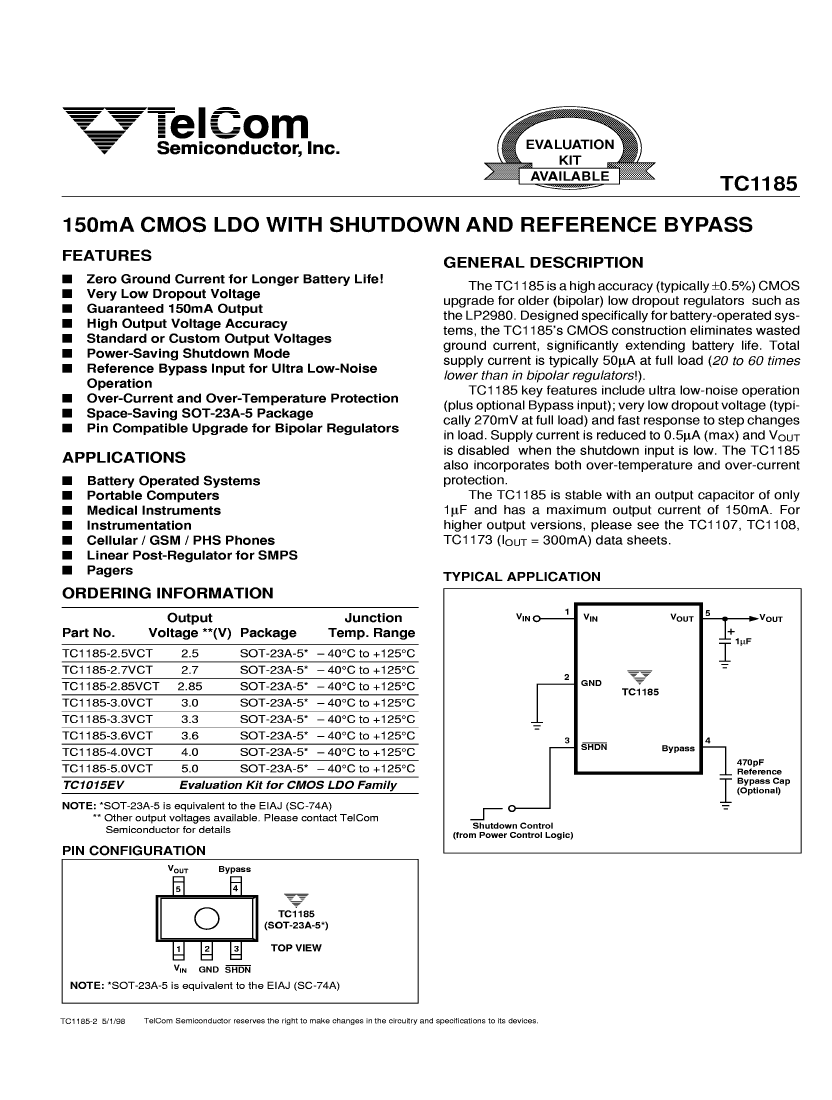

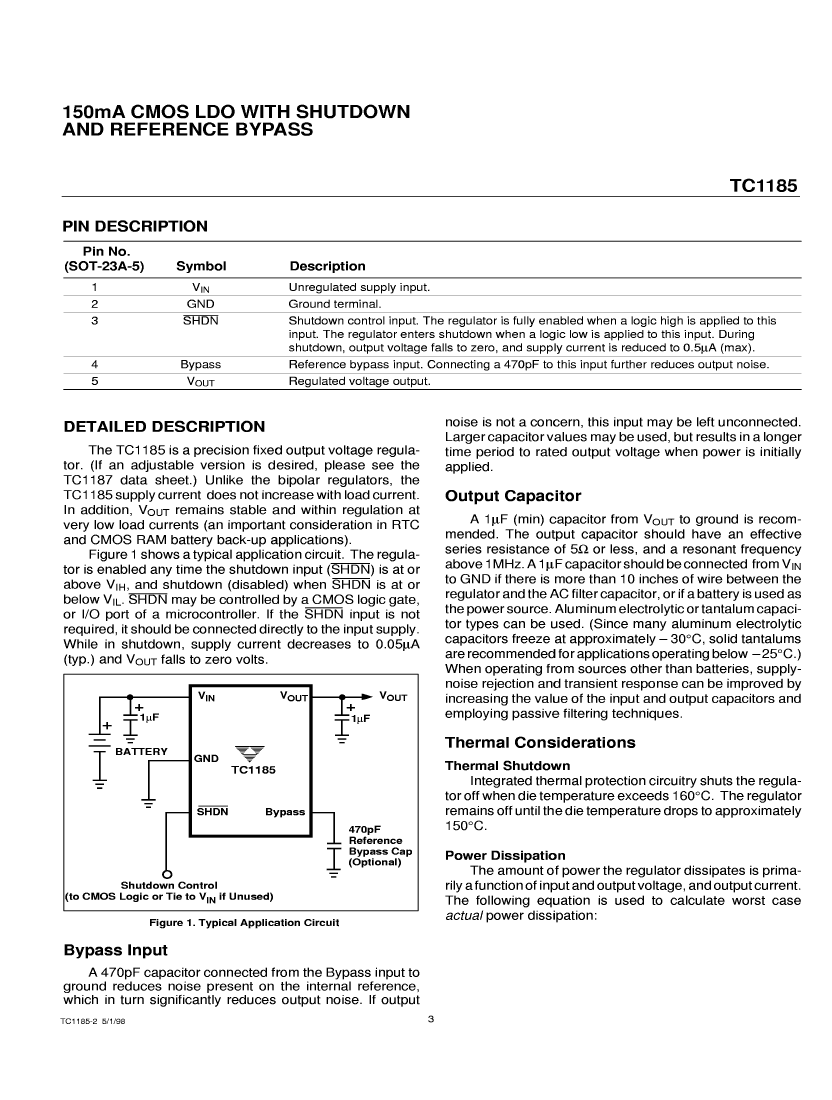

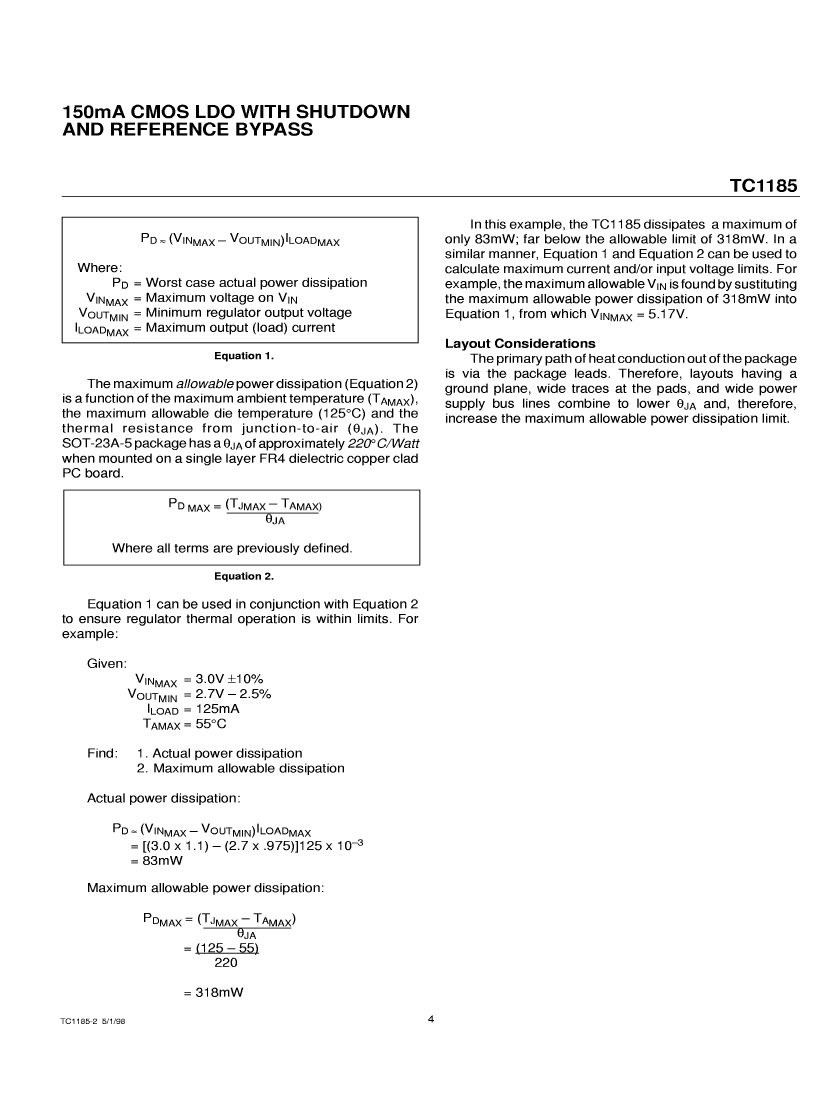

TC1185-3.0VCT Preview

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

This Material Copyrighted By Its Respective Manufacturer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

TC1185-3.0VCT Related Products

	TC1185-3.0VCT	TC1185-3.6VCT	TC1185-2.5VCT	TC1185-2.7VCT	TC1185-2.85VCT	TC1185-3.3VCT	TC1185-4.0VCT
Description	Fixed Positive LDO Regulator, 3V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 3.6V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.5V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.7V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 2.85V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 3.3V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN	Fixed Positive LDO Regulator, 4V, 0.4V Dropout, CMOS, PDSO5, SOT-23A, 5 PIN
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)	TelCom Semiconductor, Inc. (Microchip Technology)
package instruction	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	TSOP, TSOP5/6,.11,37	SOT-23A, 5 PIN
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown	unknown
Adjustability	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED	FIXED
Maximum drop-back voltage 1	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V	0.4 V
Nominal dropback voltage 1	0.4 V	0.4 V	0.4 V	0.4 V	0.27 V	0.4 V	0.4 V
Maximum absolute input voltage	7 V	7 V	7 V	7 V	7 V	7 V	7 V
Maximum input voltage	6 V	6 V	6 V	6 V	6 V	6 V	6 V
Minimum input voltage	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
JESD-30 code	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5	R-PDSO-G5
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
Maximum grid adjustment rate	0.021%	0.01764%	0.02187%	0.02174%	0.00998%	0.01964%	0.014%
Maximum load regulation	0.09%	0.108%	0.00075%	0.081%	0.0855%	0.00099%	0.0012%
Number of functions	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5
Working temperatureTJ-Max	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Maximum output current 1	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Maximum output voltage 1	3.08 V	3.69 V	2.56 V	2.77 V	2.92 V	3.38 V	4.1 V
Minimum output voltage 1	2.93 V	3.51 V	2.44 V	2.63 V	2.78 V	3.22 V	3.9 V
Nominal output voltage 1	3 V	3.6 V	2.5 V	2.7 V	2.85 V	3.3 V	4 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP	TSOP
Encapsulate equivalent code	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37	TSOP5/6,.11,37
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Regulator type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm	0.95 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum voltage tolerance	5%	5%	5%	5%	5%	5%	5%
Working temperature TJ-Min	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
