RF331-12: DescriptionRF Relay, SPDT, Momentary, 0.015A (Coil), 12VDC (Coil), 185mW (Coil), 1A (Contact), 28VDC (Contact), 8000MHz, DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size1MB，5 Pages; ManufacturerTeledyne Technologies Incorporated; Websitehttp://www.teledyne.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

RF331-12 Overview

RF Relay, SPDT, Momentary, 0.015A (Coil), 12VDC (Coil), 185mW (Coil), 1A (Contact), 28VDC (Contact), 8000MHz, DC Input, DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

RF331-12 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Teledyne Technologies Incorporated
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	ELECTRICAL LIFE: 10000000 AT LOW LEVEL AND CONTACT VOLTAGE(DC)-MAX: 0.05 MA AT 50 MV
body height	9.78 mm
Body length or diameter	8.51 mm
Maximum coil current (DC)	0.015 A
Coil operating voltage (DC)	9 V
Coil power	185 mW
Coil resistance	1025 Ω
Maximum coil voltage (DC)	12 V
Coil/Input Power Type	DC
Maximum contact current (DC)	1 A
Contact (DC) maximum rated R load	1A@28VDC
Maximum contact voltage (DC)	28 V
Contact/Output Power Type	DC
Electrical life	10000000 Cycle(s)
JESD-609 code	e4
Manufacturer's serial number	RF331
Installation features	THROUGH HOLE-STRAIGHT MOUNT
operating hours	6 ms
Maximum operating frequency	8000 MHz
Minimum operating frequency
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Relay action	MOMENTARY
Relay function	SPDT
Relay type	RF RELAY
release time	3 ms
seal	HERMETICALLY SEALED
surface mount	NO
switching time	9 ms
Terminal surface	Gold (Au)
Termination type	SOLDER

Preview

Download Datasheet

View All

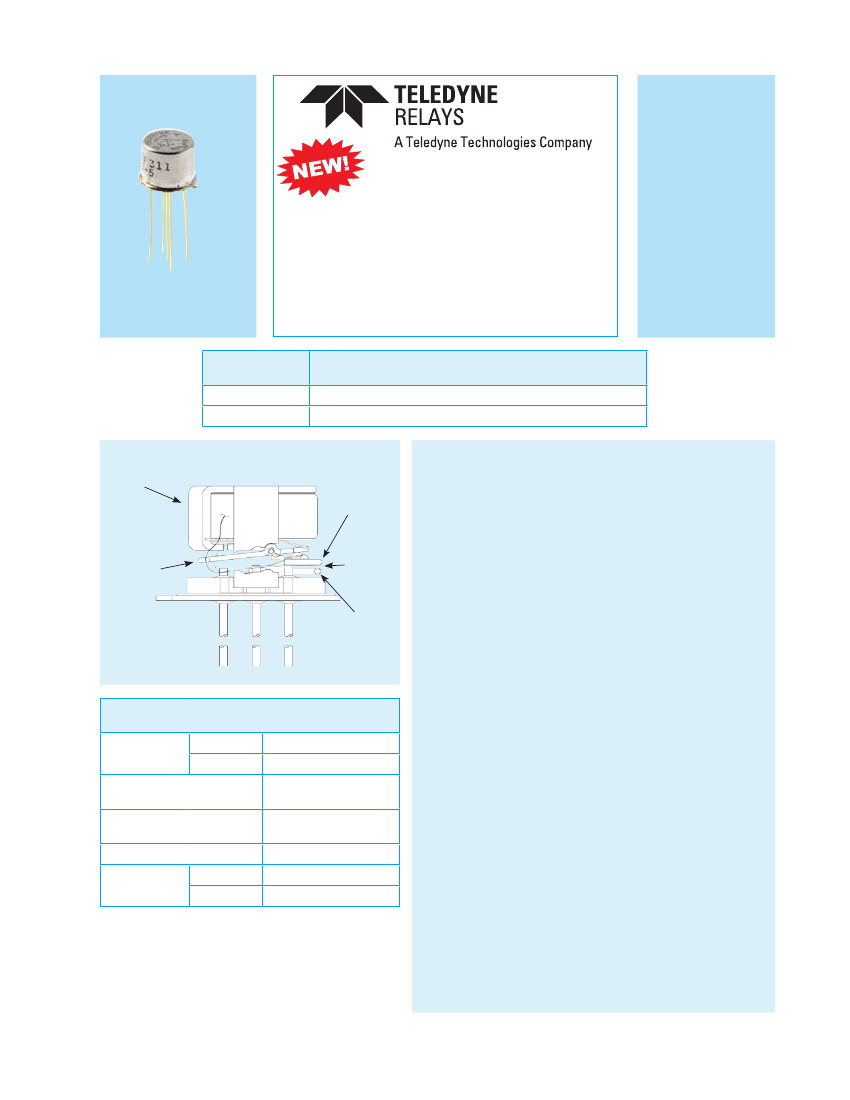

BROADBAND

HIGH REPEATABILITY

TO-5 RELAY

SPDT

DC–8 GHz

SERIES

DESIGNATION

RF311

RF331

RELAY TYPE

SPDT RF TO-5 relay

Sensitive, SPDT RF TO-5 relay

SERIES

RF311

RF331

INTERNAL CONSTRUCTION

UNI-FRAME

UPPER

STATIONARY

CONTACT

PERFORMANCE FEATURES

The ultraminiature RF311 and RF331 relays are

designed to provide improved RF signal repeatability

over the frequency range. These relays are highly

suitable for use in attenuator and other RF circuits. The

RF311 and RF331 feature:

•

High repeatability.

Exceptional bandwidth.

Metal enclosure for EMI shielding.

Ground pin option to improve case grounding.

High isolation between control and signal paths.

Highly resistant to ESD.

MOVING

CONTACT

ARMATURE

LOWER

STATIONARY

CONTACT

ENVIRONMENTAL AND

PHYSICAL SPECIFICATIONS

Temperature

(Ambient)

Storage

Operating

–65°C to +125°C

–55°C to +85°C

10 g’s to 500 Hz

30 g’s,

6ms half sine

Hermetically sealed

RF311

RF331

0.089 oz. (2.52g) max.

0.109 oz. (3.09g) max.

CONSTRUCTION FEATURES

The following unique construction features and

manufacturing techniques provide excellent resistance

to environmental extremes and overall high reliability:

• Uni-frame motor design provides high magnetic

efficiency and mechanical rigidity.

• Minimum mass components and welded construction

provide maximum resistance to shock and vibration.

• Advanced cleaning techniques provide maximum

assurance of internal cleanliness.

• Gold-plated precious metal alloy contacts ensure

reliable switching.

• Hermetically sealed.

•

RoHS compliant.

RF311/RF331 Page 1

RF311RF331\022007\Q1

Vibration

(General Note 1)

Shock

(General Note 1)

Enclosure

Weight

(800) 284-7007 • www.teledynerelays.com
