BAT66-05

Description
1 A, 2 ELEMENT, SILICON, SIGNAL DIODE
CategoryDiscrete semiconductor    diode
File Size423KB,3 Pages
ManufacturerInfineon
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAT66-05 Overview

1 A, 2 ELEMENT, SILICON, SIGNAL DIODE

BAT66-05 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerInfineon
Parts packaging codeSOT-223
package instructionSOT-223, 4 PIN
Contacts4
Reach Compliance Codeunknown
ECCN codeEAR99
Shell connectionCATHODE
ConfigurationCOMMON CATHODE, 2 ELEMENTS
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)0.6 V
JESD-30 codeR-PDSO-G4
JESD-609 codee0
Maximum non-repetitive peak forward current10 A
Number of components2
Number of terminals4
Maximum operating temperature150 °C
Maximum output current1 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Maximum power dissipation1.2 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage30 V
surface mountYES
technologySCHOTTKY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Base Number Matches1

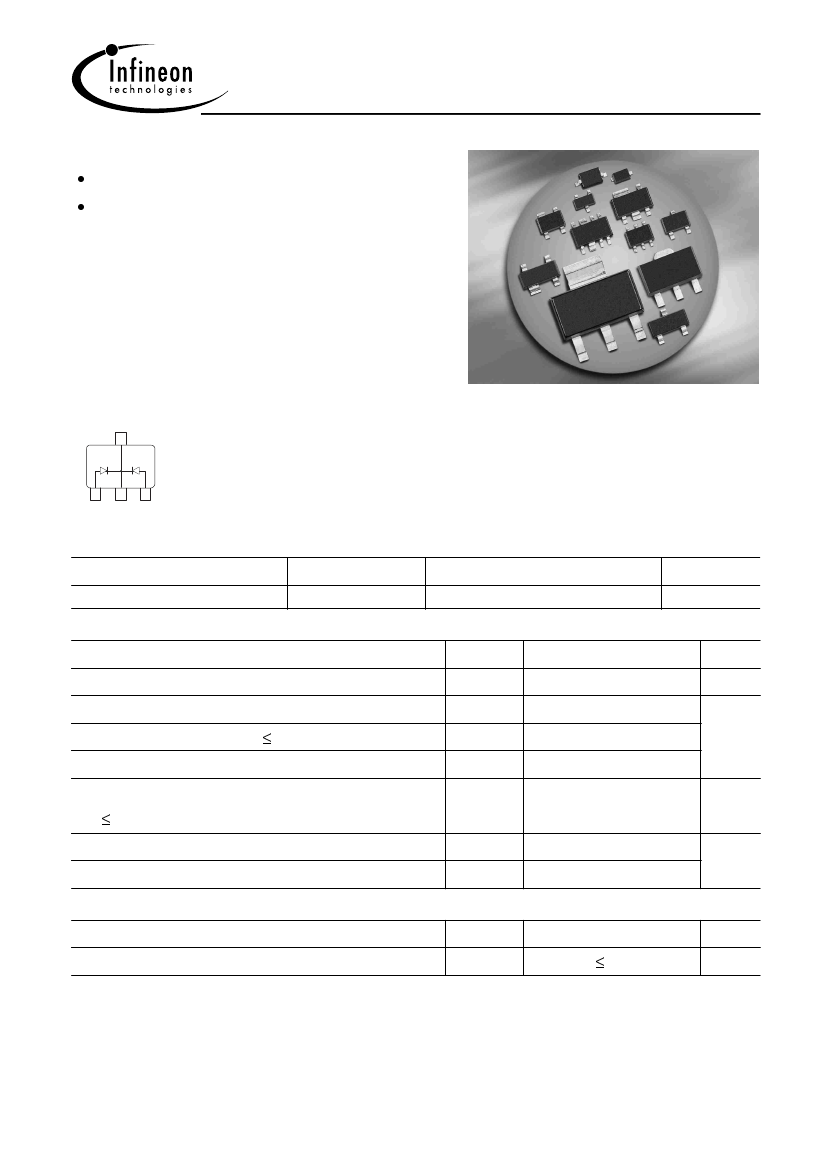

BAT66...
Silicon Schottky Diode
Power rectifier diode
For low-loss, fast-recovery rectification,
meter protection, bias isolation and
clamping purpose


BAT66-05
4
D 1
D 2
1
2
3
ESD
:
E
lectro
s
tatic
d
ischarge sensitive device, observe handling precaution!
Type
BAT66-05
Parameter
Package
SOT223
Configuration
common cathode
Symbol
V
R
I
F
Value
Marking
BAT66-05
Unit
Maximum Ratings
at
T
A
= 25°C, unless otherwise specified
Diode reverse voltage
Forward current
Average forward current (50/60Hz, sinus)
Total power dissipation
Junction temperature
Storage temperature
Thermal Resistance
Parameter
T
S
30
2
10
1
1.2
150
-55 ... 150
Value
V
A
126°C
T
j
T
stg
Symbol
R
thJS
1
For
calculation of
R
thJA
please refer to Application Note Thermal Resistance
1

Junction - soldering point
1)

Surge forward current, (
t
10ms)
I
FSM
I
FAV
P
tot
W
°C

Unit
20
K/W
Feb-14-2003

BAT66-05 Related Products

BAT66-05 BAT66
Description 1 A, 2 ELEMENT, SILICON, SIGNAL DIODE SILICON, SIGNAL DIODE
Maker Infineon Infineon
Parts packaging code SOT-223 SOT-223
package instruction SOT-223, 4 PIN R-PDSO-G4
Contacts 4 4
Reach Compliance Code unknown unknown
ECCN code EAR99 EAR99
Shell connection CATHODE CATHODE
Configuration COMMON CATHODE, 2 ELEMENTS SINGLE
Diode component materials SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-PDSO-G4 R-PDSO-G4
Number of components 2 1
Number of terminals 4 4
Package body material PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE
Certification status Not Qualified Not Qualified
surface mount YES YES
technology SCHOTTKY SCHOTTKY
Terminal form GULL WING GULL WING
Terminal location DUAL DUAL
Base Number Matches 1 1
