BAT68-03W

Description
Silicon Schottky Diode (For mixer applications in the VHF/UHF range For high speed switching)
CategoryDiscrete semiconductor    diode
File Size94KB,5 Pages
ManufacturerSIEMENS
Websitehttp://www.infineon.com/
Download Datasheet Parametric Compare View All

BAT68-03W Overview

Silicon Schottky Diode (For mixer applications in the VHF/UHF range For high speed switching)

BAT68-03W Parametric

Parameter NameAttribute value
MakerSIEMENS
package instructionR-PDSO-G2
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Maximum diode capacitance1 pF
Diode component materialsSILICON
Diode typeMIXER DIODE
frequency bandVERY HIGH FREQUENCY TO ULTRA HIGH FREQUENCY
JESD-30 codeR-PDSO-G2
Number of components1
Number of terminals2
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.15 W
Certification statusNot Qualified
surface mountYES
technologySCHOTTKY
Terminal formGULL WING
Terminal locationDUAL
Base Number Matches1
BAT 68-03W
Silicon Schottky Diode
Preliminary data
• For mixer applications in the VHF/UHF range
• For high speed switching
Type
Marking Ordering Code
Q62702-
Q62702-A1046
Pin Configuration
1=A
2=K

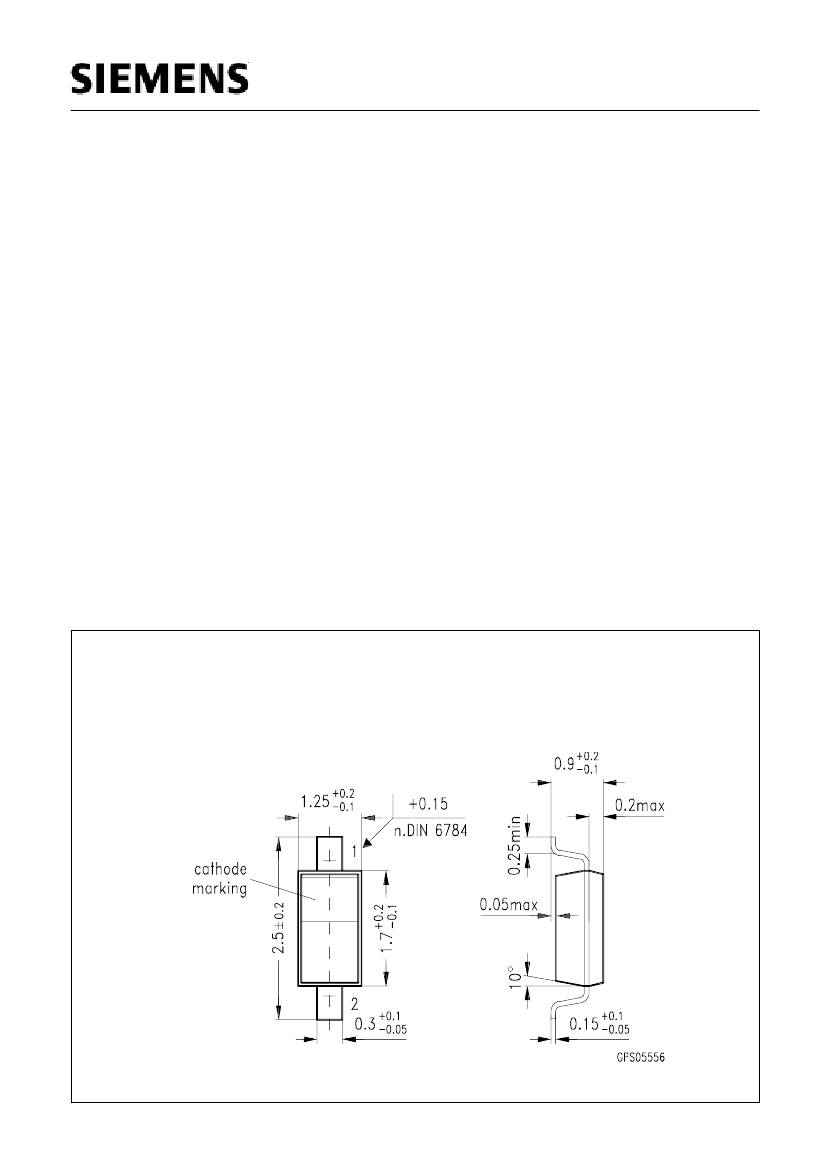

Package
SOD-323
BAT 68-03W K
Maximum Ratings
Parameter
Diode reverse voltage
Forward current
Total Power dissipation
Symbol
Values
8
130
150
Unit
V
mA
mW
150
- 65 ... + 150
- 65 ... + 150
°C
V
R
I
F
P
tot
T
j
T
op
T
stg
T
S
= 95 °C
Junction temperature
Operating temperature range
Storage temperature
Thermal Resistance
Junction ambient
1)
R
thJA
R
thJS
445
365
K/W
Junction - soldering point
Semiconductor Group
1
Mar-04-1996
