DMM2W4P7K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> DMM2W4P7K-F

DMM2W4P7K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 250 V, 0.47 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size202KB，2 Pages; ManufacturerETC2

Download Datasheet Parametric View All

DMM2W4P7K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DMM2W4P7K-F	-	-	View	Buy Now

DMM2W4P7K-F Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 250 V, 0.47 uF, THROUGH HOLE MOUNT

DMM2W4P7K-F Parametric

Parameter Name	Attribute value
Maximum operating temperature	85 Cel
Minimum operating temperature	-55 Cel
negative deviation	10 %
positive deviation	10 %
Rated DC voltage urdc	250 V
Processing package description	RADIAL LEADED, ROHS COMPLIANT
Lead-free	Yes
EU RoHS regulations	Yes
state	ACTIVE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	DMM
capacitance	0.4700 uF
packaging shape	RECTANGULAR PACKAGE
Capacitor type	METALLIZED FILM
Terminal shape	WIRE
dielectric materials	POLYESTER

Preview

Download Datasheet

View All

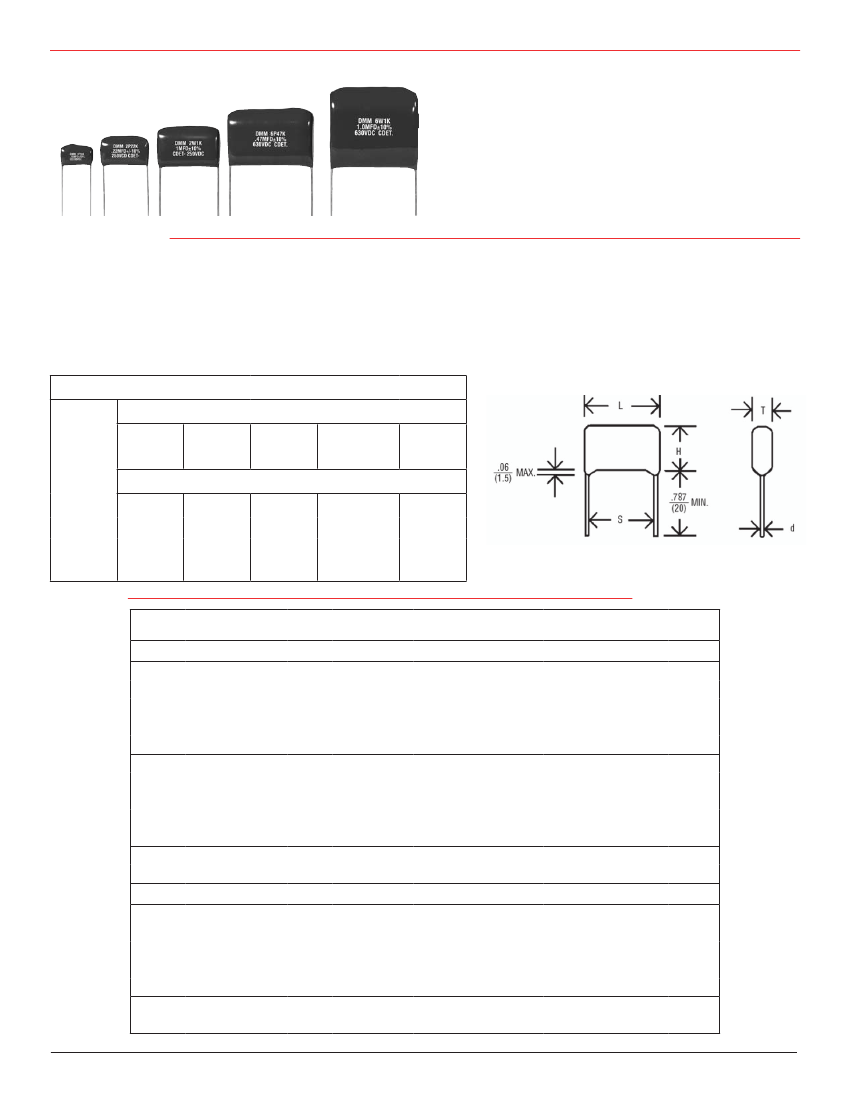

Type DMM

Polyester Film Capacitors

Metallized

Radial Leads

DC Applications

Self Healing

Type DMM

radial-leaded, metallized polyester capacitors

have non-inductive windings and multi-layered epoxy

resin enhancing performace characteristics and humidity

resistance. Self healing characteristics prevent permanent

shorting due to high-voltage transients. When long life and

performance stability are critical

Type DMM

is the ideal

solution.

Speciﬁcations

Voltage Range:

100-630 Vdc (65-250 Vac, 60 Hz)

Capacitance Range:

.01-10 µF

Capacitance Tolerance:

±10% (K) standard

±5% (J) optional

Operating Temperature Range:

-55 °C to 125 °C*

Pulse Capability

Body Length

Rated

Volts

100

250

400

630

0.55

0.71

0.94

1.024-1.220

*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C

Dielectric Strength:

150% (1 minute)

Dissipation Factor:

1% Max. (25 °C, 1 kHz)

Insulation Resistance:

5,000 M

Ω

x µF

10,000 M

Ω

Min.

Life Test:

1,000 Hours at 85 °C at

125% Rated Voltage

1.38

dV/dt—volts per microsecond, maximum

NOTE:

Other capacitance values, sizes and

performance speciﬁcations are available. Contact

us.

Ratings

Cap.

(µF)

0.15

0.22

0.33

0.47

0.68

1.00

1.50

2.20

3.30

4.70

6.80

10.00

0.07

0.10

0.15

0.22

0.33

0.47

0.68

L Max.

Catalog

T Max.

H Max.

Part Number Inches (mm) Inches (mm) Inches (mm)

100 Vdc (65 Vac)

DMM1P15K–F

0.236 (6.0) 0.394 (10.0) 0.551 (14.0)

DMM1P22K–F

0.236 (6.0) 0.414 (10.5) 0.551 (14.0)

DMM1P33K–F

0.236 (6.0) 0.414 (10.5) 0.709 (18.0)

DMM1P47K–F

0.236 (6.0) 0.473 (12.0) 0.709 (18.0)

DMM1P68K–F

0.276 (7.0) 0.551 (14.0) 0.709 (18.0)

DMM1W1K–F

0.354 (9.0) 0.591 (15.0) 0.709 (18.0)

DMM1W1P5K–F 0.354 (9.0) 0.670 (17.0) 1.024 (26.0)

DMM1W2P2K–F 0.433 (11.0) 0.788 (20.0) 1.024 (26.0)

DMM1W3P3K–F 0.453 (11.5) 0.788 (20.0) 1.024 (26.0)

DMM1W4P7K–F 0.512 (13.0) 0.906 (23.0) 1.221 (31.0)

DMM1W6P8K–F 0.630 (16.0) 1.024 (26.0) 1.221 (31.0)

DMM1W10K–F

0.709 (18.0) 1.221 (31.0) 1.221 (31.0)

250 Vdc (160 Vac)

DMM2S68K–F

0.236 (6.0) 0.394 (10.0) 0.551 (14.0)

DMM2P1K–F

0.276 (7.0) 0.394 (10.0) 0.551 (14.0)

DMM2P15K–F

0.276 (7.0) 0.433 (11.0) 0.709 (18.0)

DMM2P22K–F

0.276 (7.0) 0.473 (12.0) 0.709 (18.0)

DMM2P33K–F

0.276 (7.0) 0.512 (13.0) 0.709 (18.0)

DMM2P47K–F

0.315 (8.0) 0.591 (15.0) 1.024 (26.0)

DMM2P68K–F

0.354 (9.0) 0.610 (15.5) 1.024 (26.0)

RoHS Compliant

S ±.06 (±1.5)

Inches (mm) Inches (mm)

0.394

0.591

0.886

1.083

0.390

0.590

0.886

(10.0)

(15.0)

(22.5)

(27.5)

(10.0)

(15.0)

(22.5)

0.024

0.032

0.024

0.032

(0.6)

(0.8)

(0.6)

(0.8)

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02740

•

Phone: (508)996-8561

•

Fax: (508)996-3830 www.cde.com
