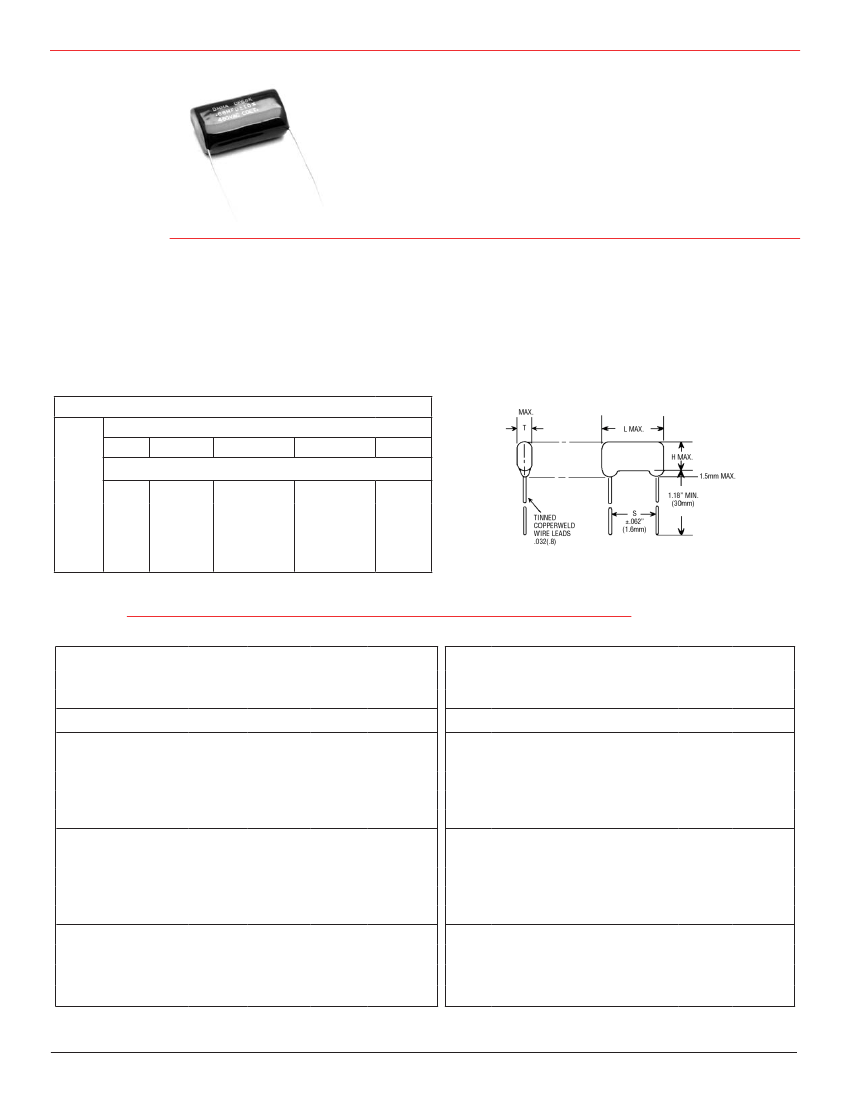

DMMABP22K-F: DescriptionPolyester Film Capacitors; File Size182KB，2 Pages; ManufacturerETC2

Download Datasheet View All

DMMABP22K-F Overview

Polyester Film Capacitors

Preview

Download Datasheet

View All

Type DMMA

Polyester Film Capacitors

Metallized

Radial Leads

AC Applications

Low ESR

Type DMMA

radial-leaded, metallized polyester capacitors

are designed for AC rated applications. Self healing, low DF,

and cornona-free at high AC voltages,

Type DMMA

is the

preferred value for medium current, AC applications.

Speciﬁcations

Voltage Range:

125-680 Vac, 60 Hz (250-1000 Vdc)

Capacitance Range:

.01-5 µF

Capacitance Tolerance:

±10% (K) standard

±5% (J) optional

Operating Temperature Range:

-55 °C to 125 °C*

*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C

Dielectric Strength:

160% (1 minute)

Dissipation Factor:

.60% Max. (25 °C, 1 kHz)

Insulation Resistance:

10,000 M

Ω

x µF

30,000 M

Ω

Min.

Life Test:

500 Hours at 85 °C at 125%

Rated Voltage

Pulse Capability

Body Length

Rated

Volts

0.625 .750-.937 1.062-1.125 1.250-1.500

125

240

360

480

111

221

122

NOTE:

Other capacitance values, sizes and performance speciﬁcations are

available. Contact us.

≥1.687

dV/dt – volts per microsecond, maximum

Ratings

Cap.

(µF)

Catalog

Part Number

Maximum

In. (mm)

Maximum

In. (mm)

Maximum

In. (mm)

±.062 (1.6 )

In. (mm)

Cap.

(µF)

Catalog

Part Number

In. (mm)

RoHS Compliant

In. (mm)

Maximum Maximum Maximum ±.062 (1.6 )

125 Vac (250 Vdc)

0.047

0.068

0.100

0.150

0.220

0.330

0.470

0.680

1.000

1.500

2.000

3.000

4.000

5.000

DMMAAS47K-F

DMMAAS68K-F

DMMAAP1K -F

DMMAAP15K -F

DMMAAP22K-F

DMMAAP33K-F

DMMAAP47K-F

DMMAAP68K-F

DMMAAW1K-F

DMMAAW2K-F

DMMAAW3K-F

DMMAAW4K-F

DMMAAW5K-F

.325 (8.3)

.375 (9.5)

.420 (10.7)

.485 (12.3)

.440 (11.2)

.480 (12.2)

.545 (13.8)

.655 (16.6)

.685 (17.4)

.710 (18.0)

.450 (11.4)

.480 (12.2)

.530 (13.5)

.590 (15.0)

.650 (16.5)

.625 (15.9)

.750 (19.0)

.375 (9.5)

.500 (12.7)

.812 (20.6)

0.022 DMMABS22K-F

0.033 DMMABS33K-F

0.047 DMMABS47K-F

0.068 DMMABS68K-F

0.100 DMMABP1K-F

0.150 DMMABP15K-F

0.220 DMMABP22K-F

0.330 DMMABP33K-F

0.470 DMMABP47K-F

0.680 DMMABP68K-F

1.000 DMMABW1K-F

2.000 DMMABW2K-F

3.000 DMMABW3K-F

240 Vac (400 Vdc)

.325 (8.3) .455 (11.6) 0.750 (19)

.325 (8.3)

.47 (11.9)

0.750 (19)

.325 (8.3) .515 (13.1) 0.750 (19)

.325 (8.3) .485 (12.3) 1.062 (27)

.355 (9.0) .515 (13.1) 1.062 (27)

.405 (10.3) .565 (14.3) 1.062 (27)

.450 (11.4) .640 (16.3) 1.062 (27)

.500 (12.7)

.812 (20.6)

.610 (15.5) 1.062 (27.0)

.670 (17.0) 1.062 (27.0)

.750 (19.0) 1.062 (27.0)

.465 (11.8) .655 (16.6) 1.250 (31.7) 1.000 (25.4)

.530 (13.5) .735 (18.7) 1.250 (31.7) 1.000 (25.4)

.590 (15.0) .845 (21.5) 1.250 (31.7) 1.000 (25.4)

.720 (18.3) .955 (24.2) 1.500 (38.1) 1.250 (31.7)

.780 (19.8) 1.020 (25.9) 1.500 (38.1) 1.250 (31.7)

DMMAAW1P5K-F .575 (14.6)

.800 (20.3) 1.250 (31.7) 1.000 (25.4)

.860 (21.8) 1.250 (31.7) 1.000 (25.4)

.905 (23.0)) 1.500 (38.1) 1.250 (31.7)

.925 (23.5) 1.500 (38.1) 1.250 (31.7)

1.500 DMMABW1P5K-F .640 (16.3) .875 (22.2) 1.500 (38.1) 1.250 (31.7)

.775 (19.7) 1.050 (26.7) 1.500 (38.1) 1.250 (31.7)

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02740

•

Phone: (508)996-8561

•

Fax: (508)996-3830 www.cde.com
