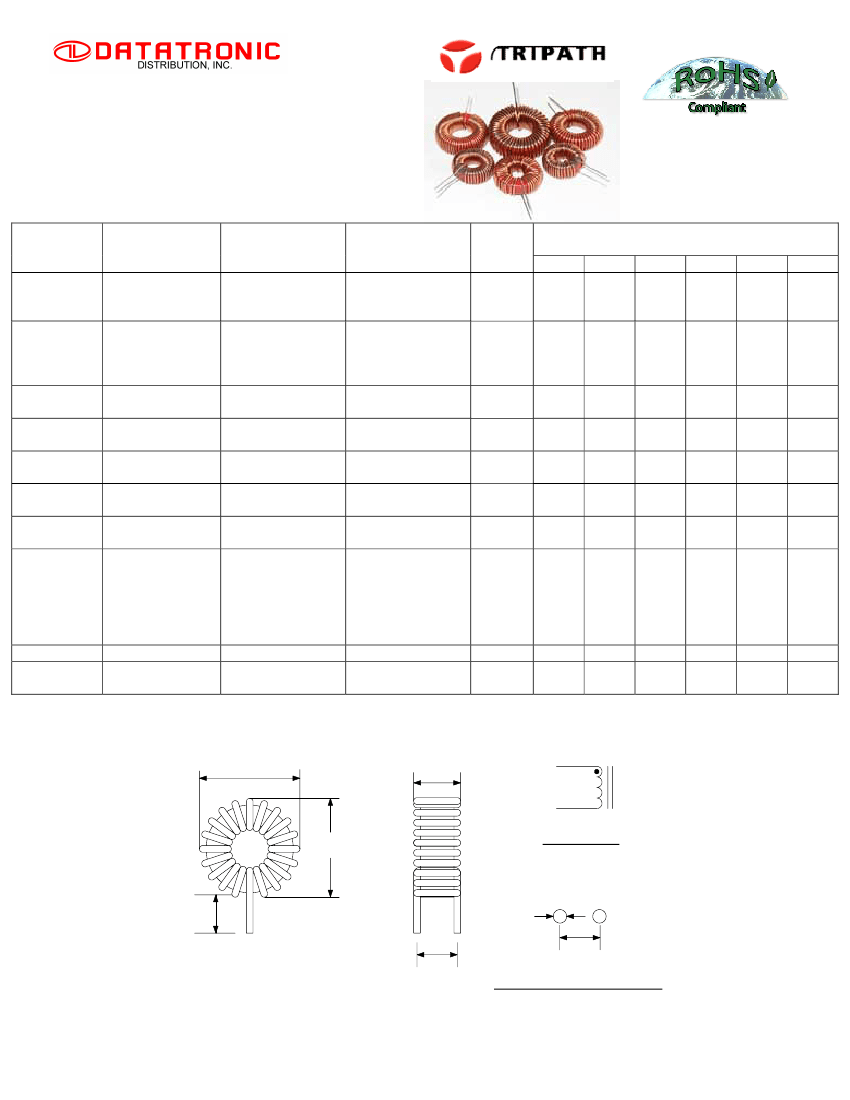

Inductors Approved for Use for

Tripath Digital Audio Amplifiers Using

Digital Power Processing™ Technology

Datatronics

Part

Number

DR77053

Tripath

Chipset

TK2050

6 Channel

TK2015

6 Channel

TA2041

TK2051

Parallel

TK2150 LV

TK2150_6LV

TK2150 LV

TK2150_6LV

TK2150 HV

TK2150_6HV

TK2150 HV

TK2150_6HV

TK2350 LV(1)

TK2350 LV(2)

TA0105-1

TA3020

Bridged (-1, -2)

TA0105-2

TA3020

Bridged (3)

1.

Tripath Part

Number

T602-48T24V

Inductance

± 20% @ 10kHz

1V

15µH

DCR

OHMS

Max.

0.1

Dimensions

A

0.70

B

0.70

C

0.50

D

0.32

E

0.27

F

0.028

DR77054

T602-40T24V

11µH

0.1

0.70

0.50

0.32

0.27

0.028

DR77055

DR77056

DR77057

DR77058

DR77096

T682-44T22V

T802-57T24V

T802-45T22V

T942-46T20V

T942-37T19V

11µH

18µH

11µH

18µH

11µH

0.1

0.13

0.07

0.06

0.04

0.85

1.00

1.10

1.30

0.85

1.00

1.10

1.30

0.50

0.33

0.35

0.43

0.50

0.28

0.30

0.38

0.35

0.033

0.028

0.033

0.039

0.045

DR77097

T1062-29T16V

11.3µH

0.02

1.40

0.50

0.65

0.49

0.063

DR77098

DR77099

T1062-49T18V

T1572-28T14V

33µH

11µH

0.05

0.015

1.40

2.00

1.40

2.00

0.50

0.65

0.85

0.49

0.64

0.049

0.079

Note:

For non-RoHS parts replace DR prefix with 42- (e.g. DR77053 becomes 42-77053)

"A" MAX

"D" MAX

1

2

"B" MAX

SCHEMATIC

HOLE SIZE

"F"

"C" MAX

ALL DIMENSIONS ARE GIVEN IN

INCHES UNLESS OTHERWISE

SPECIFIED. TOLERANCE ±0.01

"E" MAX

SUGGESTED PAD LAYOUT

DATATRONIC

:

28151 Highway 74, Romoland, CA 92585

Tel: 951-928-7700 Toll Free Tel: 888-889-5391 Fax: 951-928-7701

Email: ddisales@datatronics.com

499 King’s Road, Hong Kong Tel: (852) 2562 3858, (852) 2564 8477, Fax: (852) 2565 7214, (852) 2563 1290

All specifications are subject to change without notice.
