DRA5143E

Description
Silicon PNP epitaxial planar type For digital circuits Complementary to DRC5143E
CategoryDiscrete semiconductor    The transistor
File Size343KB,4 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

DRA5143E Overview

Silicon PNP epitaxial planar type For digital circuits Complementary to DRC5143E

DRA5143E Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerPanasonic
package instructionSMALL OUTLINE, R-PDSO-F3
Contacts3
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresBUILT IN BIAS RESISTOR RATIO IS 1
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)20
JESD-30 codeR-PDSO-F3
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typePNP
Maximum power dissipation(Abs)0.15 W
Certification statusNot Qualified
surface mountYES
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON
DRA5143E
Silicon PNP epitaxial planar type
For digital circuits
Complementary to DRC5143E
DRA2143E in SMini3 type package
Features
Low collector-emitter saturation voltage V
CE(sat)
Halogen-free / RoHS compliant
(EU RoHS / UL-94 V-0 / MSL: Level 1 compliant)

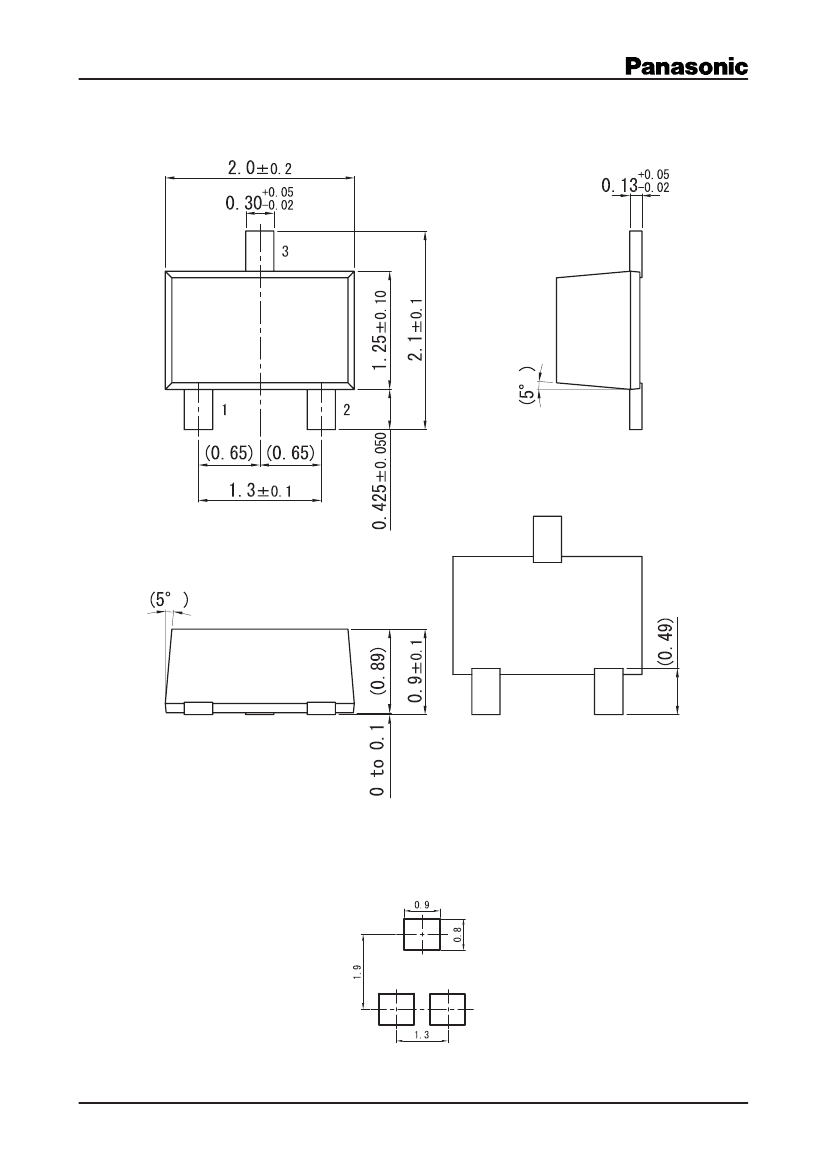

Unit: mm
Marking Symbol: L5
Packaging
DRA5143E0L Embossed type (Thermo-compression sealing): 3 000 pcs / reel (standard)
1: Base
2: Emitter
3: Collector
Panasonic
JEITA
Code
R
1
R
2
Absolute Maximum Ratings
T
a
= 25°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector current
Total power dissipation
Junction temperature
Storage temperature
Symbol
V
CBO
V
CEO
I
C
P
T
T
j
T
stg
Rating
–50
–50
–100
150
150
–55 to +150
Unit
V
V
mA
mW
°C
°C
SMini3-F2-B
SC-85
C
B
E
Resistance value
R
1
R
2
Typ
4.7
4.7
Max
Unit
V
V
Electrical Characteristics
T
a
= 25°C±3°C
Parameter
Collector-base voltage (Emitter open)
Collector-emitter voltage (Base open)
Collector-base cutoff current (Emitter open)
Collector-emitter cutoff current (Base open)
Emitter-base cutoff current (Collector open)
Forward current transfer ratio
Collector-emitter saturation voltage
Input voltage (ON)
Input voltage (OFF)
Input resistance
Resistance ratio
Symbol
V
CBO
V
CEO
I
CBO
I
CEO
I
EBO
h
FE
V
CE(sat)
V
I(on)
V
I(off)
R
1
R
1
/ R
2
Conditions
I
C
= –10 µA, I
E
= 0
I
C
= –2 mA, I
B
= 0
V
CB
= –50 V, I
E
= 0
V
CE
= –50 V, I
B
= 0
V
EB
= –6 V, I
C
= 0
V
CE
= –10 V, I
C
= –5 mA
I
C
= –10 mA, I
B
= – 0.5 mA
V
CE
= – 0.2 V, I
C
= –5 mA
V
CE
= –5 V, I
C
= –100 µA
–30%
0.8
4.7
1.0
–1.9
– 0.8
+30%
1.2
20
– 0.25
Min
–50
–50
– 0.1
– 0.5
–2.0
µA
µA
mA
V
V
V
Note) Measuring methods are based on JAPANESE INDUSTRIAL STANDARD JIS C 7030 measuring methods for transistors.
Publication date: November 2012
Ver. DED
1
