DRP024V480W3AA Overview

CliQ Din Rail Power Supply 24V 480W 3 Phase

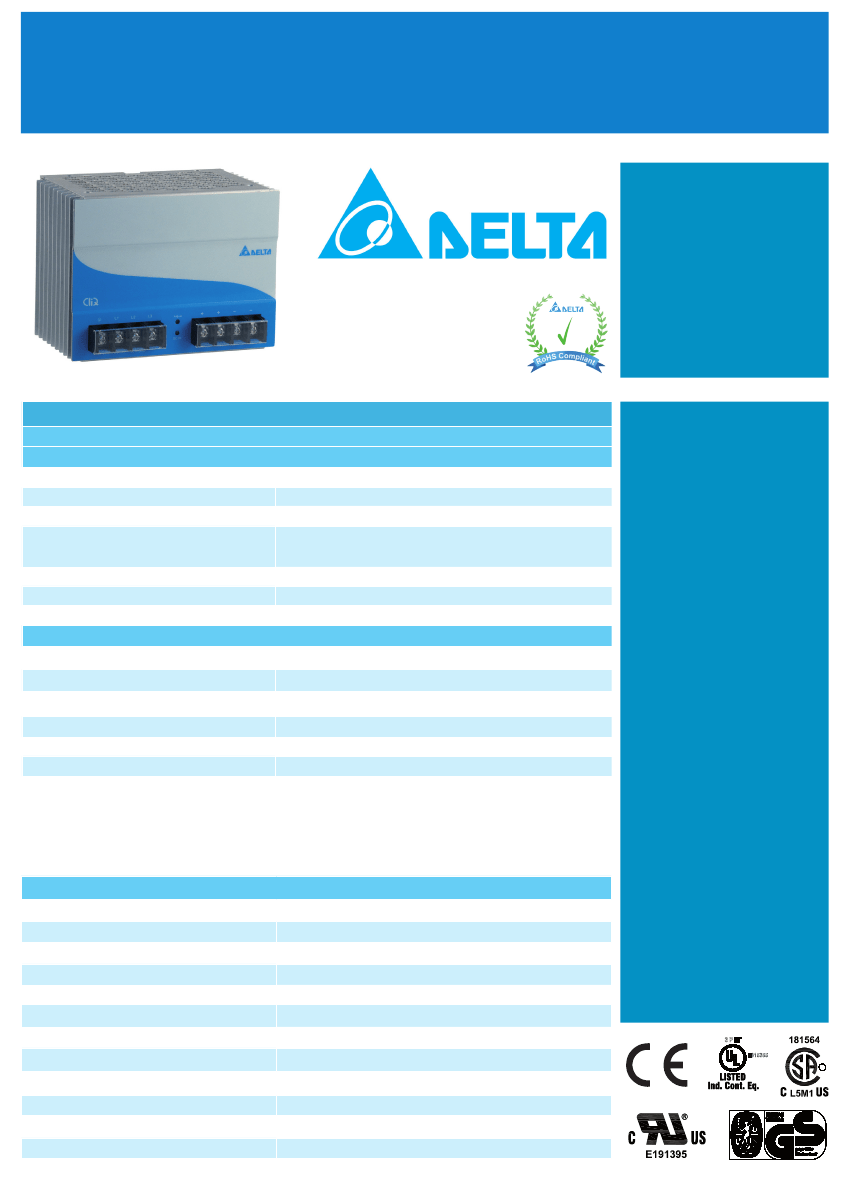

Preview

Download Datasheet

View All

CliQ Din Rail Power Supply

24V 480W 3 Phase

DRP024V480W3AA

480Watts

Total Power: 480Watts

Input Voltage: 320-575Vac

# of Output: Single

Model number

Reference no.

OUTPUT (DC)

Output power

Output voltage range

Output current

Residual ripple/peak switching (20MHz)

(@ nominal values)

Mains buffering at nominal load (typ.)

Line regulation

Load regulation

DRP024V480W3AA

EOE13010010

480W

22 - 28V

20A

< 50mV / < 240mVpp

> 25ms @ 3 x 400Vac, > 50ms @ 3 x 500Vac

< 0.5% typ. (@ 320 - 575Vac input, 100% load)

< 1% typ. (with rated input, 0 - 100% load)

320 - 575Vac (DC input range 450 - 800Vdc)

47 - 63Hz

1.6A @ 400Vac approx.

> 87% @ 3 x 400Vac, > 86% @ 3 x 500Vac

Conform to EN61000-3-2 STD

< 50A @ 400Vac

< 3.5mA

Special Features

- Ease of wire connection to

terminals

Compact design for easy

handling

Overload protection

Overvoltage protection

Thermal protection

Power boost 150% for 3

seconds

Expected life time : 10 years

Shock proof IEC60068-2-27

Vibration IEC60068-2-6

Cooling : Convection

Operating Humidity : < 95%

Redundancy : Yes

(with external ORing diode)

RoHS compliant

INPUT (AC)

Input voltage range

Input frequency

Nominal current

Efficiency

Power factor

Inrush current limitation I²t (+25°C) typ.

Leakage current

MECHANICAL DESIGN

Case cover

Dimensions (L x W x H)

Unit weight / box

MTBF

Noise

Cooling

Input terminal

Output terminal

Mounting rail

Shock proof

Vibration

Protection structure

Aluminium (AI5052)

121mm x 160mm x 118.5mm

1.710kg

> 300,000 hrs

Sound pressure level (SPL) < 40dBA

Convection

M4 x 4; 600V rating

M4 x 2 (2 pcs); 600V rating

Standard TS35 mounting rail

IEC60068-2-27

IEC60068-2-6

EN60950 meet IPX0

3 PET

E315355
