PMF109-151-MHF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PMF109-151-MHF

PMF109-151-MHF: DescriptionGeneral Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE; CategoryPassive components inductor; File Size159KB，4 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

PMF109-151-MHF Overview

General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE

PMF109-151-MHF Parametric

Parameter Name	Attribute value
Maker	YAGEO
Reach Compliance Code	compli
ECCN code	EAR99
structure	Through Hole
core material	FERRITE
DC Resistance	0.20871 Ω
Nominal inductance(L)	150 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Lead diameter	1.1 mm
Lead length	3.4 mm
Number of functions	1
Number of terminals	2
Package height	10.5 mm
Package length	11.5 mm
Package form	DIP
Package width	11.5 mm
method of packing	Bulk
Maximum rated current	1.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR IS MEASURED AT 10% TOLERANCE
surface mount	NO
Terminal location	DUAL IN-LINE
Terminal shape	WIRE
Test frequency	0.1 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

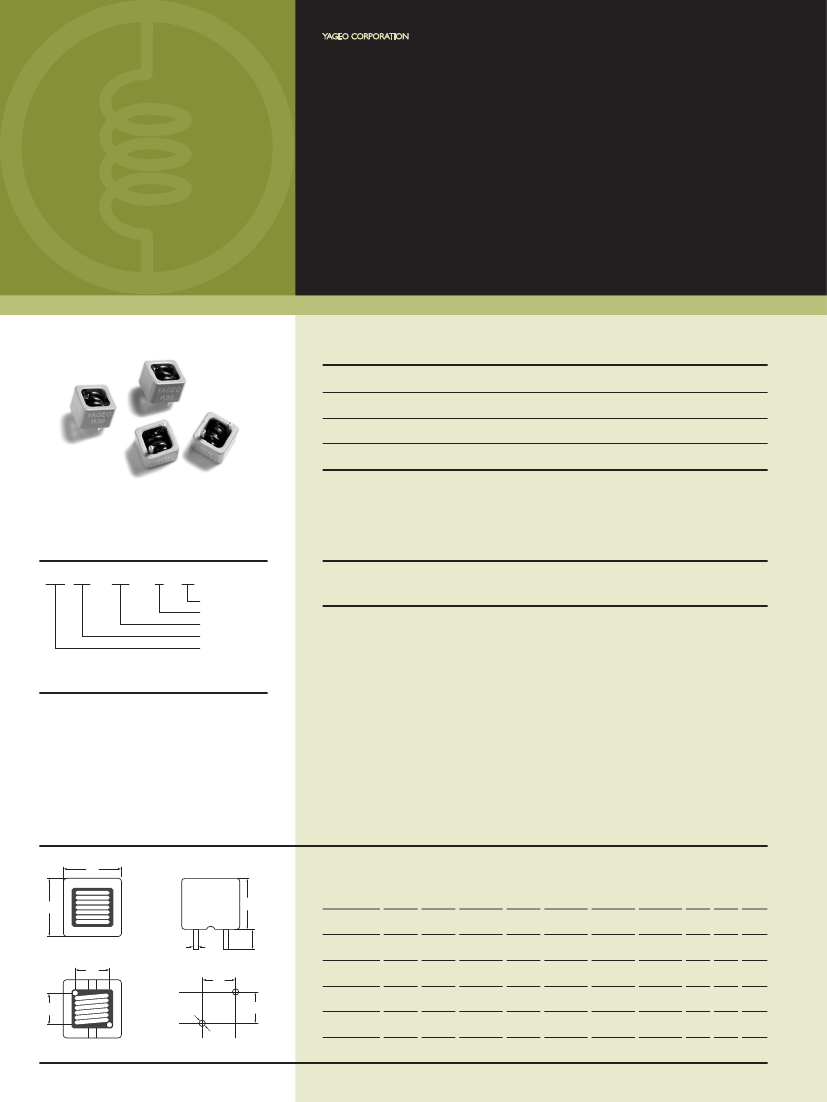

YAGEO CORPORATION

DIP / SMD INDUCTORS

DIP Power Inductors

PMF Series

FEATURES

Halogen Free products

Shielded construction

Lowest DCR/μH, in this package size

Handles high transient current spikes without saturation

PRODUCT IDENTIFICATION

PMF 107

1R0

Halogen Free

Tolerance

Inductance

Dimensions

Product Symbol

APPLICATIONS

Excellent for power lines used on DC-DC conversion applications i.e. power switching, personal

computers and handheld devices.

■

Tolerance: J = ±5%, K = ±10%, L = ±15%, M = ±20%,

P = ±25%, N = ±30%, Y = min

SHAPES AND DIMENSIONS

Unit: mm

XXX

TYPE

PMF0806

Land Pattern

8.2

3.5 ± 0.5 6.0

3.5 ± 0.5 8.5

4.4 ± 0.5 4.4 ± 0.5 0.7 ± 0.1 4.9

6.6 ± 0.5 4.2 ± 0.5 1.4 ± 0.1 7.1

6.5 ± 0.5 6.0 ± 0.5 1.1 ± 0.1 8.5

4.4

4.2

6.0

6.8

7.0

1.0

1.8

1.5

1.9

1.4

PMF1008

PMF107

11.7

9.7

11.5

3.4 ± 0.5 8.0

PMF109

PMF118

PMF129

11.5

3.4 ± 0.5 10.5

6.8 ± 0.5 6.8 ± 0.5 1.1 ± 0.1 9.6

12.0

3.4 ± 0.5 9.0

14.0

13.0

3.4 ± 0.5 9.5

6.3 ± 0.5 5.7 ± 0.5 1.5 ± 0.1 7.8

7.8 ± 0.5 7.0 ± 0.5 1.0 ± 0.1 7.8

PMF109-151-MHF Related Products

	PMF109-151-MHF	PMF118-R80-MHF	PMF109-121-MHF	PMF109-220-MHF	PMF1008-R25-MHF	PMF129-1R2-MHF	PMF0806-R80-MHF	PMF118-3R3-MHF	PMF109-101-MHF
Description	General Purpose Inductor, 150uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE	General Purpose Inductor, 0.8uH, 20%, 1 Element, Iron-Core, 4747, HALOGEN FREE	General Purpose Inductor, 120uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE	General Purpose Inductor, 22uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE	General Purpose Inductor, 0.25uH, 20%, 1 Element, Iron-Core, 4638, HALOGEN FREE	General Purpose Inductor, 1.2uH, 20%, 1 Element, Ferrite-Core, 5551, HALOGEN FREE	General Purpose Inductor, 0.8uH, 20%, 1 Element, Iron-Core, 3232, HALOGEN FREE	General Purpose Inductor, 3.3uH, 20%, 1 Element, Iron-Core, 4747, HALOGEN FREE	General Purpose Inductor, 100uH, 20%, 1 Element, Ferrite-Core, 4545, HALOGEN FREE
Reach Compliance Code	compli	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
structure	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
core material	FERRITE	IRON	FERRITE	FERRITE	IRON	FERRITE	IRON	IRON	FERRITE
DC Resistance	0.20871 Ω	0.0013 Ω	0.20083 Ω	0.05883 Ω	0.00065 Ω	0.00135 Ω	0.0029 Ω	0.0063 Ω	0.1393 Ω
Nominal inductance(L)	150 µH	0.8 µH	120 µH	22 µH	0.25 µH	1.2 µH	0.8 µH	3.3 µH	100 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Lead diameter	1.1 mm	1.5 mm	1.1 mm	1.1 mm	1.4 mm	1 mm	0.7 mm	1.5 mm	1.1 mm
Lead length	3.4 mm	3.4 mm	3.4 mm	3.4 mm	3.5 mm	3.4 mm	3.5 mm	3.4 mm	3.4 mm
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2	2
Package height	10.5 mm	9 mm	10.5 mm	10.5 mm	8.5 mm	9.5 mm	6 mm	9 mm	10.5 mm
Package length	11.5 mm	12 mm	11.5 mm	11.5 mm	11.7 mm	14 mm	8.2 mm	12 mm	11.5 mm
Package form	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package width	11.5 mm	12 mm	11.5 mm	11.5 mm	9.7 mm	13 mm	8.2 mm	12 mm	11.5 mm
method of packing	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Maximum rated current	1.8 A	31 A	1.8 A	3.8 A	43 A	31.5 A	17 A	14 A	1.8 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES	YES	YES	YES	YES	YES
special characteristics	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE	DCR IS MEASURED AT 10% TOLERANCE
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal location	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE	DUAL IN-LINE
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Test frequency	0.1 MHz	0.1 MHz	0.2 MHz	0.2 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz	0.2 MHz
Tolerance	20%	20%	20%	20%	20%	20%	20%	20%	20%
Maker	YAGEO	-	-	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
