DRS-09S12

Description
90° Solder Dip - Short Distance (Male / Female 5.08mm)
File Size39KB,1 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet Compare View All

DRS-09S12 Overview

90° Solder Dip - Short Distance (Male / Female 5.08mm)

D Series
(Standard D-Sub)
Specifications
Insulation Resistance:
Withstanding Voltage:
Contact Resistance:
Current Rating:
Operating Temp. Range:
Soldering Temp.:
5,000MΩ min.
1,000 V AC
20mΩ max.
5A
–55°C to +105°C
260°C / 3 sec.
90° Solder Dip - Short Distance
(Male / Female 5.08mm)
Part Number
(Details)
D
Series
Terminal Version:
RS = 5.08mm
(Distance)
No. of Contact Pins
P = Male (9 pins only)
S = Female (25 pins only)
PCB Assembly:
1 = With Snap-in
Connection Assembly:
2 = Clinch Nut Rivetted, 4-40
(Without Female Screw Locks)
For Special Platings
RS - *
* 1 2-*
Materials and Finish
Insulator:
Contacts:
Shell:
Plating:
PBT (glass filled) , UL94V-0
Phoshor Bronze
Ni plated
Gold over Nickel

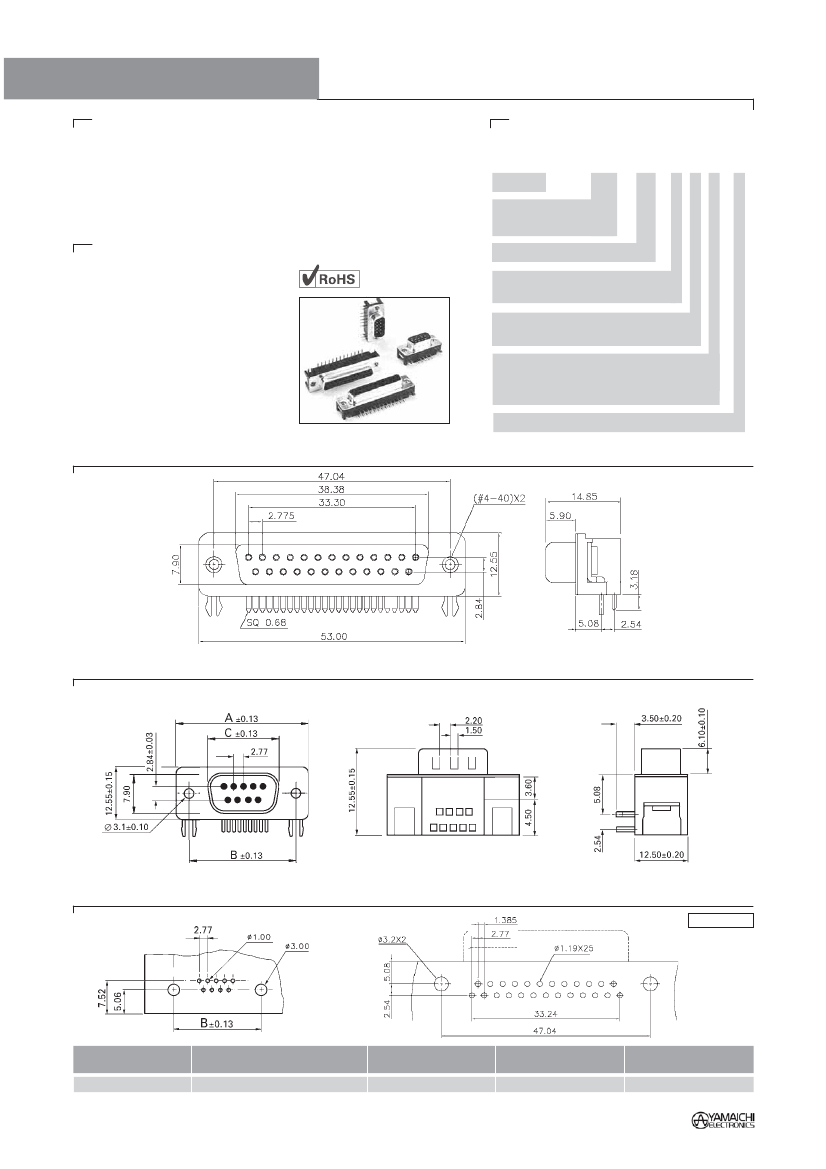

Outline Connector Dimensions (Female 25 pins)
B
C
A
Outline Connector Dimensions (Male 9 pins)
Recommended PCB Layouts
Male 9 pins
Female 25 pins
Top View
Part Number
DRS-09P12-*
DRS-25S12-*
Sockets and Connectors
No. of Contacts
9
25
A
30.85
53.00
B
24.95
47.04
C
16.92
38.38
Trading Division
SPECIFICATIONS AND DRAWINGS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER
