DS1323
3.3V Flexible Nonvolatile Controller with
Lithium Battery Monitor
FEATURES
Converts CMOS SRAM into nonvolatile
memory
Unconditionally write-protects SRAM when
V
CC
is out of tolerance
Automatically switches to battery backup
when V
CC
power failure occurs
Flexible memory organization
- Mode 0: 4 banks with 1 SRAM each
- Mode 1: 2 banks with 2 SRAMs each
- Mode 2: 1 bank with 4 SRAMs each
Monitors voltage of a lithium cell and
provides advanced warning of impending
battery failure
Signals low-battery condition on active low
battery warning output signal
Resets processor when power failure occurs
and holds processor in reset during system
power-up
10% power-fail detection
Industrial temperature range of -40°C to
+85°C
PIN ASSIGNMENT
V
CCO
V
BAT
NC
CEI1
CEI2
NC
A/CEI3
B/CEI4
NC
GND
1
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
V
CCI
RST
BW
CEO1
CEO2
NC
CEO3
CEO4
NC
MODE
DS1323E 20-Pin TSSOP
(173 mils)
PIN DESCRIPTION
V
CCI
V
CCO
V
BAT
A, B
- +3.3V Power Supply Input
- SRAM Power Supply Output
- Backup Battery Input
- Address Inputs
- Chip Enable Inputs
CEI1
-
CEI4
CEO1
-
CEO4
- Chip Enable Outputs
- Battery Warning Output (Open
BW
Drain)
- Reset Output (Open Drain)
RST
MODE
- Mode Input
GND
- Ground
NC
- No Connection
1 of 14
DS1323
DESCRIPTION
The DS1323 Flexible Nonvolatile Controller with Lithium Battery Monitor is a CMOS circuit that solves the
application problem of converting CMOS SRAMs into nonvolatile memory. Incoming power is monitored
for an out-of-tolerance condition. When such a condition is detected, chip-enable outputs are inhibited to
accomplish write protection and the battery is switched on to supply the SRAMs with uninterrupted power.
Special circuitry uses a low-leakage CMOS process which affords precise voltage detection at extremely low
battery consumption. One DS1323 can support as many as four SRAMs arranged in any of three memory
configurations.
In addition to battery-backup support, the DS1323 performs the important function of monitoring the
remaining capacity of the lithium battery and providing a warning before the battery reaches end-of-life.
Because the open-circuit voltage of a lithium backup battery remains relatively constant over the majority of
its life, accurate battery monitoring requires loaded-battery voltage measurement. The DS1323 performs
such measurement by periodically comparing the voltage of the battery as it supports an internal resistive
load with a carefully selected reference voltage. If the battery voltage falls below the reference voltage under
such conditions, the battery will soon reach end-of-life. As a result, the battery warning pin is activated to
signal the need for battery replacement.
MEMORY BACKUP
The DS1323 performs all the circuit functions required to provide battery-backup for as many as four
SRAMs. First, the device provides a switch to direct power from the battery or the system power supply
(V
CCI
). Whenever V
CCI
is less than the V
CCTP
trip point and V
CCI
is less than the battery voltage V
BAT
, the
battery is switched on to provide backup power to the SRAM. This switch has voltage drop of less than 0.2
volts.
Second, the DS1323 handles power failure detection and SRAM write-protection. V
CCI
is constantly
monitored, and when the supply goes out of tolerance, a precision comparator detects power failure and
inhibits the four chip enable outputs in order to write-protect the SRAMs. This is accomplished by holding
CEO1
through
CEO4
to within 0.2 volts of V
CCO
when V
CCI
is out of tolerance. If any
CEI
is active (low) at
the time that power failure is detected, the corresponding
CEO
signal is kept low until the
CEI
signal is
brought high again. Once the
CEI
signal is brought high, the
CEO
signal is taken high and held high until
after V
CCI
has returned to its nominal voltage level. If the
CEI
signal is not brought high by 1.5µs after
power failure is detected, the corresponding
CEO
is forced high at that time. This specific scheme for
delaying write protection for up to 1.5µs guarantees that any memory access in progress when power failure
occurs will complete properly. Power failure detection occurs in the range of 2.8 to 3.0 volts.
2 of 14
DS1323
MEMORY CONFIGURATIONS
The DS1323 can be configured via the MODE pin for three different arrangements of the four attached
SRAMs. The state of the MODE pin is latched at V
CCI
= V
CCTP
on power-up. See Figure 1 for details.

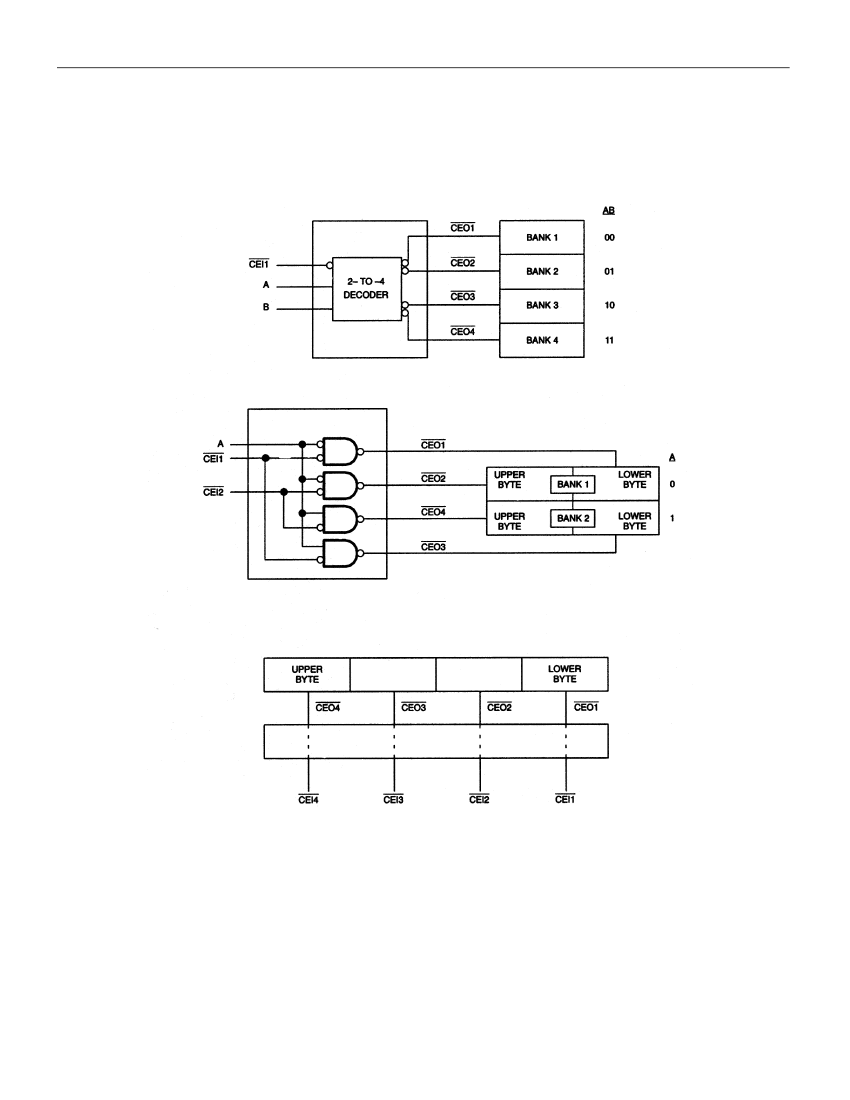

MEMORY CONFIGURATIONS
Figure 1
MODE = GND (4 BANKS WITH 1 SRAM EACH):
DS1323
MODE = V
CCO
(2 BANKS WITH 2 SRAM EACH):
DS1323
MODE = Not Connected (1 BANK WITH 4 SRAMs):
DS1323
3 of 14
DS1323
BATTERY VOLTAGE MONITORING
The DS1323 automatically performs periodic battery voltage monitoring at a factory-programmed time
interval of 24 hours. Such monitoring begins within t
REC
after V
CCI
rises above V
CCTP
and is suspended when
power failure occurs.
After each 24-hour period (t
BTCN
) has elapsed, the DS1323 connects V
BAT
to an internal 1MΩ test resistor
(R
INT
) for one second (t
BTPW
). During this one second, if V
BAT
falls below the factory-programmed battery
voltage trip point (V
BTP
), the battery warning output
BW
is asserted. While
BW
is active, battery testing will
be performed with period t
BTCW
to detect battery removal and replacement. Once asserted,
BW
remains
active until the battery is physically removed and replaced by a fresh cell. The battery is still retested after
each V
CC
power-up, however, even if
BW
was active on power-down. If the battery is found to be higher
than V
BTP
during such testing,
BW
is deasserted and regular 24-hour testing resumes.
BW
has an open-drain
output driver.
Battery replacement following
BW
activation is normally done with V
CCI
nominal so that SRAM data is not
lost. During battery replacement, the minimum time duration between old battery detachment and new
battery attachment (t
BDBA
) must be met or
BW
will not deactivate following attachment of the new battery.
Should
BW
not deactivate for this reason, the new battery can be detached for t
BDBA
and then re-attached to
clear
BW
.
NOTE: The DS1323 cannot constantly monitor an attached battery because such monitoring would
drastically reduce the life of the battery. As a result, the DS1323 only tests the battery for one second out of
every 24 hours and does not monitor the battery in any way between tests. If a good battery (one that has not
been previously flagged with
BW
) is removed between battery tests, the DS1323 may not immediately sense
the removal and may not activate
BW
until the next scheduled battery test. If a battery is then reattached to
the DS1323, the battery may not be tested until the next scheduled test.
NOTE: Battery monitoring is only a useful technique when testing can be done regularly over the entire life
of a lithium battery. Because the DS1323 only performs battery monitoring when V
CC
is nominal, systems
which are powered down for excessively long periods can completely drain their lithium cells without
receiving any advanced warning. To prevent such an occurrence, systems using the DS1323 battery
monitoring feature should be powered up periodically (at least once every few months) in order to perform
battery testing. Furthermore, anytime
BW
is activated on the first battery test after a power-up, data integrity
should be checked via checksum or other technique.
POWER MONITORING
The DS1323 automatically detects out-of-tolerance power supply conditions and warns a processor-based
system of impending power failure. When V
CCI
falls below the trip point level in the range of 3.0 to 2.8 volts
(10% tolerance) (V
CCTP
), the V
CCI
comparator activates the reset signal
RST
.
RST
also serves as a power-on reset during power-up. After V
CCI
exceeds V
CCTP
,
RST
will be held active
for 200ms nominal (t
RPU
). This reset period is sufficiently long to prevent system operation during power-on
transients and to allow t
REC
to expire.
RST
has an open-drain output driver.
FRESHNESS SEAL MODE
When the battery is first attached to the DS1323 without V
CC
power applied, the device does not
immediately provide battery-backup power on V
CCO
. Only after V
CCI
exceeds V
CCTP
will the DS1323 leave
Freshness Seal Mode. This mode allows a battery to be attached during manufacturing but not used until
4 of 14
DS1323
after the system has been activated for the first time. As a result, no battery energy is drained during storage
and shipping.
FUNCTIONAL BLOCK DIAGRAM
Figure 2
5 of 14
