097 RLP 7
Vishay BCcomponents
Aluminum Capacitors
Radial Low Profile, 7 mm
FEATURES
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
Radial leads, cylindrical aluminum case,
insulated with a blue sleeve
Charge and discharge proof
Low profile, 7 mm height
Miniaturized, high CV-product per unit volume
Compliant to RoHS Directive 2002/95/EC
Fig.1 Component outline
RoHS
COMPLIANT
APPLICATIONS
Fig.0 Component outlines.
General purpose; industrial, automotive and audio-video
Low surface demand on printed-circuit board
Coupling, decoupling, smoothing, filtering and timing
VALUE
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C , 1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
4 x 7 to 6.3 x 7
0.1 to 220 µF
± 20 %
6.3 to 63 V
- 40 to + 85 °C
1000 h
1500 h
40 000 h
500 h
IEC 60384-4/EN 130300
40/085/56
Portable and mobile equipment (small size, low mass),
low profile equipment
MARKING
The capacitors are marked (where possible) with the
following information:
Rated capacitance (in µF)
Rated voltage (in V)
Negative terminal identification
Code indicating factory of origin
Name of manufacturer
Date code, in accordance with IEC 60062
Series number (097)
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
0.10
0.22
0.47
1.0
2.2
3.3
4.7
10
22
33
47
100
220
U
R
(V)
6.3
-
-
-
-
-
-
-
-
4x7
-
5x7
-
6.3 x 7
10
-
-
-
-
-
-
-
-
-
5x7
-
6.3 x 7
-
16
-
-
-
-
-
-
-
4x7
5x7
-
6.3 x 7
6.3 x 7
-
25
-
-
-
-
-
-
-
-
-
6.3 x 7
6.3 x 7
-
-
35
-
-
-
-
-
-
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
50
-
-
-
-
-
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
-
63
4x7
4x7
4x7
4x7
4x7
5x7
6.3 x 7
6.3 x 7
-
-
-
-
-
Document Number: 28308
Revision: 08-Mar-11
For technical questions, contact:
aluminumcaps1@vishay.com
www.vishay.com
85
097 RLP 7
Vishay BCcomponents
Aluminum Capacitors
Radial Low Profile, 7 mm

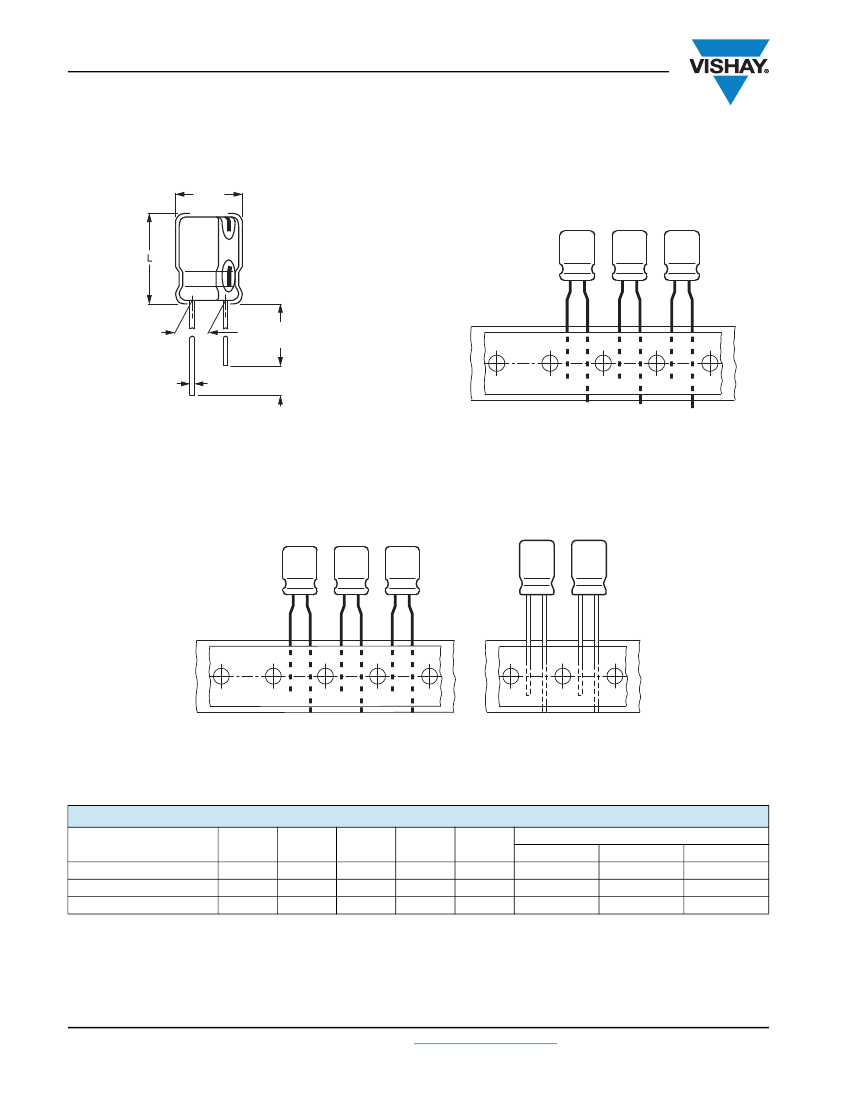

DIMENSIONS
in millimeters,
AND AVAILABLE FORMS
ØD
+
-
F
± 0.5
15
min.
Ød
5
min.
Fig.2
Form CA:
Long leads
Fig.3
Form TFA:
Taped in box (ammopack), formed leads, pitch F = 5 mm
Fig.4
Form TNA:
Taped in box (ammopack), pitch F = 2.5 mm
DIMENSIONS
in millimeters
AND PACKAGING QUANTITIES
NOMINAL CASE SIZE
ØDxL
4x7
5x7
6.3 x 7
CASE
CODE
71
72
73
Ød
0.45
0.45
0.45
Ø D
max.
4.5
5.5
6.8
L
max.
8
8
8
F
1.5 ± 0.5
2.0 ±0.5
2.5 ±0.5
PACKAGING QUANTITIES
FORM CA
2000
1000
1000
FORM TFA
2000
2000
2000
FORM TNA
2000
2000
2000
Note
Detailed tape dimensions see section ‘PACKAGING’.
www.vishay.com
86
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28308
Revision: 08-Mar-11
097 RLP 7
Aluminum Capacitors
Radial Low Profile, 7 mm
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L2
tan
Z
DESCRIPTION
rated capacitance at 120 Hz, tolerance ± 20 %
rated RMS ripple current at 120 Hz, 85 °C
max. leakage current after 2 min at U
R
max. dissipation factor at 120 Hz
max. impedance at 100 kHz
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 097 series
100 µF/16 V; ± 20 %
Nominal case size: Ø 6.3 mm x 7 mm; Form TFA
Ordering Code: MAL209735101E6
Former 12NC: 2222 097 35101
Note
Unless otherwise specified, all electrical values in Table 2 apply at
T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %.
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
120 Hz
(µF)
22
47
220
33
100
10
22
47
100
33
47
4.7
10
22
33
3.3
4.7
10
22
0.10
0.22
0.47
1
2.2
3.3
4.7
10
NOMINAL
CASE SIZE
ØDxL
(mm)
4x7
5x7
6.3 x 7
5x7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
6.3 x 7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
4x7
5x7
6.3 x 7
6.3 x 7
4x7
4x7
4x7
4x7
4x7
5x7
6.3 x 7
6.3 x 7
I
R
120 Hz
85 °C
(mA)
31
47
90
43
80
25
39
59
90
53
65
20
30
47
60
18
23
34
53
1.3
2.9
7.9
11
17
21
26
40
ORDERING CODE MAL2097.......
I
L2
2 min
(µA)
3
3
14
4
10
3
4
8
16
9
12
3
4
8
12
3
3
5
11
3
3
3
3
3
3
3
7
tan
120 Hz
Z
100 kHz
()
8.4
4.6
1.8
3.7
2.2
10
5
3.5
2.5
2.6
1.9
10
5.6
3
2.6
14
10
5.5
2.9
170
110
66
36
19
14
10
5.5
BULK
LONG LEADS
FORM
F
CA
(mm)
53229E6
1.5
53479E6
2.0
53221E6
2.5
54339E6
2.0
54101E6
2.5
55109E6
1.5
55229E6
2.0
55479E6
2.5
55101E6
2.5
56339E6
2.5
56479E6
2.5
50478E6
1.5
50109E6
2.0
50229E6
2.5
50339E6
2.5
51338E6
1.5
51478E6
2.0
51109E6
2.5
51229E6
2.5
58107E6
1.5
58227E6
1.5
58477E6
1.5
58108E6
1.5
58228E6
1.5
58338E6
2.0
58478E6
2.5
58109E6
2.5
TAPED AMMOPACK
FORM
TFA
33229E6
33479E6
33221E6
34339E6
34101E6
35109E6
35229E6
35479E6
35101E6
36339E6
36479E6
30478E6
30109E6
30229E6
30339E6
31338E6
31478E6
31109E6
31229E6
38107E6
38227E6
38477E6
38108E6
38228E6
38338E6
38478E6
38109E6
F
(mm)
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
FORM
TNA
73229E6
73479E6
73221E6
74339E6
74101E6
75109E6
75229E6
75479E6
75101E6
76339E6
76479E6
70478E6
70109E6
70229E6
70339E6
71338E6
71478E6
71109E6
71229E6
78107E6
78227E6
78477E6
78108E6
78228E6
78338E6
78478E6
78109E6
F
(mm)
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
2.5
6.3
10
16
25
35
50
63
0.24
0.24
0.24
0.20
0.20
0.16
0.16
0.16
0.16
0.14
0.14
0.12
0.12
0.12
0.12
0.10
0.10
0.10
0.10
0.08
0.08
0.08
0.08
0.08
0.08
0.08
0.08
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Resistance
Equivalent series resistance (ESR)
Document Number: 28308
Revision: 08-Mar-11
CONDITIONS
U
s
1.15 x U
R
U
rev
1 V
After 2 min at U
R
Calculated from tan
max.
and C
R
(see Table 2)
I
L2
0.01 C
R
x U
R
or 3 µA (whichever is greater)
ESR = tan
/2 f
C
R
www.vishay.com
87
VALUE
For technical questions, contact:
aluminumcaps1@vishay.com
097 RLP 7
Vishay BCcomponents
Aluminum Capacitors
Radial Low Profile, 7 mm
RIPPLE CURRENT AND USEFUL LIFE
CCC205
3.3
I
A
I
R
3.2
3.1
3.0
2.8
2.6
2.4
2.2
lifetime multiplier
1.
0
2.0
1.8
5
1.
0
2.
0
3.
I
A
= actual ripple current at 120Hz
I
R
= rated ripple current at 120 Hz, 85 °C
(1)
useful life at 85 °C and I applied: 1500 h
R
0
4.
1.6
1.4
1.2
1.0
0.8
0.5
0.0
6
.0
10
15
20
30
50
(1)
Fig.5 Multiplier of useful life as a function of ambient temperature
and ripple current load
40
70
50
60
70
80
90
100
T
amb
(°C)
Table 1
MULTIPLIER OF RIPPLE CURRENT (I
R
) (AS A FUNCTION OF FREQUENCY)
FREQUENCY (Hz)
50
120
400
800
2000
Table 2
I
R
MULTIPLIER
0.60
1.00
1.20
1.30
1.40
TEST PROCEDURES AND REQUIREMENTS
TEST
NAME OF TEST
Endurance
REFERENCE
IEC 60384-4/
EN130 300,
subclause 4.13
CECC 30301,
subclause 1.8.1
PROCEDURE
(quick reference)
T
amb
= 85 °C, U
R
applied;
1000 h
T
amb
= 85 °C, U
R
and I
R
applied;
1500 h
REQUIREMENTS
C/C:
± 20 %
tan
2 x spec. limit
I
L2
spec. limit
C/C:
±50 %
tan
3 x spec. limit
Z
3 x spec. limit
I
L2
spec. limit
no short or open circuit
total failure percentage:
3
%
C/C,
tan
,
Z:
for requirements
see ‘Endurance test’ above
I
L2
spec. limit
Useful life
Shelf life
(storage at high
temperature)
IEC 60384-4/
EN130300,
subclause 4.17
T
amb
= 85 °C; no voltage applied;
500 h
after test: U
R
to be applied for 30 min, 24 h to 48 h
before measurement
www.vishay.com
88
For technical questions, contact:
aluminumcaps1@vishay.com
Document Number: 28308
Revision: 08-Mar-11
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Revision: 12-Mar-12
1
Document Number: 91000
京公网安备 11010802033920号
EEWORLD
