Document 186-1
Shielded Power Inductors – DS1608C
These shielded inductors can help achieve significantly
longer battery life in handheld devices and other portable
products.
They offer high efficiency and small size. Their flat top and
heat resistant materials ensure trouble-free assembly and
reflow operations.
For new designs, consider the MSS7341, MSS1038 or
LPS4018 as alternatives to this series. These series are
more cost effective and offer better current handling. In
addition, the LPS4018 is a significantly smaller part. We
will continue to manufacture and support the DS1608C
indefinitely.
Part
L ±20%
2
1
number
(µH)
DS1608C-102ML_
1.0
DS1608C-152ML_
1.5
DS1608C-222ML_
2.2
DS1608C-332ML_
3.3
DS1608C-472ML_
4.7
DS1608C-682ML_
6.8
DS1608C-822ML_
8.2
DS1608C-103ML_
10
DS1608C-153ML_
15
DS1608C-223ML_
22
DS1608C-333ML_
33
DS1608C-473ML_
47
DS1608C-683ML_
68
DS1608C-104ML_ 100
DS1608C-154ML_ 150
DS1608C-224ML_ 220
DS1608C-334ML_ 330
DS1608C-474ML_ 470
DS1608C-684ML_ 680
DS1608C-105ML_ 1000
DS1608C-155ML_ 1500
DS1608C-225ML_ 2200
DS1608C-335ML_ 3300
DS1608C-475ML_ 4700
DS1608C-685ML_ 6800
DS1608C-106ML_10000
DCR
max
Q min
(Ohms)
30 @ 200 kHz 0.040
30 @ 200 kHz 0.045
40 @ 200 kHz 0.050
40 @ 200 kHz 0.055
40 @ 200 kHz 0.060
40 @ 200 kHz 0.065
40 @ 200 kHz 0.070
40 @ 200 kHz 0.075
40 @ 100 kHz 0.090
40 @ 100 kHz 0.11
40 @ 100 kHz 0.19
40 @ 100 kHz 0.23
40 @ 100 kHz 0.29
40 @ 100 kHz 0.48
40 @ 100 kHz 0.59
40 @ 100 kHz 0.77
40 @ 100 kHz 1.4
40 @ 100 kHz 1.8
40 @ 100 kHz 2.2
40 @ 100 kHz 3.4
50 @ 100 kHz 4.2
50 @ 100 kHz 8.5
50 @ 100 kHz 11.0
50 @ 100 kHz 13.9
50 @ 100 kHz 25.0
50 @ 100 kHz 32.8
SRF
typ
(MHz)
250
125
120
120
105
50
42
38
33
25
20
20
15
10
9
6
5
4
3
2
2
2
1
1
1
0.8
Isat
3
(A)
1.4
0.93
0.92
0.75
0.58
0.58
0.47
0.37
0.31
0.30
0.30
0.24
0.17
0.13
0.10
0.10
0.07
0.06
0.055
0.045
0.035
0.028
0.024
0.021
0.019
0.017
1. When ordering, please specify
termination
and
packaging
codes:
DS1608C-106MLC
Termination: L
= RoHS compliant gold over nickel over moly-manganese
Special order: T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (750 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (2500 parts per full reel).
2. Inductance tested at 0.1 Vrms, 100 kHz, 0 Adc.
3. DC current at which the inductance drops 30% (typ.) from its value with-
out current.
4. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Core material
Ferrite
Terminations
RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight
144 – 167 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
750/7″ reel; 2500/13″ reel Plastic tape: 12 mm wide,
0.28 mm thick, 4 mm pocket spacing, 3 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Document 186-1
Revised 09/20/07
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 186-2
Shielded Power Inductors – DS1608

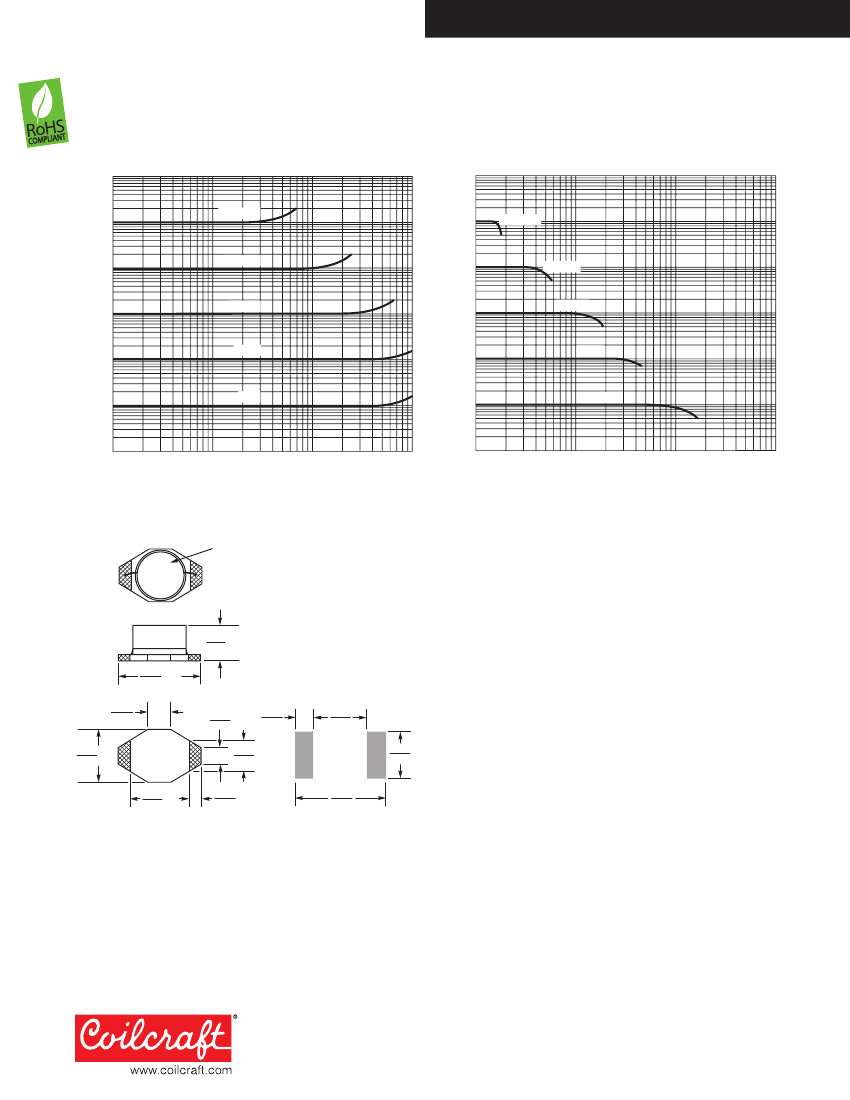

Typical L vs Frequency
100000
10000 µH
Typical L vs Current
100000
10000
10000 µH
10000
Inductance (µH)
Inductance (µH)
1000
1000 µH
1000
1000 µH
100
100 µH
100
100 µH
10
0.115
max
2,92
10 µH
10
10 µH
0.260 max
6,60
1
0.050
1,27
0.055
1,40
0.090
2,29
0.070
1,78
1 µH
Recommended
Land Pattern
0.160
4,06
1
1 µH
0.1
0.1
0.140
.175 max
4,45
0.01
0.1
Frequency (MHz)
3,56
0.270
6,86
1
10
0.01
0.1
Current (A)
1
10
0.170 min
4,32
0.040
1,02
Dash
number
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm for details.
0.115
2,92
max
0.260 max
6,60
XXX
0.070
1,78
0.175 max
4,45
Recommended
Land Pattern
0.050
1,27
0.090
2,29
0.270
6,86
0.055
1,40
0.160
4,06
0.140
3,56
0.170 min
4,32
0.040
1,02
Dash
number
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm for details.
XXX
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 186-2
Revised 09/20/07
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
