256-Bit 1-Wire EEPROM

Preview

Download Datasheet

View All

19-5236; 4/10

www.maxim-ic.com



256-bit Electrically Erasable Programmable

Read Only Memory (EEPROM) plus 64-bit

one-time programmable application register

Unique, factory-lasered and tested 64-bit

registration number (8-bit family code + 48-bit

serial number + 8-bit CRC tester) assures

absolute identity because no two parts are alike

Built-in multidrop controller ensures

compatibility with other MicroLAN products

EEPROM organized as one page of 32 bytes

for random access

Reduces control, address, data, and power to a

single data pin

Directly connects to a single port pin of a

microprocessor and communicates at up to

15.3kbits per second

8-bit family code specifies DS2430A

communication requirements to reader

Presence detector acknowledges when reader

first applies voltage

Low cost TO-92 or 6-pin TSOC and UCSP

surface mount package

Reads and writes over a wide voltage range of

2.8V to 5.25V from -40°C to +85°C

TO-92

DALLAS

DS2430A

BOTTOM VIEW

See Mech.

Drawings Section

DS2430A+

TO-92 Package

DS2430AP+

6-pin TSOC Package

DS2430A+T&R

TO-92 Package, Tape & Reel

DS2430AP+T&R TSOC Package, Tape & Reel

+Denotes a lead(Pb)-free/RoHS-compliant

package.

Contact factory for availability of the UCSP

version.

ORDERING INFORMATION

NOTE:

The leads of TO-92 packages on tape-

and-reel are formed to approximately 100 mil

(2.54 mm) spacing. For details see

Package

Information.

PIN DESCRIPTION

Pin 1

Pin 2

Pin 3

Pin 4

Pin 5

Pin 6

TO-92

Ground

Data

––––

TSOC

Ground

Data

1 of 19

1 2 3

TOP VIEW

3.7mm x 4.0mm x 1.5mm

TSOC PACKAGE

FEATURES

PIN ASSIGNMENT

SIDE VIEW

DS2430A

256-Bit 1-Wire EEPROM

DS2430A

DESCRIPTION

The DS2430A 256-bit 1-Wire EEPROM identifies and stores relevant information about the product to

which it is associated. This lot or product specific information can be accessed with minimal interface, for

example a single port pin of a microcontroller. The DS2430A consists of a factory-lasered registration

number that includes a unique 48-bit serial number, an 8-bit CRC, and an 8-bit Family Code (14h) plus

256 bits of user-programmable EEPROM and a 64-bit one-time programmable application register. The

power to read and write the DS2430A is derived entirely from the 1-Wire

communication line. Data is

transferred serially via the 1-Wire protocol, which requires only a single data lead and a ground return.

The 48-bit serial number that is factory-lasered into each DS2430A provides a guaranteed unique identity

that allows for absolute traceability. The TO-92 and TSOC packages provide a compact enclosure that

allows standard assembly equipment to handle the device easily for attachment to printed circuit boards

or wiring. Typical applications include storage of calibration constants, board identification, and product

revision status.

1-Wire and iButton are registered trademarks of Maxim Integrated Products, Inc.

Each DS2430A contains a unique ROM code that is 64 bits long. The first 8 bits are a 1-Wire family code

(14h). The next 48 bits are a unique serial number. The last 8 bits are a CRC of the first 56 bits. (Figure

3). The 1-Wire CRC is generated using a polynomial generator consisting of a shift register and XOR

gates as shown in Figure 4. The polynomial is X

+ X

+ 1. Additional information about the Dallas

1-Wire Cyclic Redundancy Check is available in

Application Note 27.

The shift register bits are

initialized to 0. Then starting with the least significant bit of the family code, one bit at a time is shifted

in. After the 8

bit of the family code has been entered, then the serial number is entered. After the 48

bit of the serial number has been entered, the shift register contains the CRC value. Shifting in the 8 bits

of CRC should return the shift register to all 0s.

64-BIT LASERED ROM

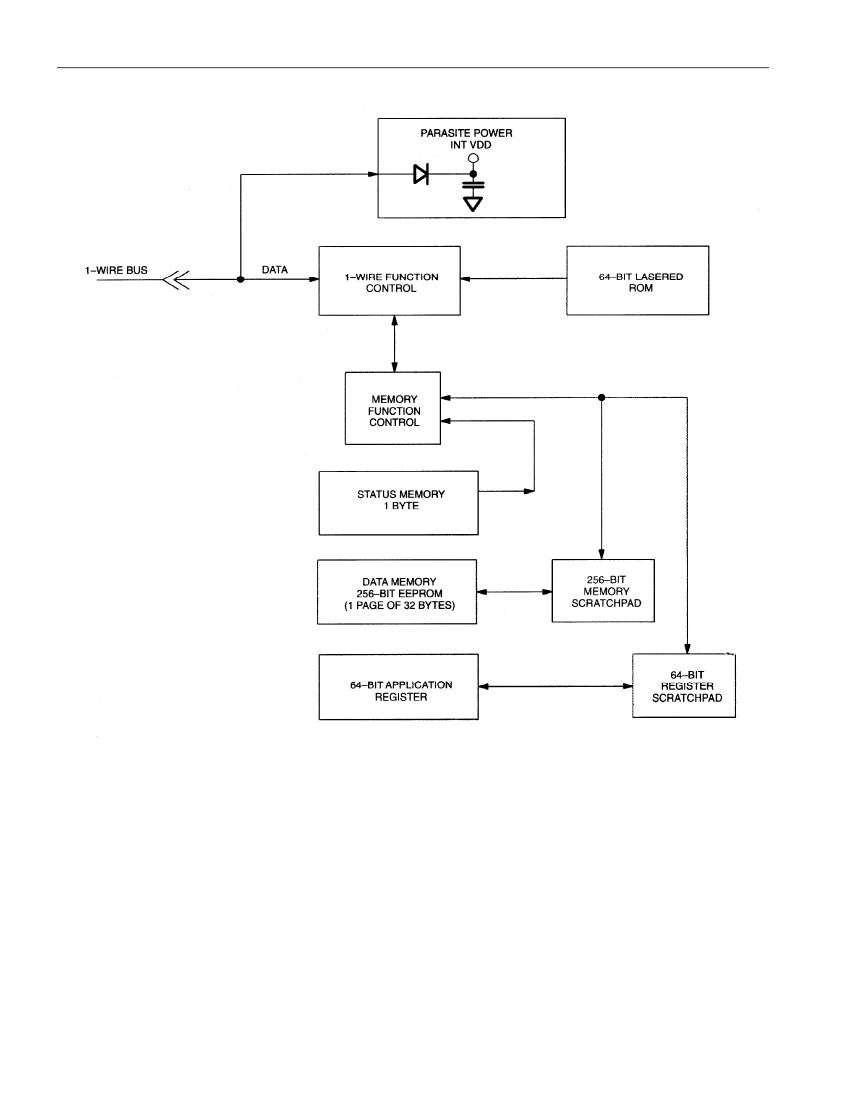

The block diagram in Figure 1 shows the relationships between the major control and memory sections of

the DS2430A. The DS2430A has four main data components: 1) 64-bit lasered ROM, 2) 256-bit

EEPROM data memory with scratchpad, 3) 64-bit one-time programmable application register with

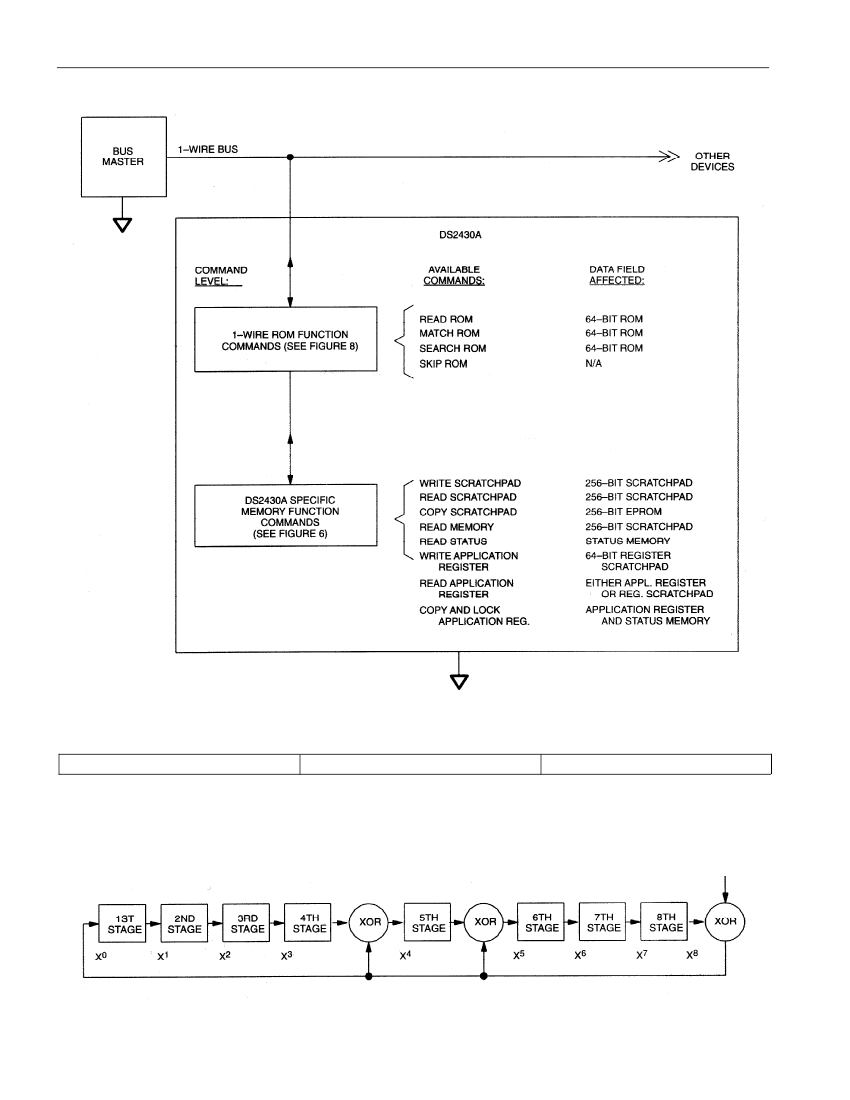

scratchpad and 4) 8-bit status memory. The hierarchical structure of the 1-Wire protocol is shown in

Figure 2. The bus master must first provide one of the four ROM Function Commands: 1) Read ROM, 2)

Match ROM, 3) Search ROM, 4) Skip ROM. The protocol required for these ROM Function Commands

is described in Figure 8. After a ROM Function Command is successfully executed, the memory

functions become accessible and the master can provide any one of the four memory function commands.

The protocol for these memory function commands is described in Figure 6. All data is read and written

least significant bit first.

2 of 19

OVERVIEW

DS2430A

MEMORY

The memory of the DS2430A consists of three separate sections, called data memory, application

intermediate storage area called scratchpad that acts as a buffer when writing to the device. The data

memory can be read and written as often as desired. The application register, however, is one-time

programmable only. Once the application register is programmed, it is automatically write protected. The

status register indicates whether the application register is already locked or whether it is still available

for storing data. As long as the application register is unprogrammed, the status register reads FFh.

Copying data from the register scratchpad to the application register clears the 2 least significant bits of

the status register, yielding an FCh the next time one reads the status register.

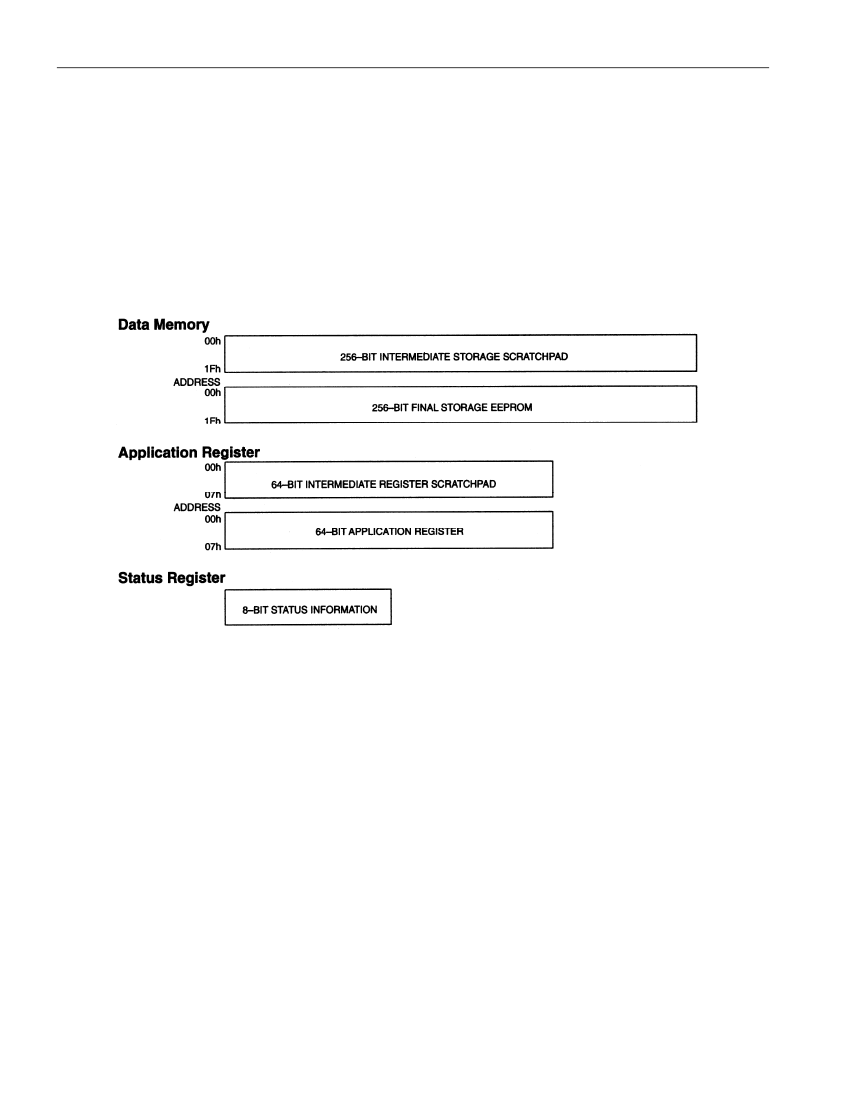

DS2430A MEMORY MAP

Figure 5

WRITE SCRATCHPAD [0Fh]

After issuing the Write Scratchpad command, the master must first provide a 1-byte address, followed by

the data to be written to the scratchpad for the data memory. The DS2430A automatically increments the

address after every byte it receives. After having received a data byte for address 1Fh, the address counter

wraps around to 00h for the next byte and writing continues until the master sends a Reset Pulse.

READ SCRATCHPAD [AAh]

This command is used to verify data previously written to the scratchpad before it is copied into the final

storage EEPROM memory. After issuing the Read Scratchpad command, the master must provide the 1-

byte starting address from where data is to be read. The DS2430A automatically increments the address

after every byte read by the master. After the data at address 1Fh has been read, the address counter wraps

around to 00h for the next byte and reading continues until the master sends a Reset Pulse.

The Memory Function Flow Chart (Figure 6) describes the protocols necessary for accessing the different

memory sections of the DS2430A. An example is shown later in this document.

MEMORY FUNCTION COMMANDS

5 of 19
