ABRIDGED DATA SHEET
19-5659; Rev 3; 3/11
DS31408
8-Input, 14-Output, Dual DPLL Timing IC
with Sub-ps Output Jitter and 1588 Clock
General Description
The DS31408 is a flexible, high-performance timing IC
for diverse frequency conversion and frequency
synthesis applications. On each of its eight input clocks
and fourteen output clocks, the device can accept or
generate nearly any frequency between 2kHz and
750MHz. The device offers two independent DPLLs to
serve two independent clock-generation paths. The
input clocks are divided down, fractionally scaled as
needed, and continuously monitored for activity and
frequency accuracy. The best input clock is selected,
manually or automatically, as the reference clock for
each of the two flexible, high-performance digital PLLs.
Each DPLL lock to the selected reference and provides
programmable bandwidth, very high resolution holdover
capability, and truly hitless switching between input
clocks. The digital PLLs are followed by a clock
synthesis subsystem that has seven fully programmable
digital frequency synthesis blocks, three high-speed
low-jitter APLLs, and 14 output clocks, each with its own
32-bit divider and phase adjustment. The APLLs
provide fractional scaling and output jitter less than 1ps

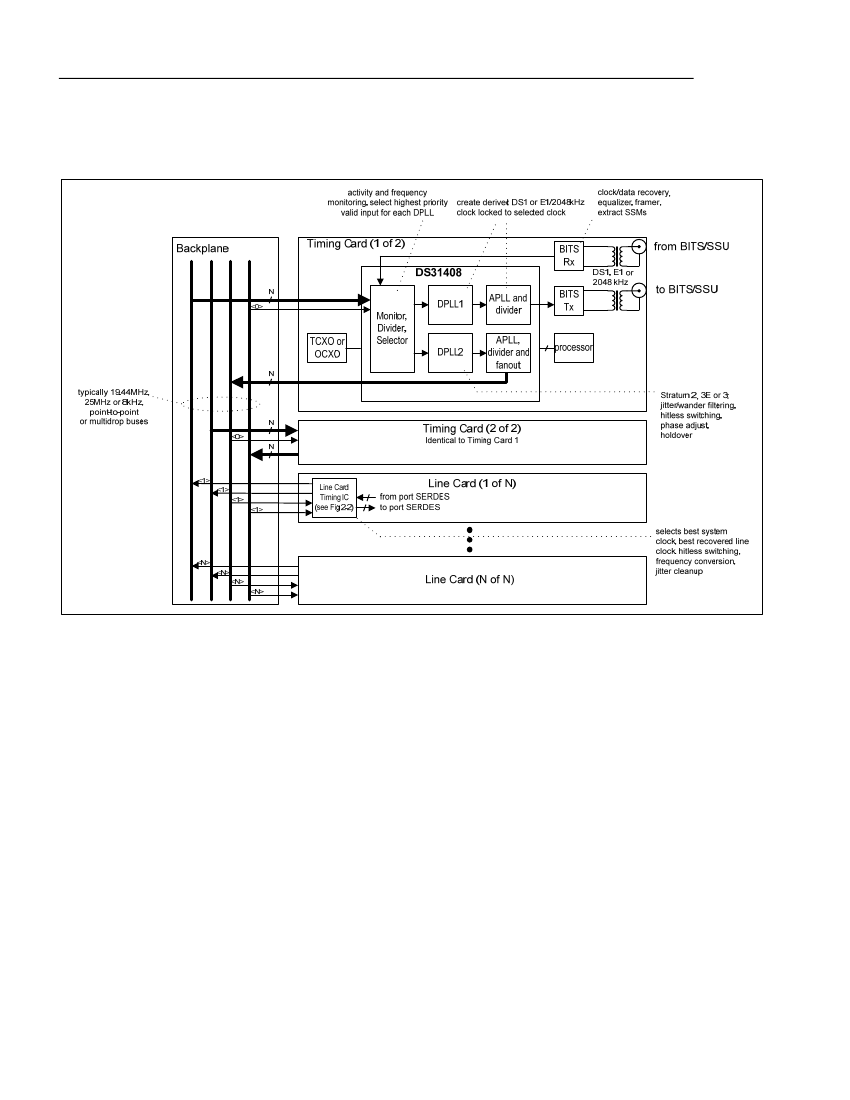

RMS. For telecom systems, the DS31408 has all
required features and functions to serve as a central
timing function or as a line card timing IC.
In addition the DS31408 has an embedded IEEE 1588
clock that can be steered by system software to follow a
time master elsewhere in the system or elsewhere in
the network. This clock has all necessary features to be
the central time clock in a 1588 ordinary clock,
boundary clock or transparent clock.
Features
Eight Input Clocks
Differential or CMOS/TTL Format
Any Frequency from 2kHz to 750MHz
Fractional Scaling for 64B/66B and FEC Scaling (e.g.,
64/66, 237/255, 238/255) or Any Other Downscaling
Requirement
Continuous Input Clock Quality Monitoring
Two High-Performance DPLLs
Hitless Reference Switching on Loss of Input
Automatic or Manual Phase Build-Out
Holdover on Loss of All Inputs
Programmable Bandwidth, 0.5mHz to 400Hz
Seven Digital Frequency Synthesizers
Each Can Slave to Either DPLL
Produce Any 2kHz Multiple Up to 77.76MHz
Three Output APLLs
Output Frequencies to 750MHz
High Resolution Fractional Scaling for FEC and
64B/66B (e.g., 255/237, 255/238, 66/64) or Any Other
Scaling Requirement
Less than 1ps RMS Output Jitter
Simultaneously Produce Three Low-Jitter Rates from
the Same Reference (e.g., 622.08MHz for SONET,
255/237*622.08MHz for OTU2, and 156.25MHz for
10GE)
14 Output Clocks in Seven Groups
Nearly Any Frequency from < 1Hz to 750MHz
Each Group Slaves to a DFS Clock, Any APLL Clock, or
Any Input Clock (Divided and Scaled)
Each Has a Differential Output (3 CML, 4 LVDS/
LVPECL
) and
Separate CMOS/TTL Output
32-Bit Frequency Divider Per Output
Applications
Frequency Conversion and IEEE1588 Time/Frequency
Applications in a Wide Variety of Equipment Types

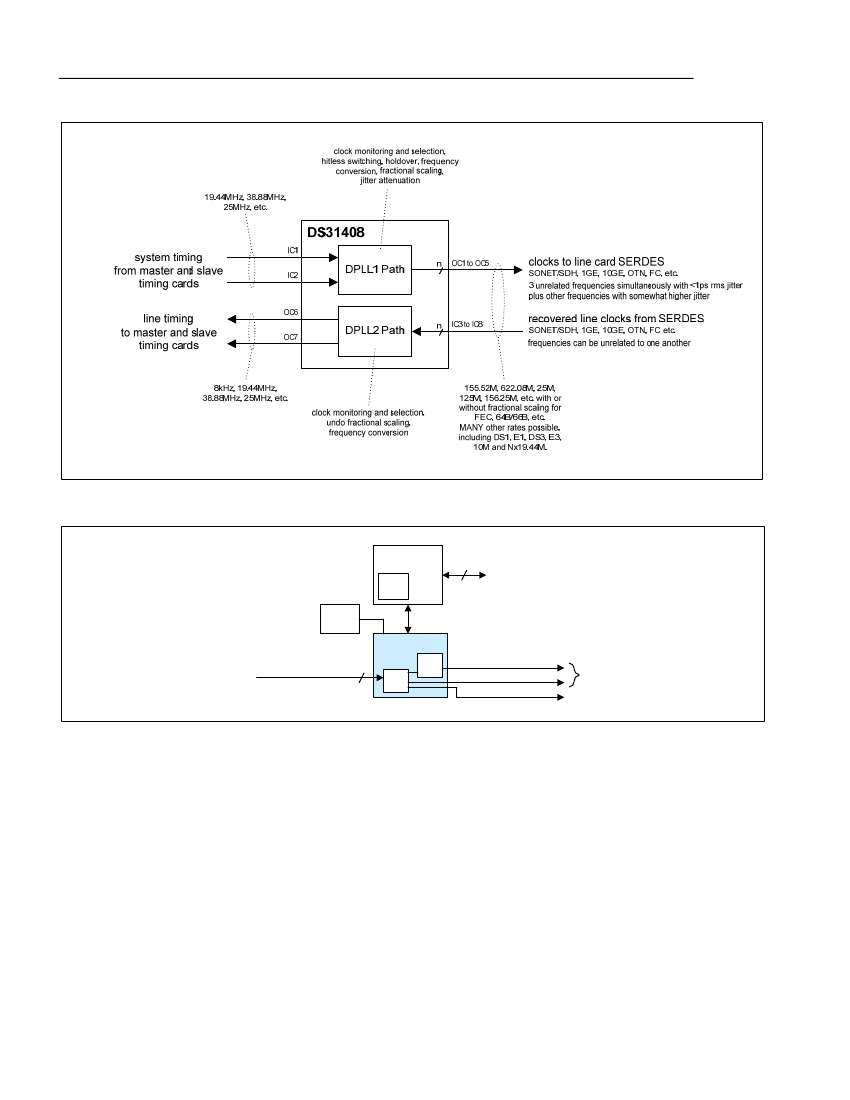

Telecom Line Cards or Timing Cards with Any Mix of
SONET/SDH, Synchronous Ethernet and/or OTN
Ports in WAN Equipment Including MSPPs, Ethernet
Switches, Routers, DSLAMs, and Base Stations
IEEE 1588 Clock Features
Steerable by Software with 2
-8
ns Time Resolution and
2
-32
ns Frequency Resolution
4ns Input Timestamp Accuracy and Output Edge
Placement Accuracy
Programmable Clock and Time-Alignment I/O to
Synchronize All 1588 Devices in Large Systems
Supports 1588 OC, BC, and TC Architectures
Ordering Information
PART
DS31408GN
DS31408GN+
TEMP RANGE
-40C to +85C
-40C to +85C
PIN-PACKAGE
256 CSBGA
256 CSBGA
General Features
Suitable Line Card IC or Timing Card IC for Stratum
2/3E/3/4E/4, SMC, SEC/EEC, or SSU
Accepts and Produces Nearly Any Frequency from 1Hz
Up to 750MHz
Internal Compensation for Local Oscillator Frequency Error
SPI™ Processor Interface
1.8V Operation with 3.3V I/O (5V Tolerant)
Maxim Integrated Products 1
+Denotes
a lead(Pb)-free/RoHS-compliant package.
SPI is a trademark of Motorola, Inc.
Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of
any device may be simultaneously available through various sales channels. For information about device errata, go to:
www.maxim-ic.com/errata.
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642, or
visit Maxim’s website at www.maxim-ic.com.
ABRIDGED DATA SHEET
Detailed Features
Input Clock Features
DS31408
Eight input clocks, differential or CMOS/TTL signal format
Input clocks can be any frequency from 2kHz up to 750MHz
Supported telecom frequencies include PDH, SDH, Synchronous Ethernet, OTU-1, OTU-2, OTU-3
Per-input fractional scaling (i.e., multiplying by ND where N is a 16-bit integer and D is a 32-bit integer
and N < D) to undo 64B/66B and FEC scaling (e.g., 64/66, 238/255, 237/255, 236/255)
Special mode allows locking to 1Hz input clocks
All inputs constantly monitored by programmable activity monitors and frequency monitors
Fast activity monitor can disqualify the selected reference after a few missing clock cycles
Frequency measurement and frequency monitor thresholds with 0.2ppm resolution
Three optional 2/4/8kHz frame-sync inputs
DPLL Features
Very high-resolution DPLL architecture
Sophisticated state machine automatically transitions between free-run, locked, and holdover states
Revertive or nonrevertive reference selection algorithm
Programmable bandwidth from 0.5mHz to 400Hz
Separately configurable acquisition bandwidth and locked bandwidth
Programmable damping factor to balance lock time with peaking: 1.2, 2.5, 5, 10, or 20
Multiple phase detectors: phase/frequency and multicycle
Phase/frequency locking (360 capture) or nearest edge phase locking (180 capture)
Multicycle phase detection and locking (up to
8191UI)
improves jitter tolerance and lock time
Phase build-out in response to reference switching for true hitless switching
Less than 1 ns output clock phase transient during phase build-out
Output phase adjustment up to
200ns
in 6ps steps with respect to selected input reference
High-resolution frequency and phase measurement
Holdover frequency averaging over 1-second, 5.8-minute, and 93.2-minute intervals
Fast detection of input clock failure and transition to holdover mode
Low-jitter frame sync (8kHz) and multiframe sync (2kHz) aligned with output clocks
Digital Frequency Synthesizer Features
Seven independently programmable DFS blocks
Each DFS can slave to either of the DPLLs
Each DFS can synthesize any 2kHz multiple up to 77.76MHz
Per-DFS phase adjust (1/256UI steps)
Approximately 40ps RMS output jitter
Output APLL Features
Simultaneously produce three high-frequency, low-jitter, rates from the same reference clock, e.g.,
622.08MHz for SONET, 255/237*622.08MHz for OTU2, and156.25MHz for 10GE
Standard telecom output frequencies include 622.08MHz, 155.52MHz, and 19.44MHz for SONET/SDH
and 156.25MHz, 125MHz, and 25MHz for Synchronous Ethernet
Very high-resolution fractional scaling (i.e., noninteger multiplication)
Less than 1ps RMS output jitter
