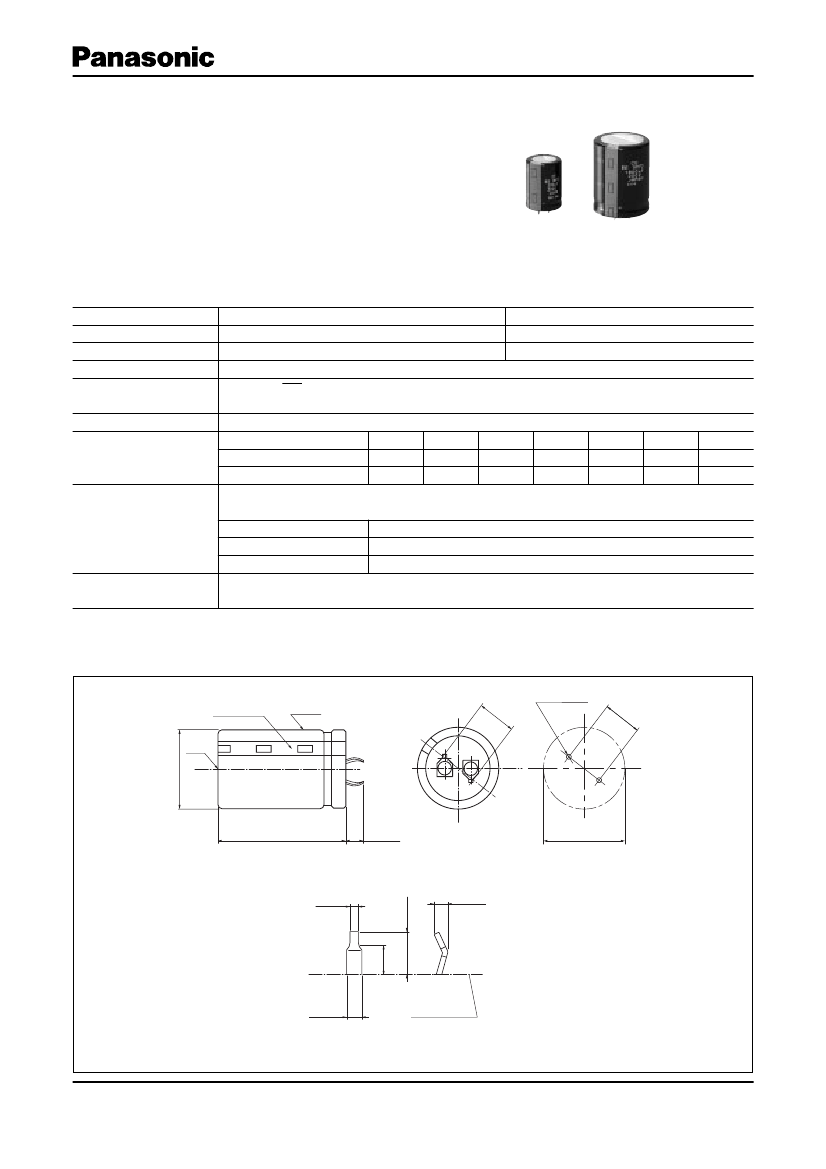

Aluminum Electrolytic Capacitors/ EE
Snap-in Type
Series:
EE
Type:
TS
●
Endurance : 105 °C 3000 h
●
Miniaturize (Maximum Ripple Current) Low profile
●
RoHS directive compliant
■
Features
■
Specifications
Category Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
DC Leakage Current
tan
δ
–40 °C to +105 °C
200 V.DC, 250 V.DC
220 µF to 1800 µF
±20 % (120 Hz/+20 °C)
3 CV (µA) max. After 5 minutes application of rated working voltage at +20 °C
C : Capacitance (µF) V: W.V. (V.DC)
120
1.00
1.00
500
1.20
1.20
1 k
1.25
1.25
10 k to
1.30
1.40
–25 °C to +105 °C
400 V.DC, 450 V.DC
75 µF to 560 µF
Please see the attached standard products list
Frequency (Hz)
50
60
100
Frequency Correction
200V.DC, 250V.DC
0.75
0.80
0.95
Factor for Ripple Current
400V.DC, 450V.DC
0.75
0.80
0.95
After 3000 hours application of DC voltage with specified ripple current (< rated DC working
voltage) at +105 °C±2 °C, the capacitors shall meet the following limits.
Endurance
Capacitance change
tan
δ
DC leakage current
<
±20 % of initial measured value
<
200 % of initial specified value
<
initial specified value
Shelf Life
After storage for 1000 hours at +105 °C±2 °C within no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
½
A formula to calculate estimated lifetime of TS-EE Series is different from other series. Please contact us.
■
Dimensions in mm (not to scale)
Polarity bar
Sleeve
(1
(mm)
2-φ2.0±0.1
0.0
)
10
.0
±
0.1
φD+1.0
max.
Vent
L+2.0 max.
Rated voltage etc. indicate to sleeve.
4.0±0.5
(φD)
Recommended PWB piercing plan
0.8
–0.1
(3.5)
4.0±0.5
+0.2
2.0 max.
Terminal
(t=0.8)
1.5±0.2
Top of spin
Standard terminal type does not require
terminal trimming process
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
Aluminum Electrolytic Capacitors/ EE
■
Standard Products
Case size
W.V.
Cap.
(120 Hz)
(±20 %)
(µF)
300
390
470
590
700
590
Dia.
(mm)
22
22
22
22
25
22
25
30
22
200
800
25
30
35
25
1000
1200
1300
1500
½
1800
220
300
370
420
520
420
250
590
30
35
30
30
35
30
35
22
22
25
22
22
25
22
25
30
22
25
30
35
25
730
860
1000
½
½
1300
1500
30
35
30
30
35
35
Length
(mm)
25
30
35
40
30
45
35
25
50
40
30
25
50
35
30
40
45
40
50
45
25
30
25
35
40
30
45
35
25
50
40
30
25
45
35
30
40
45
45
50
EETEE2D301HJ
EETEE2D391HJ
EETEE2D471HJ
EETEE2D591HJ
EETEE2D591JJ
EETEE2D701HJ
EETEE2D701JJ
EETEE2D591KJ
EETEE2D801HJ
EETEE2D801JJ
EETEE2D801KJ
EETEE2D801LJ
EETEE2D102JJ
EETEE2D102KJ
EETEE2D102LJ
EETEE2D122KJ
EETEE2D132KJ
EETEE2D152LJ
EETEE2D152KJ
EETEE2D182LJ
EETEE2E221HJ
EETEE2E301HJ
EETEE2E301JJ
EETEE2E371HJ
EETEE2E421HJ
EETEE2E421JJ
EETEE2E521HJ
EETEE2E521JJ
EETEE2E421KJ
EETEE2E591HJ
EETEE2E591JJ
EETEE2E591KJ
EETEE2E591LJ
EETEE2E731JJ
EETEE2E731KJ
EETEE2E731LJ
EETEE2E861KJ
EETEE2E102KJ
EETEE2E132LJ
EETEE2E152LJ
Part No.
PET sleeve
Terminal Length
4.0 mm
(Without Top Plate)
Specification
Ripple
tan
δ
Current
(120 Hz)
(120 Hz)
(+20 °C)
(+105 °C)
max.
(A r.m.s.)
1.70
2.17
2.22
2.30
2.30
2.65
2.65
3.08
3.08
3.08
3.48
3.48
3.48
3.98
4.20
4.20
4.62
4.62
5.22
5.22
1.43
1.56
1.70
1.70
1.82
1.82
2.00
2.00
2.20
2.30
2.30
2.50
2.50
2.70
3.00
3.00
3.30
3.45
3.75
4.05
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
Min. Packaging Q'ty
(V. DC)
(pcs)
200
200
200
200
200
200
200
200
200
200
200
200
200
100
200
100
100
100
100
100
200
200
200
200
200
200
200
200
200
200
200
200
200
200
100
200
100
100
100
100
Endurance : 105 °C 3000 h
Terminal Pitch : 10 mm
½
When capacitors of
φ35×45L
and
φ35×50L
are mounted on PWB, reinforce them with mounting clamp or adhesives.
(Avoid using adhesives including halogenated compositions.)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
Aluminum Electrolytic Capacitors/ EE
■
Standard Products
Case size
W.V.
Cap.
(120 Hz)
(±20 %)
(µF)
100
120
150
180
Dia.
(mm)
22
22
22
25
30
22
220
25
30
35
22
400
270
320
330
370
390
470
½
560
75
100
25
30
25
30
35
25
30
35
30
35
35
22
22
25
22
120
150
25
30
22
22
180
450
220
250
270
300
330
390
470
25
30
35
25
35
25
30
35
30
35
30
35
35
Length
(mm)
25
30
35
30
25
45
35
30
25
50
40
35
45
40
30
50
45
35
50
40
45
25
30
25
35
30
25
40
45
40
30
25
45
30
50
40
35
45
40
50
45
50
EETEE2G1O1HJ
EETEE2G121HJ
EETEE2G151HJ
EETEE2G181JJ
EETEE2G181KJ
EETEE2G221HJ
EETEE2G221JJ
EETEE2G221KJ
EETEE2G221LJ
EETEE2G271HJ
EETEE2G271JJ
EETEE2G271KJ
EETEE2G321JJ
EETEE2G331KJ
EETEE2G331LJ
EETEE2G371JJ
EETEE2G391KJ
EETEE2G391LJ
EETEE2G471KJ
EETEE2G471LJ
EETEE2G561LJ
EETEE2W750HJ
EETEE2W101HJ
EETEE2W101JJ
EETEE2W121HJ
EETEE2W121JJ
EETEE2W121KJ
EETEE2W151HJ
EETEE2W181HJ
EETEE2W181JJ
EETEE2W181KJ
EETEE2W181LJ
EETEE2W221JJ
EETEE2W251LJ
EETEE2W271JJ
EETEE2W271KJ
EETEE2W301LJ
EETEE2W331KJ
EETEE2W331LJ
EETEE2W391KJ
EETEE2W391LJ
EETEE2W471LJ
Part No.
PET sleeve
Terminal Length
4.0 mm
(Without Top Plate)
Specification
Ripple
tan
δ
Current
(120 Hz)
(120 Hz)
(+20 °C)
(+105 °C)
max.
(A r.m.s.)
0.95
1.22
1.33
1.33
1.68
1.55
1.55
1.79
1.79
1.68
1.68
2.12
1.90
2.33
2.33
2.12
2.52
2.52
2.85
2.85
3.18
0.83
0.95
0.95
1.15
1.22
1.22
1.22
1.38
1.38
1.60
1.60
1.55
1.90
1.74
1.90
2.20
2.20
2.40
2.40
2.61
2.85
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.15
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
Min. Packaging Q'ty
(V. DC)
(pcs)
200
200
200
200
200
200
200
200
200
200
200
100
200
100
200
200
100
100
100
100
100
200
200
200
200
200
200
200
200
200
200
200
200
200
200
100
100
100
100
100
100
100
½
½
Endurance : 105 °C 3000 h
Terminal Pitch : 10 mm
½
When capacitors of
φ35×45L
and
φ35×50L
are mounted on PWB, reinforce them with mounting clamp or adhesives.
(Avoid using adhesives including halogenated compositions.)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
