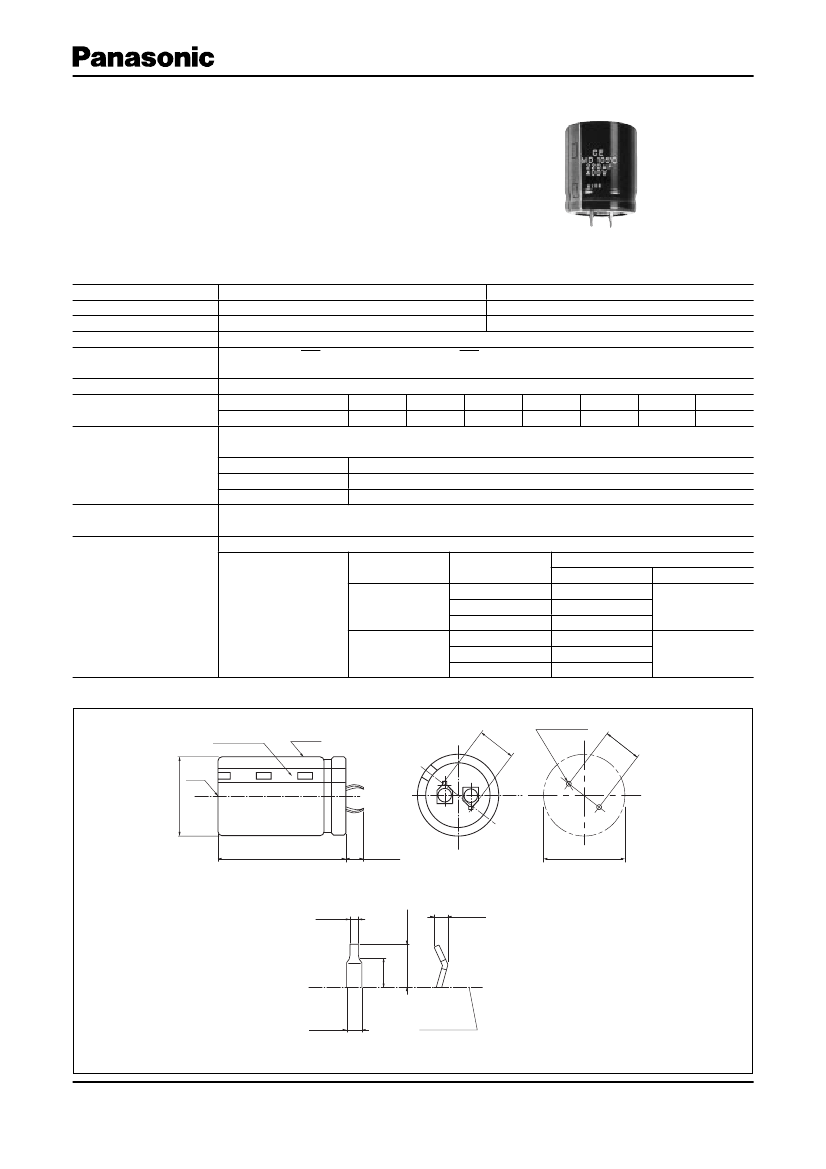

Aluminum Electrolytic Capacitors/ MD
Snap-in Type
Series:
MD
Type:
TS
●
Endurance: 105 °C 2000h
●
Improved safety for DC overvoltage
●
RoHS directive compliant
■
Features
■
Specifications
Category Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
–40 °C to +105 °C
200 V.DC
220 µF to 1500 µF
–25 °C to +105 °C
400 V.DC
56 µF to 470 µF
±20 % (120 Hz/+20 °C)
CV (µA) max. (200 W.V.), 3 CV (µA) max. (400 W.V.) After 5 minutes
DC Leakage Current
application of rated working voltage at 20 °C C : Capacitance (µF) V: W.V. (V.DC)
tan
δ
Please see the attached standard products list.
Frequency (Hz)
50
60
100
120
500
1 k
10 k to
Frequency Correction
Factor for Ripple Current Correction Factor
0.75
0.80
0.95
1.00
1.20
1.25
1.40
After 2000 hours application of DC voltage with specified ripple current (< rated DC working
voltage) at +105 °C±2 °C, the capacitors shall meet the following limits.
Endurance
Capacitance change
<
±20 % of initial measured value
tan
δ
<
200 % of initial specified value
DC leakage current
<
initial specified value
After storage for 1000 hours at +105 °C±2 °C within no voltage applied and then being stabilized
Shelf Life
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
Vent may work to prevent short circuit of fire under the following condition.
Condition
Cap.
R.W.V.
(µF)
Current
DC V.
220 to 270
4 A
Overvoltage
200 V
330 to 390
5 A
DC 375 V
Condition
470 to 1500
7 A
56 to
82
2 A
400 V
DC 600 V
100 to 180
4 A
220 to 470
7 A
■
Dimensions in mm (not to scale)
Polarity bar
Sleeve
(1
0.0
(mm)
2-φ2.0±0.1
)
10
.0
±
0.1
φD+1.0
max.
Vent
L+2.0 max.
Rated voltage etc. indicate to sleeve.
4.0±0.5
(φD)
Recommended PWB piercing plan
0.8
–0.1
(3.5)
4.0±0.5
+0.2
2.0 max.
Terminal
(t=0.8)
1.5±0.2
Top of spin
Standard terminal type does not require
terminal trimming process.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
Aluminum Electrolytic Capacitors/ MD
■
Standard Products
Case size
W.V.
Cap.
(120 Hz)
(±20 %)
(µF)
220
270
330
390
Dia.
(mm)
22
22
22
25
22
25
30
22
25
30
22
25
30
35
25
30
35
25
30
35
30
35
30
35
35
22
22
22
25
22
25
30
22
25
30
22
25
30
35
25
30
35
25
30
35
30
35
30
35
35
35
Length
(mm)
25
30
30
25
35
30
25
40
30
25
45
35
30
25
40
30
25
45
35
30
45
30
45
35
45
25
30
30
25
35
30
25
40
30
25
45
35
30
25
40
30
25
45
35
30
40
30
45
35
40
45
Part No.
PET sleeve
Terminal Length
4.0 mm
(Without Top Plate)
EETLD2D221BJ
EETLD2D271BJ
EETLD2D331BJ
EETLD2D331CJ
EETLD2D391BJ
EETLD2D391CJ
EETLD2D391DJ
EETLD2D471BJ
EETLD2D471CJ
EETLD2D471DJ
EETLD2D561BJ
EETLD2D561CJ
EETLD2D561DJ
EETLD2D561EJ
EETLD2D681CJ
EETLD2D681DJ
EETLD2D681EJ
EETLD2D821CJ
EETLD2D821DJ
EETLD2D821EJ
EETLD2D102DJ
EETLD2D102EJ
EETLD2D122DJ
EETLD2D122EJ
EETLD2D152EJ
EETLD2G560BJ
EETLD2G680BJ
EETLD2G820BJ
EETLD2G820CJ
EETLD2G101BJ
EETLD2G101CJ
EETLD2G101DJ
EETLD2G121BJ
EETLD2G121CJ
EETLD2G121DJ
EETLD2G151BJ
EETLD2G151CJ
EETLD2G151DJ
EETLD2G151EJ
EETLD2G181CJ
EETLD2G181DJ
EETLD2G181EJ
EETLD2G221CJ
EETLD2G221DJ
EETLD2G221EJ
EETLD2G271DJ
EETLD2G271EJ
EETLD2G331DJ
EETLD2G331EJ
EETLD2G391EJ
EETLD2G471EJ
Specification
Ripple
tan
δ
Current
(120 Hz)
(120 Hz)
(+20 °C)
(+105 °C)
max.
(A r.m.s.)
1.00
0.15
1.10
0.15
1.20
0.15
1.20
0.15
1.35
0.15
1.35
0.15
1.35
0.15
1.45
0.15
1.45
0.15
1.45
0.15
1.60
0.15
1.60
0.15
1.60
0.15
1.60
0.15
1.75
0.15
1.75
0.15
1.75
0.15
2.11
0.15
2.11
0.15
2.11
0.15
2.40
0.15
2.40
0.15
2.65
0.15
2.65
0.15
3.08
0.15
0.45
0.15
0.51
0.15
0.58
0.15
0.58
0.15
0.66
0.15
0.66
0.15
0.66
0.15
0.78
0.15
0.78
0.15
0.78
0.15
0.85
0.15
0.85
0.15
0.85
0.15
0.85
0.15
0.95
0.15
0.95
0.15
0.95
0.15
1.24
0.15
1.24
0.15
1.24
0.15
1.30
0.15
1.30
0.15
1.47
0.15
1.47
0.15
1.59
0.15
1.87
0.15
Min. Packaging Q'ty
(V. DC)
470
200
560
680
820
1000
1200
½
1500
56
68
82
100
120
150
400
180
220
270
330
½
390
470
(pcs)
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
100
200
100
200
100
100
100
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
200
100
200
100
200
100
100
100
100
Endurance : 105 °C 2000 h, Terminal Pitch : 10 mm
½
When capacitors of
φ35×45L
and
φ35×50L
are mounted on PWB, reinforce them with mounting clamp or adhesives.
(Avoid using adhesives including halogenated compositions.)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
Jul. 2008
