WSL, Wide Terminal
www.vishay.com
Vishay Dale
Power Metal Strip
®
Resistors, Wide Terminal,
Low Value (0.00075
to 0.006
),
Surface Mount

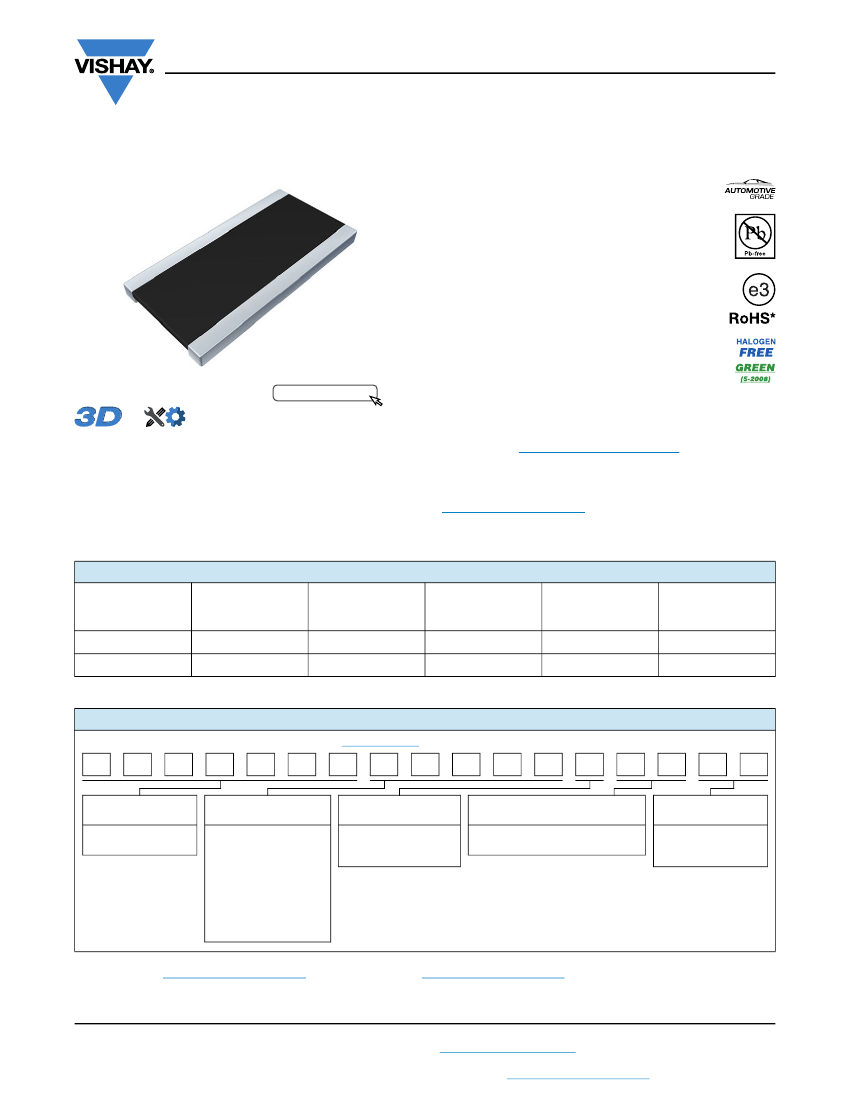

FEATURES
• Wide side terminal construction that yields high
power to foot print size ratio (2 W in 1020 and
1 W in 0612 package)
• All welded construction of the Power Metal
Strip
®
resistors are ideal for all types of current
sensing, voltage division and pulse applications
• Proprietary processing technique produces low
resistance values (down to 0.00075
)
Available
Available
Available
• Sulfur resistance by construction that is
unaffected by high sulfur environments
• Very low inductance, 0.5 nH to 5 nH
DESIGN SUPPORT TOOLS
Models
Available
Design Tools
click logo to get started
• Low thermal EMF (< 3 μV/°C)
• AEC-Q200 qualified
(1)
Available
Available
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Notes
* This datasheet provides information about parts that are RoHS-compliant and / or parts that are non-RoHS-compliant. For example, parts
with lead (Pb) terminations are not RoHS-compliant. Please see the information / tables in this datasheet for details
• Follow link to Overview of Automotive Grade Products for more details:
www.vishay.com/doc?49924
(1)
Flame retardance test may not be applicable to some resistor technologies
STANDARD ELECTRICAL SPECIFICATIONS
GLOBAL
MODEL
WSL0612
WSL1020
SIZE
0612
1020
POWER RATING
P
70 °C
W
1.0
2.0
TOLERANCE
±%
1.0, 5.0
0.5, 1.0, 5.0
RESISTANCE
VALUE RANGE
0.75m to 5m
1m to 6m
WEIGHT
(typical)
g/1000 pieces
8.5
38.74
GLOBAL PART NUMBER INFORMATION
Global Part Numbering: WSL10206L000FEA
(visit
www.vishay.net
Vishay Dale parts numbering manual for all options)
W
S
L
1
0
2
0
6
L
0
0
0
F
E
A
SPECIAL
(up to 2 digits)
(dash number)
from
1
to
99
as
applicable
GLOBAL MODEL
(7 digits)
WSL0612
WSL1020
RESISTANCE VALUE
(1)
(5 digits)
L
= m*
1L000
= 0.001
2L000
= 0.002
3L000
= 0.003
4L000
= 0.004
5L000
= 0.005
6L000
= 0.006
* Use “L” for resistance
values < 0.01
TOLERANCE CODE
(1 digit)
D
= ± 0.5 %
F
= ± 1.0 %
J
= ± 5.0 %
PACKAGING CODE
(2)
(2 digits)
EA
= lead (Pb)-free, tape / reel
EK
= lead (Pb)-free, bulk
Notes
(1)
WSL Marking (www.vishay.com/doc?30327); WSL Decade Values (www.vishay.com/doc?30117)
(2)
EB (lead (Pb)-free) is a non-standard packaging code designated for 1000 piece reels. The non-standard packaging code is identical to our
standard EA (lead (Pb)-free), except that it has a package quantity of 1000 pieces
Revision: 07-Mar-18
Document Number: 30183
1
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSL, Wide Terminal
www.vishay.com
Vishay Dale
RESISTOR CHARACTERISTICS
WSL0612
WSL1020
+250
(4)
for 0.75 mand 1.9 m
+150
(4)
for 2 m to 6 m
< 20
-65 to +170
(P x
R)
1/2
< 50
TECHNICAL SPECIFICATIONS
PARAMETER
Component temperature coefficient
(including terminal)
(1)
Element TCR
(2)
Operating temperature range
Maximum working voltage
(3)
UNIT
ppm/°C
ppm/°C
°C
V
Notes
(1)
Component TCR - total TCR that includes the TCR effects of the resistor element and the copper terminal
(2)
Element TCR - only applies to the alloy used for the resistor element; refer to item 1 in the construction illustration on the following page
(3)
Maximum working voltage - the WSL is not voltage sensitive, but is limited by power / energy dissipation and is also not ESD sensitive
(4)
Typical TCR is positive, for more details contact factory

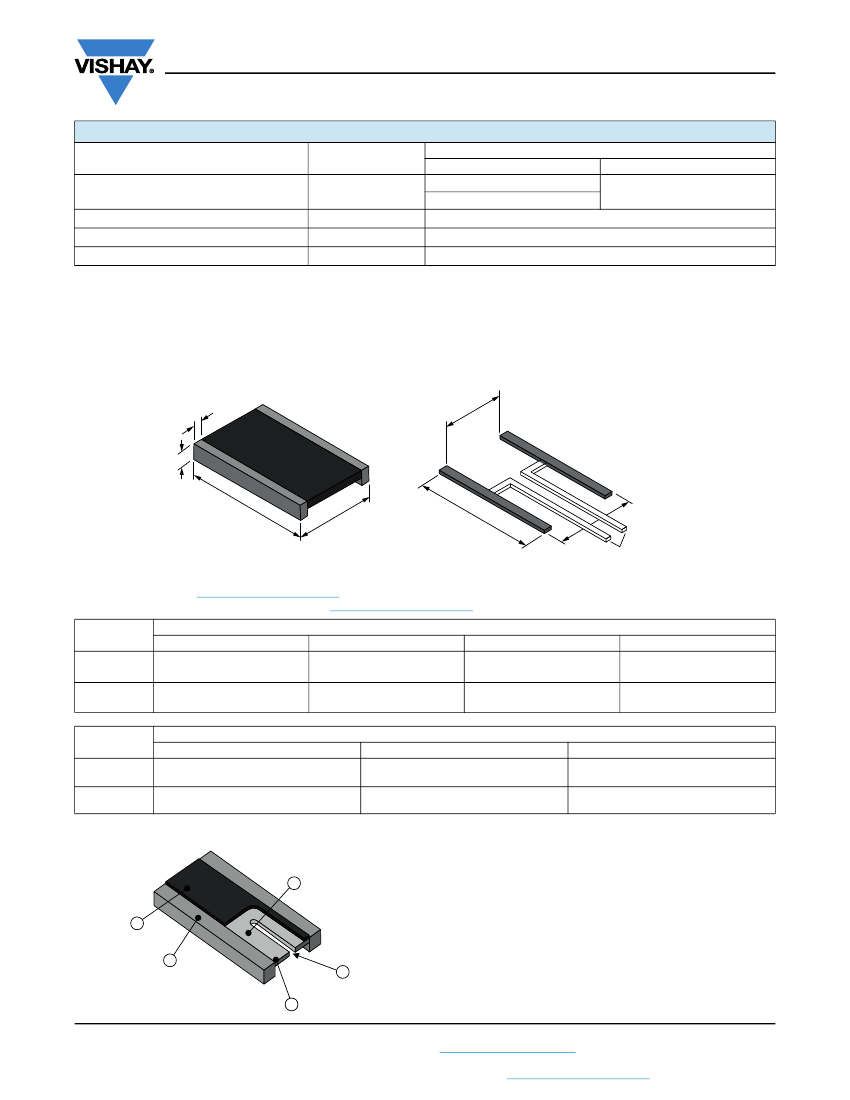

DIMENSIONS
a
T
H
L
W
c
b
Typical sensing traces
Notes
• 3D models available:
www.vishay.com/doc?30348
• Surface mount solder profile recommendations:
www.vishay.com/doc?31052
MODEL
WSL0612
WSL1020
L
0.120 ± 0.005
(3.05 ± 0.127)
0.200 ± 0.005
(5.08 ± 0.127)
DIMENSIONS
in inches (millimeters)
W
H
0.060 ± 0.005
(1.50 ± 0.127)
0.100 ± 0.005
(2.54 ± 0.127)
0.018 ± 0.010
(0.457 ± 0.254)
0.025 ± 0.005
(0.635 ± 0.127)
T
0.015 ± 0.010
(0.381 ± 0.254)
0.022 ± 0.008
(0.558 ± 0.203)
MODEL
WSL0612
WSL1020
a
0.030
(0.76)
0.039
(1.00)
SOLDER PAD DIMENSIONS
in inches (millimeters)
b
0.078
(1.98)
0.138
(3.50)
c
0.134
(3.40)
0.222
(5.65)
WELDED CONSTRUCTIONS
1. Resistive element: nickel-chrome or manganese-copper
alloy with low TCR (< 20 ppm/°C)
1
4
2. Terminal: solid copper with 100 % Sn finish
100 % Sn (100 μ" min.) with 100 % Ni (20 μ" min.) under
layer finish
3. Terminal / element weld (electron beam weld)
4. High temperature encapsulant: “siliconized polyester”
coating material
5. Laser calibration
2
5
3
Revision: 07-Mar-18
Document Number: 30183
2
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
WSL, Wide Terminal
www.vishay.com
DERATING
Rated Power in %
Rated Power in %
Vishay Dale
120
100
80
60
40
20
0
-65 -55
120
100
Stability
< 1 %
80
60
Stability
< 0.5 %
40
20
-25
0
25
50
75 100 125 150 170
70
Ambient Temperature in °C
0
0
20
40
60
80
100 120 140 160 180
Terminal Temperture T
K
in °C
PULSE CAPABILITY
click to get started
VE
TI
A
TR
S
L
U
IL
S
S
E
O
RP
PU
LY
ON
www.vishay.com/resistors/power-metal-strip-calculator
PERFORMANCE
TEST
Thermal shock
Low temperature operation
High temperature exposure
Bias humidity
Mechanical shock
Vibration
Load life
Resistance to solder heat
Moisture resistance
CONDITIONS OF TEST
-55 °C to +150 °C, 1000 cycles, 15 min at each extreme
-65 °C for 24 h
1000 h at +170 °C
+85 °C, 85 % RH, 10 % bias, 1000 h
100
g’s
for 6 ms, 5 pulses
Frequency varied 10 Hz to 2000 Hz in 1 min, 3 directions, 12 h
1000 h at 70 °C, 1.5 h “ON”, 0.5 h “OFF”
+260 °C solder, 10 s to 12 s dwell, 25 mm/s emergence
MIL-STD-202, method 106, 0 % power, 7b not required
TEST LIMITS
± 0.5 %
± 0.5 %
± 1.0 %
± 0.5 %
± 0.5 %
± 0.5 %
± 1.0 %
± 0.5 %
± 0.5 %
PACKAGING
MODEL
WSL0612
WSL1020
REEL
TAPE WIDTH
8 mm/embossed plastic
12 mm/embossed plastic
DIAMETER
178 mm/7"
178 mm/7"
PIECES/REEL
4000
4000
CODE
EA
EA
Notes
• Embossed carrier tape per EIA-481-2
(1)
Additional packaging details at
www.vishay.com/doc?20051
Revision: 07-Mar-18
Document Number: 30183
3
For technical questions, contact:
ww2bresistors@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
