TIM18EI: DescriptionVariable Capacitor, Glass, 750V, 0.8pF Min, 18pF Max, Multi-Turn, Panel Mount; CategoryPassive components capacitor; File Size259KB，2 Pages; ManufacturerVoltronics Corporation (Knowles)

Download Datasheet Parametric View All

TIM18EI Overview

Variable Capacitor, Glass, 750V, 0.8pF Min, 18pF Max, Multi-Turn, Panel Mount

TIM18EI Parametric

Parameter Name	Attribute value
Maker	Voltronics Corporation (Knowles)
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum capacitance	18 pF
Minimum capacitance	0.8 pF
Capacitor type	VARIABLE CAPACITOR
dielectric materials	GLASS
Manufacturer's serial number	TM
Installation features	PANEL MOUNT
multiple turns	1
Rated (DC) voltage (URdc)	750 V
surface mount	NO
Terminal shape	WIRE

Preview

Download Datasheet

View All

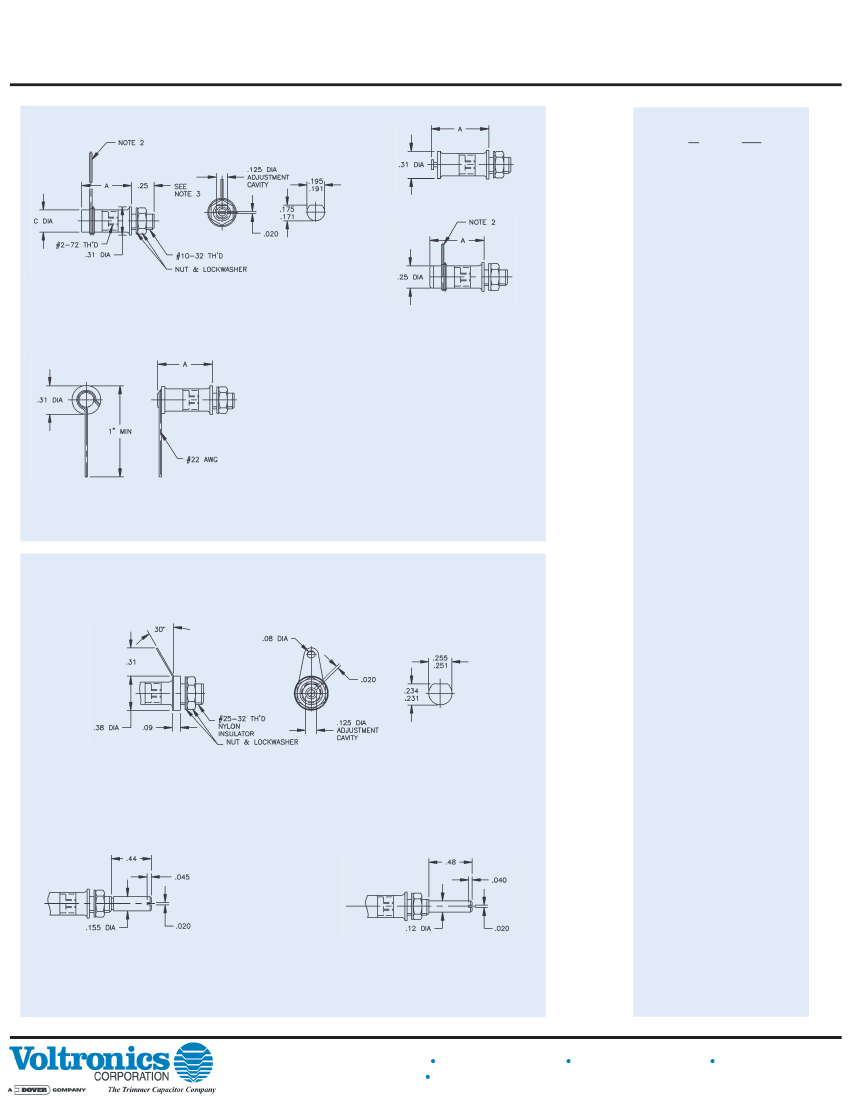

“TM” & “QM” SERIES - Panel Mount

Glass and Quartz Trimmer Capacitors

FIG. 1

FIG. 2

IN

0.005

0.016

0.020

0.03

0.045

0.08

0.09

0.12

0.125

0.160

0.171

0.175

0.191

0.195

0.230

0.234

0.25

0.251

0.255

0.27

0.28

0.30

0.31

0.33

0.35

0.36

0.37

0.38

0.40

0.41

0.42

0.45

0.47

0.50

0.52

0.55

0.59

0.61

0.63

0.69

0.70

0.75

0.81

0.83

0.91

0.92

0.98

1.00

1.06

1.08

1.09

1.13

1.16

1.17

1.22

1.59

1.66

1.67

1.69

1.75

1.77

1.91

1.98

2.00

MM

0.13

0.41

0.51

0.76

1.14

2.03

2.29

3.05

3.18

4.06

4.34

4.44

4.85

4.95

5.84

5.94

6.35

6.38

6.48

6.86

7.11

7.62

7.87

8.38

8.89

9.14

9.40

9.65

10.16

10.41

10.67

11.43

11.94

12.70

13.21

13.97

14.99

15.49

16.00

17.53

17.78

19.05

20.57

21.08

23.11

23.37

24.89

25.40

26.92

27.43

27.69

28.70

29.46

29.72

30.99

40.39

42.16

42.42

42.93

44.45

44.96

48.51

50.29

50.80

FIG. 3

NOTES:

FIG. 4

1. Fig. 2, 3 and 4 parts have same end

view as Fig. 1.

2. All leads #22 AWG and 2” Min. long

except for all TM5-, TM6-, TM10-

and QM2- parts which are #24 AWG.

3. Mounting brushing #10-32 x .25 long

except for all TM10- and TM15-

parts which are #10-32 x .16 long.

4. C diameter of Fig. 1 parts .27 on

embedded band units and .25 on all

other parts.

Detailed General Specifications on “Glass & Quartz General Specifications” page

Optional Configurations

INSULATED BUSHING

Insert “I” Between “T” and “M”

in Type Number (i.e. TIM9C)

EXTENDED

PLASTIC SHAFT

EXTENDED

METAL SHAFT

Add “EI” to End of

Type Number

(i.e. TM9EI)

Add “E” to End of

Type Number

(i.e. TM9CE)

100 FORD ROAD STE. 100-10 DENVILLE, NJ 07834 PHONE: 973-586-8585

http://www.voltronicscorp.com e-mail: info@voltronicscorp.com

FAX: 973-586-3404
