SC1A-12DS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> relay> SC1A-12DS

SC1A-12DS: DescriptionPower/Signal Relay, 1 Form A, SPST, Momentary, 0.03A (Coil), 12VDC (Coil), 360mW (Coil), 3A (Contact), 60VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT; CategoryMechanical and electronic products relay; File Size509KB，2 Pages; ManufacturerWorld Produts Inc.; Websitehttp://www.worldproducts.com; Environmental Compliance

Download Datasheet Parametric View All

SC1A-12DS Overview

Power/Signal Relay, 1 Form A, SPST, Momentary, 0.03A (Coil), 12VDC (Coil), 360mW (Coil), 3A (Contact), 60VDC (Contact), DC Input, Random, AC/DC Output, Through Hole-Straight Mount, ROHS COMPLIANT

SC1A-12DS Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	World Produts Inc.
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
body width	10.7 mm
body height	11.7 mm
Body length or diameter	15.7 mm
Maximum coil current (DC)	0.03 A
Coil operating voltage (DC)	9 V
Coil power	360 mW
Coil release voltage (DC)	0.6 V
Coil resistance	400 Ω
Maximum coil voltage (DC)	12 V
Nominal coil voltage	12 V
Coil/Input Power Type	DC
Contact (AC) maximum rated power R load	360VA@120VAC
Contact (AC) maximum rated R load	3A@120VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	3 A
Contact (DC) maximum rated power R load	72W@60VDC
Contact (DC) maximum rated R load	3A@60VDC
Contact resistance	100 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	60 V
Contact/Output Power Type	AC/DC
Dielectric strength between coil and contacts	750 Vrms
Dielectric strength between breaking contacts	500 Vrms
Electrical life	100000 Cycle(s)
End contact material	Silver Alloy
Input switching control type	Random
Insulation resistance	100000000 Ω
Manufacturer's serial number	SC
Installation features	THROUGH HOLE-STRAIGHT MOUNT
Number of terminals	6
operating hours	10 ms
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
PCB hole count	6
physical size	15.7mm x 10.7mm x 11.7mm
Guideline	UL
Relay action	MOMENTARY
Relay style	1 FORM A
Relay function	SPST
Relay type	POWER/SIGNAL RELAY
release time	4 ms
surface mount	NO
Terminal length	0.003 inch
Termination type	SOLDER
weight	3 g

Preview

Download Datasheet

View All

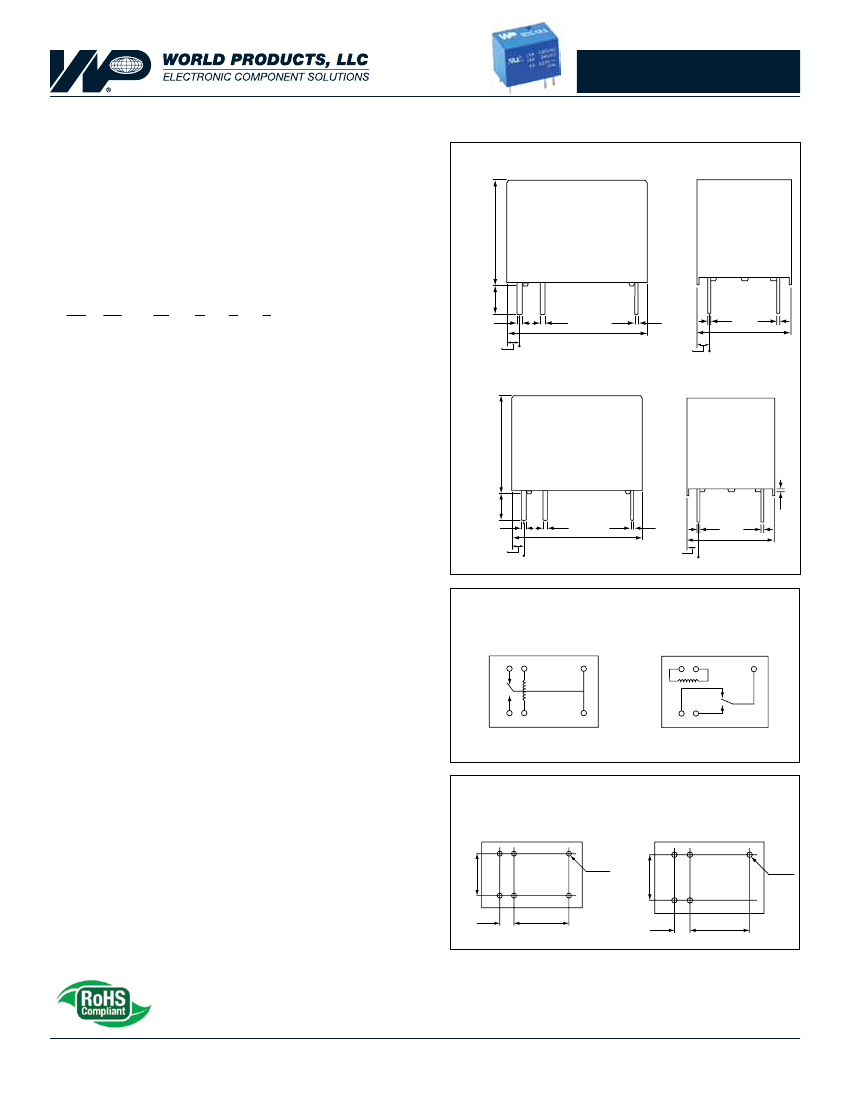

SC SERIES

INDUSTRIAL RELAYS

UL & CUL File #E223388

DIMENSIONS

Unit: mm

FEATURES

Standard Type

(1)

(2)

1C - 12

(2)

(3)

(4)

(5)

(4)

(6)

Coil Sensitivity

= 0.2W

= 0.36W

Nil

= 0.4W

3.5±0.3

ORDERING INFORMATION

11.7±0.3

3 Amps super miniature relay.

1 Form A (SPST) contact.

1 Form C (SPDT) contact.

High sensitivity in small package.

Washable type.

0.6

15.7±0.3

(CENTER OF PIN)

0.4

0.3

1.55 ±0.3

0.4

0.6

1.74 ±0.3

10.7±0.3

(CENTER OF PIN)

Basic Designation

= SC Series

Contact Arrangement

= 1 Form C (SPDT)

= 1 Form A (SPST)

Coil Voltage

3~24V

L Type

(3)

(6)

3.5±0.3

Terminal arrangement

Nil

= Standard Type

= Coil on one side

11.7±0.2

(5)

Enclosure

Nil

= Unsealed type

= Sealed type

0.6

15.7±0.3

(CENTER OF PIN)

0.6

1.74 ±0.3

0.6

1.55 ±0.3

0.4

10.7±0.3

(CENTER OF PIN)

SCHEMATICS

Bottom view

Standard Type

L Type

PCB LAYOUT

Bottom view

Unit: mm

Standard Type

7.6±0.1

6-Ø1±0.1

L Type

7.6±0.1

5-Ø1

2.54±0.1

10.1±0.1

2.54±0.1

10.1±0.1

World Products, LLC

19654 Eighth Street East, Sonoma, CA 95476 | Phone (707) 996-5201 | Fax (707) 996-3380 | www.worldproducts.com

| Industrial Relays Catalog

Rev. 17.7 (04.19.10)

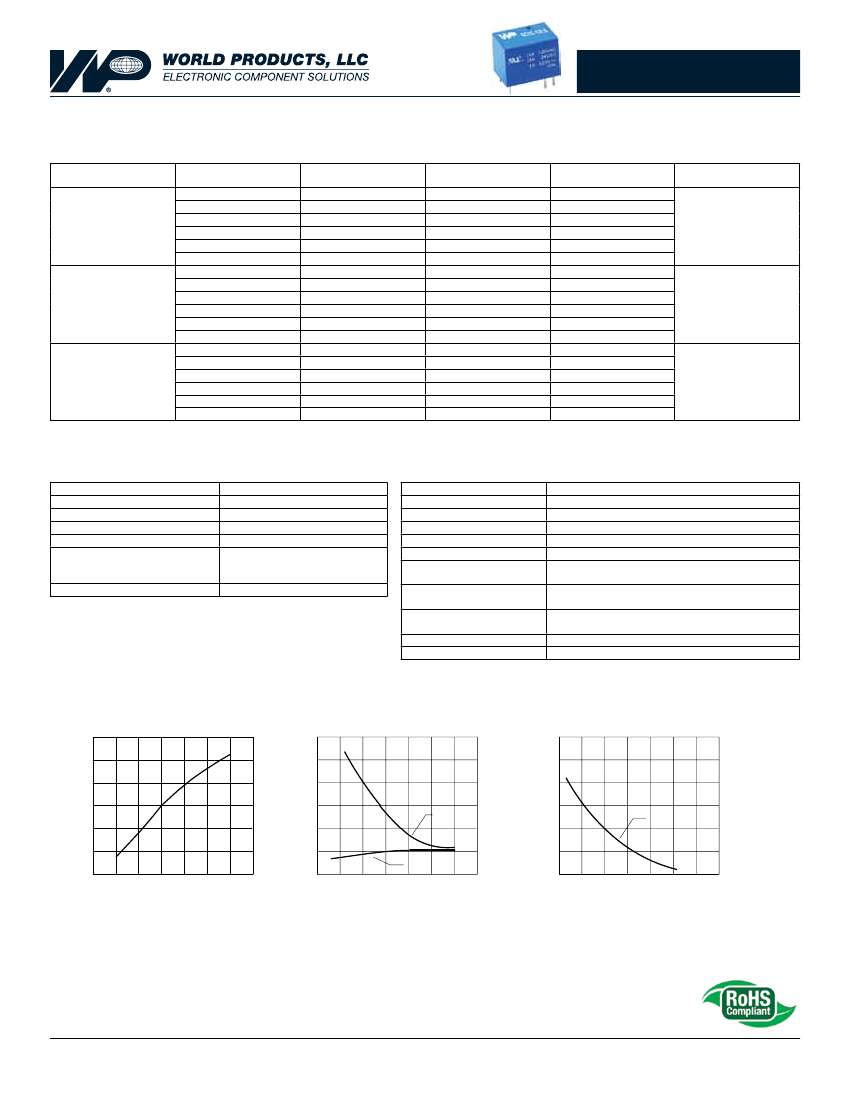

0.7
