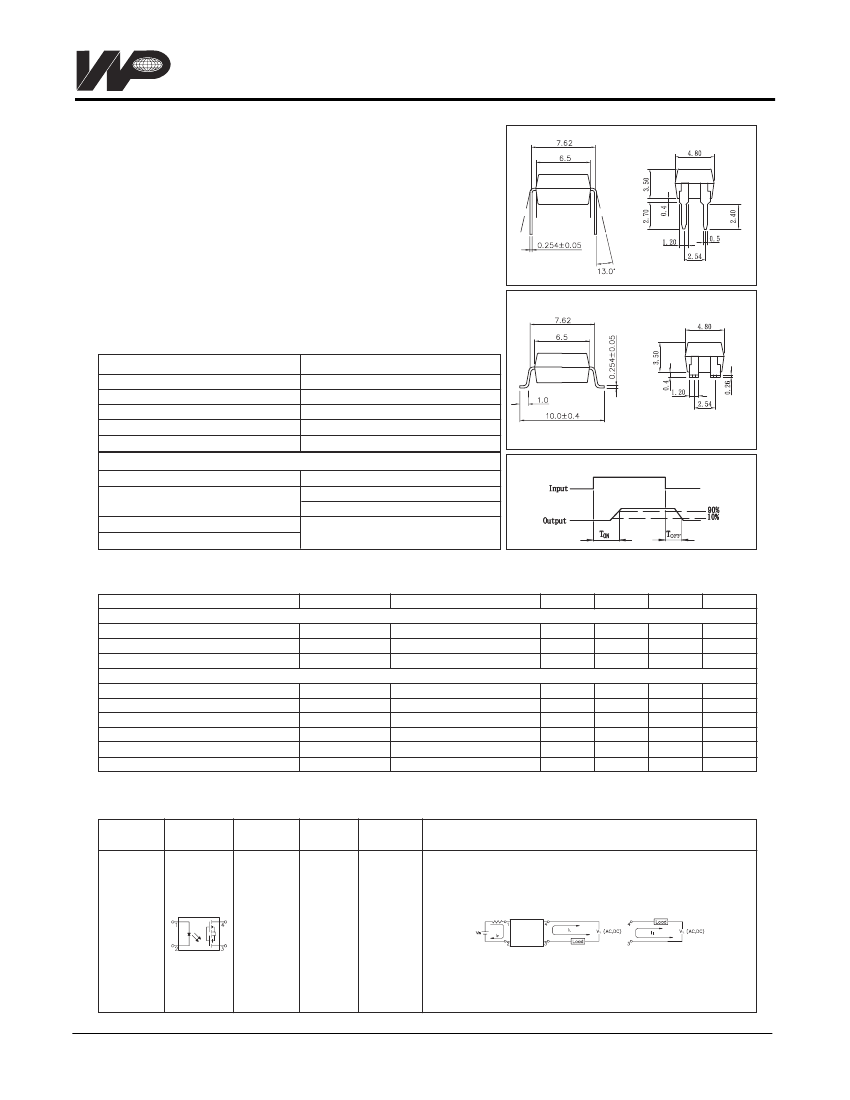

WPPM-4024D/A
Series
.
ISOMOS
TM
High Voltage, Photo MOS Relay
E
D
USR/CNR Listed (File # 223388)
Features
1. Normally
open, single pole, single throw.
2. Control 400VAC or DC
voltage.
3. Switch 130mA
loads.
4. LED control
current,
5mA.
5. Low ON-resistance.
6. dv/dt, >500V/mS.
7. Isolation
test voltage,
3750V
RMS.
Part Numbering System
&
Part Marking System:
Page 3 & 4.
WPPM-4024D
Unit : mm
TOLERANCE :
±
0.2mm
WPPM-4024A
Absolute Maximum Ratings
Emitter ( Input )
Reverse Voltage……………………………5.0V
Continuous Forward Current ……………50mA
Peak Forward Current ………………………1A
Power Dissipation ……………………100mW
Derate Linearly from 25°C …………1.3mW/°C
General Characteristics
Isolation Test Voltage………...……3750V
RMS
Isolation Resistance
V
IO
= 500V, T
A
= 25°C
………...………
≥10
10
Ω
(Ta=25°C)
Detector ( Output )
Output Breakdown Voltage ……………±400V
Continuous Load Current ……………±130mA
Power Dissipation ……………………500mW
Unit : mm
TOLERANCE :
±
0.2mm
Turn on/ Turn off time
Storage Temperature Range …-40°C to +125°C
Operating Temperature Range…-30°C to +85°C
Junction Temperature……………………100°C
Soldering Temperature,
2mm from case, 10 sec …………………260°C
Total Power Dissipation ………………550mW
Derate Linearly from 25°C …………2.5mW/°C
Electro-optical Characteristics
Parameter
Emitter (Input)
Forward Voltage
Operation Input Current
Recovery Input Current
Detector (Output)
Output Breakdown Voltage
Output Off-State Leakage
I/O Capacitance
ON Resistance
Turn-On Time
Turn-Off Time
V
B
I
TOFF
C
ISO
R
ON
T
ON
T
OFF
I
B
=50uA
V
T
=100V, I
F
=0mA
I
F
=0, f =1MH
Z
I
L
=100mA, I
F
=10mA
I
F
=10mA, V
L
=±20V
t =10mS, I
L
=±100mA
400
0.2
6
20
0.3
0.7
30
1.0
1.5
1
V
F
I
FOFF
I
FON
I
F
=10mA
V
L
=±20V,
I
L
≤
5uA
V
L
=±20V, I
L
=100mA, t =10mS
0.2
1.2
1.5
5
lllllllllSymbol
Conditions
Min.
Typ.
ggg
(Ta=25°C)
Max.
Unit
V
mA
mA
V
uA
pF
Ω
mS
mS
MOS Relay Schematic and Wiring Diagrams
Type
Schematic
Output
configuration
Load
Connection
Wiring Diagrams
4024D
&
4024A
1a
AC/DC
–
WORLD PRODUCTS INC.
http://www.worldproducts.com
P.O. Box 517, 19654 Eighth Street East, Sonoma, CA 95476 Phone (707) 996-5201 Fax (707) 996-3380
r060503
117
ISOMOS

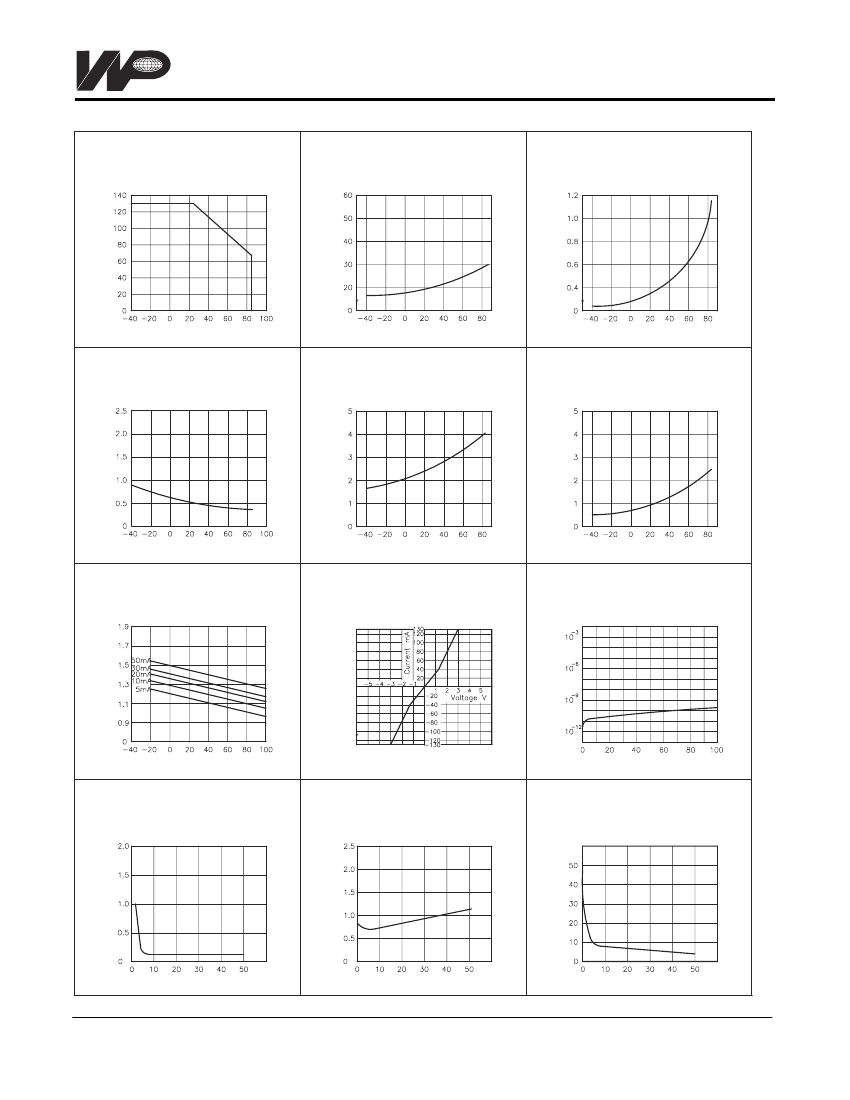

Data Curve
TM
WPPM-4024D/A
Series
Fig.1
Load current vs. ambient temperature
Allowable ambient temperature:
-40°C to +85°C
Fig.2
On resistance vs. ambient temperature
Across terminals 3 and 4 pin
LED current: 5mA
Continuous load current: 130mA(DC)
High Voltage, Photo MOS Relay
E
D
Fig.3
Turn on time vs. ambient temperature
Load voltage 400V(DC)
LED current: 5mA
Continuous load current: 130mA(DC)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Turn on Time Msec
Load Current (mA)
On Resistonce ( )
Ambient Temperature Ta (°C)
Fig.4
Turn off time vs. ambient temperature
LED current: 5mA; Load voltage:
400V(DC)
Continuous load current: 130mA(DC)
Fig.5
LED operate vs. ambient temperature
Load voltage 400V(DC)
Continuous load current: 130mA(DC)
Fig.6
LED turn off current vs. ambient
temperature
Load voltage 400V(DC)
Continuous load current: 130mA(DC)
LED Operate Current (mA)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
LED Turn off Current (mA)
Tun off Time Msec
Ambient Temperature Ta (°C)
Fig.7
LED dropout voltage vs. ambient
temperature
LED current: 5 to 50mA
Fig.8
Voltage vs. current characteristics of
output at MOS FET portion
Measured portion: across terminals 3
and 4 pin
Ambient temperature: 25°C
Fig.9
Off state leakage current
Across terminals 3 and 4 pin
Ambient temperature: 25°C
Off State Leakage Current
LED Dropout Voltage (V)
Ambient Temperature Ta (°C)
Load Voltage (V)
Fig.10
LED forward current vs. turn on time
Across terminals 3 and 4 pin;
Load voltage: 400V (DC);
Continuous load current: 130mA (DC);
Ambient temperature: 25°C
Fig.11
LED forward current vs. turn off time
Across terminals 3 and 4 pin;
Load voltage: 400V (DC);
Continuous load current: 130mA (DC);
Ambient temperature: 25°C
Fig.12
Applied voltage vs. output capacitance
Across terminals 3 and 4 pin
Frequency: 1MHz
Ambient temperature: 25°C
LED Forward Current (mA)
LED Forward Current (mA)
Output CapaCitance (pF)
Turn on Time Msec
Turn on Time Msec
Applied Voltage (V)
118
