Ordering number :EN4275A
SVC364
Diffused Junction Type Sillicon Diode
Composite Varactor Diode for AM Receiver
Low-Voltage Electronic Applications
Features
· Excellent matching characteristics because of
composite type.
· Manufacturing processes reducible and automatic
mounting supported.
· High capacitance ratio and high quality factor.
· Cathodes separated in RF and OSC.
· Tape reel packaging.
· Surface mount type.
Package Dimensions
unit:mm
1214A
[SVC364]
1:Anode1
2:Cathode2
3:Anode2
4:Anode3
5:Cathode2
6:Anode4
SANYO:MFP6
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Reverse Voltage
Junction Temperature
Storage Temperature
Symbol
VR
Tj
Tstg
Conditions
Ratings
16
125
–55 to +125
Unit
V
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Breakdown Voltage
Reverse Current (One diode)
Interterminal Capacitance (Average)
Symbol
V(BR)R
IR
C1V
C6V
C8V
Quality Factor
Capacitance Ratio
Matching Tolerance
Q
CR
∆C
m*2
IR=10µA
VR=9V
VR=1V, f=1MHz*1
VR=6V, f=1MHz
VR=8V, f=1MHz
VR=1V, f=1MHz
C1V/C8V
VR=1V to 8V, f=1MHz
20.5
200
17.5
24.5
±2.5
%
428.0*
52.0
27.0
Conditions
Ratings
min
16
100
500.0*
typ
max
Unit
V
nA
pF
pF
pF
Note)*1:1MHz signal:20mVrms.
Note)*2:∆Cm= (CDn–CD3) / CD3
×100
Note)*:The SVC364 is classified by C1V as follows:
Electrical Connection
Rank
K
L
M
C1V(pF)
428.0 to 456.5
447.5 to 478.0
468.5 to 500.0
A:Anode
C:Cathode
SANYO Electric Co.,Ltd. Semiconductor Bussiness Headquarters
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
33098HA (KT)/92794MO/8-8099/3202HK No.4275-1/3

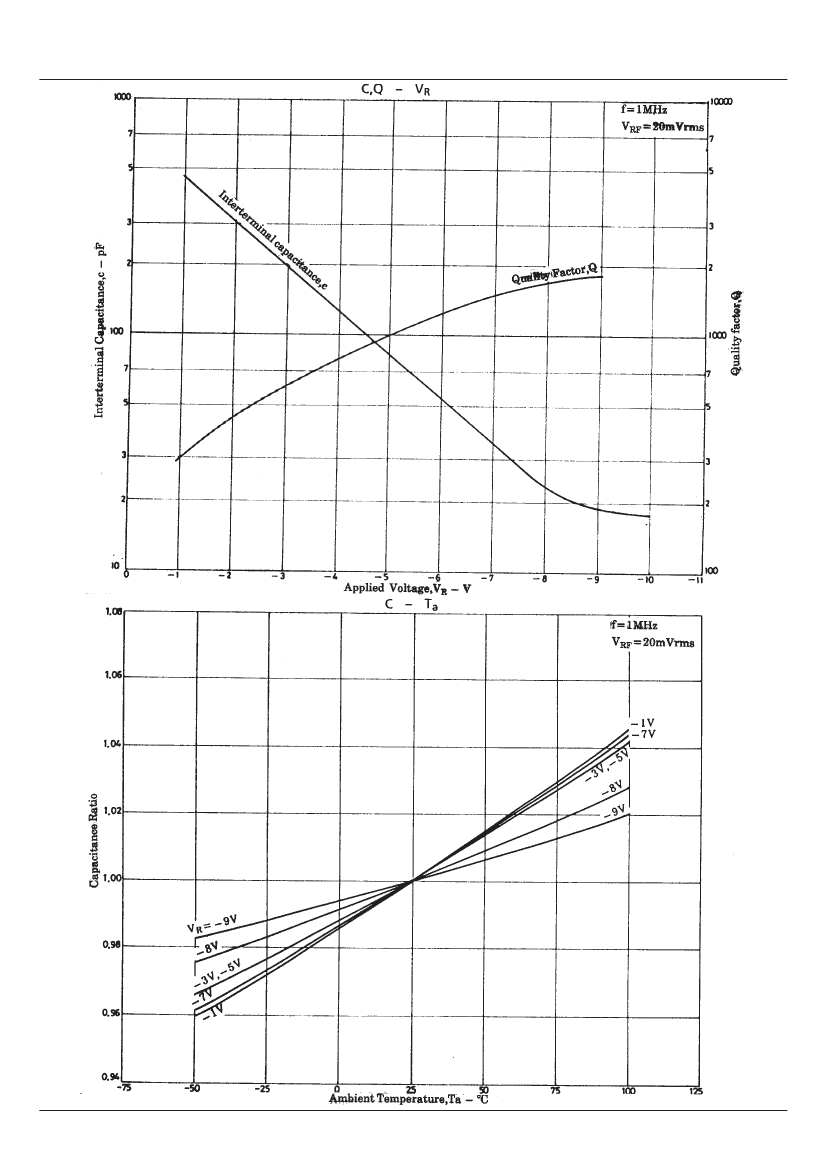

SVC364
No products described or contained herein are intended for use in surgical implants, life-support systems,
aerospace equipment, nuclear power control systems, vehicles, disaster/crime-prevention equipment and
the like, the failure of which may directly or indirectly cause injury, death or property loss.
Anyone purchasing any products described or contained herein for an above-mentioned use shall:
Accept full responsibility and indemnify and defend SANYO ELECTRIC CO., LTD., its affiliates,
subsidiaries and distributors and all their officers and employees, jointly and severally, against any
and all claims and litigation and all damages, cost and expenses associated with such use:
Not impose any responsibilty for any fault or negligence which may be cited in any such claim or
litigation on SANYO ELECTRIC CO., LTD., its affiliates, subsidiaries and distributors or any of
their officers and employees jointly or severally.
Information (including circuit diagrams and circuit parameters) herein is for example only; it is not guarant-
eed for volume production. SANYO believes information herein is accurate and reliable, but no guarantees
are made or implied regarding its use or any infringements of intellectual property rights or other rights of
third parties.
This catalog provides information as of March, 1998. Specifications and information herein are subject to
change without notice.
PS No.4275-3/3
