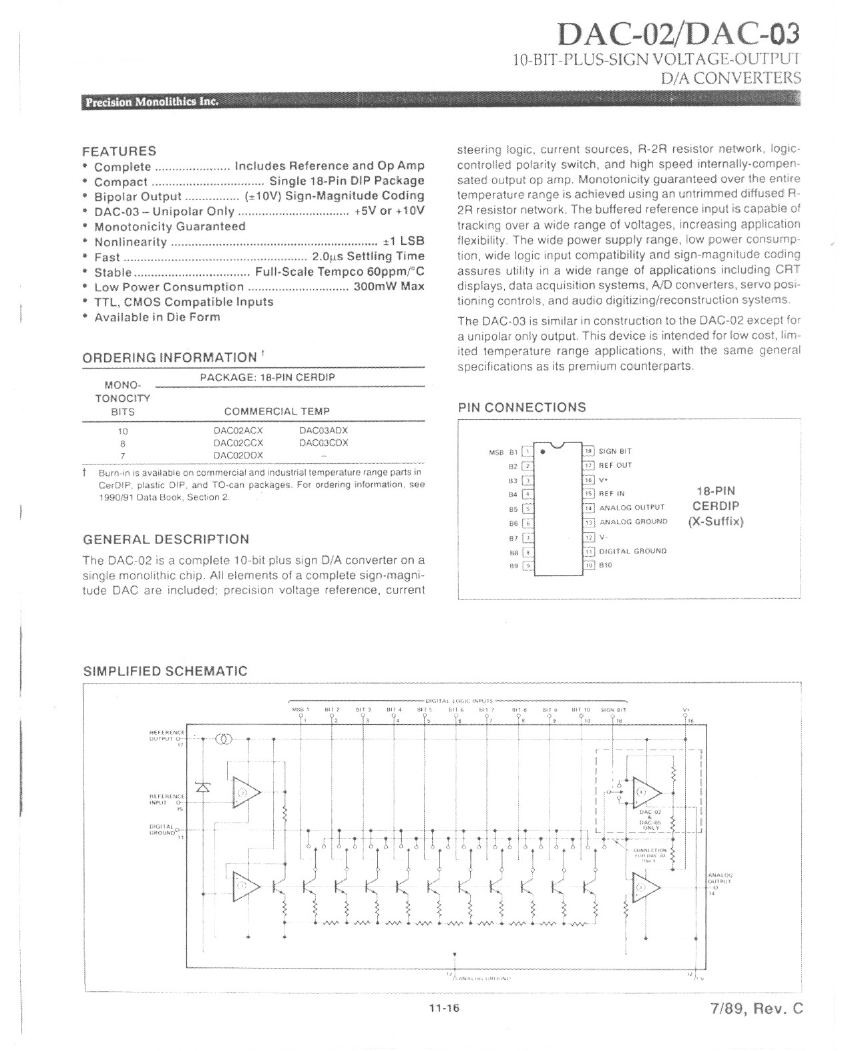

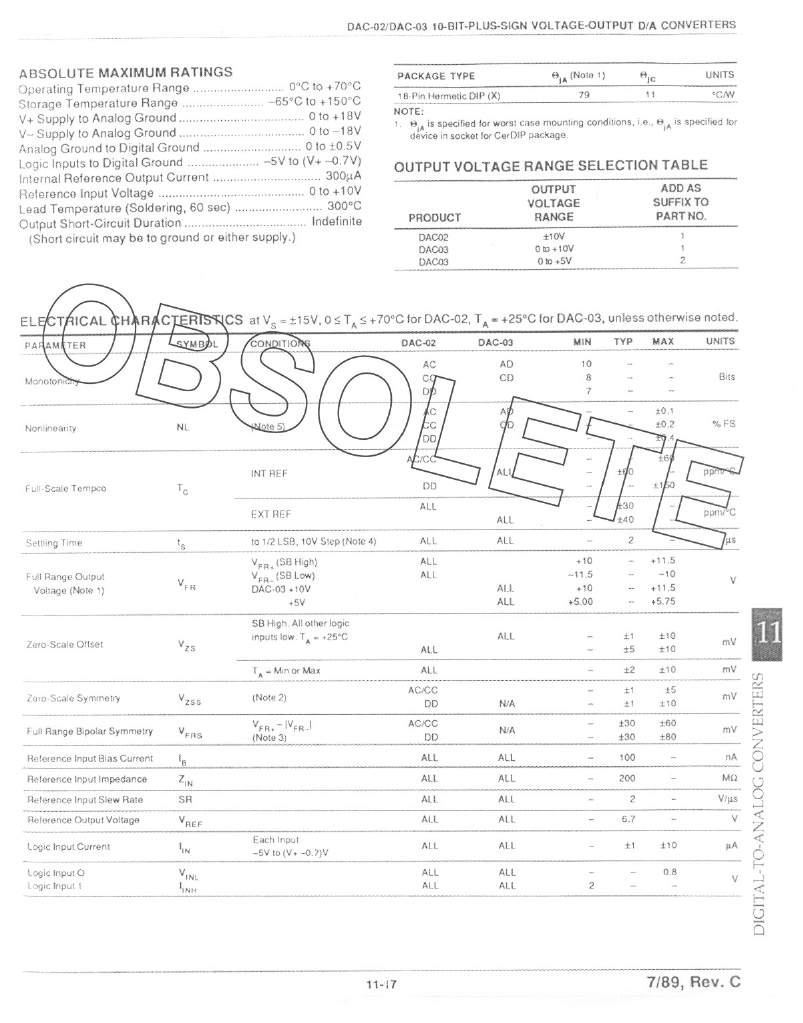

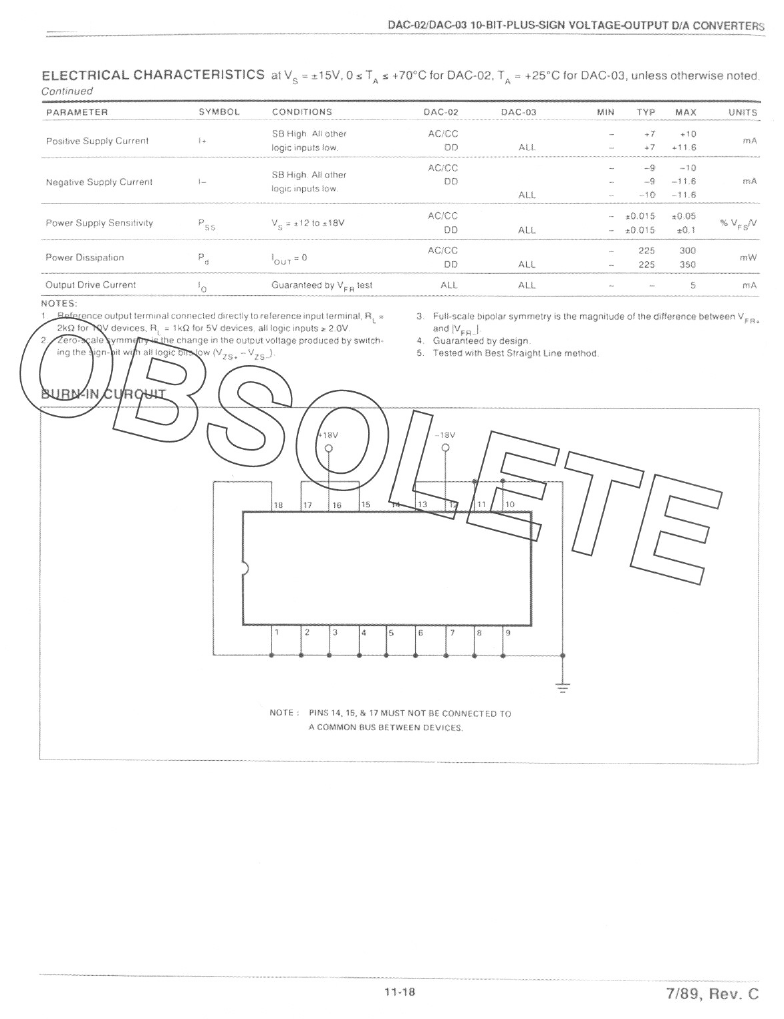

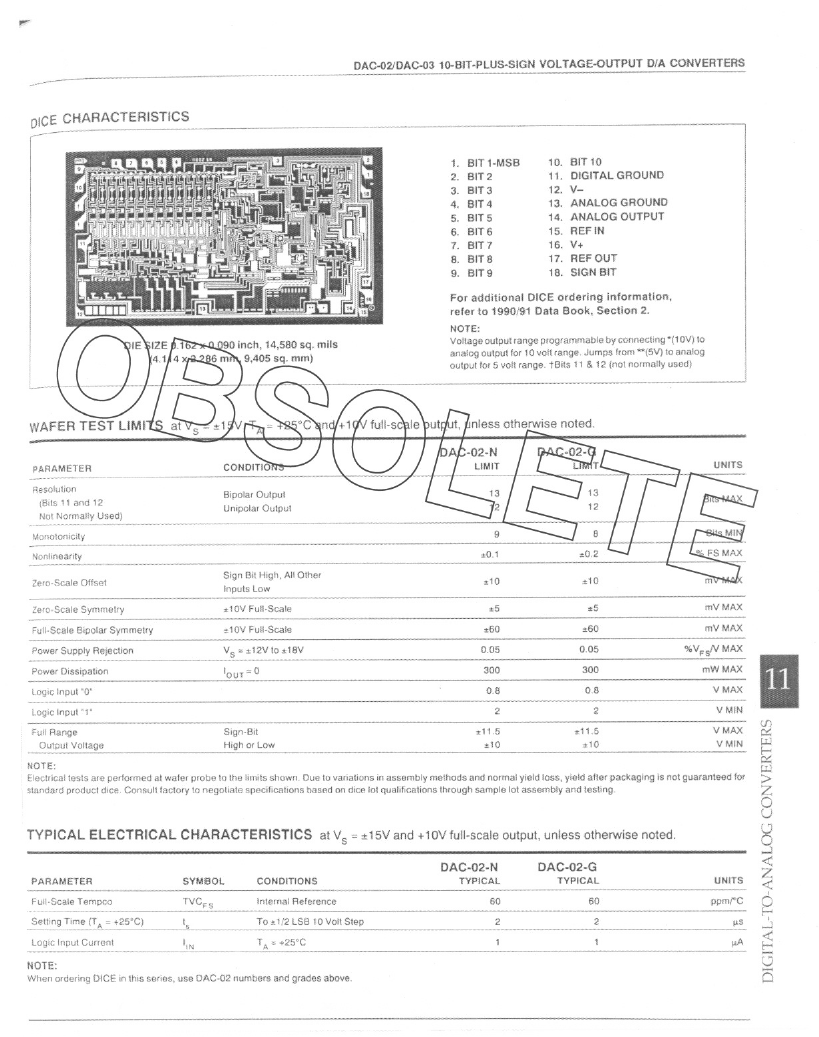

DAC03CDX: DescriptionIC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, CDIP18, CERDIP-18, Digital to Analog Converter; CategoryAnalog mixed-signal IC converter; File Size1MB，5 Pages; ManufacturerADI; Websitehttps://www.analog.com

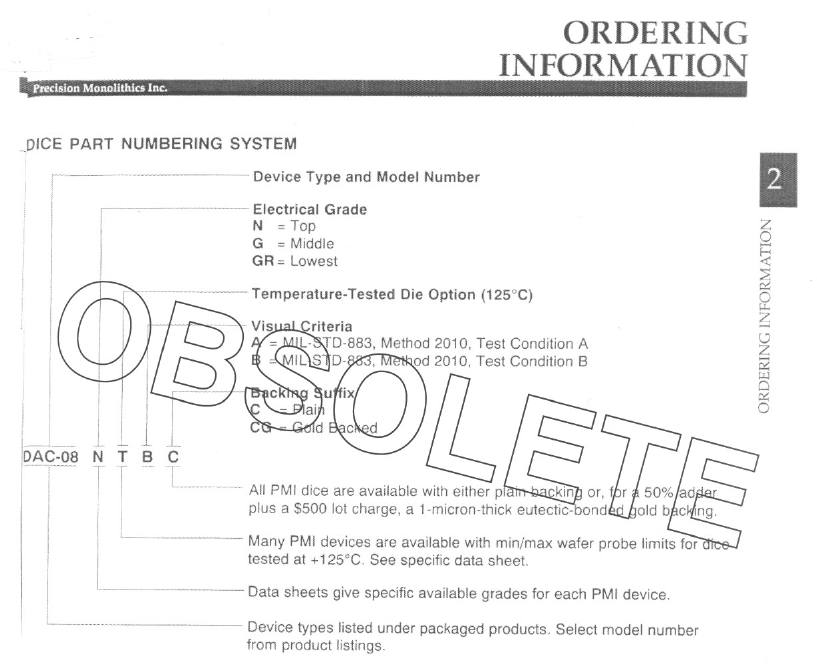

Download Datasheet Parametric Compare View All

DAC03CDX Overview

IC PARALLEL, WORD INPUT LOADING, 2 us SETTLING TIME, 10-BIT DAC, CDIP18, CERDIP-18, Digital to Analog Converter

DAC03CDX Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ADI
Parts packaging code	DIP
package instruction	CERDIP-18
Contacts	18
Reach Compliance Code	compliant
Maximum analog output voltage	11.5 V
Minimum analog output voltage	10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-GDIP-T18
JESD-609 code	e0
Maximum linear error (EL)	0.2%
Nominal negative supply voltage	-15 V
Number of digits	10
Number of functions	1
Number of terminals	18
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal settling time (tstl)	2 µs
Maximum slew rate	11.6 mA
Nominal supply voltage	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
