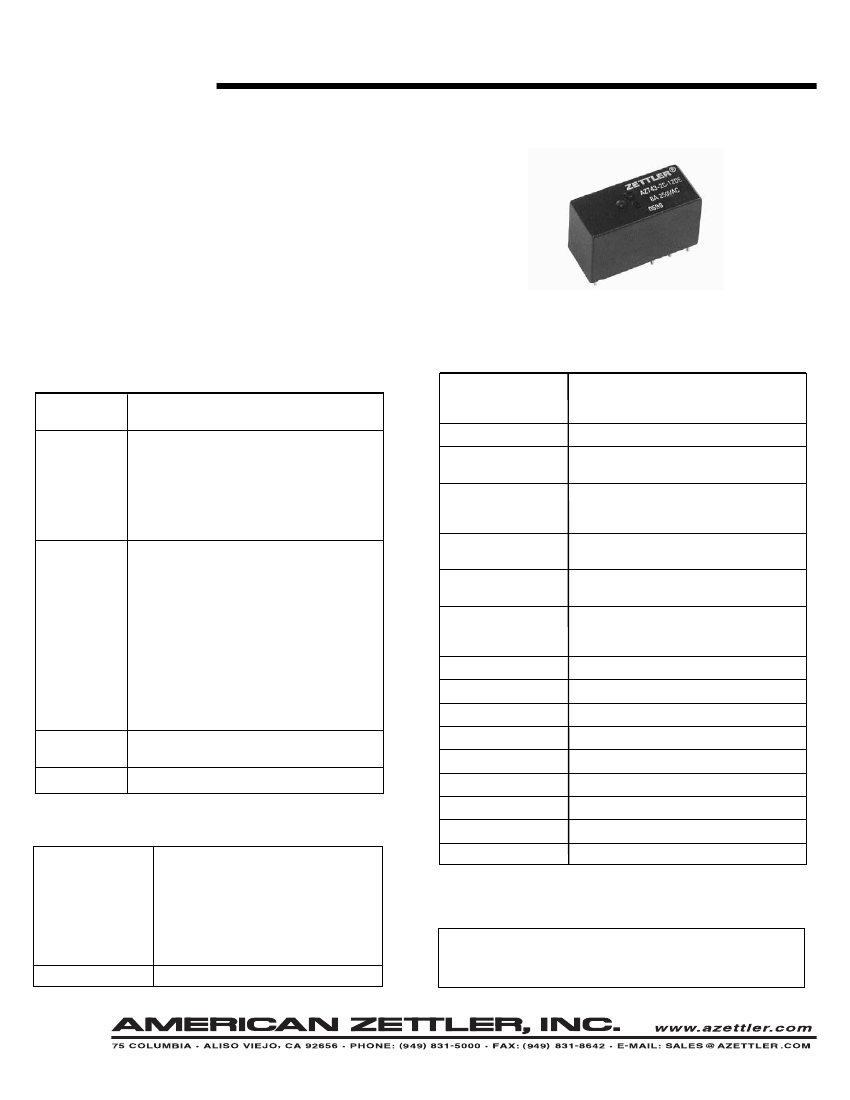

AZ743
AZ
10 AMP DPDT MINIATURE
POWER RELAY
FEATURES
•
•
•
•
•
•
•
•
•
Dielectric strength 5000 Vrms
Low cost
Epoxy sealed version available
10 Amp switching — double pole contacts
AC and DC coils
Class B (130°C) standard
Class F (155°C) versions available
Isolation spacing greater than 10 mm
UL, CUR file E44211, VDE file 40006031
GENERAL DATA
CONTACTS
Arrangement
Ratings
DPST (2 Form A, 2 Form B)
DPDT(2 Form C)
Resistive load:
Max. switched power: 240 W or 2500 VA
Max. switched current: 10 A
Max. switched voltage: 150* VDC or 400 VAC
*Note: If switching voltage is greater than 30 VDC,
special precautions must be taken. Please contact the
factory.
Life Expectancy
Mechanical
Electrical
Operate Time (typical)
Release Time (typical)
Minimum operations
1 x 10
7
1 x 10
5
at 8 A 240 VAC Res.
7 ms at nominal coil voltage
4 ms at nominal coil voltage
(with no coil suppression)
Dielectric Strength
5000 Vrms coil to contact
(at sea level for 1 min.)
3000 Vrms between contact sets
1000 Vrms between open contacts
Insulation
Resistance
1000 megohms min. at 500 VDC,
20°C, 50% RH
Greater than 10% of nominal coil voltage (DC)
Greater than 15% of nominal coil voltage (AC)
At nominal coil voltage
-40°C (-40°F) to 100°C (212°F)
-40°C (-40°F) to 130°C (266°F)
0.062" DA at 10–55 Hz
10 g
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
80°C (176°F)
30 seconds
16 grams
Rated Load
UL, CUR
10 A at 250 VAC Resistive, 30k cycles (N.O.)/
6k (N.C.) [1]
8 A at 277 VAC Resistive, 30k cycles [1]
8 A at 277 VAC Resistive. 75k cycles [2]
8 A at 277 VAC Resisive, 100k cycles [3]
1
/
2
HP at 250 VAC (N.O.) [1]
1
/
4
HP at 125 VAC (N.O) [1]
8 A at 250 VAC Resistive, 30k cycles [1]
Contact factory for additional VDE ratings
[1] Silver cadmium oxide, [2] Silver tin oxide
[3] Silver nickel
Dropout
Ambient Temperature
Operating
Storage
Vibration
Shock
Enclosure
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
VDE
Material
Resistance
Silver cadmium oxide, silver tin oxide, or silver
nickel. Gold plating available
< 50 milliohms initially (using 6 V 1 A method)
COIL
Power
At Pickup Voltage
(typical)
Max. Continuous
Dissipation
Temperature Rise
Max. Temperature
196 mW (DC)
0.43 VA (AC)
Max. Immersion Time
Weight
NOTES
1.7 W at 20°C (68°F) ambient
26°C (47°F) at nominal coil voltage
130°C (266°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
1/15/13
AZ743
RELAY ORDERING DATA
COIL SPECIFICATIONS - DC COIL
Nominal Coil
VDC
5
6
12
15
18
24
48
60
110
Must Operate
VDC
3.5
4.2
8.4
10.5
12.6
16.8
33.6
42.0
77.0
Max. Continuous
VDC
10.2
12.3
24.7
30.9
37.0
49.4
98.0
112.9
206.9
Coil Resistance
± 10%
62
90
360
562
810
1,440
5,760
7,500
25,200
ORDER NUMBER*
Unsealed
AZ743–2C–5D
AZ743–2C–6D
AZ743–2C–12D
AZ743–2C–15D
AZ743–2C–18D
AZ743–2C–24D
AZ743–2C–48D
AZ743–2C–60D
AZ743–2C–110D
Sealed
AZ743–2C–5DE
AZ743–2C–6DE
AZ743–2C–12DE
AZ743–2C–15DE
AZ743–2C–18DE
AZ743–2C–24DE
AZ743–2C–48DE
AZ743–2C–60DE
AZ743–2C–110DE
COIL SPECIFICATIONS - AC COIL
Nominal Coil
VAC
24
115
230
Must Operate
VAC
18.0
86.3
172.5
Max. Continuous
VAC
31.2
149.5
299.0
Coil Current (mA)
31.6
6.6
3.2
Coil Resistance
350 ± 10%
8,100 ± 15%
32,500 ± 15%
ORDER NUMBER*
Unsealed
Sealed
AZ743–2C–24AF
AZ743–2C–24AEF
AZ743–2C–115AF AZ743–2C–115AEF
AZ743–2C–230AF AZ743–2C–230AEF
* Substitute “2A” or “2B” in place of “2C” for Form A or B respectively. Add suffix “E” to “2A” or “2B” or “2C” for silver tin oxide contacts. Add suffix “B” to
“2A” or “2B” or “2C” for silver nickel contacts. Add suffix “A” for gold plated contacts. Add suffix “F” for Class F version (DC coils only).
When suffix “E” is
specified for Epoxy Seal, refer to AZ “Relay Technical Notes” on AZ website - Product Resources. Consult factory for other PCB process conditions that may
apply.

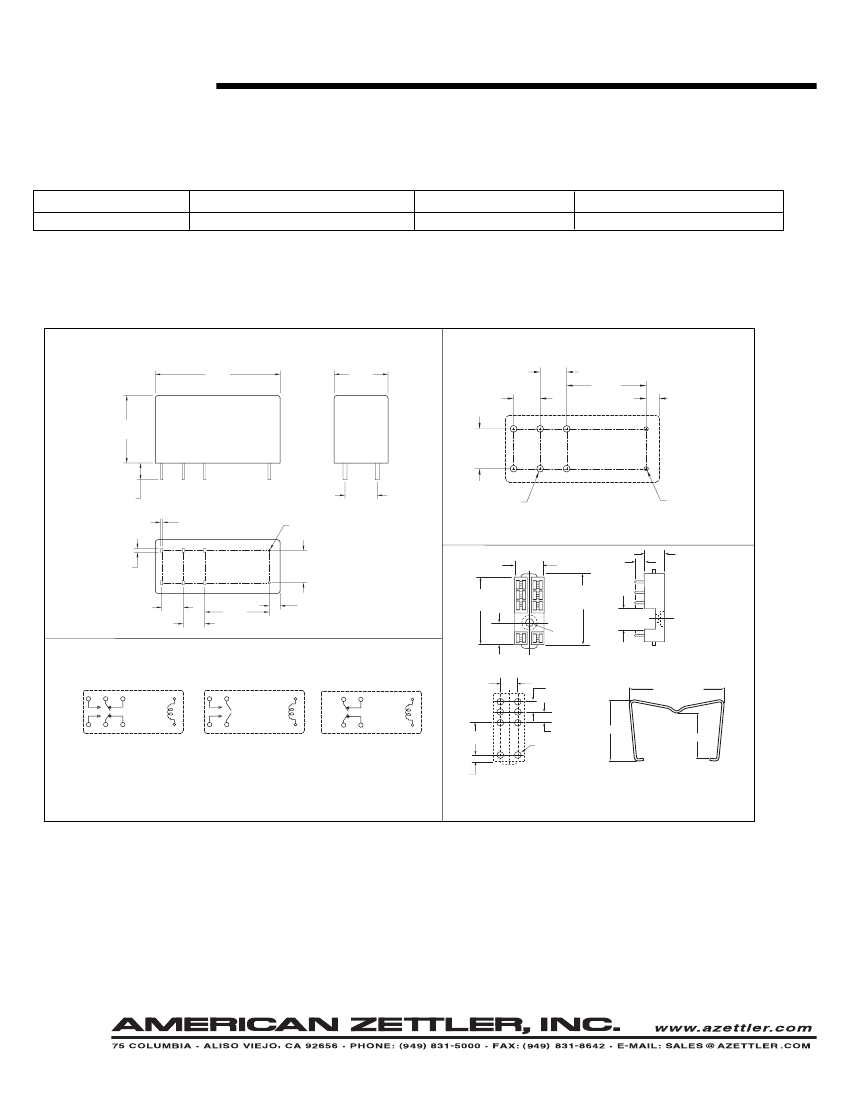

1/15/13
