LCMC0603GR10RTAR datasheet, PDF

Datasheet> All Categories > Passive components> inductor> LCMC0603GR10RTAR

LCMC0603GR10RTAR: DescriptionGeneral Purpose Inductor, 0.1uH, 2%, Ceramic-Core, 0603,; CategoryPassive components inductor; File Size587KB，13 Pages; ManufacturerAVX; Environmental Compliance

Download Datasheet Parametric View All

LCMC0603GR10RTAR Overview

General Purpose Inductor, 0.1uH, 2%, Ceramic-Core, 0603,

LCMC0603GR10RTAR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	AVX
package instruction	0603
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0603
structure	Multilayer Chip
core material	Ceramic
DC Resistance	0.69 Ω
Nominal inductance(L)	0.1 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.8 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	12
Maximum rated current	0.3 A
self resonant frequency	1090 MHz
Terminal surface	Tin (Sn)
Tolerance	2%

Preview

Download Datasheet

View All

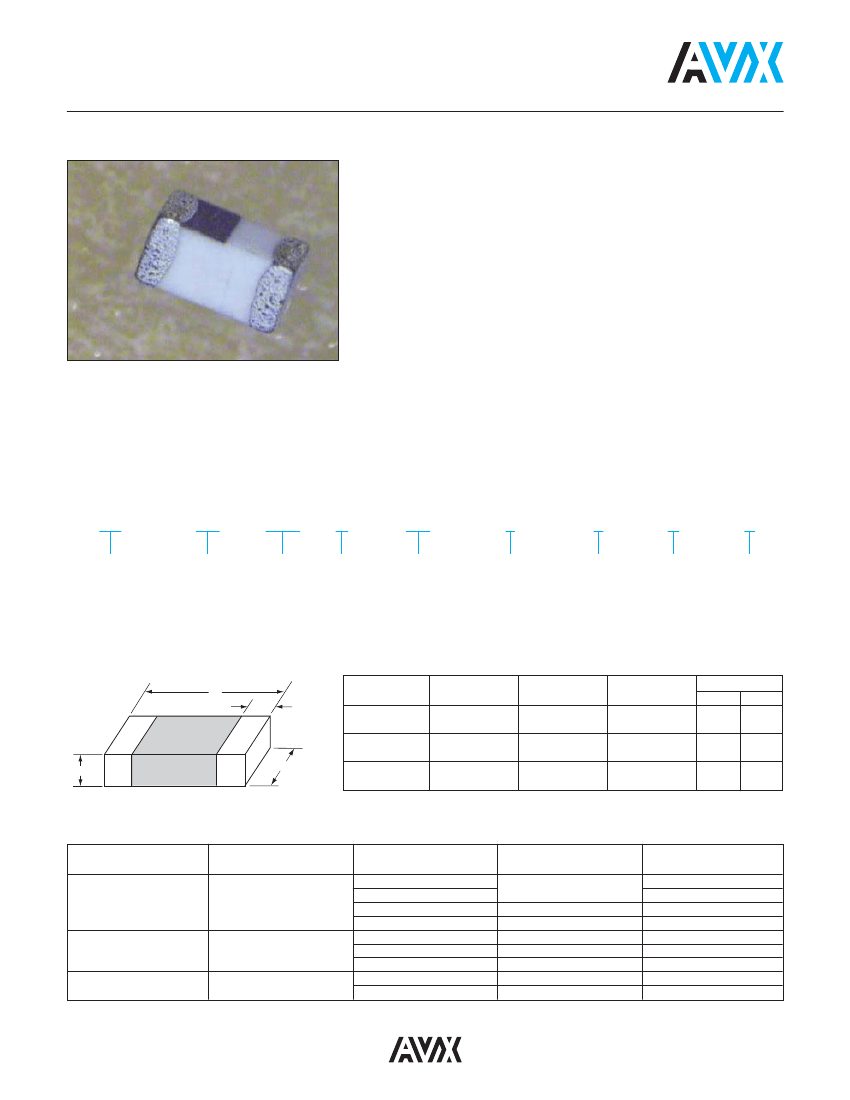

Multi-Layer Ceramic Chip Inductors

LCMC Series

APPLICATIONS

• High Frequency Applications:

– Mobile Communications

– WLAN

– PHS

– EMI Counter measure in High Frequency Circuits

– Computer Communication

FEATURES

• For high frequency applications

• Standard EIA sizes 0201 (0603), 0402 (1005), 0603 (1608)

• Lead-free RoHS compliant parts

• Tight tolerance in physical dimensions

• Surface mounting applicability (Supports reflow soldering condition)

• Tight Inductance Tolerance, Excellent Q and Guaranteed SRF range

• High product quality and outstanding reliability. (Ceramic integrated structure)

• Operating temperature -55ºC to +125ºC

HOW TO ORDER

Family

LC = Chip Inductor

Series

MC = Multi-Layer

0402

Size

0201

0402

0603

Tolerance

G = 2%

H = 3%

J = 5%

K = 10%

B = 0.1nH

C = 0.2nH

S = 0.3nH

101

Inductance

3N9 = 3.9nH

39N = 39nH

R39 = 390nH

Style

G = Standard

Q = High Q/

High Current

R = Low Profile

Termination

T = Sn Plating

Special

A = Standard

Packaging

R = 7" Reel

DIMENSIONS

mm (inches)

Code

LCMC0201

(0603)

LCMC0402

(1005)

LCMC0603

(1608)

0.60 ± 0.03

(0.024 ± 0.001)

1.00 ± 0.10

(0.040 ± 0.004)

1.60 ± 0.15

(0.063 ± 0.006)

0.30 ± 0.03

(0.012 ± 0.001)

0.50 ± 0.10

(0.020 ± 0.004)

0.80 ± 0.15

(0.031 ± 0.006)

Min

0.30 ± 0.03

0.10

(0.012 ± 0.001) (0.004)

0.50 ± 0.10

0.10

(0.020 ± 0.004) (0.004)

0.80 ± 0.15

0.20

(0.031 ± 0.006) (0.008)

Max

0.20

(0.008)

0.30

(0.012)

0.60

(0.024)

AVAILABLE INDUCTANCE VALUE AND TOLERANCE

Size Code

Available

Inductance

0.3nH - 100nH

Inductance

Ranges

0.3nH - 4.2nH

4.3nH - 6.2nH

6.8nH - 27nH

33nH - 100nH

0.6 nH - 6.2 nH

6.8 nH - 82 nH

100 nH - 270 nH

1.0 nH - 5.6 nH

6.8 nH - 470 nH

Standard

Tolerance

S=±0.3nH

J=±5%

S= ±0.3 nH

J= ±5%

S= ±0.3 nH

J= ±5%

Tolerance available

upon request

B=±0.1nH, C=±0.2nH

B=±0.1nH, H=±3%

H=±3%

–

B= ±0.1 nH , C= ±0.2 nH

G= ±2%, H=±3%

–

B= ±0.1 nH, C= ±0.2 nH

G= ±2%

LCMC0201

(0603)

LCMC0402

(1005)

LCMC0603

(1608)

0.6nH - 270nH

1.0 nH - 470 nH
