Document 646-1

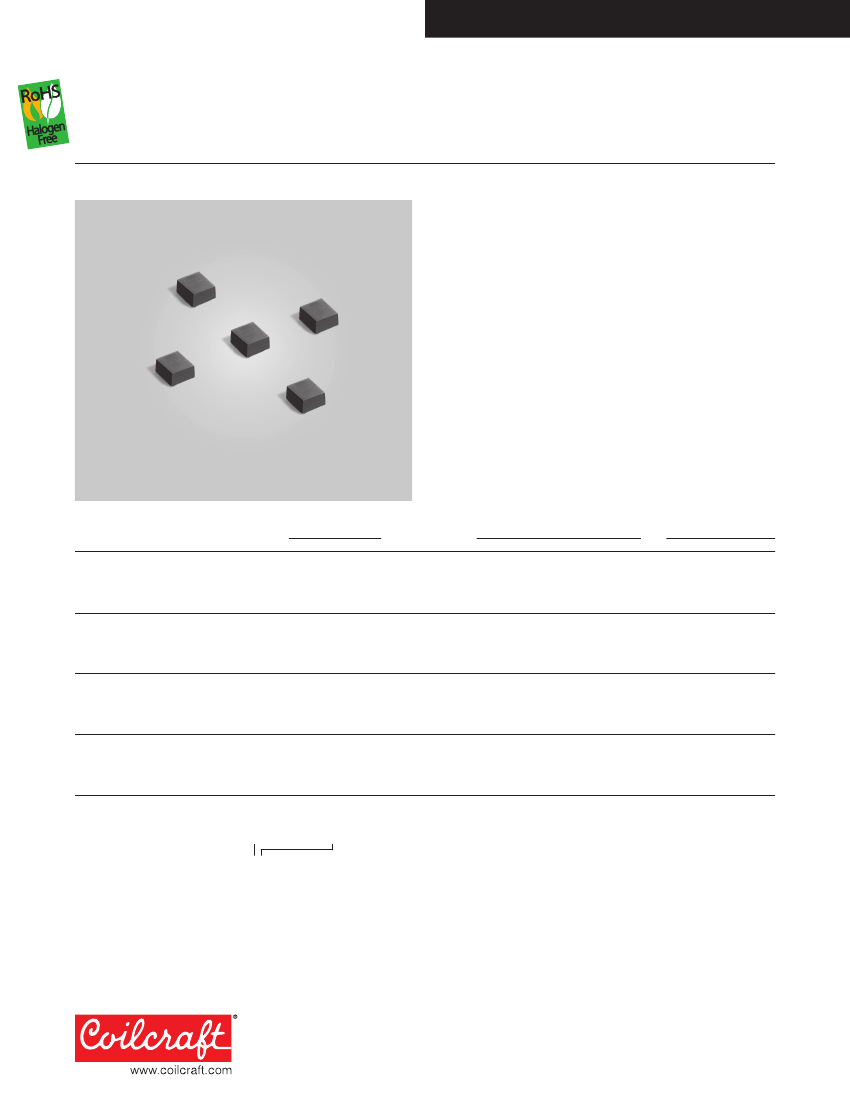

Power Inductors – XPL2010 Series
• Utra-miniature, magnetically shielded power inductors
• Very low DCR and excellent current handling.
• Soft saturation makes them ideal for VRM/VRD applications.
Designer’s Kit C428
contains 5 each of all values
Core material
Composite
Core and winding loss
See www.coilcraft.com/coreloss
Weight
20 mg
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver-copper (96.5/3/0.5) over tin over
nickel over silver-platinum. Other terminations available at additional cost.
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
2000/7″reel; 7500/13″ reel Plastic tape: 8 mm wide,
0.23 mm thick, 4 mm pocket spacing, 1.19 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Inductance
2
±20% (µH)
0.20
0.33
0.50
0.68
0.82
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10
18
22
33
47
56
68
82
100
220
DCR (Ohms)
3
nom
max
0.024
0.027
0.031
0.035
0.040
0.045
0.057
0.063
0.068
0.075
0.081
0.089
0.105
0.116
0.156
0.173
0.207
0.228
0.336
0.370
0.421
0.463
0.457
0.503
0.555
0.611
1.47
1.60
1.89
2.00
2.59
2.85
3.96
4.25
4.48
4.82
6.14
6.56
6.45
6.90
8.48
9.27
19.2
21.1
SRF typ
4
(MHz)
408
309
218
152
132
117
80
75
55
40
33
30
28
31
25
20
17
15
13
12
11
7.1
Isat
(A)
5
10% drop 20% drop 30% drop
2.80
3.45
3.75
1.90
2.75
3.05
1.80
2.35
2.64
1.55
1.95
2.19
1.25
1.65
1.90
1.20
1.60
1.80
0.950
1.30
1.50
0.940
1.20
1.35
0.700
0.925
1.05
0.580
0.750
0.845
0.450
0.620
0.725
0.440
0.600
0.670
0.390
0.525
0.610
0.500
0.560
0.590
0.410
0.470
0.510
0.330
0.380
0.410
0.270
0.300
0.320
0.240
0.280
0.300
0.210
0.250
0.280
0.200
0.240
0.260
0.180
0.214
0.232
0.122
0.143
0.161
Irms
(A)
6
20°C rise 40°C rise
2.2
2.8
1.9
2.6
1.7
2.3
1.5
2.1
1.3
1.7
1.1
1.6
1.0
1.4
0.96
1.3
0.79
1.1
0.74
1.0
0.64
0.87
0.55
0.75
0.49
0.66
0.32
0.43
0.28
0.39
0.23
0.31
0.18
0.25
0.17
0.24
0.15
0.20
0.15
0.20
0.13
0.17
0.086
0.116
Part number
1
XPL2010-201ML_
XPL2010-331ML_
XPL2010-501ML_
XPL2010-681ML_
XPL2010-821ML_
XPL2010-102ML_
XPL2010-152ML_
XPL2010-222ML_
XPL2010-332ML_
XPL2010-472ML_
XPL2010-682ML_
XPL2010-822ML_
XPL2010-103ML_
XPL2010-183ML_
XPL2010-223ML_
XPL2010-333ML_
XPL2010-473ML_
XPL2010-563ML_
XPL2010-683ML_
XPL2010-823ML_
XPL2010-104ML_
XPL2010-224ML_
1. When ordering, please specify
termination
and
packaging
codes:
XPL2010-103MLC
Termination: L
= RoHS compliant tin-silver-copper (96.5/3/0.5) over
tin over nickel over silver.
Special order: S
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic
tape (2000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge),
use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape. Factory order only, not stocked (7500 parts per
full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4395A or equivalent.
5. DC current at which the inductance drops the specified amount from its
value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 646-1
Revised 06/15/12
© Coilcraft Inc. 2012
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check out web site for latest information.
Document 646-2
SMT Power Inductors – XPL2010 Series

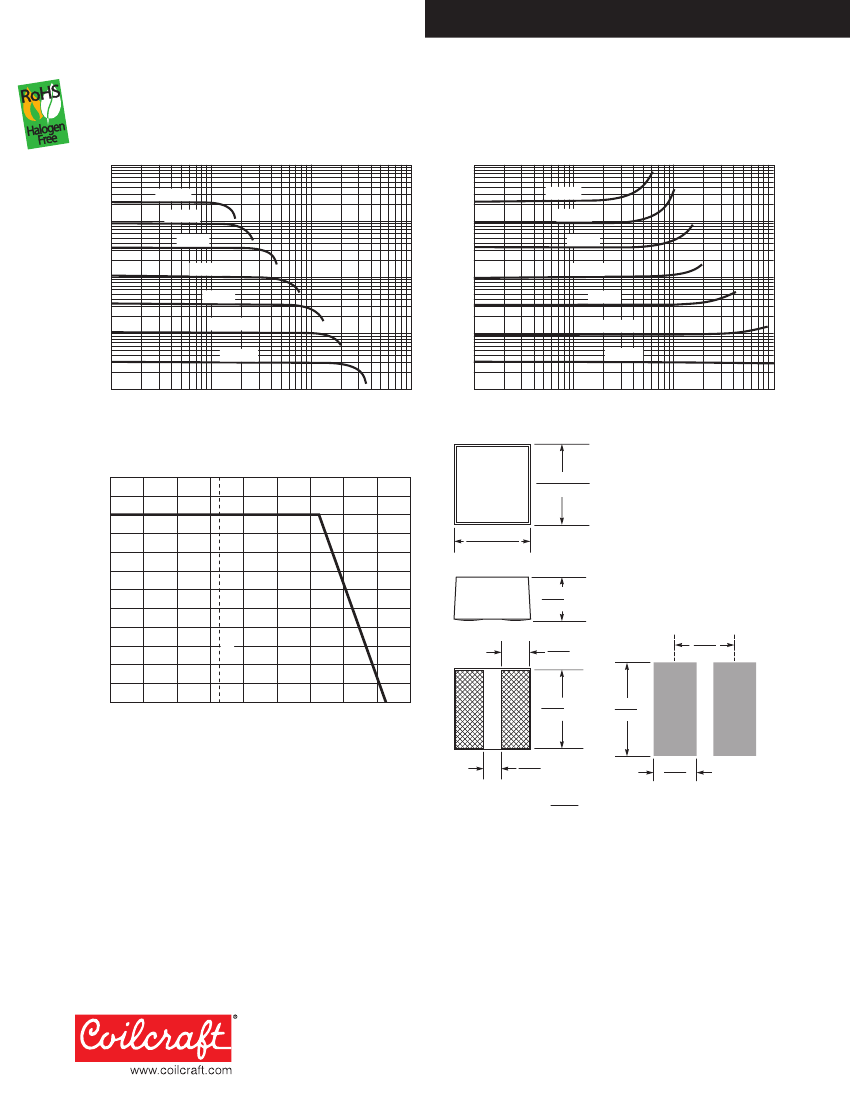

Typical L vs Current
1000
220 µH
100
100 µH
100
1000
Typical L vs Frequency
220 µH
100 µH
33 µH
10 µH
3.3 µH
1.0 µH
0.33 µH
0.1
Inductance (µH)
33 µH
10 µH
3.3 µH
1.0 µH
0.33 µH
0.1
10
Inductance (µH)
1
10
10
1
1
0.01
0.1
0.1
1
10
100
Current (A)
Frequency (MHz)
Typical Irms Derating
120
110
100
0.079 ±0.008
2,0 ±0,2
Percent of rated
I
rms
90
80
70
60
50
40
0.075 ±0.008
1,9 ±0,2
0.039
max
1,00
Recommended
Land Pattern
0.057
1,45
25°C
30
20
10
0
-40
-20
0
20
0.030 max
0,75
40
60
80
100
120 140
Ambient temperature (°C)
0.069
max
1,75
0.087
2,2
0.014
min
0,35
0.041
1,04
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 646-2
Revised 06/15/12
© Coilcraft Inc. 2012
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check out web site for latest information.
