54FCT621ATDB datasheet, PDF - EEWORLD Datasheet

54FCT621ATDB: DescriptionBus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, CERDIP-20; Categorylogic logic; File Size320KB，6 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

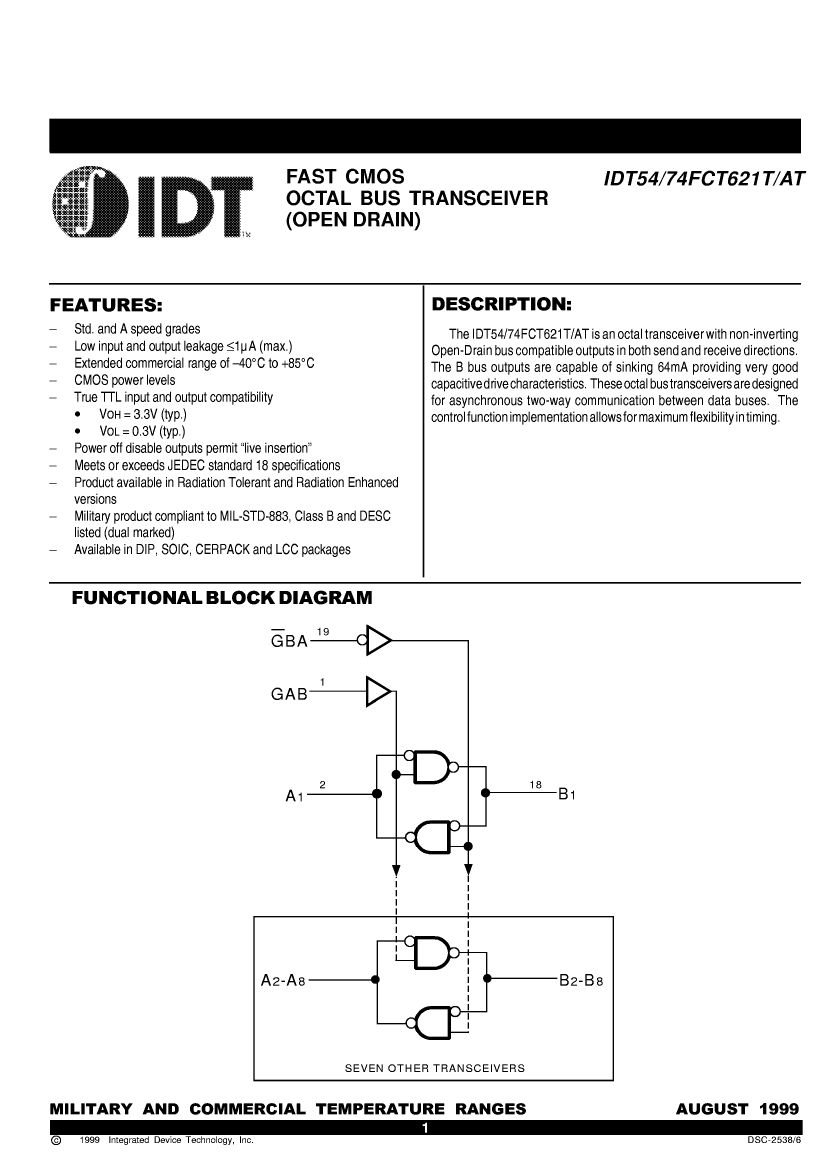

54FCT621ATDB Overview

Bus Driver/Transceiver, FCT Series, 1-Func, 8-Bit, True Output, CMOS, CDIP20, CERDIP-20

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	IDT (Integrated Device Technology)

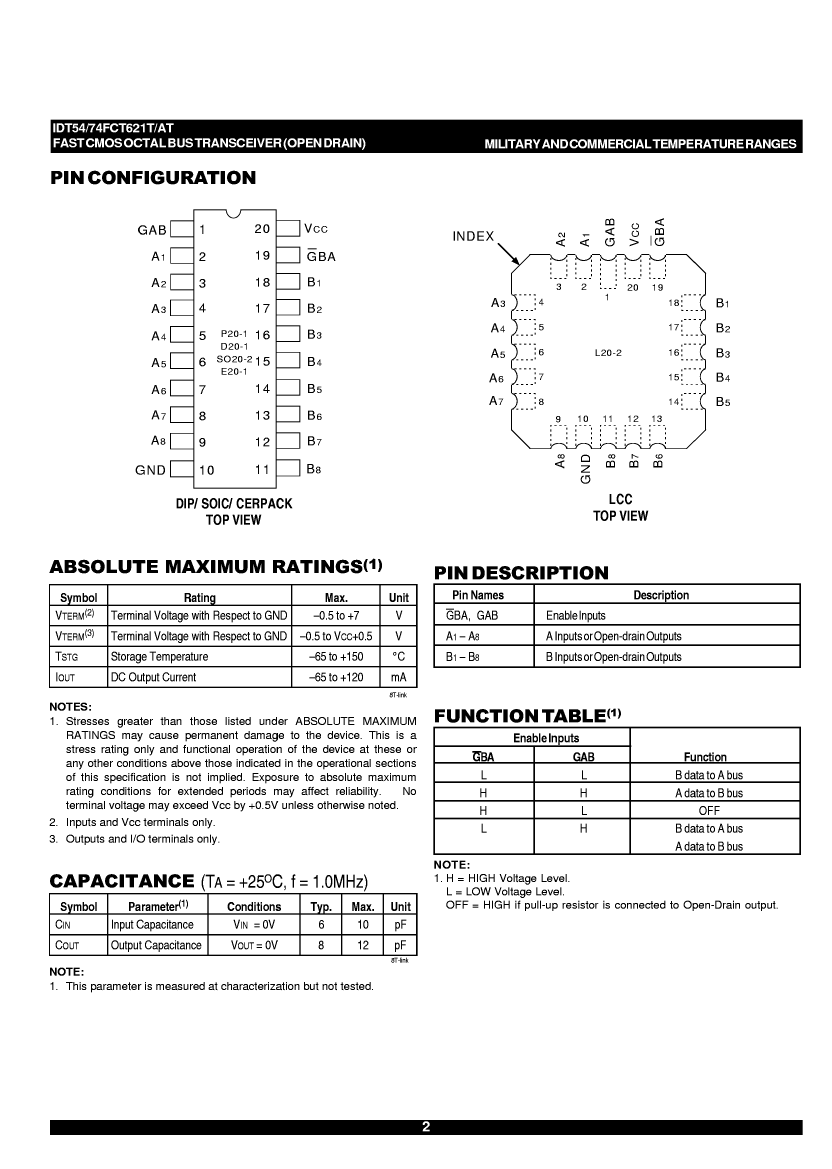

package instruction	DIP, DIP20,.3
Reach Compliance Code	not_compliant
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
series	FCT
JESD-30 code	R-CDIP-T20
JESD-609 code	e0

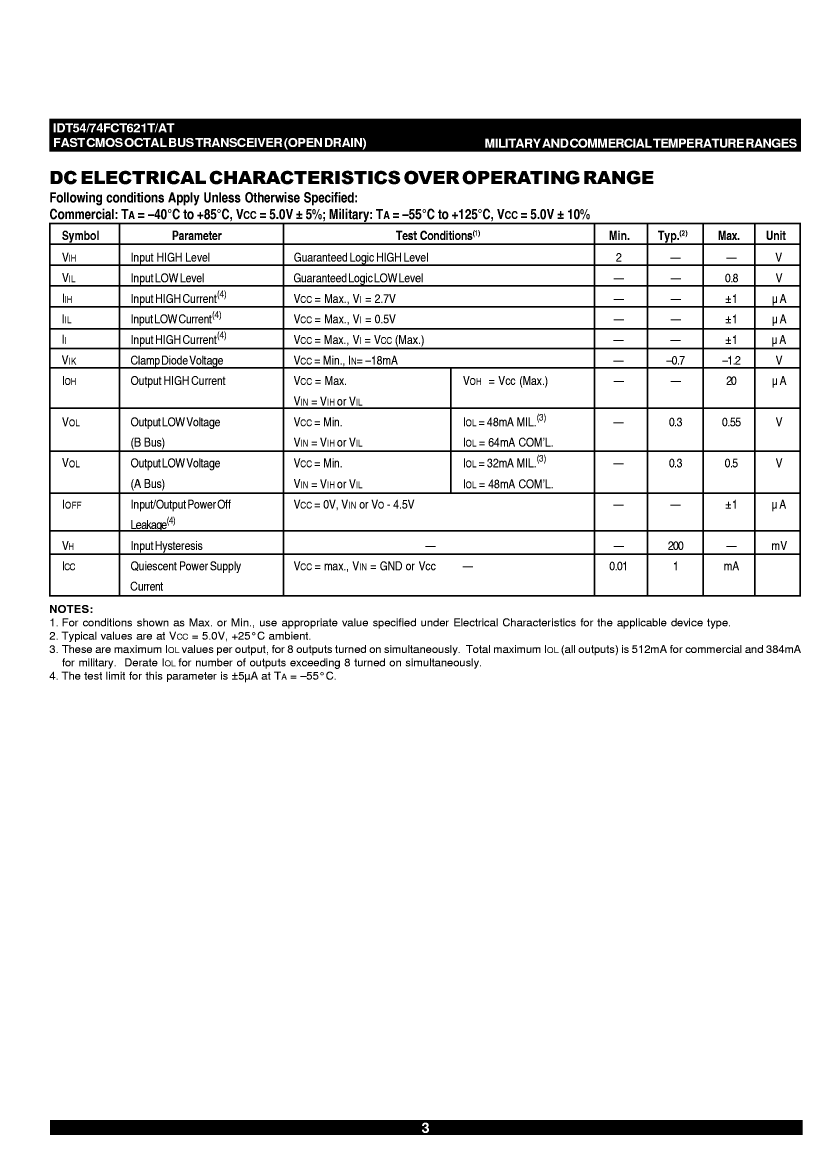

MaximumI(ol)	0.048 A
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	OPEN-DRAIN
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	260

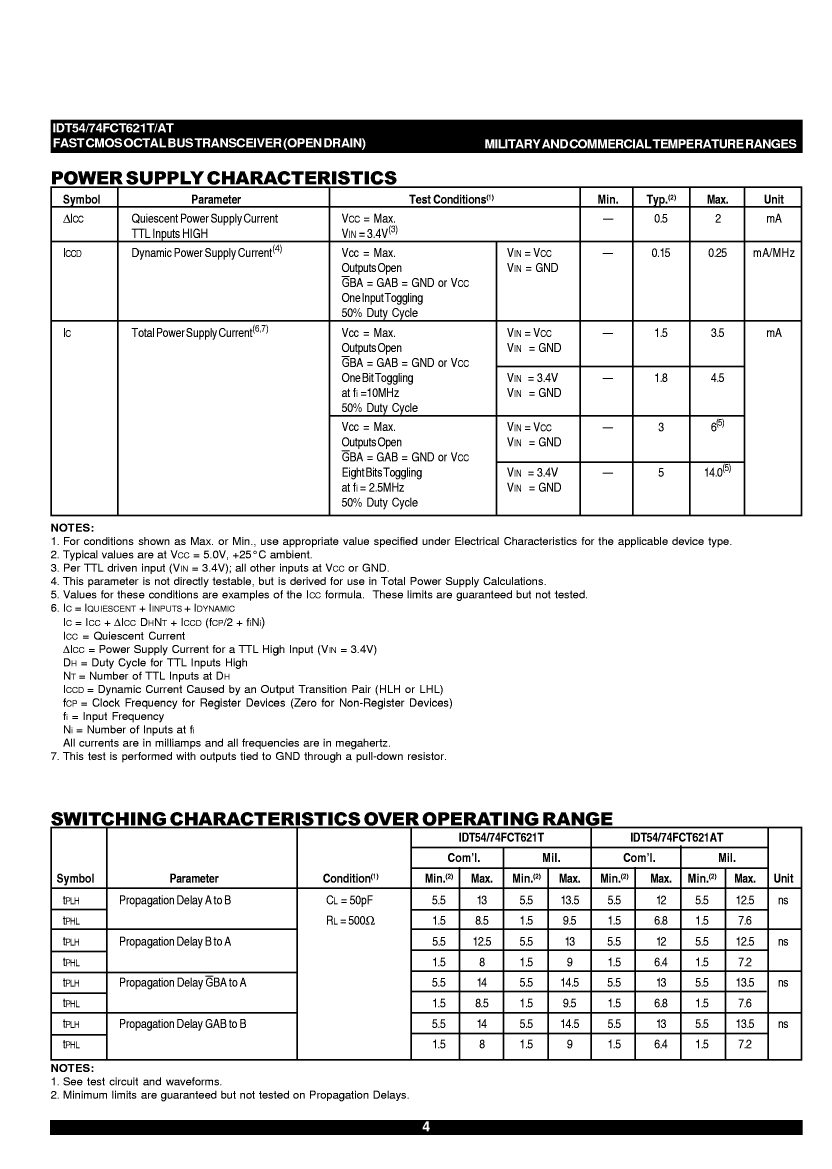

power supply	5 V

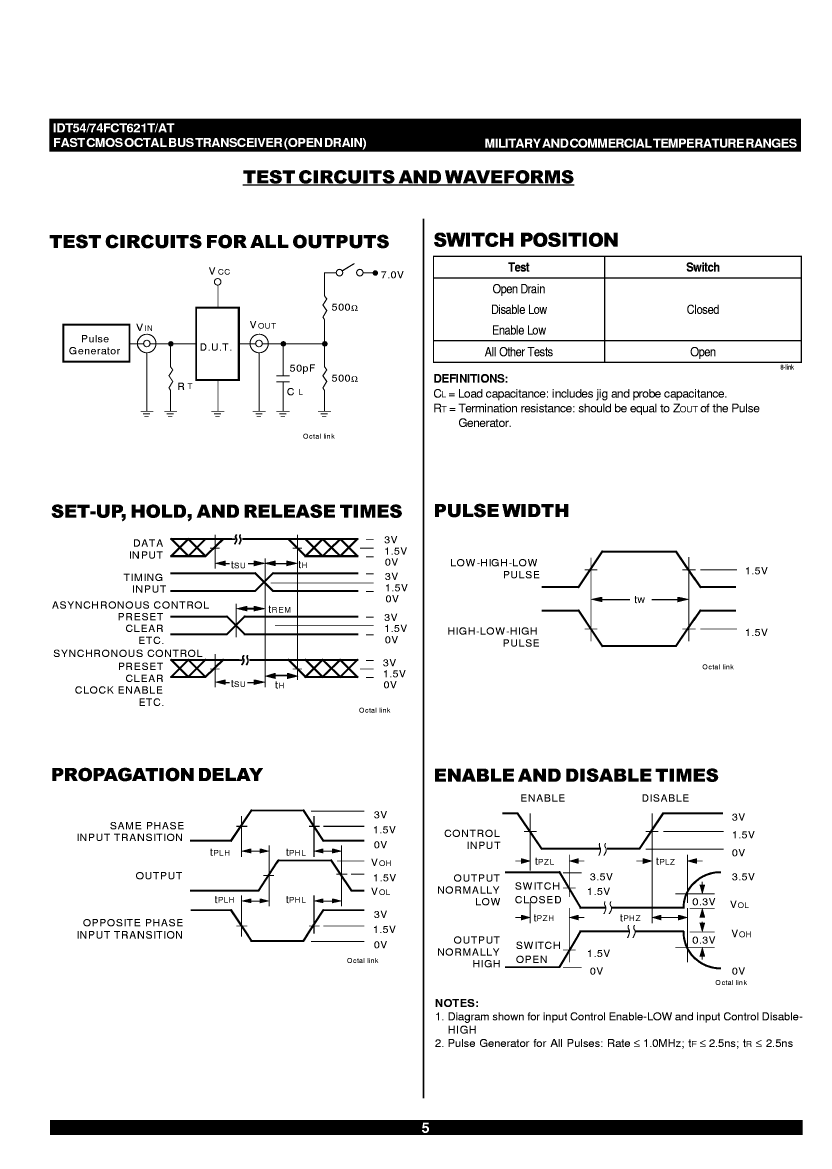

Prop。Delay @ Nom-Sup	12.5 ns
propagation delay (tpd)	12.5 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	6
translate	N/A
