LV7720DEW-80.0M-T500 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> LV7720DEW-80.0M-T500

LV7720DEW-80.0M-T500: DescriptionLVDS Output Clock Oscillator; CategoryPassive components oscillator; File Size1010KB，8 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LV7720DEW-80.0M-T500 Overview

LVDS Output Clock Oscillator

LV7720DEW-80.0M-T500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pletronics
Reach Compliance Code	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Installation features	SURFACE MOUNT
Nominal operating frequency	80 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVDS
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	0.7 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %

Preview

Download Datasheet

View All

LV77D Series 2.5 V

LVDS Clock Oscillators

February 2016

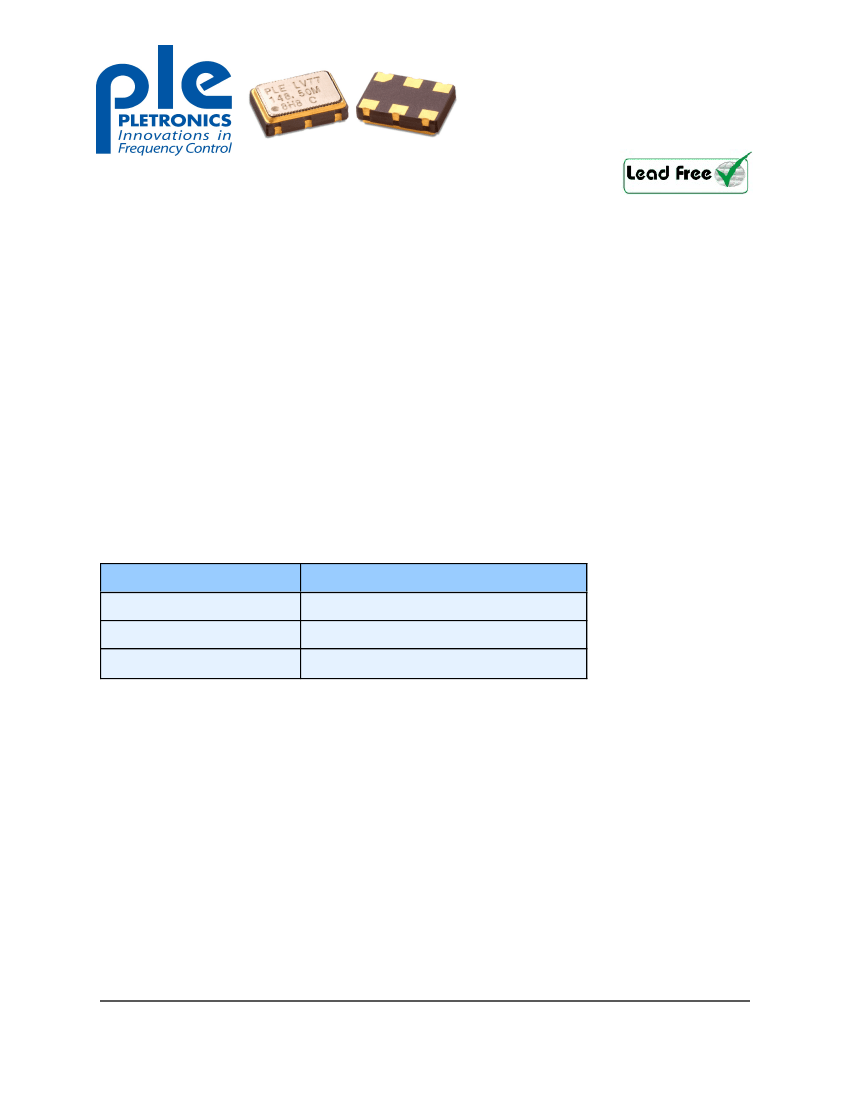

• Pletronics’ LV77D Series is a quartz crystal

controlled precision square wave generator with

an LVDS output.

• The package is designed for high density surface

m ount designs.

• Low cost m ass produced oscillator.

• Tape and Reel or cut tape packaging is available.

• 5 x 7 m m LCC Ceram ic Package

• Enable/Disable Function on pad 1

• Disable function includes low standby power

m ode

• Low Jitter

• 80 MHz ~ 325 MHz

Pletronics Inc. certifies this device is in accordance with the

RoHS 6/6 (2011/65/EC) and WEEE (2002/96/EC) directives.

Pletronics Inc. guarantees the device does not contain the following:

Cadm ium , Hexavalent Chrom ium , Lead, Mercury, PBB’s, PBDE’s

W eight of the Device: 0.16 gram s

Moisture Sensitivity Level: 1 As defined in J-STD-020D.1

Second Level Interconnect code: e4

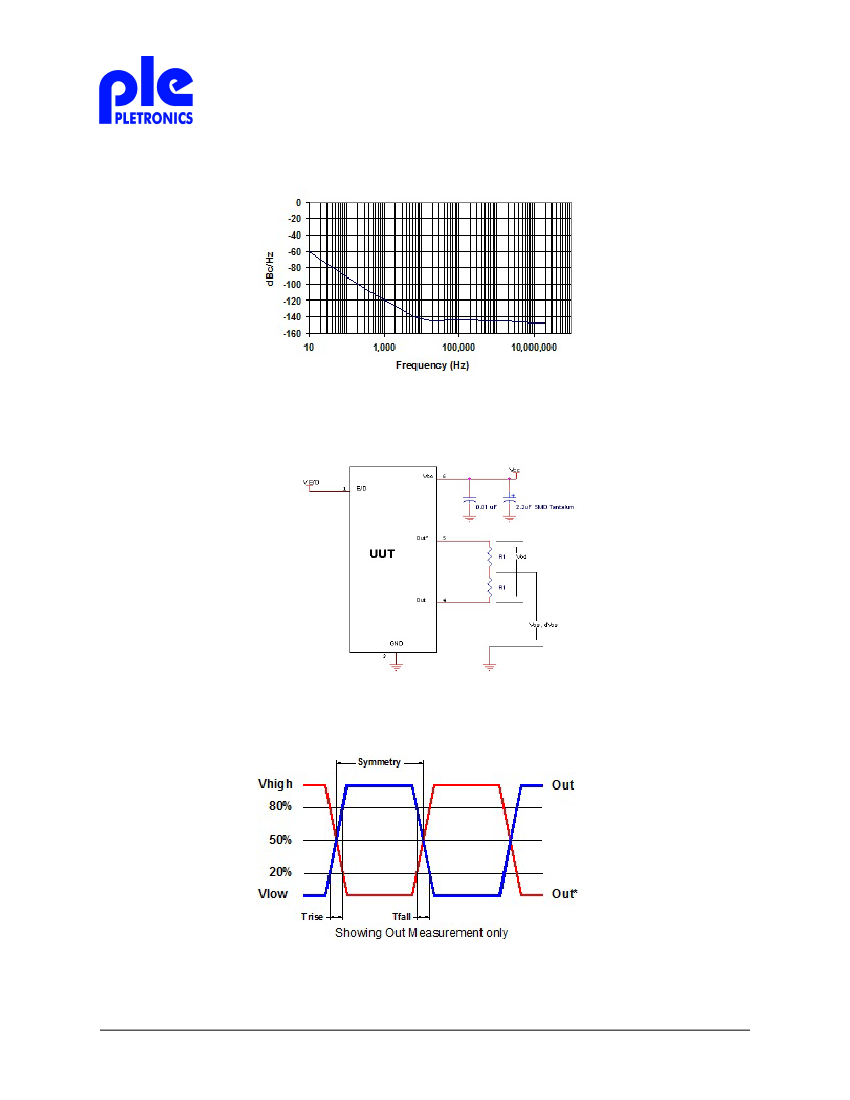

Absolute Maximum Ratings:

Parameter

Supply Voltage

Input Voltage

Output Voltage

Unit

-0.5V to +5.0V

-0.5V to V

+ 0.5V

-0.5V to V

+ 0.5V

Thermal Characteristics

The m axim um die or junction tem perature is 155

The therm al resistance junction to board is 30 to 50

C/W att depending on the solder pads, ground plane

and construction of the PCB.

P roduct inform ation is current as of publication date. T he product conform s

Inc.

to specifications per the term s of the P letronics standard warranty. Production

processsing does not necessarily include testing of all param eters.

LV7720DEW-80.0M-T500 Related Products

	LV7720DEW-80.0M-T500	LV7720DEW-125.0M-T1K	LV7720DEW-80.0M	LV7720DW-125.0M-T1K	LV7720DW-125.0M-T250	LV7720DW-125.0M-T500
Description	LVDS Output Clock Oscillator	LVDS Output Clock Oscillator	LVDS Output Clock Oscillator, 80MHz Nom, ROHS COMPLIANT, CERAMIC, LCC, 6 PIN	LVDS Output Clock Oscillator	LVDS Output Clock Oscillator, 125MHz Nom, LCC-6	LVDS Output Clock Oscillator
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Pletronics	Pletronics	Pletronics	Pletronics	Pletronics	Pletronics
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
Other features	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH	STANDBY; ENABLE/DISABLE FUNCTION; TAPE	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH	STANDBY; ENABLE/DISABLE FUNCTION; TR, EMBOSSED, 7/10/13 INCH
maximum descent time	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO
frequency stability	20%	20%	20%	20%	20%	20%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	80 MHz	125 MHz	80 MHz	125 MHz	125 MHz	125 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-10 °C	-10 °C	-10 °C
Oscillator type	LVDS	LVDS	LVDS	LVDS	LVDS	LVDS
physical size	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm
longest rise time	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns	0.7 ns
Maximum supply voltage	2.75 V	2.75 V	2.75 V	2.75 V	2.75 V	2.75 V
Minimum supply voltage	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V	2.25 V
Nominal supply voltage	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V	2.5 V
surface mount	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %	55/45 %
