LV7720DW-100.0M datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> LV7720DW-100.0M

Preview

LV7720DW-100.0M: DescriptionLVDS Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6; CategoryPassive components oscillator; File Size211KB，1 Pages; ManufacturerPletronics; Environmental Compliance

Download Datasheet Parametric Compare View All

LV7720DW-100.0M Overview

LVDS Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6

LV7720DW-100.0M Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pletronics
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	0.9 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
JESD-609 code	e4
Manufacturer's serial number	LV77D
Installation features	SURFACE MOUNT
Nominal operating frequency	100 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	LVDS
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	0.9 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier

Preview

Download Datasheet

View All

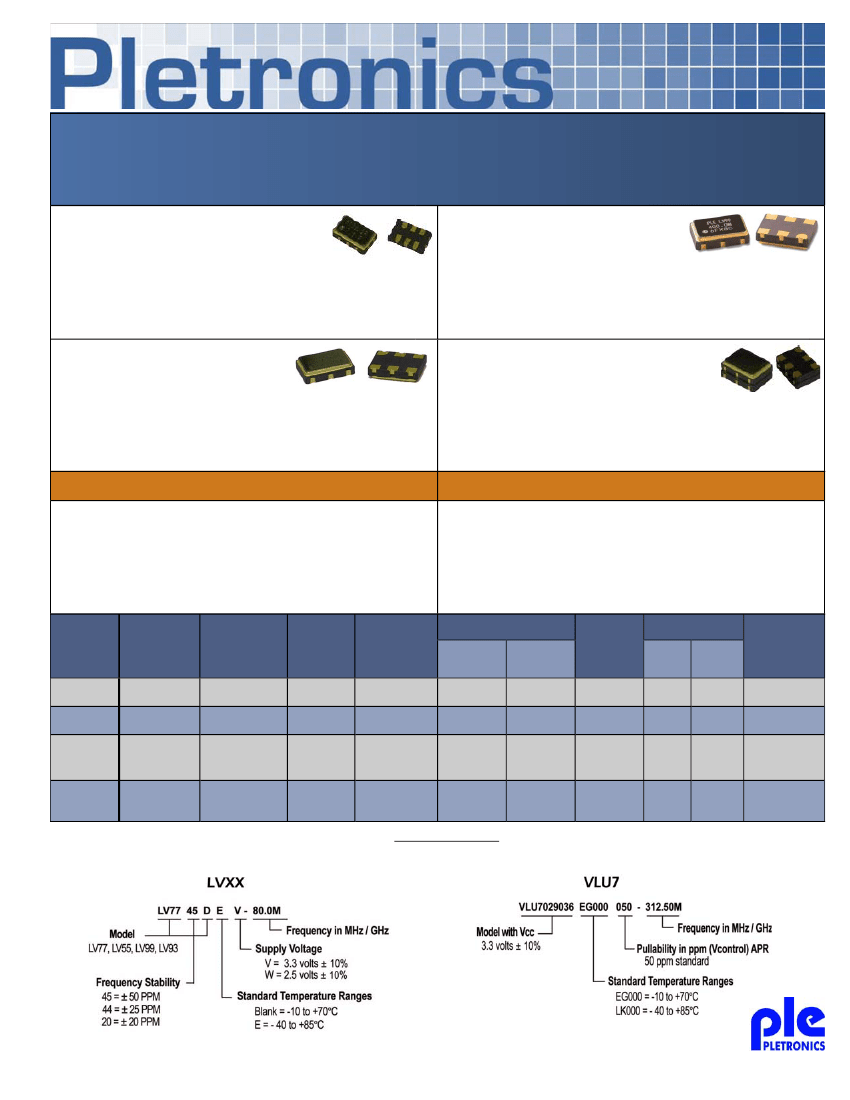

Crystal Controlled Oscillators

RoHS 6/6 Compliant

LVDS OUTPUT

LV55D Series

LV9xD Series

LCC Ceramic Package

3.2 x 5.0 x 1.35 mm

♦

3rd Overtone crystal

♦

Enable/Disable function on pad 1

♦

Small SMD package for high density board designs

LCC Ceramic Package

5.0 x 7.0 x 1.7 mm

♦

Output frequency is synthesized from fundamental

quartz crystal

♦

Enable/Disable function:

◊LV99

on pad 1

◊LV93

on pad 2

LV77D Series

VLU7 Series

-

vcxo

LCC Ceramic Package

5.0 x 7.0 x 1.7 mm

♦

3rd Overtone crystal

♦

Enable/Disable function on pad 1

LCC Ceramic Package

5.0 x 7.0 x 2.97 mm

♦

Output frequency is synthesized from fundamental

quartz crystal

♦

Enable/Disable function on pad 2

♦

+/- 50 PPM APR

FEATURES

♦

Excellent phase noise characteristics

All have Tri-State with Power Standby modes

Temp range: - 10° to +70°C Standard, -40° to +85°C Extended

Available Tolerances: +/- 20PPM, +/- 25PPM, and +/- 50PPM

Most common frequencies in stock

APPLICATIONS

♦

Ideal reference clocks for high-speed applications

requiring low jitter, including:

◊

1/10 Gigabit Ethernet

◊

2/4/10G Fibre Channel

◊

Server & Storage platforms

◊

SONET/SDH linecards.

RMS Jitter (pS)

12KHz-

20MHz

10Hz-

20MHz

Pletronics Package Size Frequency

Tr/Tf

Duty Cycle

Part

Range (MHz) Maximum

%

Series

(pS)

LV55

LV77

LV99

LV93

VLU7

◊

3.2x5 mm

5x7 mm

40-250

40-325

10.9-670

900

300

45-55

47-53

Current Supply Voltage

with Load

2.5V

3.3V

(ma)

66

90

*

Supply

Noise

Rejection

Good

Excellent

Good

0.6

0.8

2.8

3.2

See individual data sheets and standard part number builder on www.pletronics.com for allowable configurations and complete specifications

Standard Part Number Generation

Pletronics, Inc. (425)-776-1880, Fax: (425) 776-2760, www.pletronics.com

SG-004 REV A

LV7720DW-100.0M Related Products

	LV7720DW-100.0M	LV9320DEV-FREQ	LV9945DV-311.04M	LV9320DV-FREQ	LV9344DV-FREQ	LV7720DEW-200.0M	LV9345DEV-FREQ	LV7745DV-200.0M
Description	LVDS Output Clock Oscillator, 100MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 10.9MHz Min, 670MHz Max, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 311.04MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 10.9MHz Min, 670MHz Max, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 10.9MHz Min, 670MHz Max, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 10.9MHz Min, 670MHz Max, ROHS COMPLIANT, CERAMIC, LCC-6	LVDS Output Clock Oscillator, 200MHz Nom, ROHS COMPLIANT, CERAMIC, LCC-6
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	unknown	unknown	compliant	compliant	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION	TRI-STATE; ENABLE/DISABLE FUNCTION
maximum descent time	0.9 ns	0.3 ns	0.3 ns	0.3 ns	0.3 ns	0.9 ns	0.3 ns	0.9 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	20%	20%	50%	20%	25%	20%	50%	50%
JESD-609 code	e4	e4	e4	e4	e4	e4	e4	e4
Manufacturer's serial number	LV77D	LV93D	LV99D	LV93D	LV93D	LV77D	LV93D	LV77D
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Maximum operating temperature	70 °C	85 °C	70 °C	70 °C	70 °C	85 °C	85 °C	70 °C
Minimum operating temperature	-10 °C	-40 °C	-10 °C	-10 °C	-10 °C	-40 °C	-40 °C	-10 °C
Oscillator type	LVDS	LVDS	LVDS	LVDS	LVDS	LVDS	LVDS	LVDS
physical size	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm	7.0mm x 5.0mm x 1.7mm
longest rise time	0.9 ns	0.3 ns	0.3 ns	0.3 ns	0.3 ns	0.9 ns	0.3 ns	0.9 ns
Maximum supply voltage	2.75 V	3.63 V	3.63 V	3.63 V	3.63 V	2.75 V	3.63 V	3.63 V
Minimum supply voltage	2.25 V	2.97 V	2.97 V	2.97 V	2.97 V	2.25 V	2.97 V	2.97 V
Nominal supply voltage	2.5 V	3.3 V	3.3 V	3.3 V	3.3 V	2.5 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	55/45 %	53/47 %	53/47 %	53/47 %	53/47 %	55/45 %	53/47 %	55/45 %
Terminal surface	Gold (Au) - with Nickel (Ni) barrier	Nickel/Gold (Ni/Au)	Gold (Au) - with Nickel (Ni) barrier	Nickel/Gold (Ni/Au)	Nickel/Gold (Ni/Au)	Gold (Au) - with Nickel (Ni) barrier	Nickel/Gold (Ni/Au)	Gold (Au) - with Nickel (Ni) barrier
