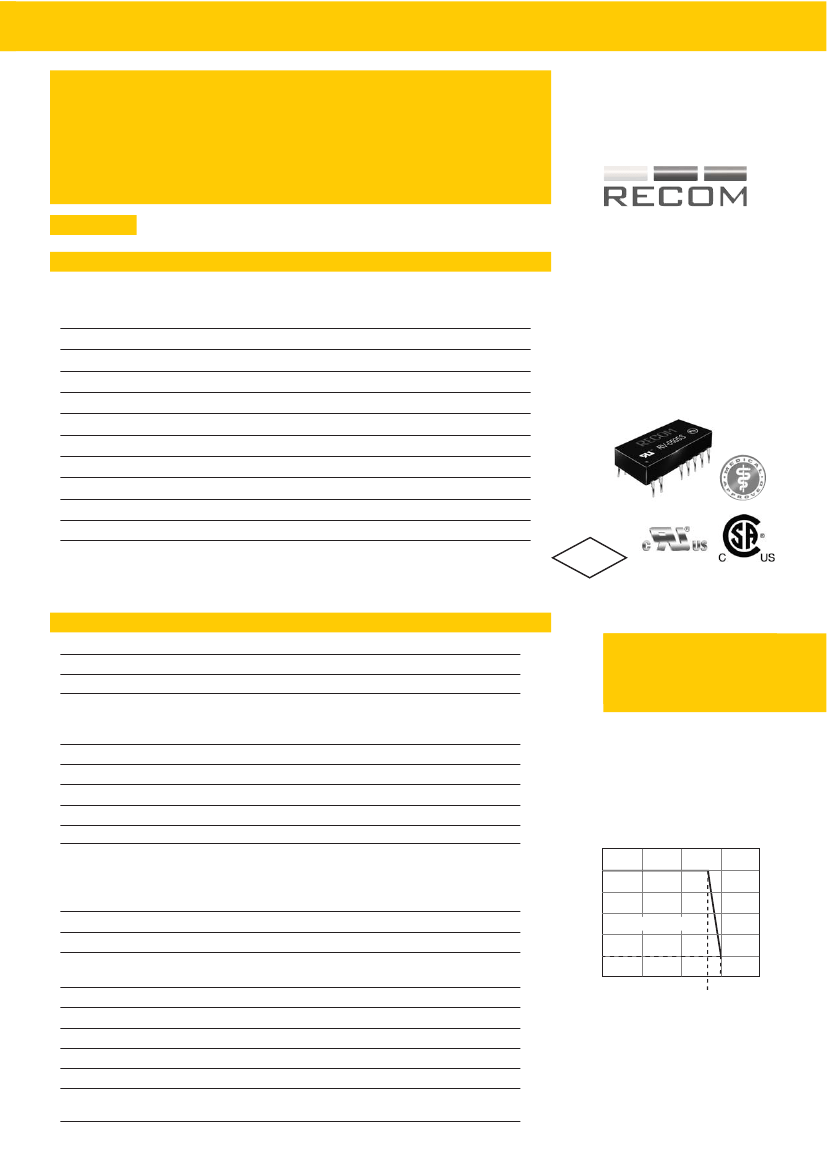

Features
Unregulated
Converters
Description
Selection Guide
Part
Number
SIP 7
RV-xx3.3S
RV-xx05S
RV-xx09S
RV-xx12S
RV-xx15S
RV-xx3.3D
RV-xx05D
RV-xx09D
RV-xx12D
RV-xx15D
Reinforced
Isolation
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
/R6.4
●
●
●
●
●
●
UL/CSA and EN certified
Standard and Reinforced Isolation options
with 6kVDC or 6.4kVDC Isolation
Optional Continuous Short Circuit Protection
Unique Transformer System (Patent Pending)
Skinny DIP 24 Package
Efficiency to 88%
ECONOLINE
DC/DC-Converter
High isolation in a small size are the main features of this miniature DIP16 converter, ideal for
highly sophisticated industrial and medical designs where board space is at a premium.
Input
Voltage
(VDC)
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
3.3, 5, 12, 15, 24
Output
Voltage
(VDC)
3.3
5
9
12
15
±3.3
±5
±9
±12
±15
Output
Current
(mA)
600
400
222
167
132
±300
±200
±111
±85
±66
Efficiency
Std (/R6.4)
(%)
70 (70-78)
70-75 (76-80)
70-75 (78-85)
70-75 (78-85)
75-80 (78-88)
70 (70-78)
70-75 (75-82)
70-75 (76-84)
70-75 (78-86)
75-80 (78-86)
2 Watt
DIP24
Miniature
Single
&
Dual
Output
xx = Input Voltage. Other input and output voltage combinations available on request.
* add Suffix “/R6.4” for Reinforced Isolation, e.g.
RV-0505S/R6.4.
Without suffix is functional 6kVDC.
* add Suffix “P” for Continuous Short Circuit Protection, e.g.
RV0505S/P, RV-0505S/R6.4/P
2002/95/EC
6/6
RoHS
Specifications
(
measured at TA = 25°C, nominal input voltage, full load and after warm-up)
Input Voltage Range
Output Voltage Accuracy
Line Voltage Regulation
Load Voltage Regulation
(10% to 100% full load)
Output Ripple and Noise (20MHz limited)
Operating Frequency
Efficiency at Full Load
No Load Power Consumption
Maximum Capacitive Load
Isolation Voltage - Standard Part
Suffix /R6.4
Suffix /R6.4
Rated Working Voltage
Isolation Capacitance
Isolation Resistance
Short Circuit Protection
P-Suffix
Operating Temperature Range (free air convection)
Storage Temperature Range
Relative Humidity
Package Weight
Packing Quantity
MTBF (+25°C)
(+85°C)
Single/Dual outputs
(tested for 1 second)
(tested for 1 second)
(tested for 1 minute)
(long term isolation)
3.3V output types
5V output type
9V, 12V, 15V, 24V output types
±10%
±5%
1.2%/1% of Vin typ.
20% max.
15% max.
10% max.
200mVp-p max.
20kHz min. / 50kHz typ. / 85kHz max.
70% min. / 75% typ.
282mW min. / 338mW typ. / 450mW max.
47µF/ ±33µF
6000VDC min.
6400VDC min.
3200VAC min.
see Application Notes
Output Power (%)
E-224736
EN-60950-1 Certified
UL-60950-1 Certified
EN-60601-1 Certified
RV (R)
Derating-Graph
(Ambient Temperature)
100
80
60
40
20
0
-40
0
50
100
150
2pF min. / 12pF max.
15 GΩ min.
1 Second
Continuous
-40°C to +85°C (see Graph)
-55°C to +125°C
95% RH
9g
15 pcs per Tube
Safe Operating Area
85
Operating Temperature °C
}
Detailed Information see
Application Notes chapter "MTBF"
using MIL-HDBK 217F
using MIL-HDBK 217F
REV:0/2010
1154 x 10
3
hours
168 x 10
3
hours
Refer to Application Notes
E-69
www.recom-international.com
ECONOLINE
DC/DC-Converter
Tolerance Envelope
+10%
+6%
V Nom.
Typica
l
Load
Line
RV (R)
Series
Specifications
(
continued)
Reinforced Isolation Transformer Creepage
Transformer Clearance
PCB Creepage & Clearance
Certifications
CB Report: Medical Safety
Reinforced Part
CSA Medical Safety
CSA General Safety
/R6.4 Types
/R6.4 Types
/R6.4 Types
Ref: CA/11158/CSA
Report: 227629
5.5 mm min.
5.5 mm min.
4.8 mm min.
IEC60601-1:1988 + A1: 1991 + A2:1995
C22.2 601-1 2nd Ed.
UL 60601-1 1st Ed.
Report: 2219431
C22.2 No. 60950-1-03
UL 60950-1 1st Ed.
Recognised as Reinforced Isolation Supplement to Report: 2219431
Report: E248550
UL 60950-1 1st Ed.
C22.2 No. 60950-1-03
Report: LVD-2K02066
EN60950-1:2000
Report: PS090301601
EN60601-1:1990 + A13: 1996
+5%
2.5%
5%
Output Voltage
10%
50%
100%
Output Load Current (%)
Certifications
Standard Part
UL General Safety
EN General Safety
EN Medical Safety

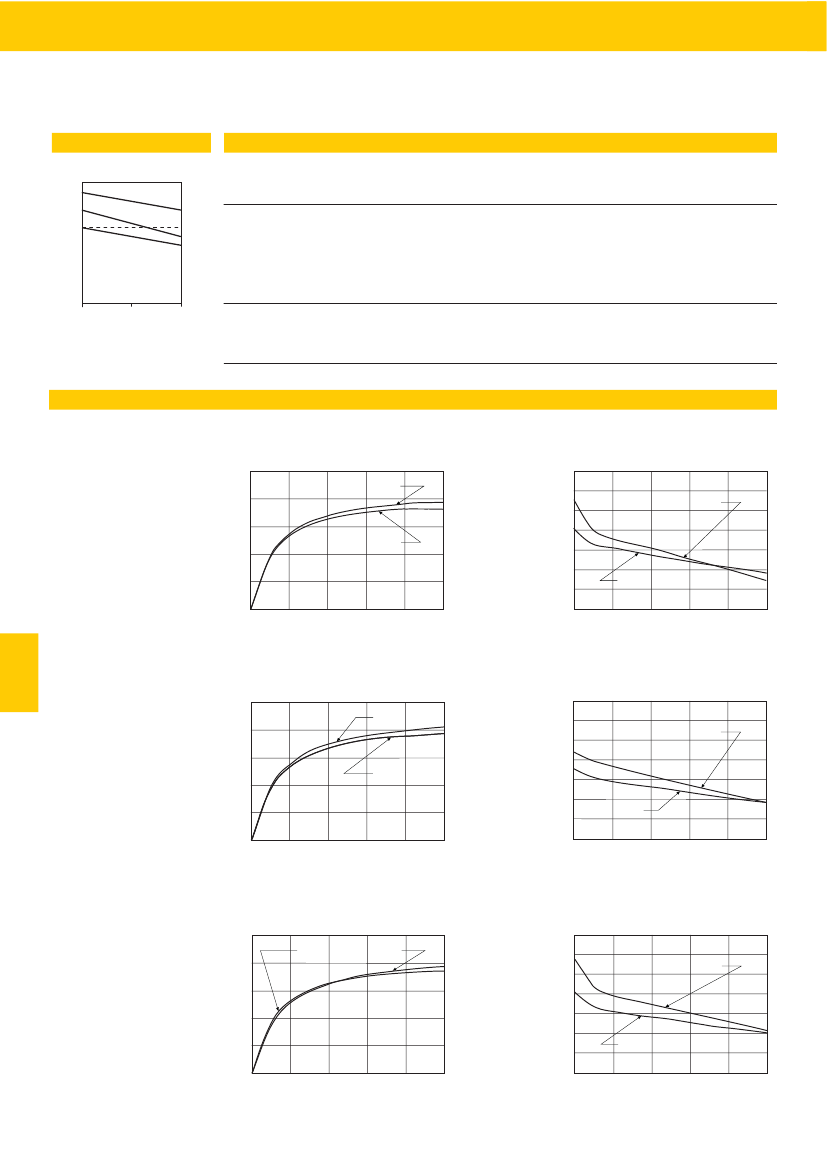

Typical Characteristics
Efficiency / Load
100
80
60
Deviation / Load
1205
Deviation from Nominal (%)
25.000
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
0505
Efficiency %
RV-xx05S
RV (R)
40
20
0
0505
1205
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
Efficiency / Load
100
25.000
Deviation / Load
1212
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
80
60
0512
Efficiency %
RV-xx12S
40
20
0
0512
1212
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
Efficiency / Load
100
80
60
Deviation / Load
25.000
0505
1205
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
0505
Efficiency %
RV-xx05D
40
20
0
1205
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%
E-70
REV: 0/2010
www.recom-electronic.com
ECONOLINE
DC/DC-Converter
Typical Characteristics
Efficiency / Load
100
25.000
RV (R)
Series
Deviation / Load
1212
Deviation from Nominal (%)
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
80
0512
RV-xx12D
Efficiency %
60
40
20
0
0512
1212
0%
20%
40%
60%
80%
100%
Total Output current (%)
0% 20%
40%
60%
Total Output current (%)
80%
100%

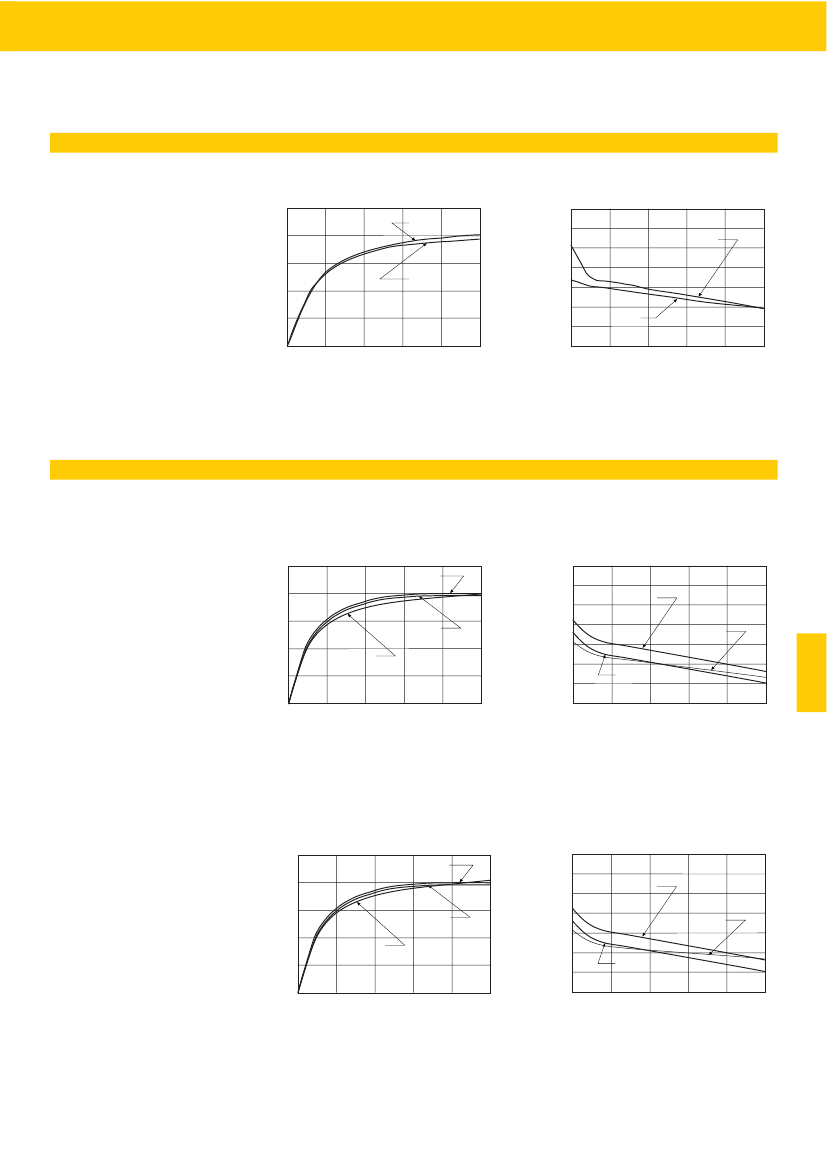

Typical Characteristics - Reinforced Isolation Versions
Efficiency / Load
100
80
Deviation / Load
RV-1205S/R6.4
Deviation from Nominal (%)
25.000
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
RV-0505S/R6.4
RV-2405S/R6.4
RV-xx05S/R6.4
Efficiency %
60
40
20
0
RV-0505S/R6.4
RV-2405S/R6.4
RV (R)
RV-1205S/R6.4
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
Efficiency / Load
100
80
Deviation / Load
RV-1205D/R6.4
Deviation from Nominal (%)
25.000
20.000
15.000
10.000
5.000
0.000
-5.000
-10.000
RV-0505D/R6.4
RV-2405D/R6.4
RV-xx05D/R6.4
Efficiency %
60
40
20
0
RV-0505D/R6.4
RV-2405D/R6.4
RV-1205D/R6.4
0% 20%
40%
60%
Total Output current (%)
80%
100%
0%
20%
40%
60%
80%
100%
Total Output current (%)
www.recom-international.com
REV:0/2010
E-71
