ES64
Series
• Temperature Compensated Crystal
Oscillator (TCXO)
• Sinewave Output
• 5.0V or 3.0V Supply Voltage
• Four pad surface mount
• Stability to 1.5ppm
• Internal and or external voltage
control option available
NOTES
ES64
H 1.85
L 11.5
W 9.6
OSCILLATOR
__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
_________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________________
ELECTRICAL SPECIFICATIONS
Frequency Range
Storage Temperature Range
Operating Temperature Range
Supply Voltage (V
DD
)
Load Drive Capability
Input Current
Aging (at 25ºC)
Frequency Deviation Options
Internal Trim Only (Top of Can)
External Trim Only (Voltage Control)
2.5V
DC
±2.0V
DC
w/5.0V
DC
Supply Voltage;
1.5V
DC
±1.0V
DC
w/3.0V
DC
Supply Voltage,
Positive Transfer Characteristic
External Trim and Internal Trim
2.5V
DC
±2.0V
DC
w/5.0V
DC
Supply Voltage;
1.5V
DC
±1.0V
DC
w/3.0V
DC
Supply Voltage,
Positive Transfer Characteristic
Output Voltage
Frequency Stability
w/5.0V
DC
±5% Supply Voltage
w/3.0V
DC
±5% Supply Voltage
vs. Operating Temperature Range
vs. Frequency Tolerance (25°C ±2°C)
1.0Vp-p Clipped Sinewave Minimum
0.7Vp-p Clipped Sinewave Minimum
See Table 1
±0.5ppm Maximum w/ Internal Trim Only,
±0.5ppm Maximum w/ Internal and External Trim,
±2ppm Maximum w/ External Trim Only
vs. Input Voltage (±5%)
vs. Load (±1kΩ//±1pF)
MANUFACTURER
CATEGORY
SERIES
PACKAGE
10.000MHz to 22.000MHz (Standard Frequencies:
12.800MHz, 13.000MHz, and 14.400MHz)
-30°C to 85°C
See Table 1
5.0V
DC
±5% or 3.0V
DC
±5%
10kOhms // 10pF
2.0mA Maximum
±1ppm / Year Maximum
±3ppm Minimum
±8ppm Minimum
±5ppm Minimum (Control Voltage);
±3ppm Minimum (Internal Trim)
±0.3ppm Maximum
±0.3ppm Maximum
VOLTAGE
CLASS
REV
.
DATE
ECLIPTEK CORP.
OSCILLATOR
ES64
METAL
3.0V or 5.0V
OS37
06/00
800-ECLIPTEK www.ecliptek.com for latest revision
130
Specifications subject to change without notice.
PART NUMBERING GUIDE
ES64 25 E V 5 - 12.800M TR
FREQUENCY STABILITY
Two Digit Code Per Table 1
OPERATING TEMP. RANGE
One Letter Code Per Table 1
EXTERNAL/INTERNAL
TRIM OPTIONS
Blank=Internal Trim Only
V=Internal and External Trim, W=External Trim Only
PACKAGING OPTIONS
Blank=Bulk
TR=Tape and Reel
FREQUENCY
SUPPLY VOLTAGE
5=5.0V
DC
±5%
3=3.0V
DC
±5%

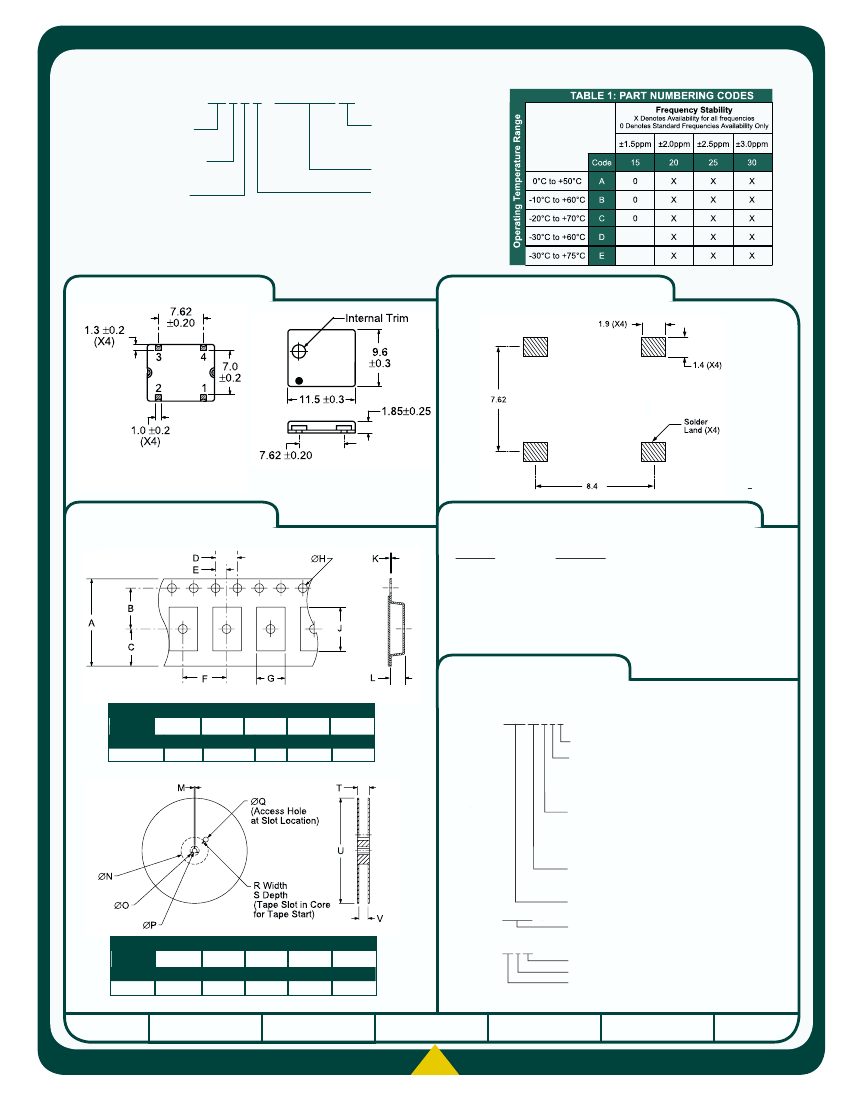

MECHANICAL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
SUGGESTED SOLDER PAD LAYOUT
ALL DIMENSIONS IN MILLIMETERS
Pin 1: Voltage Control or No Connect
Pin 2: Ground/Case Ground
Pin 3: Output
Pin 4: Supply Voltage
Tolerance = +0.2
TAPE AND REEL DIMENSIONS
ALL DIMENSIONS IN MILLIMETERS
ENVIRONMENTAL/MECHANICAL SPECIFICATIONS
Parameter
Shock
Vibration
Specification
Random drop on hard wooden plate 3 times from
a height of 30cm.
Frequency with an amplitude of 1.5mm
sweeping between 10Hz to 55Hz within 1 minute
(approximately) for 2 hours minimum on each
axis (X, Y and Z) for a total of 6 hours.
MARKING SPECIFICATIONS
TAPE
A
24±.3
B
10.75±.1
C
11.5±.1
D
4 ±.2
E
2±.1
F
Line 1: ECLIPTEK
Line 2: ES64 15 A V 5
Supply Voltage 5=5V
DC
, 3=3V
DC
Pin 1 connection
Blank=No connection
V=Internal Trim and External Trim
W=External Trim Only
Operating Temperature Code (°C)
A= 0 to 50, B= -10 to 60, C= -20 to 70,
D= -30 to 60, E= -30 to 75, F= -35 to 80,
G= -40 to 85
Frequency Stability Code (±ppm)
15=1.5, 20=2.0, 25=2.5, 30=3.0, 35=3.5, 50=5.0
Series Designator
F
12±.2
G
10.2±.1
H
1.55+.05
J
12±.1
K
.3±.05
L
2.3±.1
Line 3: XX.XXX M
Frequency in MHz (5 Digits Maximum + Decimal)
REEL
M
1.5 MIN
N
50 MIN
O
20.2 MIN
P
13±.2
Q
40 MIN
QTY/REEL
2000
Line 4: XX Y ZZ
Week of Year
Last Digit of Year
Ecliptek Manufacturing Identifier
R
2.5 MIN
S
10 MIN
T
30.4 MAX
U
360 MAX
V
24.4+2-0
*Compliant to EIA 481A
MANUFACTURER
CATEGORY
SERIES
Specifications subject to change without notice.
##
PACKAGE
VOLTAGE
CLASS
REV
.
DATE
1-800-ECLIPTEK WWW.ECLIPTEK.COM
ECLIPTEK CORP.
OSCILLATOR
ES64
METAL
3.0V or 5.0V
OS37
06/00
800-ECLIPTEK www.ecliptek.com for latest revision
131
Specifications subject to change without notice.
