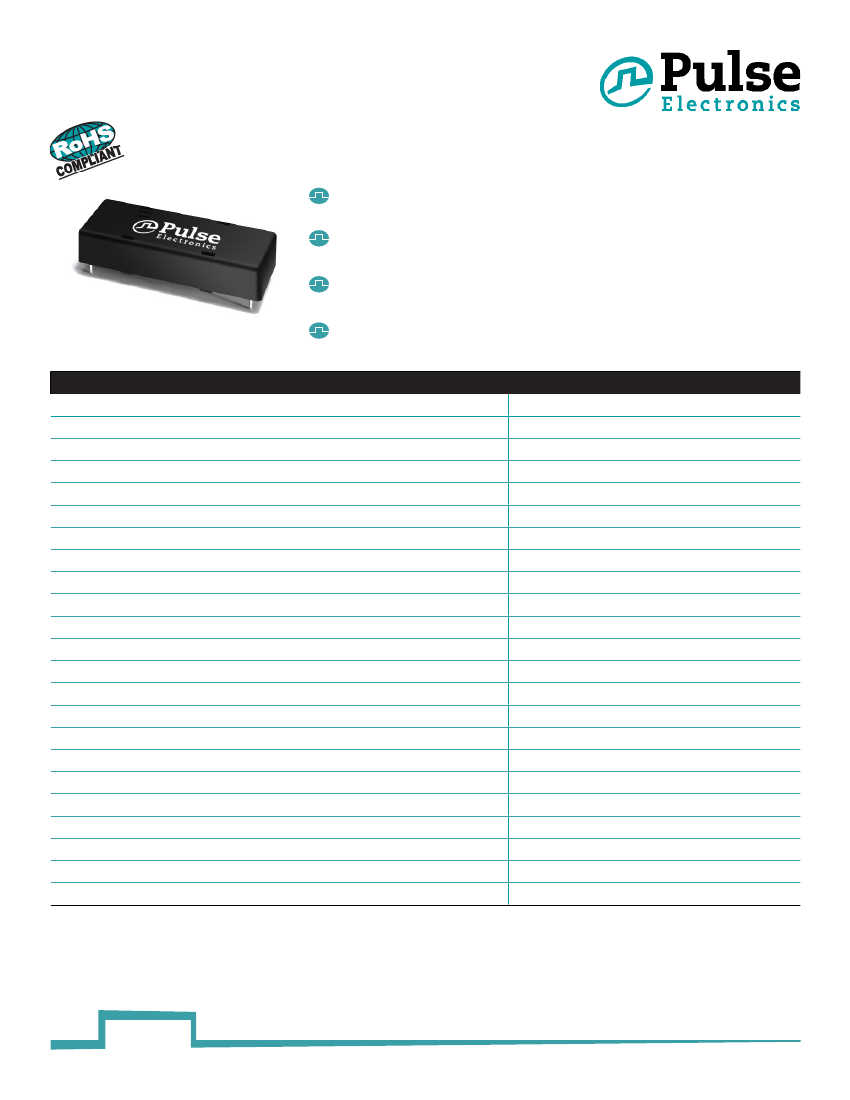

ADSL POTS CPE Splitter
BX8270NL
Smart Series
POTS CPE Splitter Filter Module for standard ADSL and
ADSL+ VOIP applications
Complies with ITU G.992.1 Annex E2 standard for
applications in Korea/Asia
Footprint is compatible with a range of Pulse Splitter Filter
Modules
RoHS-6 compliant
Electrical Specifications @ 25°C
DC Characteristics
DC Resistance from tip to ground and from ring to ground / tip-to-ring
DC Feeding Current
DC POTS tip-to-ring voltages / Ringing Signals at 20Hz to 30Hz
Voice Band Insertion Loss at 1kHz
Short Loop / Long Loop
Voice Band Attenuation Distortion at 1kHz
Between 0.2 and 3.4kHz (short loop) / (long loop)
Between 3.4 and 4.0kHz (short loop) / (long loop)
Voice Band Delay Distortion
Between 0.6 and 3.2kHz (short and long loops) / Between 0.2 and 4.0kHz
Voice Band Return Loss
ERL / SRL-L
SRL-H (single freq.)
Intermodulation Distortion at -9Bm
Second Order / Third Order
Longitudinal Balance per IEEE Method (2-port testing technique)
Between 200 Hz and 1 kHz / Between 1 kHz and 3 kHz
Capacitance
Tip-to-ring without modem / Capacitance to ground
DSL Stop Band Attenuation with input level of 10dBm
Between 32 and 300kHz / Between 300kHz and 15MHz
DSL Insertion Loss from 30kHz to 2.2MHz with input level of -10dBm
Notes:
For VDSL2 (30MHz) compatible version, refer to BX8214V.
> 65dB / > 55dB
≤
0.25dB
20 to 115nF / < 1.0nF
> 58 dB / > 53 dB
≥
57dB/
≥
60B
> 6dB / > 5dB
> 3 dB (> 2 dB)
< 200μs / < 250μs
+1.5 to -1.5dB / +0.5 to -1.5dB
+2.0 to -2.0dB / +1.0 to -1.5dB
< 1.0dB / <0.75dB
≥
5MΩ /
≤
25Ω
0 to 100mA
0 to -60V / < 103Vrms
USA 858 674 8100
1
Germany 49 7032 7806 0
Singapore 65 6287 8998
Shanghai 86 21 62787060
China 86 755 33966678
Taiwan 886 3 4356768
B872.A (02/12)
pulseelectronics.com
ADSL POTS CPE Splitter
BX8270NL
Smart Series

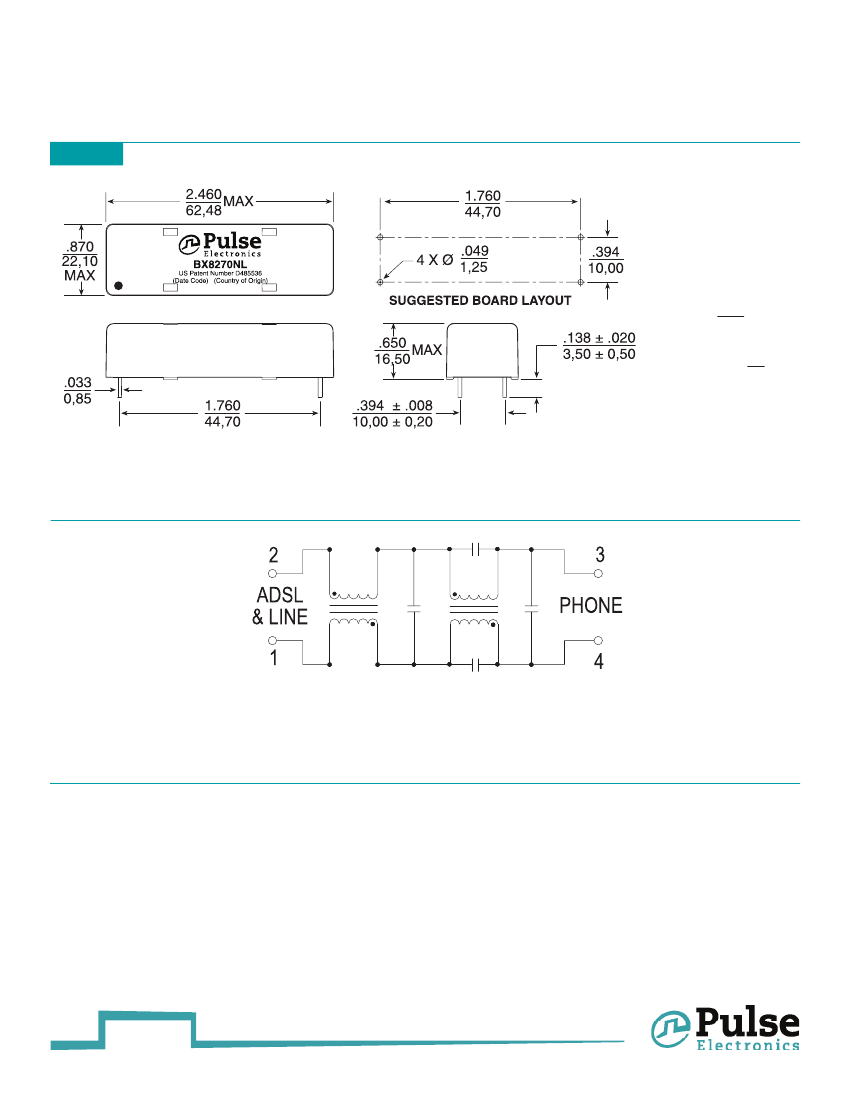

Mechanical
BX8270NL
Weight
...................15 grams
Tray
...........................35/tray
Inches
Dimensions:
mm
Unless otherwise specified,
all tolerances are
±
.010
0,25
Schematic
