BPA01SBR: DescriptionSLIDE DIP SWITCH-1SWITCHES, SPST, LATCHED,0.1A, 5VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size226KB，3 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

BPA01SBR Overview

SLIDE DIP SWITCH-1SWITCHES, SPST, LATCHED,0.1A, 5VDC, SURFACE MOUNT-STRAIGHT, ROHS COMPLIANT

BPA01SBR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator length	0.083 inch
Actuator material	POLYAMIDE
Actuator type	PIANO
body width	4.48 mm
body height	6 mm
Body length or diameter	8.15 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD OVER NICKEL
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@5VDC
Contact resistance	0.05 mΩ
Maximum contact voltage (DC)	5 V
Dielectric withstand voltage	300VAC V
Electrical life	1000 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	GOLD OVER NICKEL
Shell material	POLYPHENYLENE SULPHIDE
Insulation resistance	100000000 Ω
JESD-609 code	e4
Manufacturer's serial number	BPA
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	1
Number of switching segments	1
Maximum operating temperature	85 °C
Minimum operating temperature	-20 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	Gold (Au) - with Nickel (Ni) barrier
Terminal material	BRASS
Termination type	SOLDER

Preview

Download Datasheet

View All

BPA Series

Side Actuated DIP Switches

Features/Benefits

•

Side actuated contacts

•

Available in thru-hole or

Typical Applications

•

Address switch for industrial controls

•

Logic switching for computers and

peripherals

•

Function controlling for numerous

applications

DIP

SMT models

•

High pressure contact system does

not require tape seal for washing

•

RoHS compliant & compatible

Specifications

SWITCH FUNCTION: 1 thru 10 and 12 position available.

CONTACT RATING: 100 mA max. @ 5 V DC or 25 mA max.

@ 24 V DC.

MECHANICAL AND ELECTRICAL LIFE: 1,000 cycles min.

@ 5 V DC 10mA.

CONTACT RESISTANCE: 50 milliohms initial max.

INSULATION RESISTANCE: 100 V DC 100 megohms min.

DIELECTRIC WITHSTAND VOLTAGE: 300 V AC for 1 minute.

STORAGE TEMPERATURE: -40°C to 85°C.

OPERATING TEMPERATURE: -20°C to 85°C.

OPERATING FORCE: 800 grams max.

SOLDERABILITY: Flow solderable and washable

(soldering: 260°C for 10 sec. max.)

PACKAGING: Switches supplied in rigid dispensing tubes in full-

tube quantities only, this may affect order quantity. Numbers

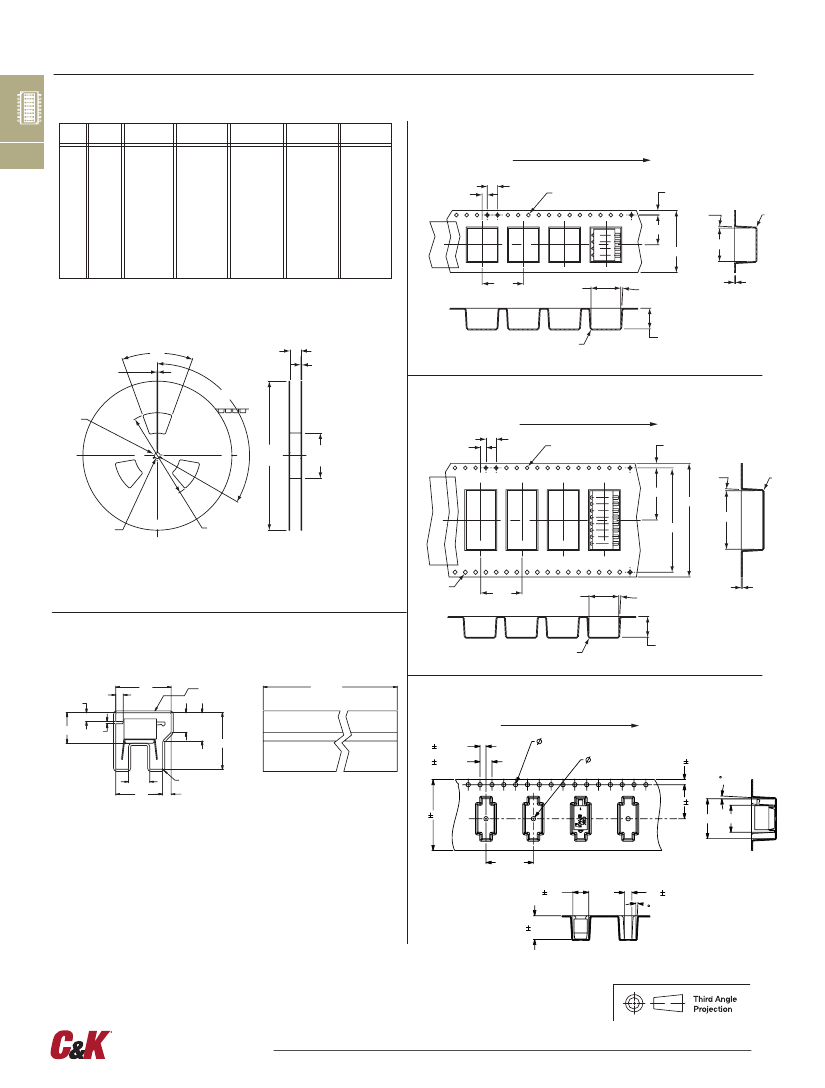

of switches per tube varies with model. Tape and reel

packaging available for SMT options.

Materials

HOUSING: PPS, color black (UL94V-0).

COVER: PPS, color black (UL94V-0).

ACTUATOR: PA-6T (UL94V-0).

CONTACTS: Beryllium Copper with Gold over Nickel plate.

TERMINALS: Brass, Gold over Nickel plate.

Note:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

How To Order

The Build-A Switch concept allows you to mix and match options to create the switch you need. Below is a complete

listing of options shown in catalog. To order, simply select desired option from each category and place in the appropriate

box.

All switches supplied in “OFF” position.

B P A

Model

BPA01

BPA02

BPA03

BPA04

BPA05

BPA06

BPA07

BPA08

BPA09

BPA10

BPA12

1 position

2 positions

3 positions

4 positions

5 positions

6 positions

7 positions

8 positions

9 positions

10 positions

12 positions

On Position

NONE

Down

Terminations

NONE

Gull wing

Contact material

BeCu,

Gold over nickel plate

Packaging

NONE

Tube

Tape and Reel (Surface Mount only)

13 feb 19

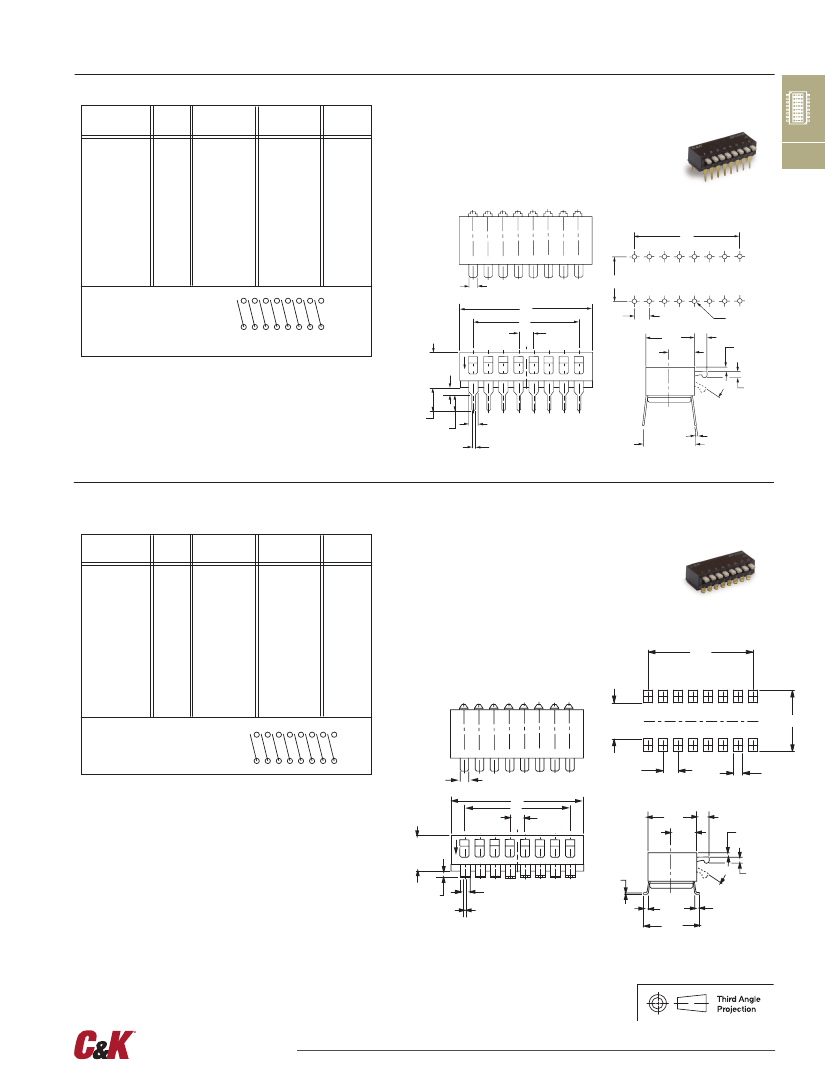

Dimensions are shown: Inch (mm)

Specifications and dimensions subject to change

H–24

www.ckswitches.com
