SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
PAGE: 1
ESR1006□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.

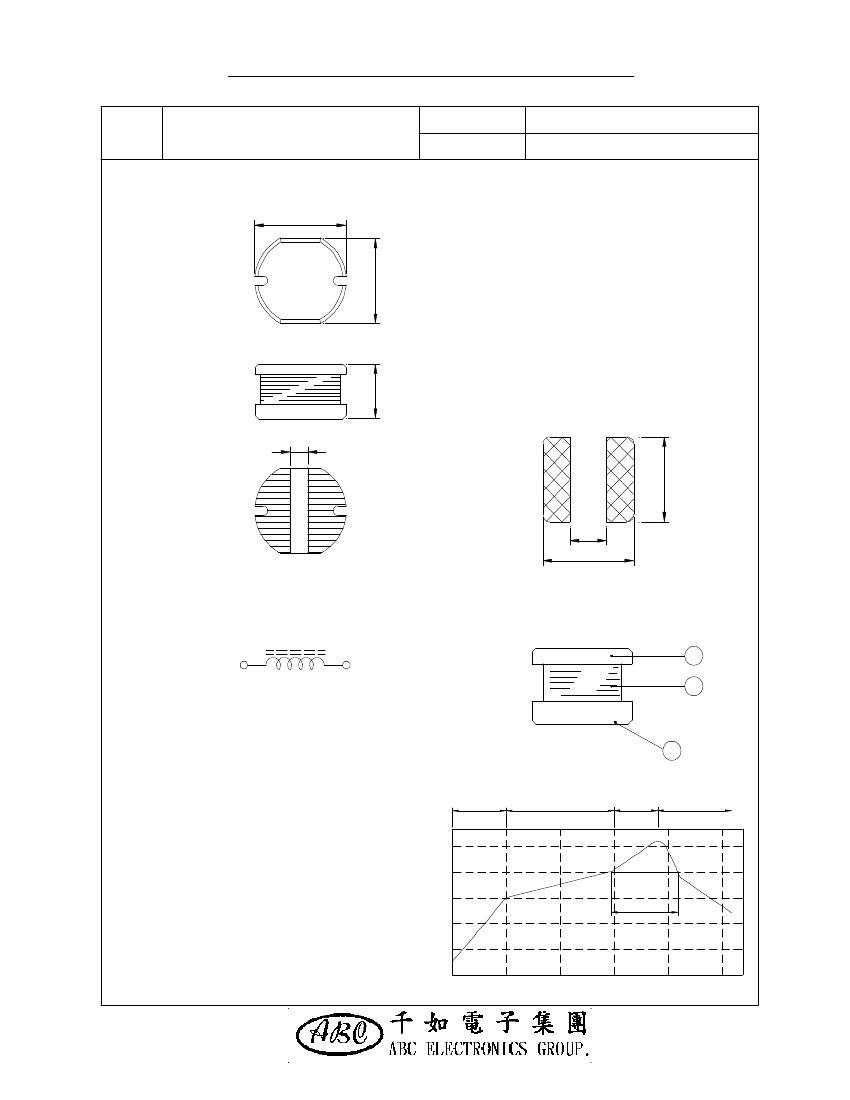

Ⅰ﹒CONFIGURATION
& DIMENSIONS：
A
A :
B :
C :
D :
G :
H :
I :
C
10.0
±
0.4
9.0
±
0.4
5.4
±
0.4
2.1 ref.
2.5 ref.
9.5 ref.
10.0 ref.
m/m
m/m
m/m
m/m
m/m
m/m
m/m
100
D
B
G
I
( PCB Pattern )
Ⅱ﹒SCHEMATIC
DIAGRAM：
a
b
Ⅲ﹒MATERIALS：
a﹒Core：Ferrite DR core
b﹒Wire
：Enamelled
copper wire (Class F & H)
c﹒Terminal： Ag/Ni/Sn
d﹒Remark：Products comply with RoHS'
requirements
Peak Temp：245±5℃
Max time above 200℃
：60sec
max.
Temperature
Rising Area
+4.0
℃
/ sec max.
Preheat Area
150 ~ 200
℃
/ 60 ~ 120sec
Reflow Area
+2.0 ~ 4.0
℃
/ sec max.
Forced Cooling Area
-(1.0 ~ 5.0)
℃
/ sec max.
Peak Temp erature:
245±5℃
H
c
Ⅳ﹒GENERAL
SPECIFICATION：
a﹒Storage temp.：-40℃ ----+125℃
b﹒Operating temp.：-40℃----+105℃
c﹒Resistance to solder heat：245±5℃.10 secs.
Temperature (
℃
)
250
200
150
60sec max.
100
50
0
50
100
150
200
250
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
PAGE: 2
ESR1006□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅴ﹒ELECTRICAL
CHARACTERISITCS：
DWG No.
ESR1006100ML□ -□□□
ESR1006120ML□ -□□□
ESR1006150ML□ -□□□
ESR1006180ML□ -□□□
ESR1006220ML□ -□□□
ESR1006270ML□ -□□□
ESR1006330ML□ -□□□
ESR1006390ML□ -□□□
ESR1006470KL□ -□□□
ESR1006560KL□ -□□□
ESR1006680KL□ -□□□
ESR1006820KL□ -□□□
ESR1006101KL□ -□□□
ESR1006121KL□ -□□□
ESR1006151KL□ -□□□
ESR1006181KL□ -□□□
ESR1006221KL□ -□□□
ESR1006271KL□ -□□□
ESR1006331KL□ -□□□
ESR1006391KL□ -□□□
ESR1006471KL□ -□□□
ESR1006561KL□ -□□□
ESR1006681KL□ -□□□
ESR1006821KL□ -□□□
2)."-
Inductance
(
μH
)
10±20%
12±20%
15±20%
18±20%
22±20%
27±20%
33±20%
39±20%
47±10%
56±10%
68±10%
82±10%
100±10%
120±10%
150±10%
180±10%
220±10%
270±10%
330±10%
390±10%
470±10%
560±10%
680±10%
820±10%
RDC
( mΩ )
typ.
max.
34.2
36.9
43.6
60.7
68.3
87.6
96.9
111.0
126.0
141.0
176.0
201.0
262.0
301.0
350.0
457.0
524.0
711.0
814.0
923.0
1056.0
1359.0
1559.0
1805.0
60
70
80
90
100
110
120
140
170
190
220
250
350
400
470
630
730
970
1150
1300
1480
1900
2250
2550
Rated Current
(A)
2.60
2.45
2.30
2.15
2.00
1.80
1.50
1.40
1.30
1.20
1.10
1.00
0.97
0.90
0.80
0.75
0.70
0.60
0.55
0.50
0.45
0.40
0.30
0.25
SRF
(MHz)
ref.
25.0
23.0
19.8
19.3
16.0
13.3
12.1
12.0
11.0
10.2
9.4
8.8
7.3
6.6
6.6
6.1
5.3
4.3
4.3
3.3
3.3
3.3
2.8
2.2
1).
□：Packaging
information… A：Bulk
□□□
":Reference code
B：Taping Reel
3). Inductance test condition :10uH~82uH at 1MHz/1V
100uH~820uH at 1KHz/1V
4). Rated current: The DC current at which the inductance decreases to 90% of
it's initial value or when
Δt=40
℃
,whichever is lower(Ta=20
℃
)
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
PAGE: 3
ESR1006□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅵ﹒INDUCTANCE
VS. DC CURRENT CURVE：

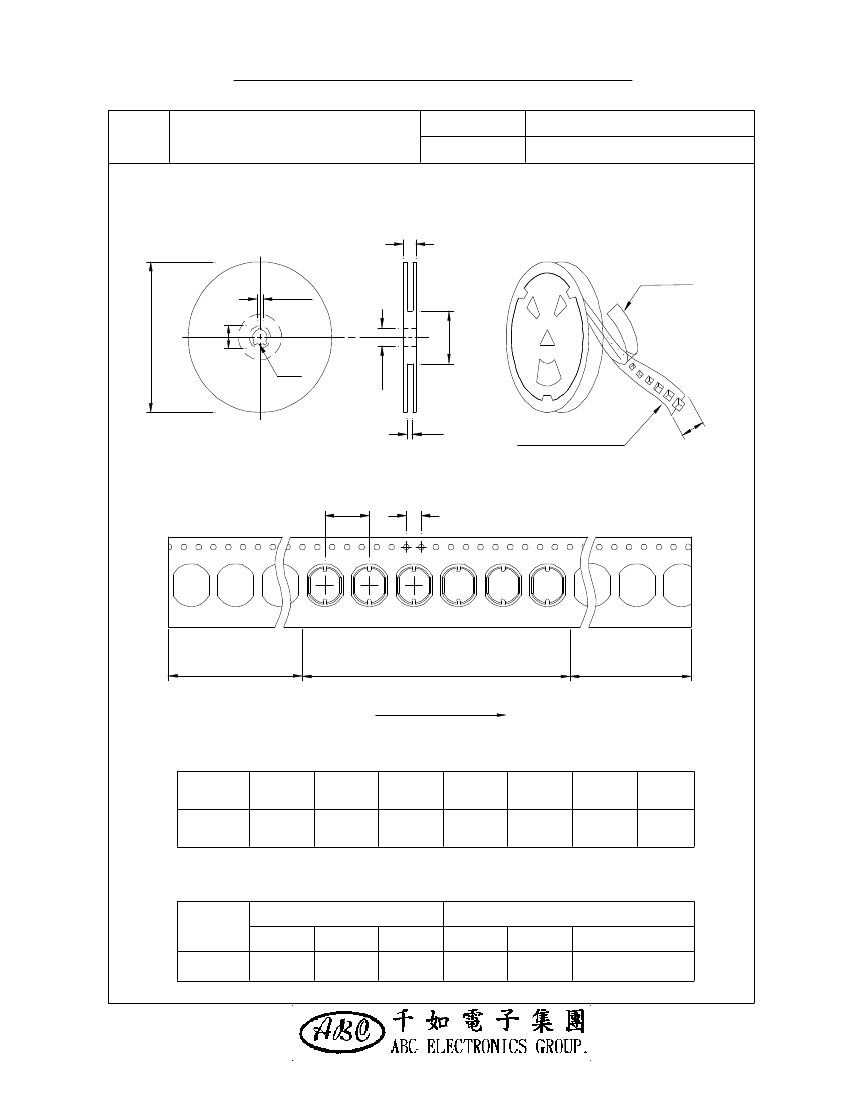

( 1 ) Configuration
T
Cover tape
2.0±0.5
A
∮
C
∮
C
N
B
G
D
Embossed carrier
※
Carrier tape width : D
P:12 m/m
End
4 m/m
Start
100
100
100
100
100
100
Leader
no component
350 m/m min.
Components
User direction of feed
Trailer
no component
400 m/m min.
( 2 ) Dimensions
Style
13 - 24
A
330
B
21±0.8
C
13±0.5
D
24
G
26
+0
N
50
-0
Unit:m/m
T
30.4
( 3 ) Q'TY & G.W. Per package
Inner : Reel
Series
Q'TY (pcs)
G.W. (gw)
Style
Q'TY (pcs)
G.W. (Kg)
Size (cm)
Outer : Carton
ESR1006
800
1,800
13 - 24
3,200
9.5
40 x 40 x 24
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
PAGE: 4
ESR1006□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅶ﹒PACKAGING
INFORMATION：
E
S
R
1
0
0
6
Reference code
Appendix code 2 : Package
Appendix code 1 : Classification
Tolerance code
Electrical code
Dimension code
Type code
E : Economy
Appendix code 1：Product Classification
L：Lead Free Standard products comply with RoHS' requirements
1 ~ 9：Lead Free Special products comply with RoHS' requirements
Appendix code 2：Package Information
Remark
Code
A
B
T.B.D.
Inner package
Inner package Q'TY
T.B.D.
800
pcs
T / R ( Reel package )
AR-001A
SPECIFICATION FOR APPROVAL
REF :
PROD.
NAME
ABC'S DWG NO.
PAGE: 5
ESR1006□□□□L□-□□□
SMD POWER INDUCTOR
ABC'S ITEM NO.
Ⅶ﹒DWGING
NUMBER EXPRESSION：
Test item
Specification
Test condition
Preheat : 155
℃
/ 4 hours.
Solder : Sn96.5 / Ag3 / Cu0.5 or equivalent
Solder temp. : 235±5℃
Flux : Rosin
Dip time : 5±0.5 seconds
Solderability
More than 95% of the
terminal electrode
Shall be covered
With fresh solder.
Thermal shock test
( Temp. cycle )
Electrical oharacteristics shall
not change more
than
±20%
Room temp.
15 minutes
Room temp.
15 minutes
Total : 50 cycles
-40
℃
30 minutes
+105
℃
30 minutes
Humidity Test
Temperature : 40±2℃
Humidity : 90±5%
Time : 1000 hours
High temp.
Resistance test
Temperature : 105±5℃
Applied current : Per spec.
Time : 96 hours
AR-001A
