E2S15ZD-NM6 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> E2S15ZD-NM6

E2S15ZD-NM6: DescriptionDC-DC Regulated Power Supply Module, 1 Output, Hybrid, SMT-8; CategoryPower/power management The power supply circuit; File Size170KB，10 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

E2S15ZD-NM6 Overview

DC-DC Regulated Power Supply Module, 1 Output, Hybrid, SMT-8

E2S15ZD-NM6 Parametric

Parameter Name	Attribute value
Brand Name	Power-One
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Bel Fuse
Parts packaging code	MODULE
package instruction	,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	75 V
Minimum input voltage	36 V
Nominal input voltage	48 V
JESD-30 code	R-XDMA-N8
JESD-609 code	e4
Number of functions	1
Output times	1
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	2.75 V
Minimum output voltage	2 V
Nominal output voltage	2.5 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	GOLD OVER NICKEL
Terminal form	NO LEAD
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

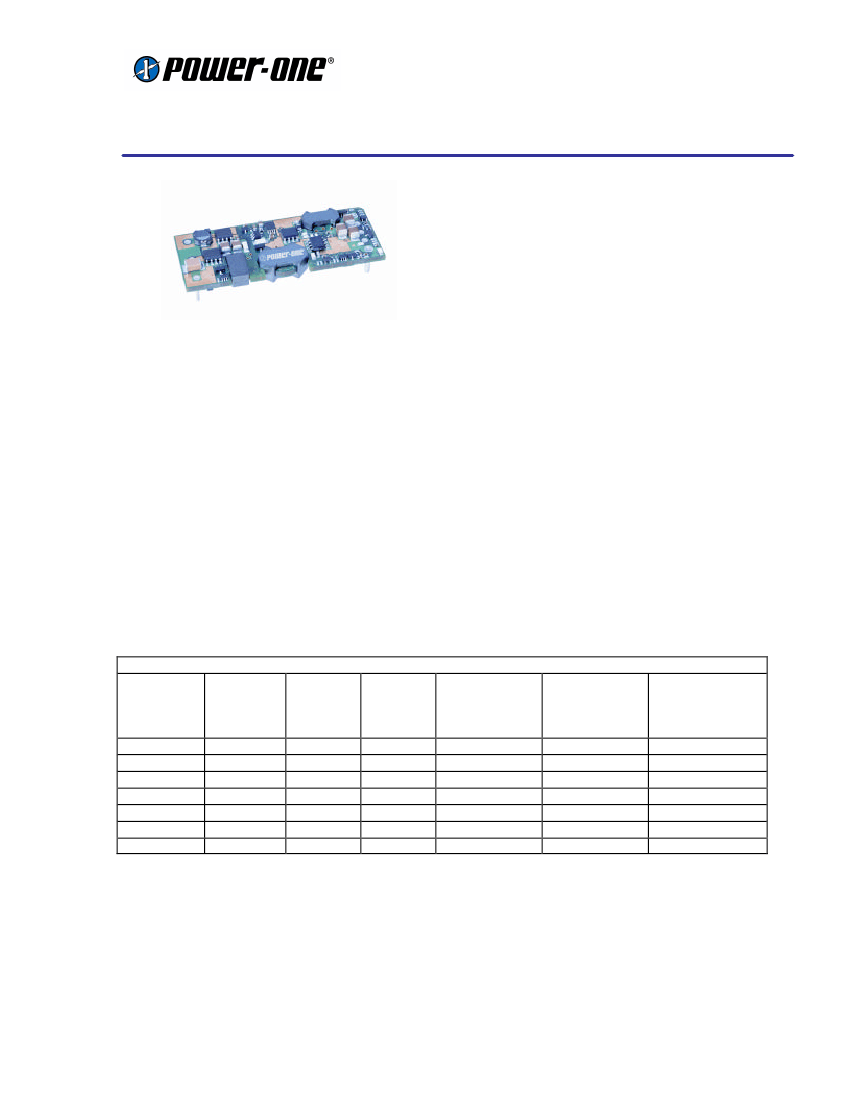

E2S Series – Eighth-Brick DC/DC Converter

48V Input

5.0V, 3.3V, 2.5V, 2.0V, 1.8V, 1.5V, 1.2V Output

Data Sheet

Features

•

Applications

•

Distributed power architectures

Telecommunications equipment

LAN/WAN applications

Data processing applications

Low profile (<8.5mm)

2000 VDC input to output isolation meets

basic insulation

High efficiency

Start-up into high capacitive load

Low conducted and radiated EMI

Output overcurrent protection

Output overvoltage protection

Overtemperature protection

Back drive protection

Remote sense

Set point accuracy

Remote on/off (primary referenced),

positive or negative logic

Output voltage trim adjust

UL 1950 Recognized, CSA 22.2 No. 950-

95 certified, TUV IEC950

Description

The new E2S15 series of single-output DC/DC converters, offer unprecedented density and performance in

an eighth brick, which is 40% smaller than the traditional quarter-brick footprint. Patent pending technology

combined with thermally optimized construction allows the E2S15 to provide 15A of output current in an

8.5mm package without a heatsink. And the E2S15 series requires minimal derating to operating in high

ambient temperatures. The 100% surface mount design provides consistent high quality and reliability and

the SMT mounting option eliminates the need for separate (additional manual) operations to mount the

converters to the motherboards during mass production.

Model

E2S15ZY

E2S15ZA

E2S15ZB

E2S15ZC

E2S15ZD

E2S15ZE

E2S10ZG

Input

Voltage

Range,

VDC

36-75

Input

Current,

Max,

ADC

0.62

0.77

0.9

1.0

1.2

1.60

1.65

Selection Chart

Output

Output Rated

Voltage,

Current,

I rated

VDC

ADC

1.2

1.5

1.8

2.0

2.5

3.3

5.0

Output

Ripple /

Noise, Typ,

mV p-p

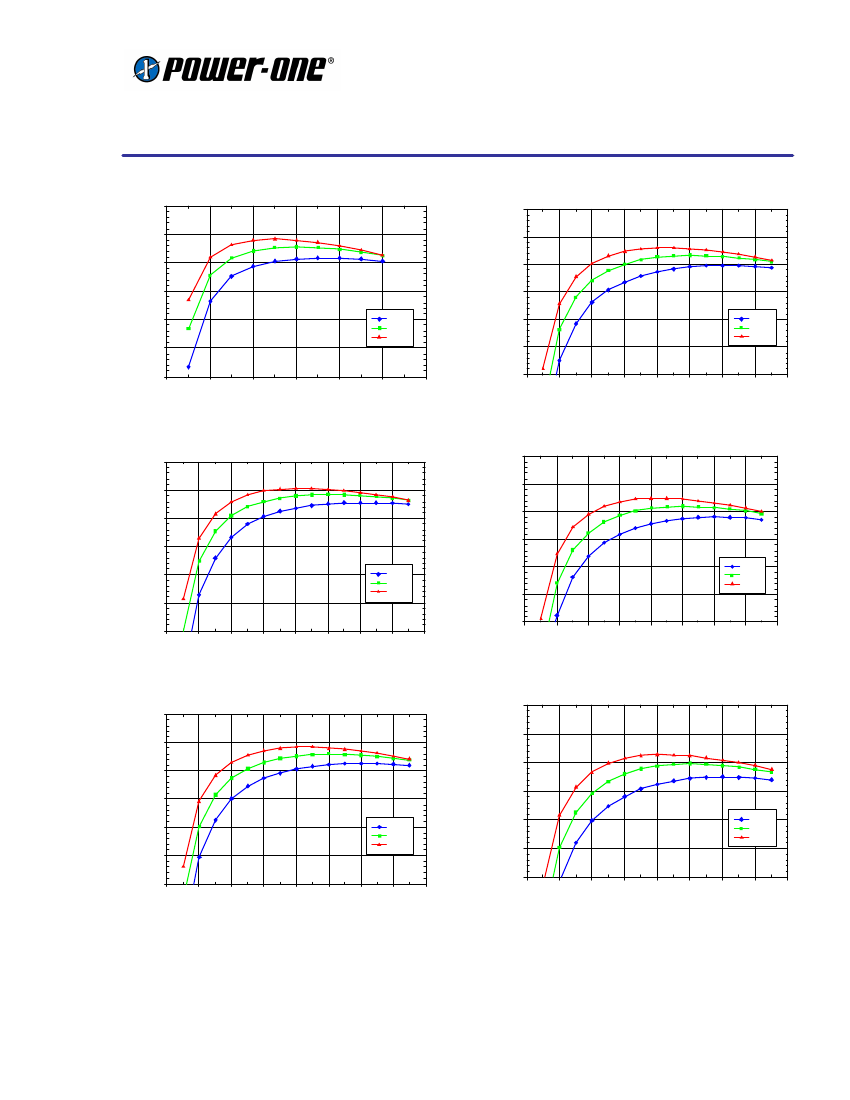

Efficiency

@ I rated,

Typical,

81.5

83.5

84.5

85.5

REV. JAN 22, 2003
