SS-700810-NF-50 datasheet, PDF

Datasheet> All Categories > The connector> The connector> SS-700810-NF-50

SS-700810-NF-50: DescriptionTelecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT; CategoryThe connector The connector; File Size86KB，1 Pages; ManufacturerBel Fuse; Environmental Compliance

Download Datasheet Parametric Compare View All

SS-700810-NF-50 Overview

Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT

SS-700810-NF-50 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Bel Fuse
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	NO FLANGE
Board mount options	SPLIT BOARD LOCK
body width	0.453 inch
subject depth	0.712 inch
body length	0.6 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Contact style	TELCOM, MODULAR
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	SS-700810
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
Plating thickness	50u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Shell material	POLYETHYLENE
Terminal length	0.128 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	8
UL Flammability Code	94V-0

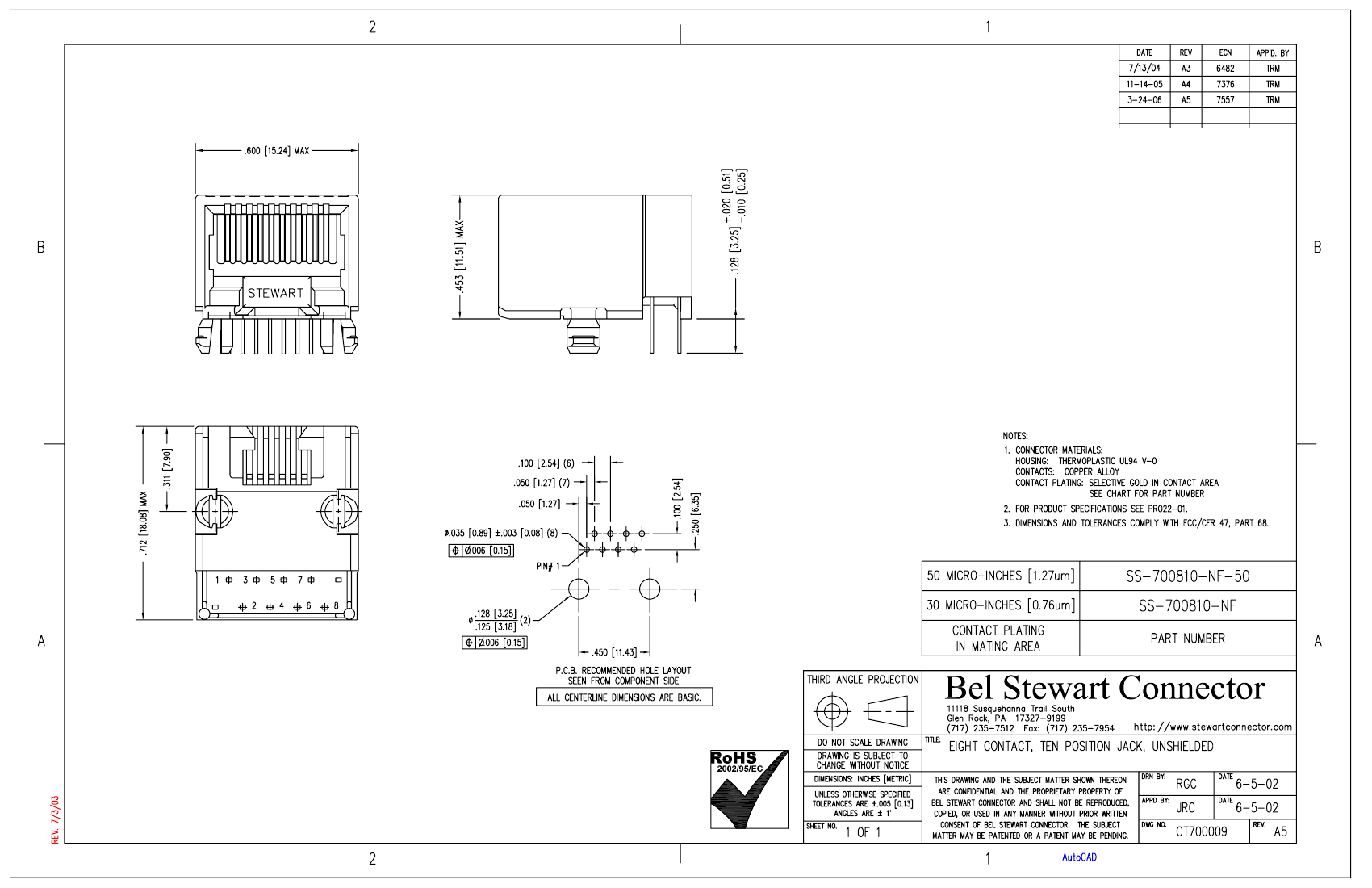

Preview

Download Datasheet

View All

SS-700810-NF-50 Related Products

	SS-700810-NF-50	SS-700810-NF
Description	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT	Telecom and Datacom Connector, 8 Contact(s), Female, Right Angle, Solder Terminal, Locking, Jack, ROHS COMPLIANT
Is it Rohs certified?	conform to	conform to
Maker	Bel Fuse	Bel Fuse
package instruction	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant
Other features	NO FLANGE	NO FLANGE
Board mount options	SPLIT BOARD LOCK	SPLIT BOARD LOCK
body width	0.453 inch	0.453 inch
subject depth	0.712 inch	0.712 inch
body length	0.6 inch	0.6 inch
Body/casing type	JACK	JACK
Connector type	TELECOM AND DATACOM CONNECTOR	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED
Contact style	TELCOM, MODULAR	TELCOM, MODULAR
DIN compliance	NO	NO
empty shell	NO	NO
Filter function	NO	NO
IEC compliance	NO	NO
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	SS-700810	SS-700810
Mixed contacts	NO	NO
Installation option 1	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of ports	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED
Plating thickness	50u inch	30u inch
Rated current (signal)	1.5 A	1.5 A
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell material	POLYETHYLENE	POLYETHYLENE
Terminal length	0.128 inch	0.128 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	8	8
UL Flammability Code	94V-0	94V-0
