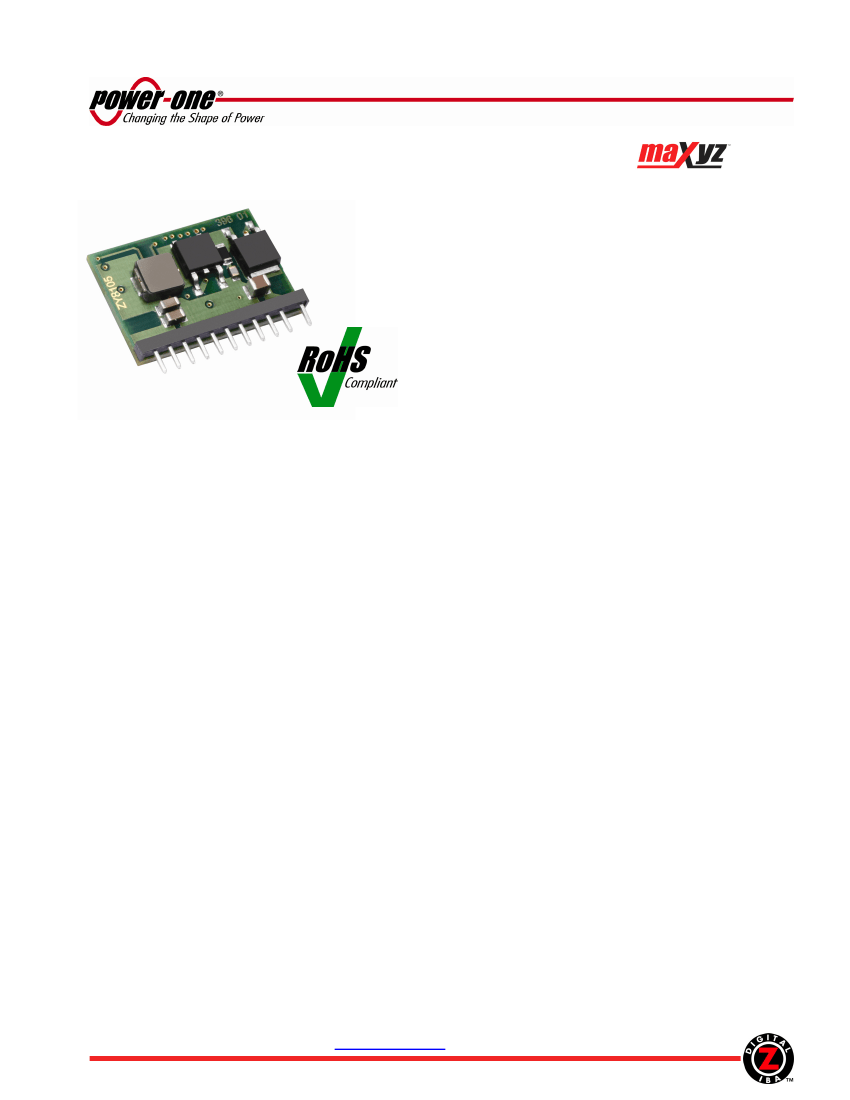

ZY8105 5A DC-DC Intelligent POL
8V to 14V Input
•
0.5V to 5.5V Output
Data Sheet
Member of the
Family
Applications
•
Low voltage, high density systems with
Intermediate Bus Architectures (IBA)
•
Point-of-load regulators for high performance
DSP, FPGA, ASIC, and microprocessors
•
Desktops, servers, and portable computing
•
Broadband, networking, optical, and
communications systems
Benefits
•
Integrates digital power conversion with
intelligent power management
•
Eliminates the need for external power
management components
•
Completely programmable via industry-standard
I
2
C communication bus
•
One part that covers all applications
•
Reduces board space, system cost and
complexity, and time to market
Features
•
RoHS lead free and lead-solder-exempt products are
available
•
Wide input voltage range: 8V–14V
•
High continuous output current: 5A
•
Programmable output voltage range: 0.5V–5.5V
•
Efficiency greater than 92%
•
Single-wire serial communication bus for frequency
synchronization, programming, and monitoring
•
Real time voltage, current, and temperature
measurements, monitoring, and reporting
•
Optimal voltage positioning with programmable slope
of the VI line
•
Overcurrent, overvoltage, undervoltage, and
overtemperature protections with programmable
thresholds and types
•
Programmable fixed switching frequency 0.5-1.0MHz
•
Programmable turn-on and turn-off delays
•
Programmable turn-on and turn-off voltage slew rates
with tracking protection
•
Programmable feedback loop compensation
•
Power Good signal with programmable limits
•
Programmable fault management
•
Start up into the load pre-biased up to 100%
•
Current sink capability
•
Industry standard size through-hole single-in-line
package: 1.2”x0.26”
•
Low height of 0.84”
•
Wide operating temperature range: 0 to 70ºC
•
UL 60950-1/CSA 22.2 No. 60950-1-07 Second
Edition, IEC 60950-1: 2005, and EN 60950-1:2006
Description
Power-One’s point-of-load converters are recommended for use with regulated bus converters in an Intermediate
Bus Architecture (IBA). The ZY8105 is an intelligent, fully programmable multiphase step-down point-of-load DC-
DC module integrating digital power conversion and intelligent power management. When used with ZM7000
Series Digital Power Managers, the ZY8105 completely eliminates the need for external components for
sequencing, tracking, protection, monitoring, and reporting. All parameters of the ZY8105 are programmable via
the industry-standard I
2
C communication bus and can be changed by a user at any time during product
development and service.
Reference Documents:
•
ZM7300 Digital Power Manager. Data Sheet
•
ZM7300 Digital Power Manager. Programming Manual
•
Z-One
®
Graphical User Interface
•
ZM00056-KIT USB to I
2
C Adapter Kit. User Manual
ZD-01740 Rev. 1.3, 7-Feb-2011
www.power-one.com
Page 1 of 28
ZY8105 5A DC-DC Intelligent POL
8V to 14V Input
•
0.5V to 5.5V Output
Data Sheet
1.
Ordering Information
ZY
Product
family:
Z-One
Module
1
81
Series:
Intelligent POL
Converter
05
Output
Current:
5A
y
RoHS compliance:
No suffix
- RoHS compliant
with Pb solder exemption
1
G
- RoHS compliant for all
six substances
–
zz
Packaging Option
2
:
R1
–48 pcs Tray
Q1
– 1 pc sample for
evaluation only
Dash
______________________________________
The solder exemption refers to all the restricted materials except lead in solder. These materials are Cadmium (Cd), Hexavalent chromium
(Cr6+), Mercury (Hg), Polybrominated biphenyls (PBB), Polybrominated diphenylethers (PBDE), and Lead (Pb) used anywhere except in
solder.
2
Packaging option is used only for ordering and not included in the part number printed on the POL converter label.
3
Z-One evaluation board is available in only one configuration: ZM7300-KIT-HKS.
Example:
ZY8105G-R1:
A 48-piece tray of RoHS compliant POL converters. Each POL converter is labeled
ZY8105G.
2.
Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings may cause performance degradation, adversely affect long-
term reliability, and cause permanent damage to the converter.
Parameter
Operating Temperature
Input Voltage
Conditions/Description
Controller case temperature
250ms Transient
Min
0
Max
105
15
Units
°C
VDC
3.
Environmental and Mechanical Specifications
Parameter
Ambient Temperature Range
Storage Temperature (Ts)
Weight
Operating Vibration
(sinusoidal)
Non-Operating Shock
(half sine)
MTBF
Peak Reflow Temperature
Peak Reflow Temperature
Lead Plating
Moisture Sensitivity Level
per JEDEC J-STD-020C
Frequency Range
Magnitude
Sweep Rate
Repetitions in each axis (Min-Max-Min Sweep)
Acceleration
Duration
Number of shocks in each axis
Calculated Per Telcordia Technologies SR-332
ZY8105
ZY8105G
ZY8105 and ZY8105G
ZY8105
ZY8105G
245
2
3
5
0.5
1
2
50
11
10
44
220
260
Conditions/Description
Min
0
-55
Nom
Max
70
125
6
500
Units
°C
°C
grams
Hz
G
oct/min
sweeps
G
ms
MHrs
°C
°C
100% Matte Tin
ZD-01740 Rev. 1.3, 7-Feb-2011
www.power-one.com
Page 2 of 28
ZY8105 5A DC-DC Intelligent POL
8V to 14V Input
•
0.5V to 5.5V Output
Data Sheet
4.
Electrical Specifications
Specifications apply at the input voltage from 8V to 14V, output load from 0 to 5A, ambient temperature from 0°C
to 70°C, output capacitance consisting of 2x22µF low ESR ceramic, and default performance parameters settings
unless otherwise noted.
4.1
Input Specifications
Parameter
Input voltage (V
IN
)
Input Current (at no load)
V
IN
=12V
Conditions/Description
Min
8
TBD
Nom
Max
14
Units
VDC
mADC
4.2
Output Specifications
Parameter
Output Voltage Range (V
OUT
)
Conditions/Description
Programmable
Default (no programming)
V
IN
=12V, I
OUT
=0.5*I
OUT MAX
,
F
SW
=500kHz, room temperature
V
IN MIN
to V
IN MAX
V
IN MIN
to V
IN MAX
0 to I
OUT MAX
50 - 100% load step, Slew rate 2.5A/µs
C
OUT
=110µF, F
SW
=1MHz
to 10% of peak deviation
V
IN
=12V, V
OUT
≤1.0V
V
IN
=12V, V
OUT
=2.5V
V
IN
=12V, V
OUT
=5.0V
V
OUT
=0.5V
V
OUT
=0.75V
V
OUT
=1.0V
V
OUT
=1.2V
V
OUT
=1.8V
V
OUT
=2.5V
V
OUT
=3.3V
V
OUT
=5.0V
V
IN
=12V, V
OUT
=2.5V, I
OUT
=0.5*I
OUT MAX
Default
Programmable, 250kHz steps
Default
Programmable, 0.5% steps
500
90.5
0
95
1
Min
0.5
Nom
Max
5.5
Units
VDC
VDC
%V
O.SET
ADC
%V
OUT
%V
OUT
mV
µs
mV
mV
mV
%
%
%
%
%
%
%
%
ppm/°C
kHz
kHz
%
%
Output Voltage Setpoint Accuracy
Output Current (I
OUT
)
Line Regulation
Load Regulation
Dynamic Regulation
Peak Deviation
Settling Time
Output Voltage Peak-to-Peak
Ripple and Noise
BW=20MHz
Full Load
Efficiency
V
IN
=12V
F
SW
=500kHz
Full Load
Room temperature
0.5
±1.5% or 10mV whichever is
greater
-5
2
±0.5
±0.5
75
50
15
20
25
63.2
71.5
76.8
79.8
84.8
87.9
90.0
92.4
20
500
1,000
5
Temperature Coefficient
Switching Frequency
Duty Cycle
1
2
ZY8105 is a step-down converter, thus the output voltage is always lower than the input voltage.
At the negative output current (bus terminator mode) efficiency of the ZY8105 degrades resulting in increased internal power dissipation.
Therefore maximum allowable negative current under specific conditions is 20% lower than the current determined from the derating curves
shown in paragraph 5.5.
ZD-01740 Rev. 1.3, 7-Feb-2011
www.power-one.com
Page 3 of 28
ZY8105 5A DC-DC Intelligent POL
8V to 14V Input
•
0.5V to 5.5V Output
Data Sheet
4.3
Protection Specifications
Parameter
Conditions/Description
Output Overcurrent Protection
Type
Threshold
Threshold Accuracy
Output Overvoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Default
Programmable
Default
Programmable in 10% steps
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
Output Undervoltage Protection
Type
Threshold
Threshold Accuracy
Delay
Default
Programmable
Default
Programmable in 5% steps
Measured at V
O.SET
=2.5V
From instant when threshold is exceeded until
the turn-off command is generated
Overtemperature Protection
Type
Turn Off Threshold
Turn On Threshold
Threshold Accuracy
Delay
From instant when the controller junction
temperature reaches the OTP threshold until the
turn-off command is generated
Tracking Protection (when Enabled)
Type
Threshold
Threshold Accuracy
Delay
From instant when threshold is exceeded until
the turn-off command is generated
Default
Programmable
Enabled during output voltage ramping up
-50
6
Disabled
Latching/Non-Latching, 130ms period
±250
50
mVDC
mVDC
µs
Default
Programmable
Temperature is increasing
Temperature is decreasing after the module was
shut down by OTP
-5
2
Non-Latching, 130ms period
Latching/Non-Latching
120
110
5
°C
°C
°C
ms
Non-Latching, 130ms period
Latching/Non-Latching
75
%V
O.SET
90
%V
O.SET
2
6
%V
UVP.SET
µs
Non-Latching, 130ms period
Latching/Non-Latching
130
%V
O.SET
130
%V
O.SET
2
6
%V
OVP.SET
µs
Default
Programmable
Default
Programmable in 11 steps
Non-Latching, 130ms period
Latching/Non-Latching
160
%I
OUT
160
%I
OUT
25
%I
OCP.SET
Min
Nom
Max
Units
50
-25
110
1
-2
75
-2
ZD-01740 Rev. 1.3, 7-Feb-2011
www.power-one.com
Page 4 of 28
ZY8105 5A DC-DC Intelligent POL
8V to 14V Input
•
0.5V to 5.5V Output
Data Sheet
Overtemperature Warning
Threshold
Threshold Accuracy
Hysteresis
Delay
From instant when threshold is exceeded until
the warning signal is generated
Power Good Signal (PGOOD pin)
Logic
Lower Threshold
Upper Threshold
Delay
Threshold Accuracy
___________________
1
Always enabled, reported in Status register
-5
120
5
3
6
°C
°C
°C
µs
V
OUT
is inside the PG window
V
OUT
is outside the PG window
Default
Programmable in 5% steps
From instant when threshold is exceeded until
status of PG signal changes
Measured at V
O.SET
=2.5V
High
Low
90
90
110
6
-2
2
95
N/A
%V
O.SET
%V
O.SET
%V
O.SET
µs
%V
O.SET
Minimum OVP threshold is 1.0V
4.4
Feature Specifications
Parameter
Conditions/Description
Interleave
Interleave (Phase Shift)
Default
Programmable in 11.25° steps
Sequencing
Turn ON Delay
Turn OFF Delay
Default
Programmable in 1ms steps
Default
Programmable in 1ms steps
Tracking
Turn ON Slew Rate
Turn OFF Slew Rate
Default
Programmable in 7 steps
Default
Programmable in 7 steps
Optimal Voltage Positioning
Load Regulation
Default
Programmable in 7 steps
Feedback Loop Compensation
0
0
22.9
mV/A
mV/A
0.1
0.1
-0.1
-0.1
8.33
1
-8.33
1
V/ms
V/ms
V/ms
V/ms
0
0
0
0
63
255
ms
ms
ms
ms
0
0
348.75
Degree
degree
Min
Nom
Max
Units
Zero1 (Effects phase lead and
increases gain in mid-band)
Zero 2 (Effects phase lead and
increases gain in mid-band)
Pole 1 (Integrator Pole, effects
loop gain)
Pole 2 (Effects phase lag and
limits gain in mid-band)
Pole 3 (High frequency low- pass
filter to limit PWM noise)
Programmable
Programmable
Programmable
Programmable
Programmable
0.05
0.05
0.05
1
1
50
50
50
1000
1000
kHz
kHz
kHz
kHz
kHz
ZD-01740 Rev. 1.3, 7-Feb-2011
www.power-one.com
Page 5 of 28
京公网安备 11010802033920号
EEWORLD
