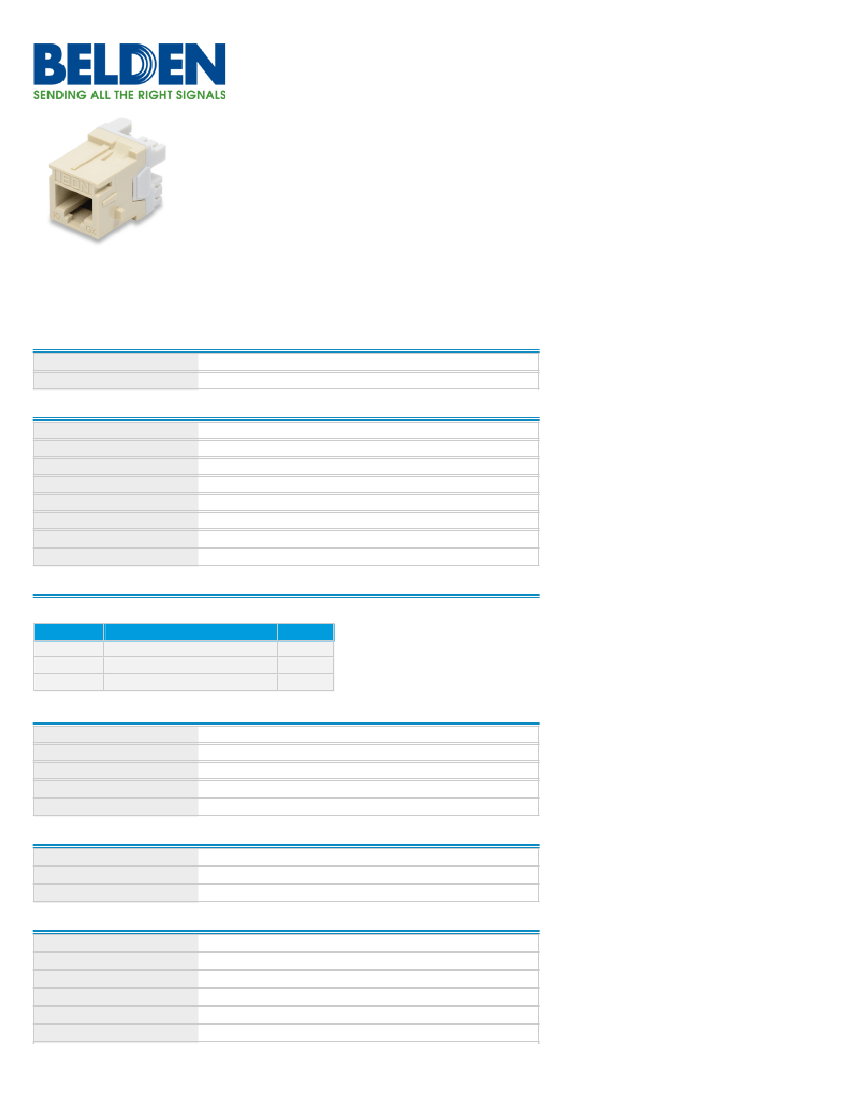

Part Number:
10GX MDVO JACKS
10GX Modular Jack, Category 6A, RJ45, MDVO Style
Product Description
CAT6A MDVO Jacks are available in several colors.
Technical Specifications
Product Overview
Environmental Space:
Suitable Applications:
Indoor
IBDN System 10GX, TIA Category 6A, ISO Class E, 10GBASE-T
Physical Characteristics (Overall)
Height:
Width:
Depth:
Termination Front Connection:
Termination Rear Connection:
Wiring Scheme:
Packaging:
Weight:
0.78 m
0.77
1.17
Mated Connection
IDC Connection
T568A/B
Individually packaged in a plastic bag. Standard pack of 50 units.
0.016 lbs
Connectors
Materials
Description
Material
Type
Flexible PCB
Front Connection Flexible PCB with 50 µ inch Gold over Nickel
Rear Connection Phosphor Bronze with Tin Plating over Nickel IDC
Connector Body
Plastic - UL94V-0
Electrical Characteristics
Dielectric Strength:
Current Rating:
Insulation Resistance:
Max Contact Resistance:
Termination Resistance:
1,000V RMS @ 60 Hz for 1 minute
1.500 A
500 M-Ohm Minimum
20 mOhm
2.5 mOhm
Temperature Range
Installation Temp Range:
Storage Temp Range:
Operating Temp Range:
-10°C to +60°C
-40°C to +70°C
-10°C to +60°C
Mechanical Characteristics
Footprint/Type:
Tool Compatibility:
Plug /Jack Compatibility:
Termination Front Connection Durability:
Termination Rear Connection Durability:
Cable/Connector Retention:
MDVO
Belden 110 Connecting Tool
RJ45, RJ11
750 cycles
20 terminations
15 lbs.
Connector/Hardware Retention:
Plug/Connector Retention:
20 lbs
11.250 lbs
Standards
Data Category:
Telecommunications Standards:
Other Standards:
Third Party Performance Verification:
Category 6A
Category 6A - TIA 568.C.2, ISO/IEC 11801:2002 Amendment 2
FCC Part 68, Subpart F, IEC 60603-7
ETL - Verified Category 6A
Applicable Environmental and Other Programs
EU Directive 2002/95/EC (RoHS):
Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2006-07-01
MII Order #39 (China RoHS):
EUP 50
Flammability, LS0H, Toxicity Testing
Safety Listing:
ACA, c(UL)us Listed
Part Number
Related Parts:
Variants
Item #
Color
Packaging Wiring Scheme
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Compatible with Interface and MDVO Style Faceplates, Adapters, Boxes and Patch Panels
AX102270 Almond
AX102272 Black
AX102269 Gray
AX102562 Ivory
AX102277 TIA Blue
AX102279 TIA Brown
AX102276 TIA Green
AX102273 TIA Orange Single Pack T568A/B
AX102278 TIA Purple
AX102274 TIA Red
AX102275 TIA Yellow
AX102271 White
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Single Pack T568A/B
Product Notes
Included Parts:
1 X-Bar + 1 Dust Cap
