ACOL1-FREQ-E-S-A-Q25-TY datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ACOL1-FREQ-E-S-A-Q25-TY

ACOL1-FREQ-E-S-A-Q25-TY: DescriptionCRYSTAL OSCILLATOR, CLOCK, 1 MHz - 85 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, DIP-14/4; CategoryPassive components oscillator; File Size549KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ACOL1-FREQ-E-S-A-Q25-TY Overview

CRYSTAL OSCILLATOR, CLOCK, 1 MHz - 85 MHz, HCMOS/TTL OUTPUT, ROHS COMPLIANT, DIP-14/4

ACOL1-FREQ-E-S-A-Q25-TY Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION; TRAY
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ACOL1
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	85 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	HCMOS/TTL
Output load	5 TTL, 15 pF
physical size	20.2mm x 12.6mm x 5.08mm
longest rise time	10 ns
Maximum supply voltage	2.75 V
Minimum supply voltage	2.25 V
Nominal supply voltage	2.5 V
surface mount	NO
maximum symmetry	45/55 %
Terminal surface	NOT SPECIFIED

Preview

Download Datasheet

View All

FULL SIZE DIP LOW VOLTAGE 2.5V

CRYSTAL CLOCK OSCILLATOR

ACOL1 Series

RoHS

Compliant

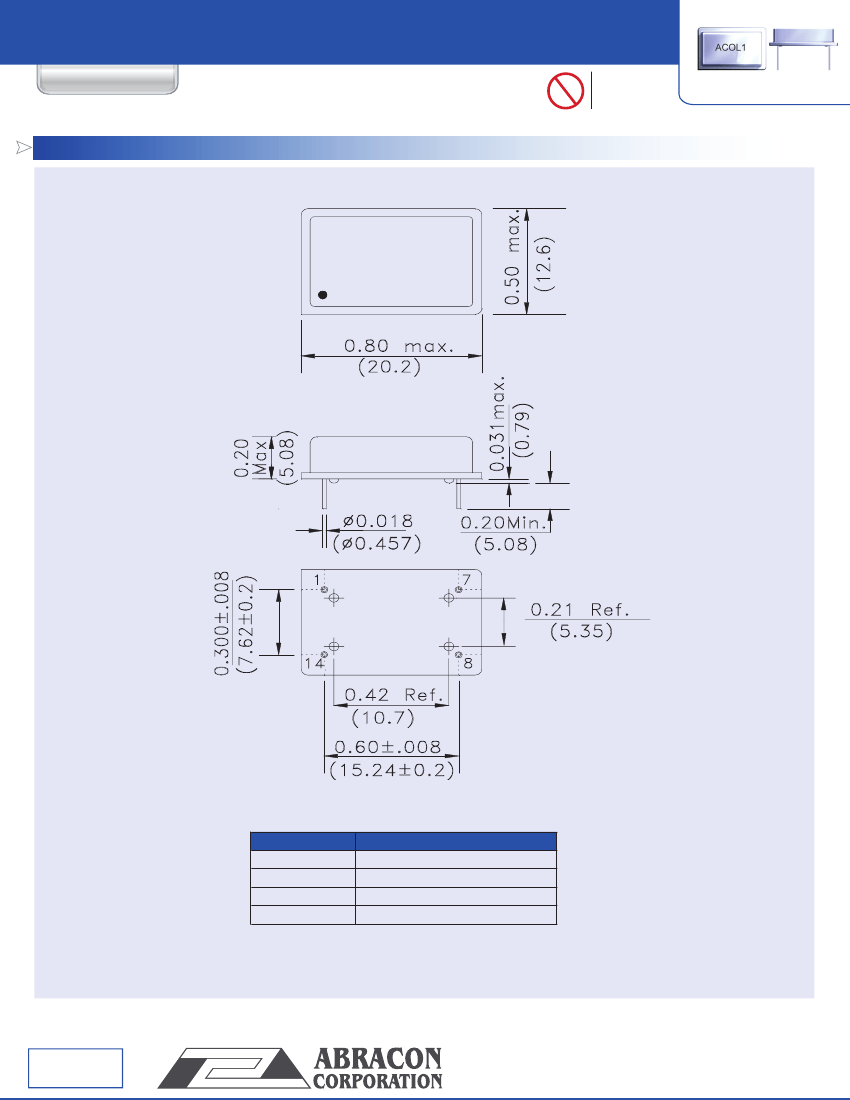

20.2 x 12.6 x 5.08 mm

| | | | | | | | | | | | | | |

FEATURES:

• Tristate Enable/Disable option.

• Low supply voltage.

• HCMOS and TTL compatible.

• Tight symmetry option.

APPLICATIONS:

• Clock signal sources for digital chips and microprocessors.

• Low power applications.

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency:

Operating temperature:

Storage temperature:

Frequency Stability:

Supply voltage (Vdd):

Symmetry:

Rise and Fall Times(Tr/Tf):

Output load:

Output Voltage:

Tri State Function ( option A):

Start-up-time:

Oput Disable/ Enable time:

Input current:

ACOL1 Series

1.00MHz to 85.0 MHz

0°C to + 70°C (see options)

- 55°C to + 125°C

± 100ppm max. (see option)

2.5Vdc ± 10%

40/60% max. (see options)

10 ns max.

5 TTL or 15 pF

VOH = 0.9*Vdd min.

VOL = 0.1*Vdd max.

"1" (VIH >= 1.8 Vdc) or open: Oscillation

"0" (VIL < 0.4V): Hi Z

10 ms max

100 ns max. (for Option "-A" ONLY)

15 mA max.

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ACOL1 - Frequency -

- -

Temperature Options

-10°C to +60°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Symmetry Options

45/55%@1/2Vdd

Packaging

Tray

Tristate Enable Funct

Tristate Function

Freq. Stability

±25 ppm max.

±30 ppm max.

±35 ppm max.

±50 ppm max.

Value Added Option

Gull Wing

Q30

0.30(7.62)

Q25

0.25(6.35)

Q20

0.20(5.08)

Q15

0.15(3.81)

Q10

0.10(2.54)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 12.05.08

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
