5.0 V, HCMOS/ TTL, J LEADED, PLASTIC MOLDED
PROGRAMMABLE CLOCK OSCILLATOR
ASMP SERIES
FEATURES:
• Industry standard J-Leaded terminals. • HCMOS output.
• Plastic molded SMD, Reflow capable. • 5.0 Vdc operation.
• Extended temperature
• Low current consumption.
-40°C to +85°C option.
• Tri-state Enable/Disable.
Pb
RoHS
Compliant
14.0 x 8.95 x 4.7 mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Provide clock signals for microprocessors
and digital circuits.
• Communication equipment, AV and OA equipment
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency range:
Operating temperature:
Storage temperature:
Overall frequency stability:
Supply voltage (Vdd):
Input current:
Symmetry at 1/2VDD:
ASMP Series
1.000MHz ~ 125.000MHz
-20° C to +70° C (see options)
- 55° C to + 125° C
± 100 ppm max. (see options)
5.0Vdc ± 10%
45 mA max.
45/55 % max.
4 ns max. @ 20% to 80% of waveform
15pF max.
VOH = 0.7*Vdd min.
VOL = 0.2*Vdd max.
10 ms max.
"1" (VIH >= 0.7* Vdd) or open: Oscillation
"0" (VIL < 0.2* Vdd) : Hi Z
20µA max.
± 250ps max. for F< 33MHz, ±100ps typ.
± 125ps max. for F>33MHz, ±75ps typ.
± 50ps max. for F< 33MHz, ± 30ps typ.
± 30ps max. for F>33MHz, ± 20ps typ.
Rise and fall time (Tr/Tf):
Output load:
Output voltage:
Start-up time:
Tri-state function:
Disabled current (Stand-by):
Jitter (Peak to Peak):
Jitter (RMS):
Aging:
±5ppm/year maximum
OPTIONS AND PART IDENTIFICATION
(Left blank if standard)
ASMP-Frequency -
-
-
Packaging
Bulk
Blank
T
Tape and Reel
Temp. Range
F
-30°C to +70°C
N
-30°C to +85°C
-40°C to +85°C
L
Frequency Stability
Over Operating Temp.
Blank
± 100 ppm
R
± 25 ppm*
C
± 50 ppm
(*) Contact ABRACON for availability.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.10.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
5.0 V, HCMOS/ TTL, J LEADED, PLASTIC MOLDED
PROGRAMMABLE CLOCK OSCILLATOR
ASMP SERIES

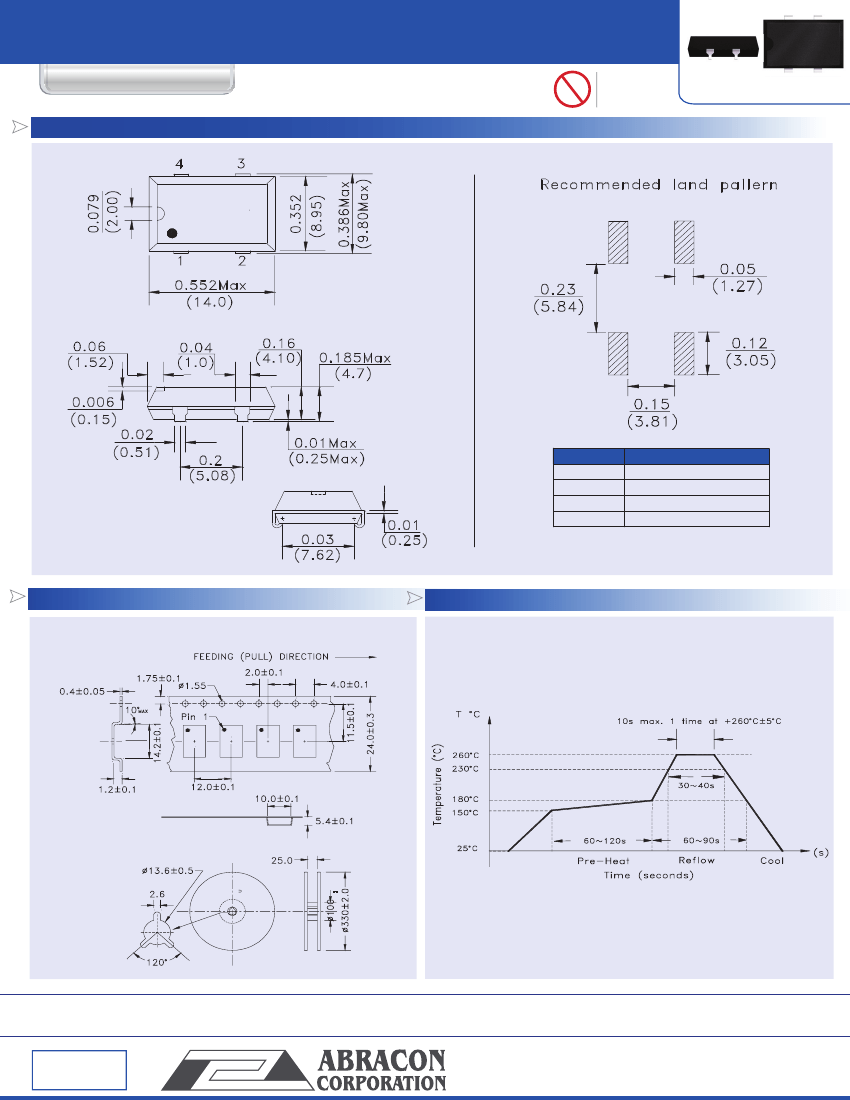

OUTLINE DRAWING:
Pb
RoHS
Compliant
14.0 x 8.95 x 4.7 mm
| | | | | | | | | | | | | | |
PIN
1
2
3
4
Dimension : Inch (mm)
FUNCTION
Tristate
GND/Case
Output
Vdd
Note: Recommend using an approximately
0.01uF bypass capacitor between pin 2 and 4.
TAPE AND REEL:
T= tape and reel (1,000pcs/reel)
Packaging for over 1,000pcs order programmed by the factory
REFLOW PROFILE:
Dimension :
mm
NOTE:
Abracon manufactured products are intended for general commercial and industrial use. For applications requiring
high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.10.09
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
