32.768KHz VOLTAGE CONTROLLED TEMPERATURE
COMPENSATED CRYSTAL OSCILLATOR
ASVTX-H08K
*RoHS COMPLIANT
APPLICATIONS:
•
Test Equipment
• Cellular Base Station & GPS Navigation System
• Mobile communication equipment.
7.0 x 5.0 x 2.5mm
| | | | | | | | | | | | | | |
FEATURES:
• Compact and low
in height.
• 0.01uF decoupling capacitor built-in
• Wide frequency range; frequency stability
STANDARD SPECIFICATIONS:
PARAMETERS
Frequency Range
Operating Temperature
Storage Temperature
Frequency Tolerance @ 25°C
Frequency Stability vs. Temp.
Frequency Stability vs. Aging
Frequency Stability vs. Supply Voltage
Frequency Stability vs. Load ±10%
Frequency Stability vs. Reflow
Supply Voltage
Pullability
Output Voltage Level
Output Load
Linearity
Transfer Function
Phase Noise @ 25°C
32.768KHz
- 30° C to + 75° C (See Table 1 for options)
- 50° C to + 100° C
± 3.0 ppm
± 2.5 ppm standard (See Table 1 for options)
± 1 ppm / 1st year
± 0.3 ppm (±5% change)
± 0.3 ppm (±10% change)
± 1 ppm max. 1 reflow and measured 24 hours afterwards
3.0V Standard (See Table 2 for options)
± 5ppm ~ 12ppm with Vcon = +1.5V ± 1.0V(see note)
3.0V : “Logic 1” 2.7V min, “Logic 2” 0.3V max.
15pF
10% max
Positive
-65dBc/Hz @ 10Hz offset.
-100dBc/Hz @ 100Hz offset
-130dBc/Hz @ 1KHz offset
-150dBc/Hz @ 10KHz offset
-150dBc/Hz @ 100kHz offset
3.5mA typ @ +3.3V / 7mA typ. @ +5.0V
20% to 80% waveform: 3nS typ.
40/60%max @ 1/2V
DD
(see option)
2msec typ.
HCMOS
Current Consumption
Rise and Fall Time
Duty Cycle (Symmetry)
Start-up Time
Output Wave Form
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
32.768KHz VOLTAGE CONTROLLED TEMPERATURE
COMPENSATED CRYSTAL OSCILLATOR
ASVTX-H08K
*RoHS COMPLIANT
7.0 x 5.0 x 2.5mm
| | | | | | | | | | | | | | |
OPTIONS & PART IDENTIFICATION:
ASVTX-H08K - 32.768KHz - Voltage - Temperature & Freq Stability - Symmetry - Packaging
Voltage option:
Blank for 3.0V
A
for 2.8V
B
for 3.3V
C
for 5V
Temp & Stability option:
See Table 1
Symmetry option:
S
for 45/55% @1/2Vdd
Packaging option:
T
for Tape and Reel
Note:
+2.8V, +3.0V, +3.3V and +5.0V units all have Vcon= +1.5V±1.0V

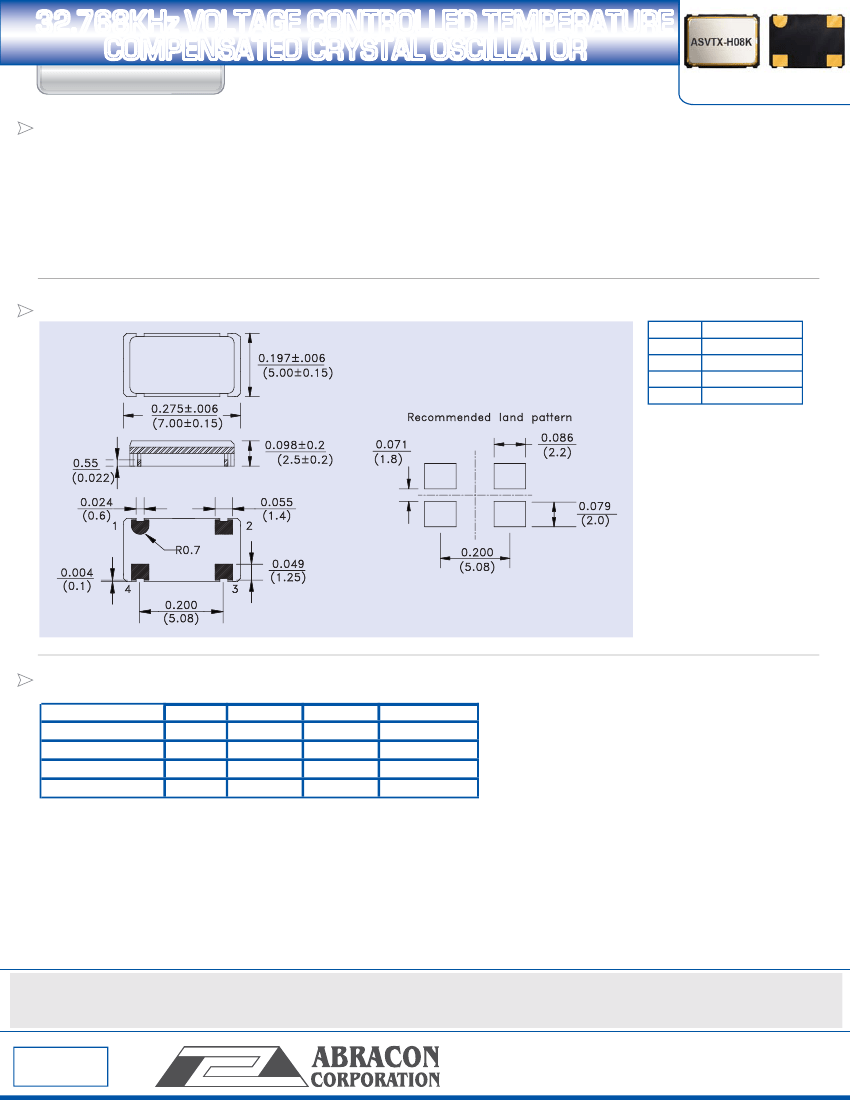

OUTLINE DRAWING:
PIN NO. CONNECTIONS
1
Vc
2
Ground
3
Output
4
VCC
Dimensions: inch (mm)
TABLE 1:
±1ppm
-10°C to 60°C
-20°C to +70°C
-30°C to 75°C
-40°C to 85°C
D10
E10
F10
±1.5ppm
D15
E15
F15
G15
±2.0ppm
D20
E20
F20
G20
±2.5ppm
D25
E25
F25
G25
< Standard
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applications. Abracon’s products are not
specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where component failure could result in loss of life and/or property. For
applications requiring high reliability and/or presenting an extreme operating environment, written consent and authorization from Abracon Corporation is required. Please contact Abracon Corporation for
more information.
ABRACON IS
ISO 9001:2008
ISO 9001 / QS 9000
CERTIFIED
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
