ODU FlakaFix
Number codes
Explanation of number codes for ODU FLAKAFIX, Series 511
A
B
C
D
E
F
.
No.
Meaning
Coding
.
.
.
A
Series
B
Type
C
Material property
D
E
Surface plating
Number of contacts
F
Packaging
511
= Pin header
THT and THR models:
Latch headers
060
= Straight assembly, without latch
061
= Straight assembly, with latch, short
062
= Straight assembly, with latch, long
260
= Angled assembly, without latch
261
= Angled assembly, with latch, short
262
= Angled assembly, with latch, long
Low profile headers
066
= Straight assembly
266
= Angled assembly
Pin headers without plug-in frame
030
= Straight assembly, insulator 6.04 / 2.8 mm
032
= Straight assembly, insulator 5.08 / 2.8 mm
270
= Angled assembly
SMT models:
Latch headers
150
= Straight assembly, without latch
151
= Straight assembly, with latch, short
152
= Straight assembly, with latch, long
110
= Angled assembly, without latch
111
= Angled assembly, with latch, short
112
= Angled assembly, with latch, long
Low profile headers
068
= Straight assembly
Pin headers without plug-in frame
301
= Angled assembly
302
= Straight assembly
0
= Standard
8
= High-temperature resistant insulator for
SMT and THR termination
03
= In mating area 0.5 μm Au on Ni,
in termination area 2.0 μ Sn on Ni (standard)
09
= Flash-gold-plated (upon request)
35
= In mating area 0.75 μm Au on Ni, in
termination area 2.0 μ Sn on Ni (upon request)
010
= 10 contacts (example)
000
= Cardboard box for pin headers without
plug-in frame (standard)
010
= Cardboard box for lever and low profile
headers (standard)
050
= Tape-and-reel for SMT models (upon request)
070
= Tray for SMT models (upon request)
Ordering example for Series 511
A
B
C
D
E
F
5 1
1
.
0 6 0
.
0 0 3
.
0 1 0
.
0 1 0
A=
B=
C=
D=
E=
F=
Series: 511 Pin header
Model: straight assembly, without latch
High temperature resistance: standard
Surface plating: in mating area 0.5 μm Au on Ni, in termination area 2.0 μm Sn on Ni (standard)
Number of contacts: 10
Packaging: Standard for latch and low profile headers
Page 14
www.odu.de
ODU FlakaFix
SMT low profile header, Series 511
Straight, space-saving design
SMT models
Features
– Pitch 2.54 × 2.54 mm
– 2-row design
– Closed, space-saving style
– Central polarisation
– Solder pin in SMT design
– 10 to 64 contacts
– With solder sleeve
Technical data
Electrical specification
Contact load:
Test voltage:
≤5A
1,000 V eff.
Mechanical specification
Operating temperature: -55 °C to +125 °C
SMT solder temperature: (max. 30 s)
on the solder point
260 °C
93 % rel. humidity in
Humidity level:
accordance with
DIN EN 60603-13
Material and surface plating
Contact surface
Mating area:
0.5 μm Au on 1.25 μm Ni /
MIL-G-45 204 Class 00
Termination area:
2.0 μm Sn on 1.25 μm Ni
Insulator material:
LCP black
Combustibility according to
UL94 V-0
Copper alloy
Contact material:
Solder sleeve

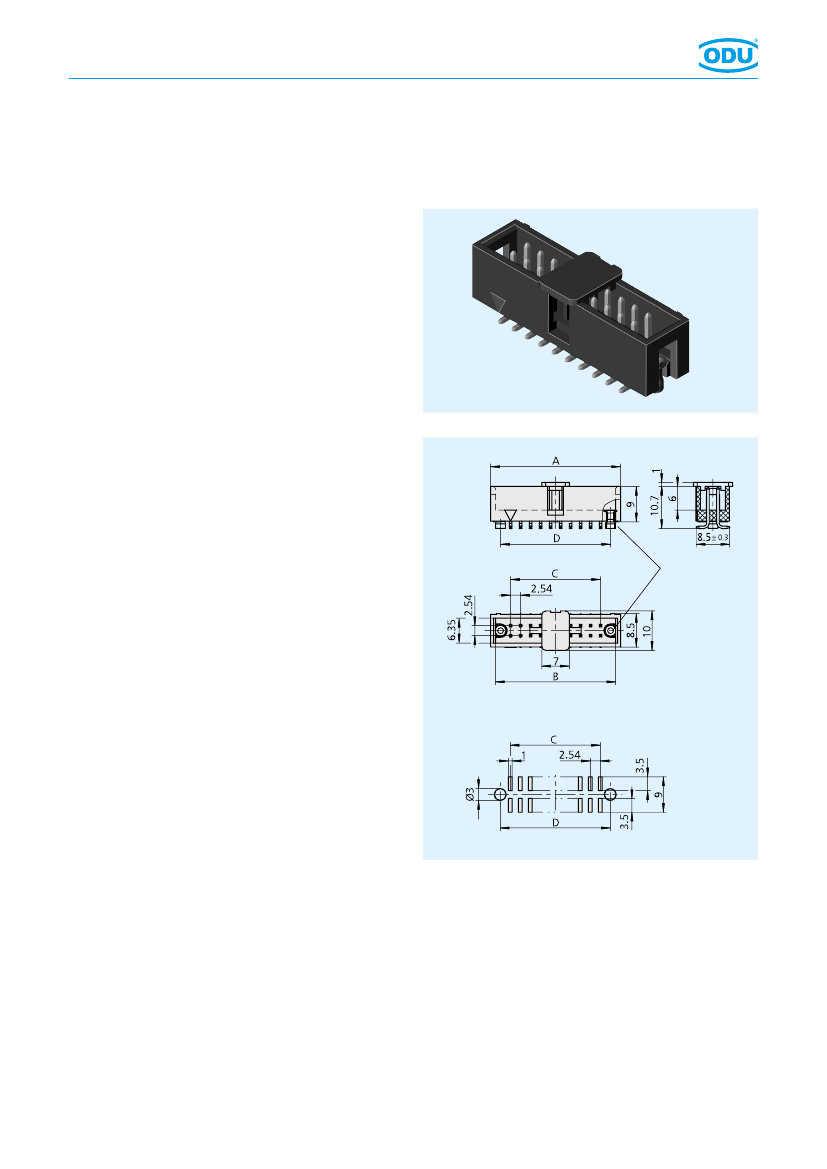

PCB layout
www.odu.de
Page 31
ODU FlakaFix
SMT low profile header, Series 511
Straight, space-saving design
SMT models
Order information and dimensional table
(All dimensions are in mm)
Number
of
contacts
10
14
16
20
26
34
40
50
60
64
1)
Part number
1)
Dimen- Dimen- Dimen- Dimen-
sion
sion
sion
sion
A
B
C
D
20.30
25.40
27.90
33.00
40.60
50.80
58.40
71.10
83.80
88.88
17.8
22.9
25.4
30.5
38.1
48.3
55.8
68.6
81.3
86.4
10.16
15.24
17.78
22.86
30.48
40.64
48.26
60.96
73.66
78.74
15.24
20.32
22.86
27.94
35.56
45.72
53.34
66.04
78.74
83.82
511.068.803.010.010
511.068.803.014.010
511.068.803.016.010
511.068.803.020.010
511.068.803.026.010
511.068.803.034.010
511.068.803.040.010
511.068.803.050.010
511.068.803.060.010
511.068.803.064.010
For _ please enter the required surface plating (in the middle block of the part number)
or the required packaging (last block of the part number):
Surface plating (middle block):
03 = 0.5 µm Au on Ni (standard)
09 = Flash-gold-plated (upon request)
35 = 0.75 μm Au on Ni (upon request)
Packaging (last block):
010 = Cardboard box (standard)
050 = Tape-and-reel (upon request)
070 = Tray (upon request)
Number codes, see page 14.
